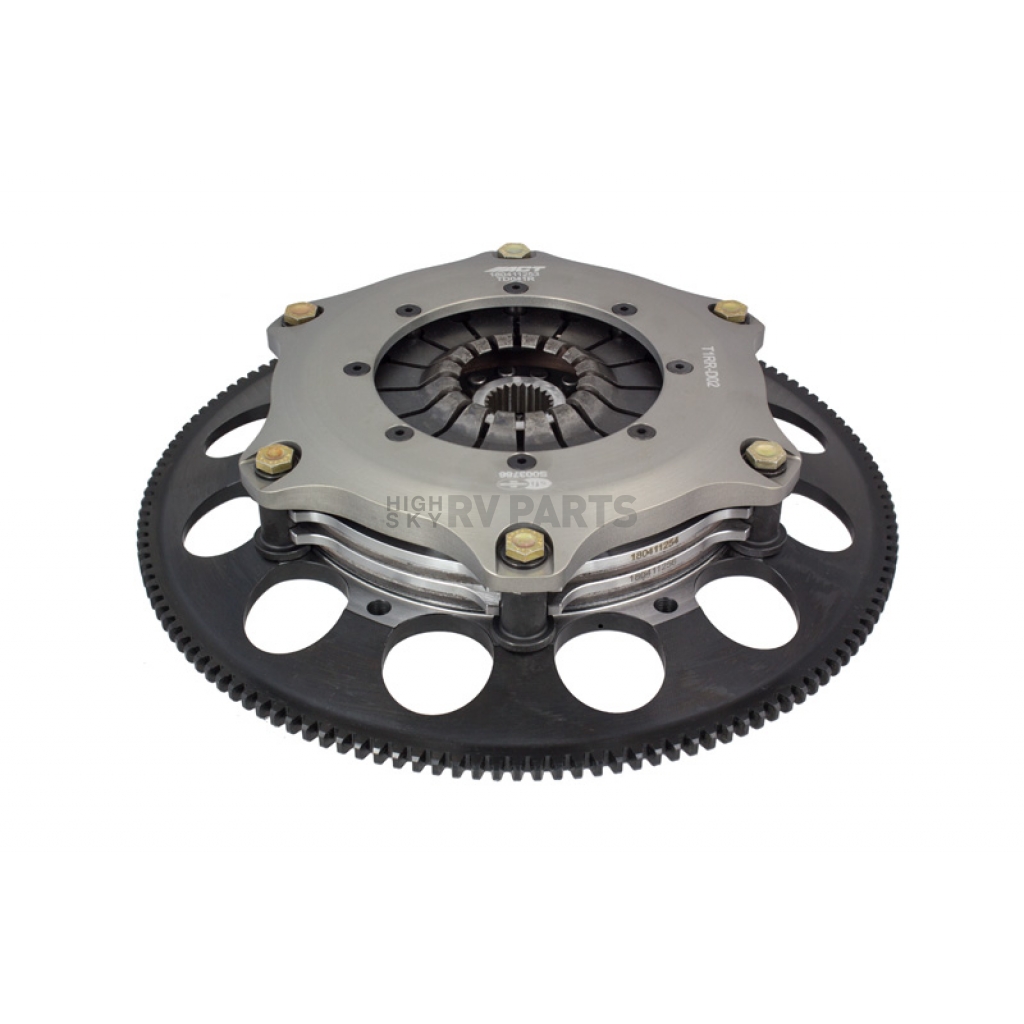

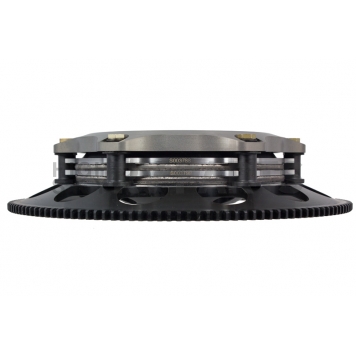

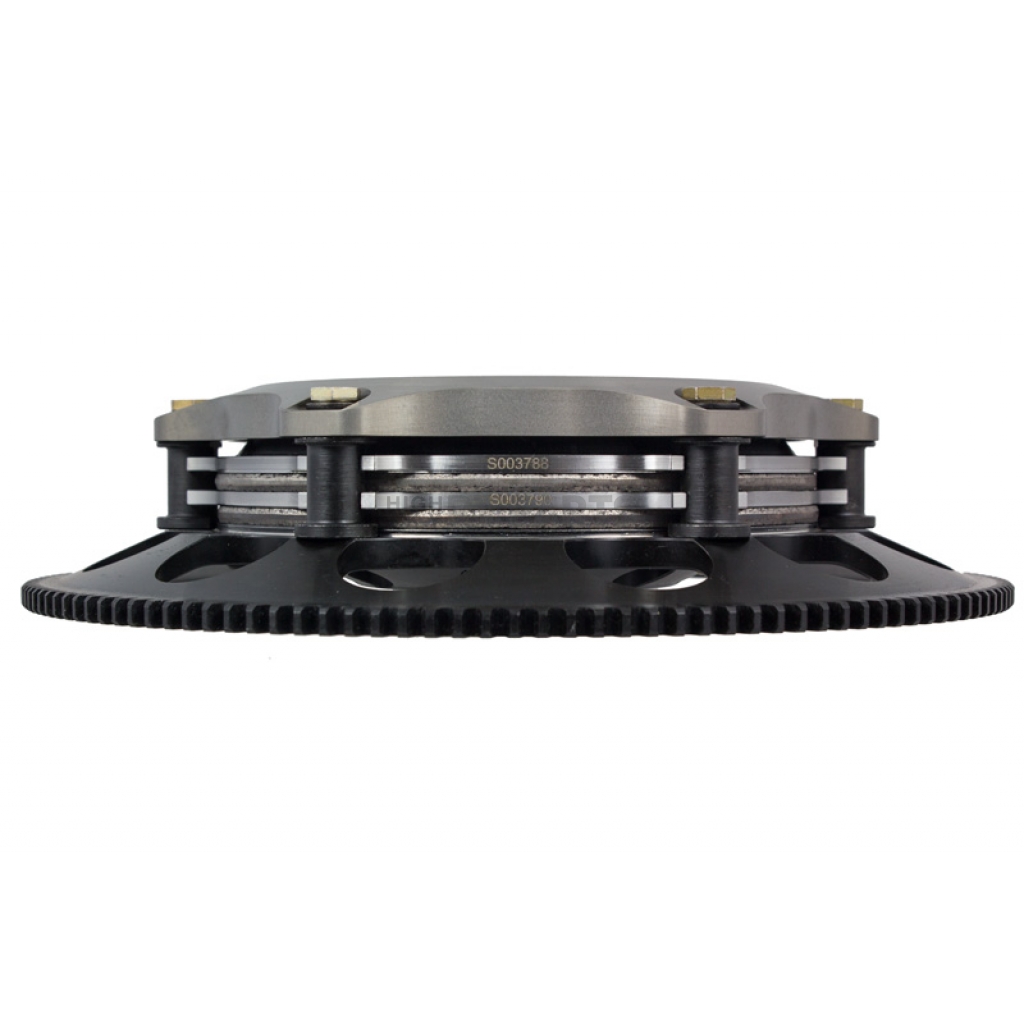

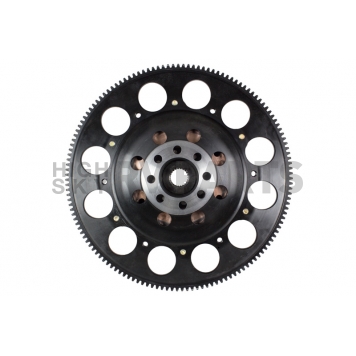

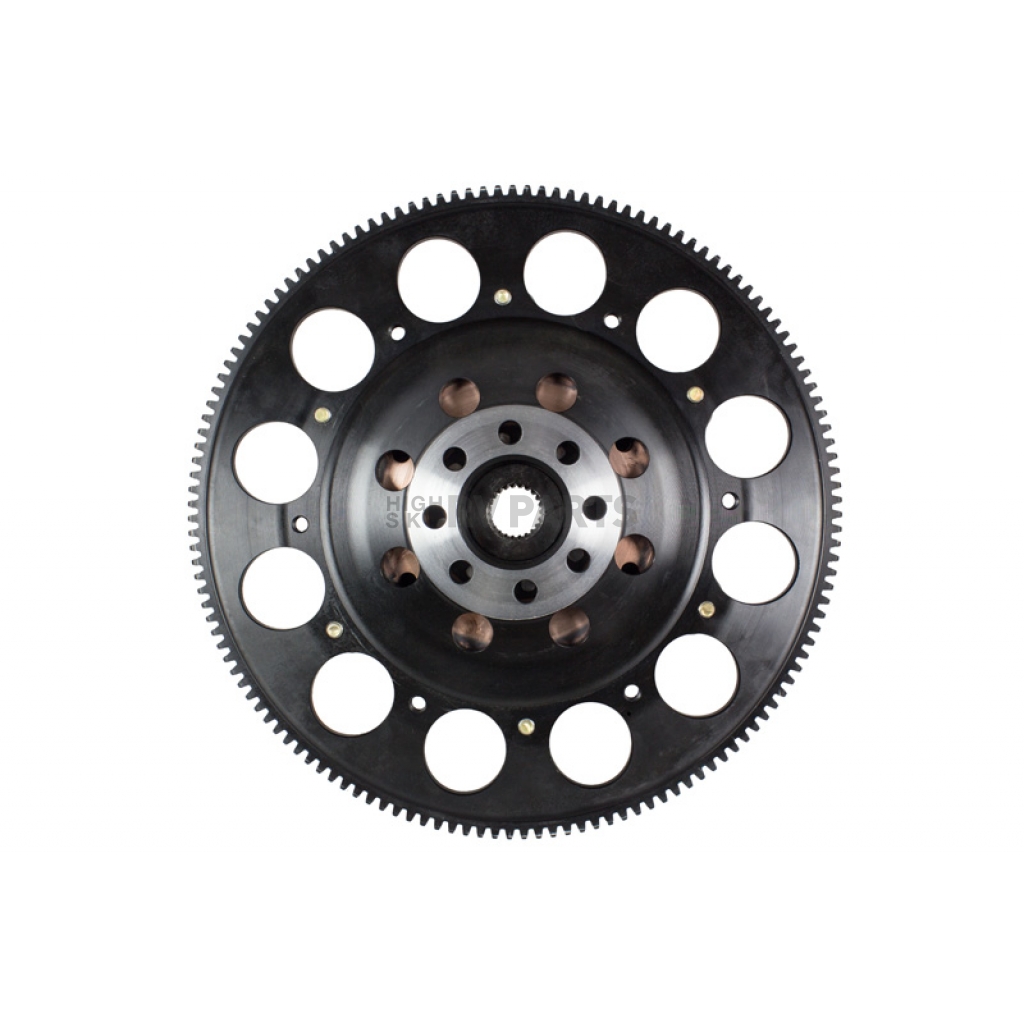

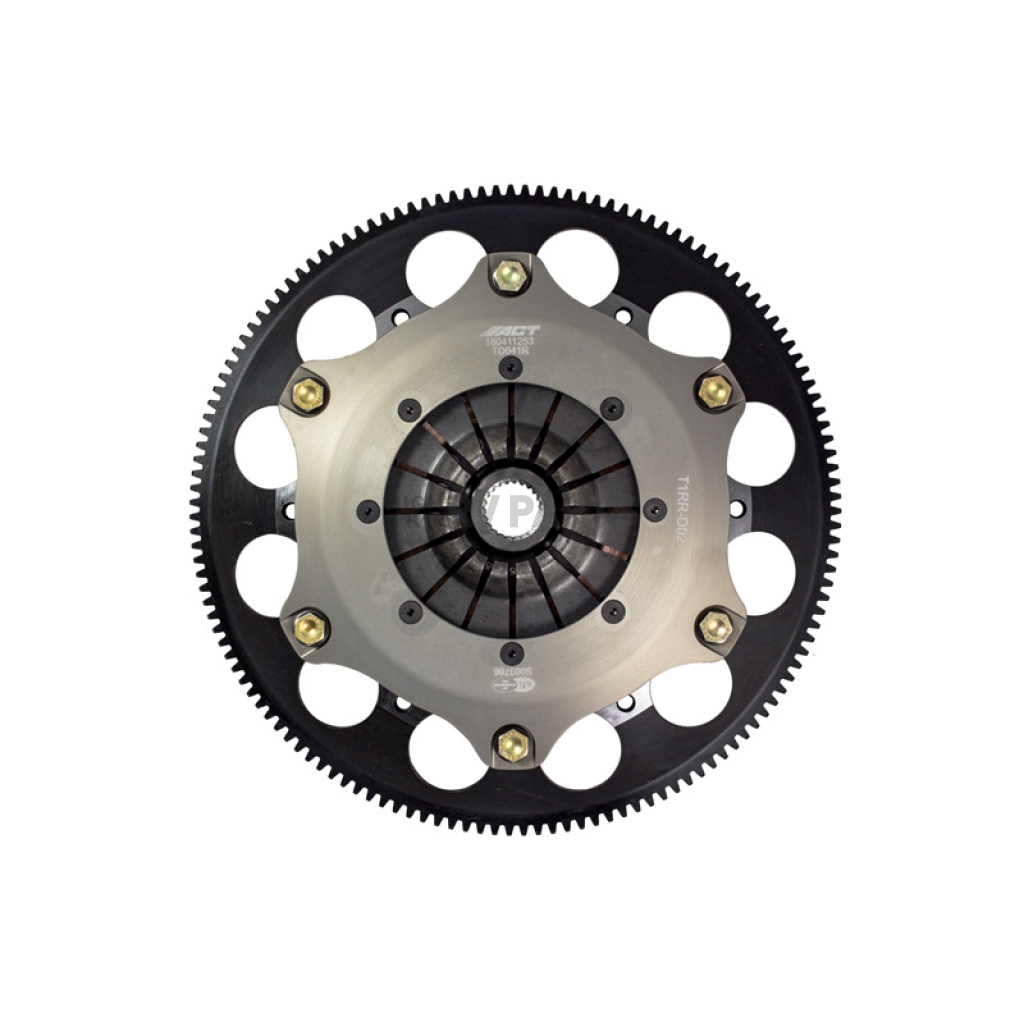

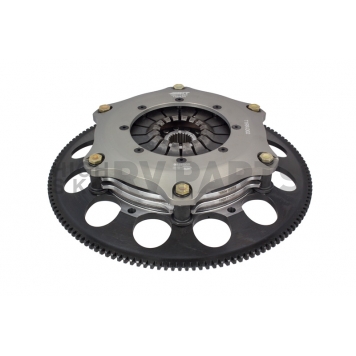

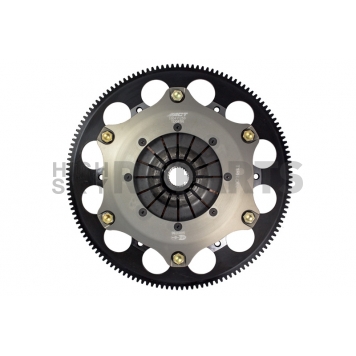

Advanced Clutch Set Diaphragm Solid 6 Paddle - T1RR-D02

Clutch Set; Twin Race; 7-1/4 Inch Clutch Diameter; 15/16 Inch x 17 Spline Input Shaft; Diaphragm; Dual Disc/ Organic Friction Material; 6 Paddle Design/ Solid Hub; With Throwout Bearing And Alignment Tool

MPN: T1RR-D02

The ACT Race twin disc kit is a true, bolt-in kit with no modifications needed. The Race twin disc kit features sintered iron discs for maximum holding capacity and quick shifting. ACT Race twin disc kits meet SFI Specification 1.2 and are legal in all racing organizations that require SFI certification. ACT twin disc kits offer twice the number of disc surfaces for better wear, heat capacity and long life compared to single disc kits. These kits use a proprietary Positive Lift Floater System design, which results in quiet operation with no floater rattle and no posts to wear. With an ACT twin disc, there also is the ability to adjust for compensation of disc wear and provides equal disengagement for discs. All ACT twin disc kits include a CNC-machined and dynamically balanced flywheel to ensure trouble-free installation and operation. Exclusive four-stage, heat treating process performed on all diaphragms. ACT’s sintered iron race discs offer the highest torque capacity of ACT race discs and have ultra-high heat capacity. Sintered iron discs are recommended for cars using clutchless shifting or drag racing transmissions. ACT sintered iron race discs feature top grade rivets to securely fasten the part together. The rivet design and rivet materials are carefully selected for maximum strength. ACT sintered iron discs are extremely durable and heavy, and have very harsh engagement. All ACT race discs are certified as meeting SFI Specification 1.1 and are legal in all racing organizations that require SFI certification.

Features

• Solid Disc Provides Faster Shifting And High Burst Strength. Three Different Disc Combinations Are Available For Various Power Levels
• Up To Three Different Pressure Plate Clamp Load Designs Offering Light, Moderate And Firm Pedal Efforts For High Torque Applications
• The ACT Proprietary Positive Lift Floater System Design Results In Quiet Operation With No Floater Rattle And Posts To Wear
• Ability To Adjust For Compensation Of Disc Wear And Provides Equal Disengagement For Discs
• Features Sintered Iron Discs Offering The Highest Torque Capacity And Recommended For Cars Using Clutchless Shifting Or Drag Racing Transmissions
• All ACT Twin Disc Kit Includes CNC Machined And Dynamically Balanced Flywheel To Ensure Both Trouble Free Installation And Operation
• True Bolt-In Kit With No Modifications Needed
• Limited 1 Year Warranty
