Advanced Clutch Set Heavy Duty Rigid Dual 6 Paddle - T1R-G09
Disc Diameter
10-1/2 Inch
Disc Friction Face Design
Dual 6 Paddle
Disc Friction Material
Ceramic
Disc Hub Design
Rigid
Flywheel Tooth Count
168
Includes Alignment Tool
Yes
Includes Pilot Bearing
No
Includes Throwout Bearing
No
Input Shaft Size
1-1/8 Inch X 26 Spline
Number Of Friction Discs
2 Disc
Pressure Plate Design
Heavy Duty
Share this page

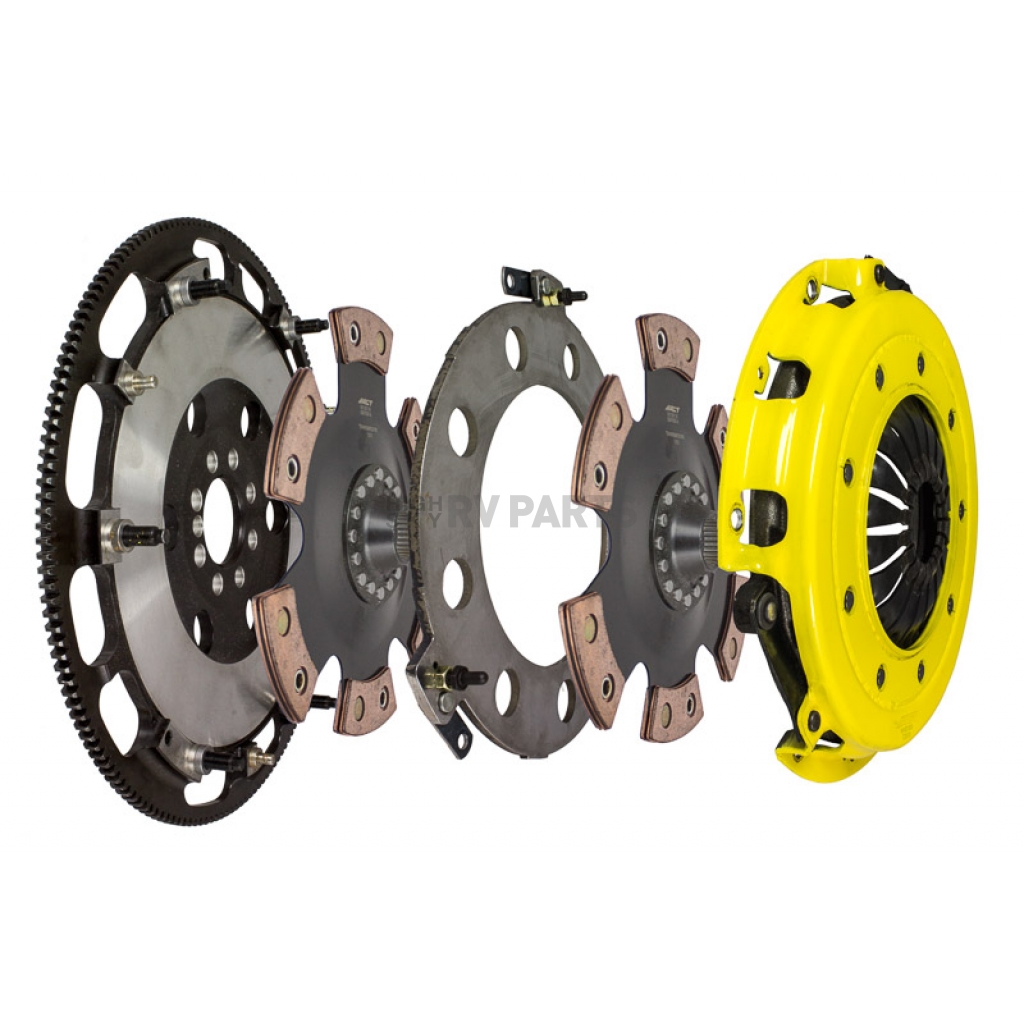

Clutch Set; Heavy Duty/ Race; 10-1/2 Inch Clutch Diameter; 1-1/8 Inch x 26 Spline Input Shaft; Diaphragm; 1140 Foot Pound Torque Capacity; Dual Disc/ Ceramic Friction Material; 6 Paddle Design/ Rigid Hub; 168 Tooth Flywheel; With Clutch Disc/ Pressure Plate/ Flywheel/ Floater/ Alignment Tool
MPN: T1R-G09
Twin disc kit offers twice the number of disc surfaces for better wear, heat capacity and long life compared to single disc kits. These kits use a proprietary Positive Lift Floater System design, which results in quiet operation with no floater rattle and no posts to wear. ACT twin disc kits endure an exclusive four-stage, heat treating process performed on all diaphragms. The ACT twin disc features the ability to adjust for disc wear and provides equal disengagement for discs. ACT's 6-pad rigid race discs are made with high quality, ceramic friction materials. The chrome-moly hub is heat-treated for strength and durability. The lightweight, rigid design allows for quicker shifts and trouble-free service.Pressure Plate Design: Heavy Duty
Input Shaft Size: 1-1/8 Inch X 26 Spline
Number Of Friction Discs: 2 Disc
Disc Friction Material: Ceramic
Disc Diameter: 10-1/2 Inch
Disc Hub Design: Rigid
Flywheel Tooth Count: 168
Includes Throwout Bearing: No
Includes Pilot Bearing: No
Disc Friction Face Design: Dual 6 Paddle
Torque Holding Capacity: 1140 Feet/Pound
Includes Alignment Tool: Yes
Features
- Light Pedal Effort, Quicker Shifts, Aggressive Engagement, Mild To Moderate Gear Rattle
- Doubles The Number Of Disc Surfaces For Better Wear, Heat Capacity And Longer Life, Extended By ACT's Exclusive Diaphragm Design
- Quality: Carefully Engineered, Precisely Assembled, Accurately Balanced, Uses Select Ceramic Friction Materials For High Heat Tolerance And Maximum Performance
- 100 Percent Clamp Load Tested And Dynamically Computer Balanced For Smooth High RPM Reliability
- The Chrome-Moly Hub Is Heat-Treated For Strength And Durability
- Recommended For Race Use Only
- Limited 1 Year Warranty
| Specifications of Advanced Clutch Set Heavy Duty Rigid Dual 6 Paddle - T1R-G09 | |
| Disc Diameter | 10-1/2 Inch |
| Disc Friction Face Design | Dual 6 Paddle |
| Disc Friction Material | Ceramic |
| Disc Hub Design | Rigid |
| Flywheel Tooth Count | 168 |
| Includes Alignment Tool | Yes |
| Includes Pilot Bearing | No |
| Includes Throwout Bearing | No |
| Input Shaft Size | 1-1/8 Inch X 26 Spline |
| Number Of Friction Discs | 2 Disc |
| Pressure Plate Design | Heavy Duty |
| Torque Holding Capacity | 1140 Feet/Pound |
2016 Chevrolet Camaro
2017 Chevrolet Camaro
2018 Chevrolet Camaro
2019 Chevrolet Camaro
2020 Chevrolet Camaro
2021 Chevrolet Camaro
2022 Chevrolet Camaro
2023 Chevrolet Camaro
2017 Chevrolet Camaro
2018 Chevrolet Camaro
2019 Chevrolet Camaro
2020 Chevrolet Camaro
2021 Chevrolet Camaro
2022 Chevrolet Camaro
2023 Chevrolet Camaro
