Advanced Clutch Set Diaphragm Unsprung 6 Paddle - T1R-G05

Authorized Dealer
Brand: Advanced Clutch Advanced Clutch
0 reviews
  • Have a product question? Ask us
  • Part Number: T1R-G05
  • Part Location: U.S.
  • Availability: *Special Order
  • Delivery: Up to 2 Weeks
  • If purchased before 12:00 EDT - estimated delivery by July 18
Retail: $1,648.49
Price: $1,569.99
You Save: $78.50
Disc Diameter
 10-1/2 Inch
Disc Friction Face Design
 6 Paddle
Disc Friction Material
 Organic
Disc Hub Design
 Unsprung
Includes Alignment Tool
 Yes
Includes Throwout Bearing
 Yes
Input Shaft Size
 1-1/8 Inch X 26 Spline
Number Of Friction Discs
 2 Disc
Pressure Plate Design
 Diaphragm
Pressure Plate Material
 Steel
Torque Holding Capacity
 1120 Feet/Pound
Share this page

Clutch Set; Twin Race; 10-1/2 Inch Clutch Diameter; 1-1/8 Inch x 26 Spline Input Shaft; Diaphragm; Steel Pressure Plate; Dual Disc/ Organic Friction Material; 6 Paddle Design/ Solid Hub; With Throwout Bearing And Alignment Tool

MPN: T1R-G05

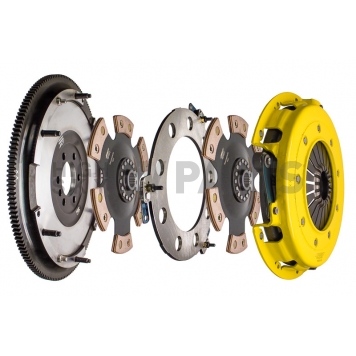

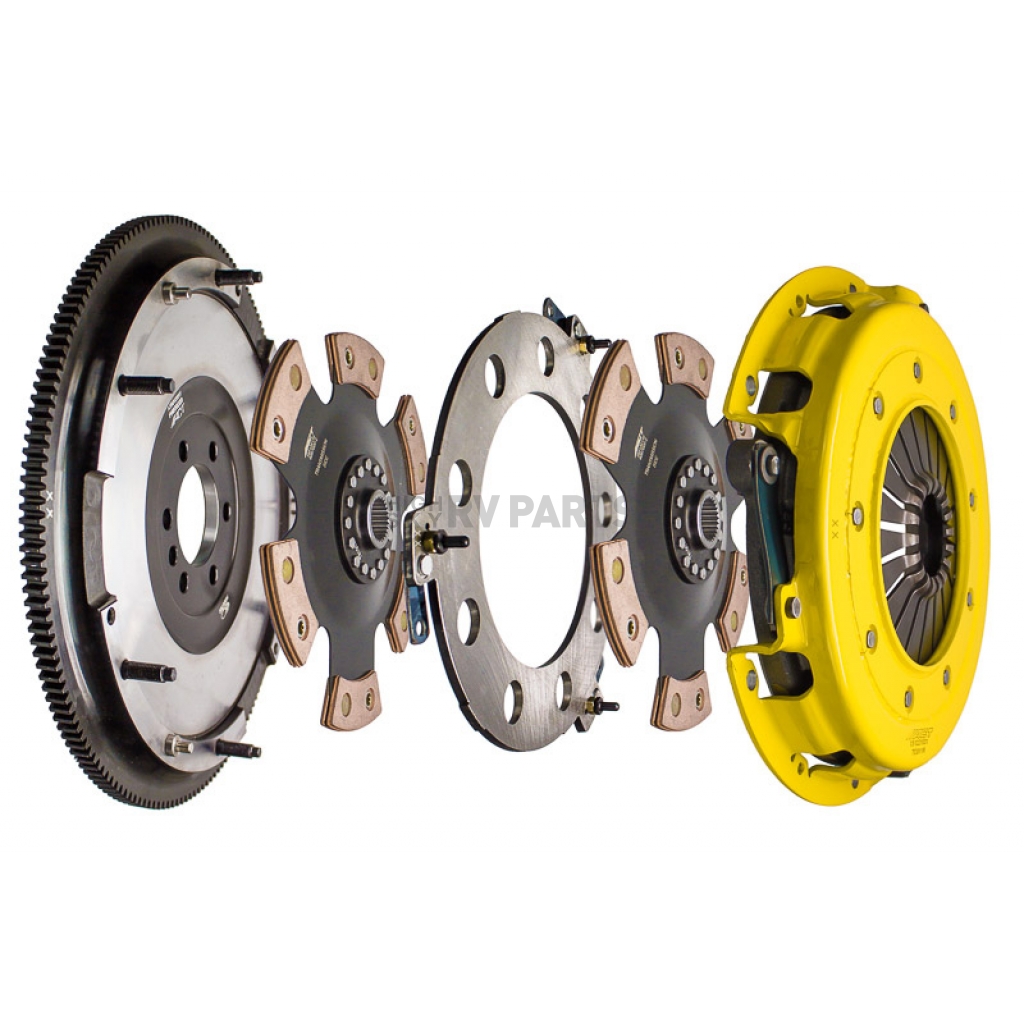

Twin disc kit offers twice the number of disc surfaces for better wear, heat capacity and long life compared to single disc kits. These kits use a proprietary Positive Lift Floater System design, which results in quiet operation with no floater rattle and no posts to wear. ACT twin disc kits endure an exclusive four-stage, heat treating process performed on all diaphragms. The ACT twin disc features the ability to adjust for disc wear and provides equal disengagement for discs. ACT's 6-pad rigid race discs are made with high quality, ceramic friction materials. The chrome-moly hub is heat-treated for strength and durability. The lightweight, rigid design allows for quicker shifts and trouble-free service. All ACT twin disc kits include a CNC-machined and dynamically balanced flywheel to ensure trouble-free installation and operation. ACT twin disc kits include a pressure plate, two discs, a floater, flywheel and alignment tool. Some kits may include a pilot bearing and release bearing.

Pressure Plate Design: Diaphragm
Input Shaft Size: 1-1/8 Inch X 26 Spline
Number Of Friction Discs: 2 Disc
Disc Friction Material: Organic
Disc Diameter: 10-1/2 Inch
Disc Hub Design: Unsprung
Pressure Plate Material: Steel
Includes Throwout Bearing: Yes
Disc Friction Face Design: 6 Paddle
Torque Holding Capacity: 1120 Feet/Pound
Includes Alignment Tool: Yes

Features

  • Kit Offers Twice The Number Of Disc Surfaces For Better Wear, Heat Capacity And Long Life Compared To Single Disc Kits
  • Kits Use A Proprietary Positive Lift Floater System Design, Which Results In Quiet Operation With No Floater Rattle And No Posts To Wear
  • Twin Disc Features The Ability To Adjust For Disc Wear And Provides Equal Disengagement For Discs
  • Lightweight, Rigid Design Allows For Quicker Shifts And Trouble-Free Service
  • CNC-Machined And Dynamically Balanced Flywheel To Ensure Trouble-Free Installation And Operation
  • Limited 1 Year Warranty
Specifications of Advanced Clutch Set Diaphragm Unsprung 6 Paddle - T1R-G05
Disc Diameter  10-1/2 Inch
Disc Friction Face Design  6 Paddle
Disc Friction Material  Organic
Disc Hub Design  Unsprung
Includes Alignment Tool  Yes
Includes Throwout Bearing  Yes
Input Shaft Size  1-1/8 Inch X 26 Spline
Number Of Friction Discs  2 Disc
Pressure Plate Design  Diaphragm
Pressure Plate Material  Steel
Torque Holding Capacity  1120 Feet/Pound

1998 Chevrolet Camaro
1999 Chevrolet Camaro
2000 Chevrolet Camaro
2001 Chevrolet Camaro
2002 Chevrolet Camaro

2010 Chevrolet Camaro
2011 Chevrolet Camaro
2012 Chevrolet Camaro
2013 Chevrolet Camaro
2014 Chevrolet Camaro

1997 Chevrolet Corvette
1998 Chevrolet Corvette
1999 Chevrolet Corvette
2000 Chevrolet Corvette
2001 Chevrolet Corvette
2002 Chevrolet Corvette
2003 Chevrolet Corvette
2004 Chevrolet Corvette
2005 Chevrolet Corvette
2006 Chevrolet Corvette
2007 Chevrolet Corvette
2008 Chevrolet Corvette
2009 Chevrolet Corvette
2010 Chevrolet Corvette

1998 Pontiac Firebird
1999 Pontiac Firebird
2000 Pontiac Firebird
2001 Pontiac Firebird
2002 Pontiac Firebird

2004 Pontiac GTO
2005 Pontiac GTO
2006 Pontiac GTO
