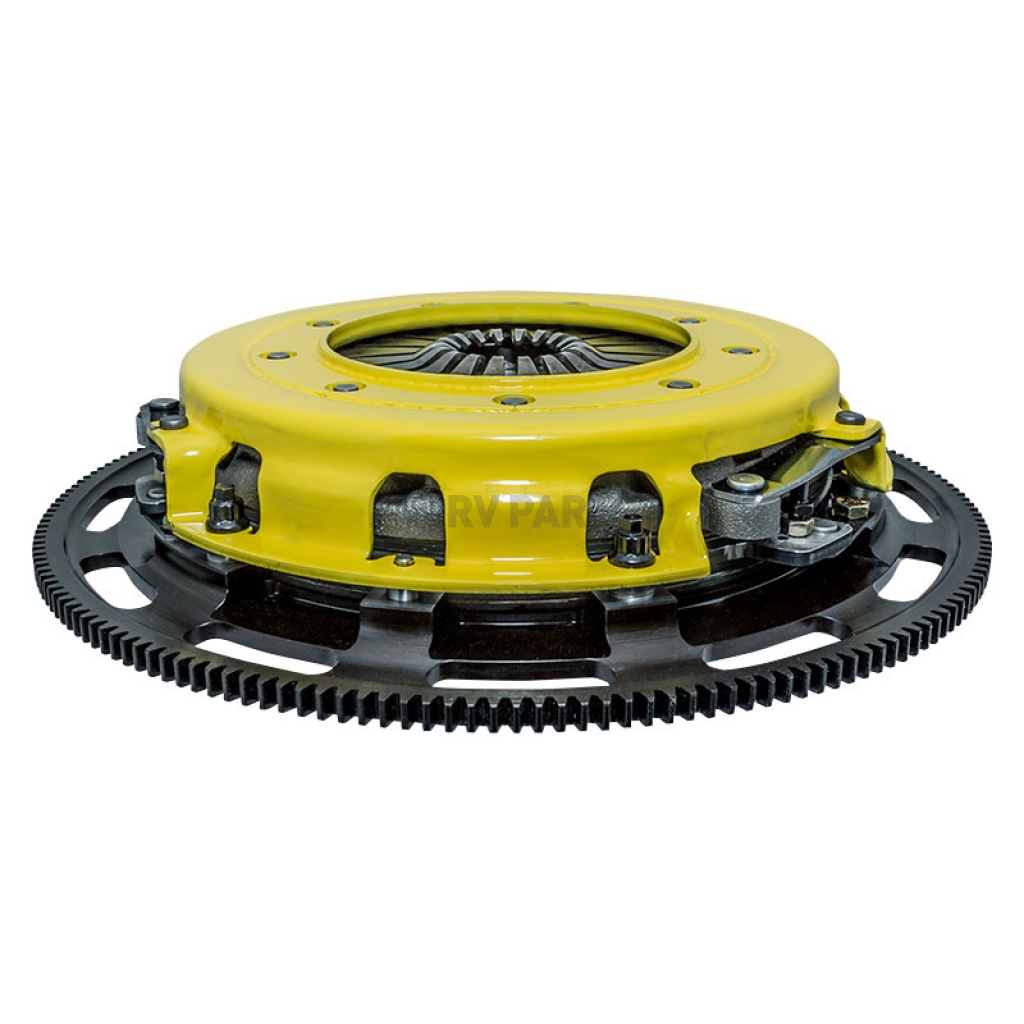

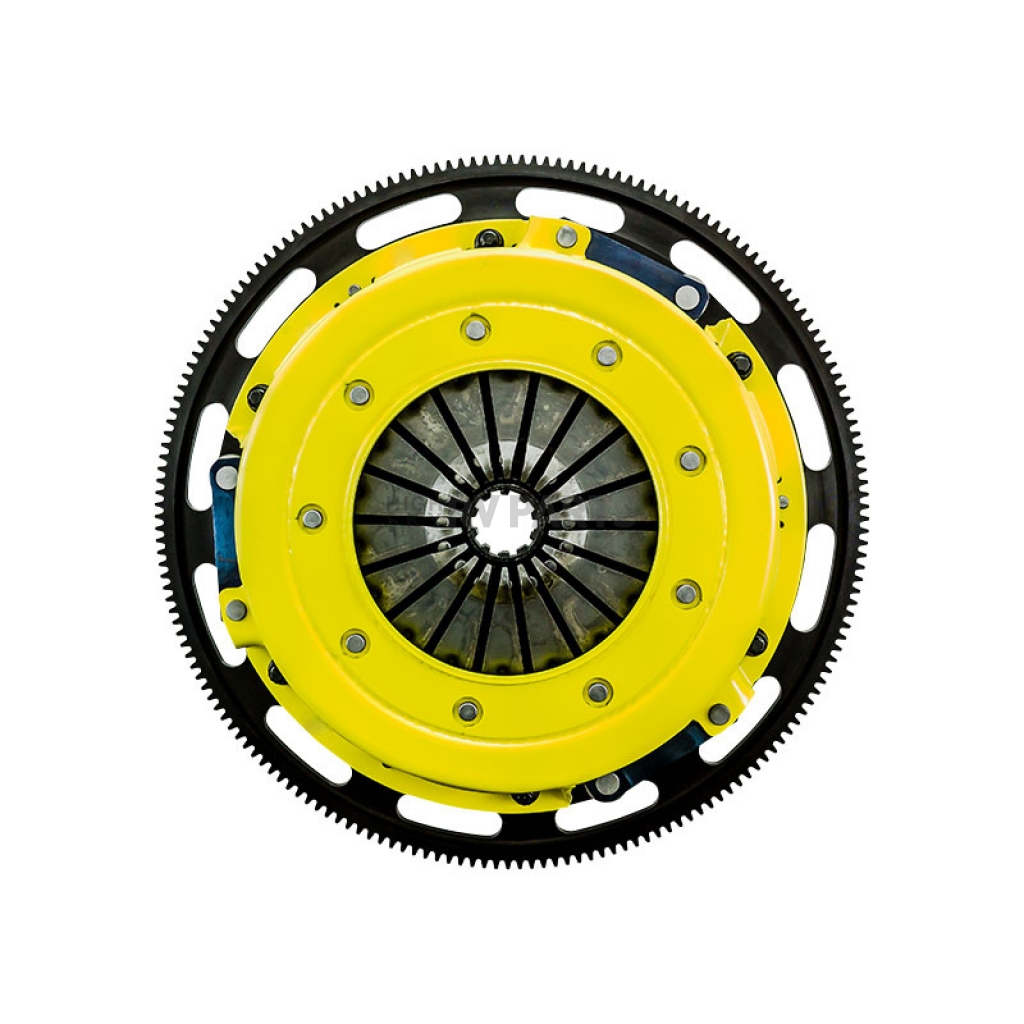

Advanced Clutch Set Heavy Duty Rigid Dual 6 Paddle - T1R-F09

Name: Advanced Clutch Set Heavy Duty Rigid Dual 6 Paddle - T1R-F09
Brand: Advanced Clutch
SKU: T1R-F09
Price: 1907.99 USD
Availability: InStock

Authorized Dealer

Brand:

Advanced Clutch

0 reviews

Have a product question? Ask us
Part Number: T1R-F09
Part Location: U.S.
Availability: *Special Order
Delivery: Up to 2 Weeks
If purchased before 12:00 EDT - estimated delivery by July 18

Retail: $2,003.39

Price: $1,907.99

You Save: $95.40

Disc Diameter

10-1/2 Inch

Disc Friction Face Design

Dual 6 Paddle

Disc Friction Material

Ceramic

Disc Hub Design

Rigid

Flywheel Tooth Count

184

Includes Alignment Tool

Yes

Includes Pilot Bearing

Includes Throwout Bearing

Input Shaft Size

1-3/8 Inch X 10 Spline

Number Of Friction Discs

2 Disc

Pressure Plate Design

Heavy Duty

Share this page

Clutch Set; Heavy Duty/ Race; 10-1/2 Inch Clutch Diameter; 1-3/8 Inch x 10 Spline Input Shaft; 1120 Foot Pound Torque Capacity; Dual Disc/ Ceramic Friction Material; 6 Paddle Design/ Rigid Hub; 184 Tooth Flywheel; With Flywheel/ Clutch Disc/ Pressure Plate/ Alignment Tool

MPN: T1R-F09

Twin disc kit offers twice the number of disc surfaces for better wear, heat capacity and long life compared to single disc kits. These kits use a proprietary Positive Lift Floater System design, which results in quiet operation with no floater rattle and no posts to wear. ACT twin disc kits endure an exclusive four-stage, heat treating process performed on all diaphragms. The ACT twin disc features the ability to adjust for disc wear and provides equal disengagement for discs. ACT's 6-pad rigid race discs are made with high quality, ceramic friction materials. The chrome-moly hub is heat-treated for strength and durability. The lightweight, rigid design allows for quicker shifts and trouble-free service.

Pressure Plate Design: Heavy Duty

Input Shaft Size: 1-3/8 Inch X 10 Spline

Number Of Friction Discs: 2 Disc

Disc Friction Material: Ceramic

Disc Diameter: 10-1/2 Inch

Disc Hub Design: Rigid

Flywheel Tooth Count: 184

Includes Throwout Bearing: No

Includes Pilot Bearing: No

Disc Friction Face Design: Dual 6 Paddle

Torque Holding Capacity: 1120 Feet/Pound

Includes Alignment Tool: Yes

Features

Light Pedal Effort, Quicker Shifts, Aggressive Engagement, Mild To Moderate Gear Rattle
Doubles The Number Of Disc Surfaces For Better Wear, Heat Capacity And Longer Life, Extended By Exclusive Diaphragm Design
Carefully Engineered, Precisely Assembled, Accurately Balanced, Uses Select Ceramic Friction Materials For High Heat Tolerance And Maximum Performance
100 Percent Clamp Load Tested And Dynamically Computer Balanced For Smooth High RPM Reliability
Limited 1 Year Warranty

Specifications of Advanced Clutch Set Heavy Duty Rigid Dual 6 Paddle - T1R-F09
Disc Diameter	10-1/2 Inch
Disc Friction Face Design	Dual 6 Paddle
Disc Friction Material	Ceramic
Disc Hub Design	Rigid
Flywheel Tooth Count	184
Includes Alignment Tool	Yes
Includes Pilot Bearing	No
Includes Throwout Bearing	No
Input Shaft Size	1-3/8 Inch X 10 Spline
Number Of Friction Discs	2 Disc
Pressure Plate Design	Heavy Duty
Torque Holding Capacity	1120 Feet/Pound
