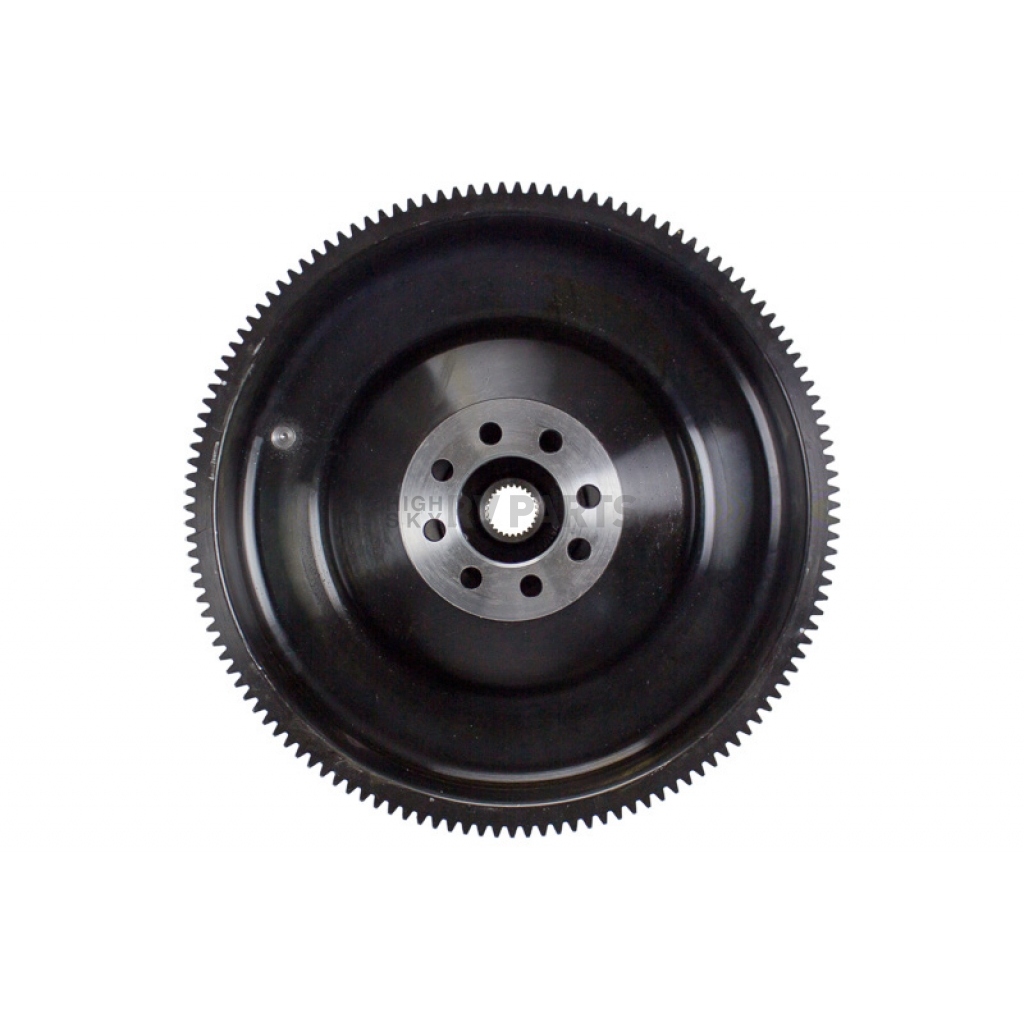

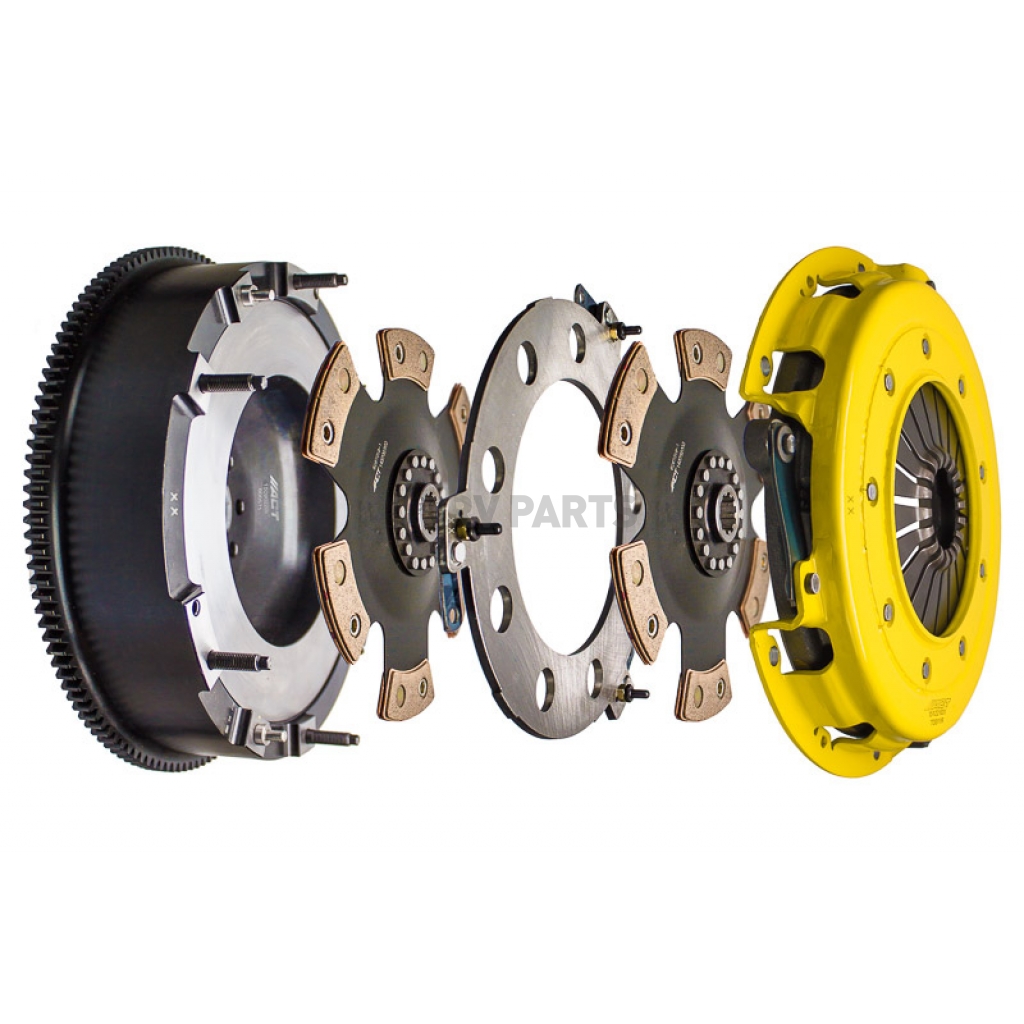

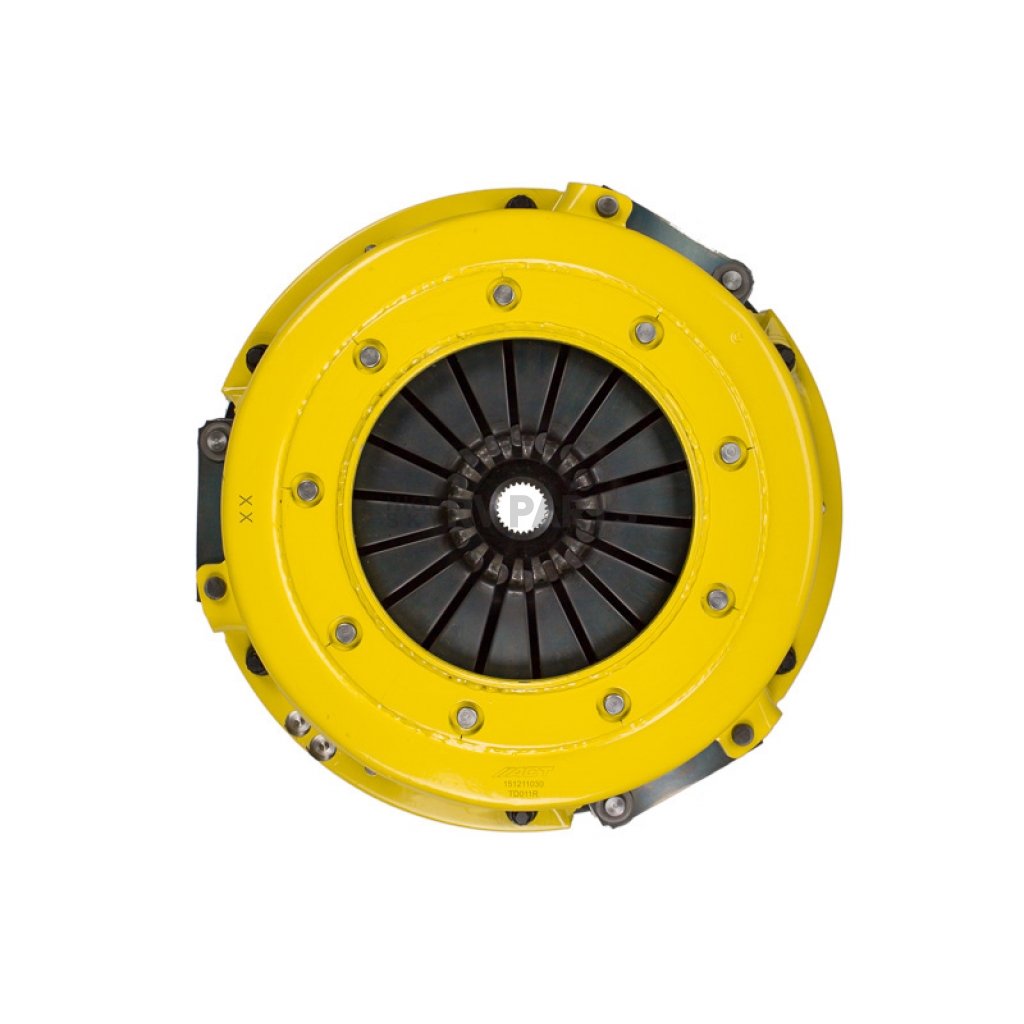

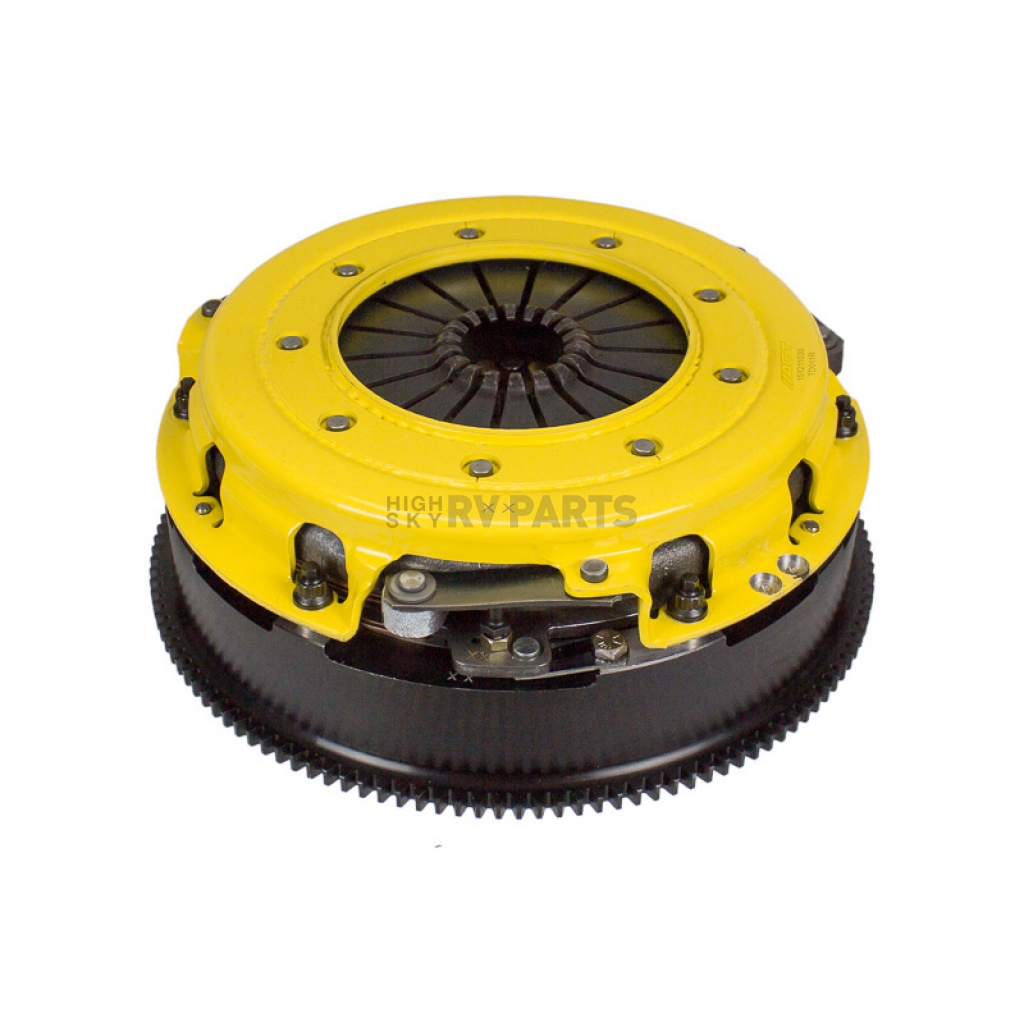

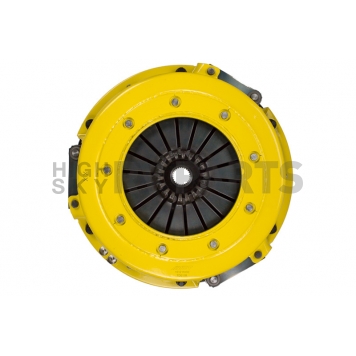

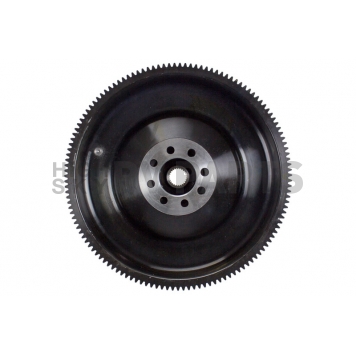

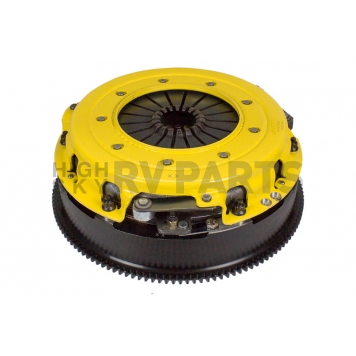

Advanced Clutch Set Diaphragm Unsprung 6 Paddle - T1R-D03

Authorized Dealer
Brand: Advanced Clutch Advanced Clutch
0 reviews
  • Have a product question? Ask us
  • Part Number: T1R-D03
  • Part Location: U.S.
  • Availability: *Special Order
  • Delivery: Up to 2 Weeks
  • If purchased before 12:00 EDT - estimated delivery by July 18
Retail: $2,284.79
Price: $2,175.99
You Save: $108.80
Disc Diameter
 10-1/2 Inch
Disc Friction Face Design
 6 Paddle
Disc Friction Material
 Organic
Disc Hub Design
 Unsprung
Includes Alignment Tool
 Yes
Includes Pilot Bearing
 No
Includes Throwout Bearing
 Yes
Input Shaft Size
 1-1/8 Inch X 26 Spline
Number Of Friction Discs
 2 Disc
Pressure Plate Design
 Diaphragm
Pressure Plate Material
 Steel
Share this page

Clutch Set; Twin Race; 10-1/2 Inch Clutch Diameter; 1-1/8 Inch x 26 Spline Input Shaft; Diaphragm; 1120 Foot Pound Torque Capacity; Steel Pressure Plate; Dual Disc/ Organic Friction Material; 6 Paddle Design/ Solid Hub; With Throwout Bearing And Alignment Tool

MPN: T1R-D03

These kits use a proprietary Positive Lift Floater System design, which results in quiet operation with no floater rattle and no posts to wear. ACT twin disc kits endure an exclusive four-stage, heat treating process performed on all diaphragms. The ACT twin disc features the ability to adjust for disc wear and provides equal disengagement for discs. ACT's 6-pad rigid race discs are made with high quality, ceramic friction materials. The chrome-moly hub is heat-treated for strength and durability. The lightweight, rigid design allows for quicker shifts and trouble-free service.

Pressure Plate Design: Diaphragm
Input Shaft Size: 1-1/8 Inch X 26 Spline
Number Of Friction Discs: 2 Disc
Disc Friction Material: Organic
Disc Diameter: 10-1/2 Inch
Disc Hub Design: Unsprung
Pressure Plate Material: Steel
Includes Throwout Bearing: Yes
Includes Pilot Bearing: No
Disc Friction Face Design: 6 Paddle
Torque Holding Capacity: 1120 Feet/Pound
Includes Alignment Tool: Yes

Features

  • Light Pedal Effort, Quicker Shifts, Aggressive Engagement, Mild To Moderate Gear Rattle
  • Doubles The Number Of Disc Surfaces For Better Wear, Heat Capacity And Longer Life, Extended By ACT's Exclusive Diaphragm Design
  • Carefully Engineered, Precisely Assembled, Accurately Balanced, Uses Select Ceramic Friction Materials For High Heat Tolerance And Maximum Performance
  • 100 Percent Clamp Load Tested And Dynamically Computer Balanced For Smooth High RPM Reliability
  • Recommended For Race Use
  • Limited 1 Year Warranty
Specifications of Advanced Clutch Set Diaphragm Unsprung 6 Paddle - T1R-D03
Disc Diameter  10-1/2 Inch
Disc Friction Face Design  6 Paddle
Disc Friction Material  Organic
Disc Hub Design  Unsprung
Includes Alignment Tool  Yes
Includes Pilot Bearing  No
Includes Throwout Bearing  Yes
Input Shaft Size  1-1/8 Inch X 26 Spline
Number Of Friction Discs  2 Disc
Pressure Plate Design  Diaphragm
Pressure Plate Material  Steel
Torque Holding Capacity  1120 Feet/Pound

2008 Dodge Challenger
2009 Dodge Challenger
2010 Dodge Challenger
2011 Dodge Challenger
2012 Dodge Challenger
2013 Dodge Challenger
2014 Dodge Challenger
