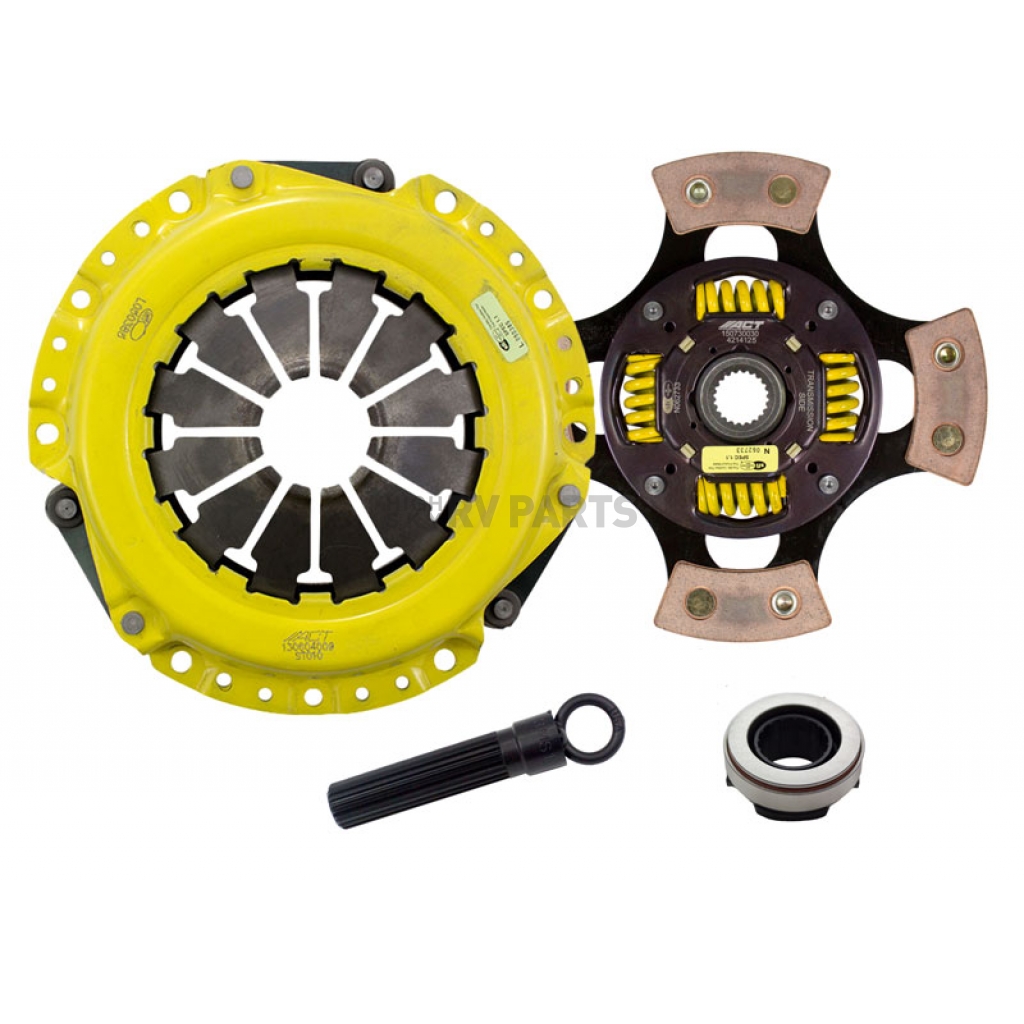

Advanced Clutch Set Heavy Duty Small Sprung 4 Paddle - ST1-HDG4

Authorized Dealer
Brand: Advanced Clutch Advanced Clutch
0 reviews
  • Have a product question? Ask us
  • Part Number: ST1-HDG4
  • Part Location: U.S.
  • Availability: *Special Order
  • Delivery: Up to 2 Weeks
  • If purchased before 12:00 EDT - estimated delivery by July 18
Retail: $698.24
Price: $664.99
You Save: $33.25
Disc Diameter
 8.43 Inch
Disc Friction Face Design
 4 Paddle
Disc Friction Material
 Ceramic
Disc Hub Design
 Small Sprung
Flywheel Material
 No Flywheel
Flywheel Tooth Count
 No Flywheel
Flywheel Weight
 No Flywheel
Includes Alignment Tool
 Yes
Includes Pilot Bearing
 No
Includes Throwout Bearing
 Yes
Input Shaft Size
 1 Inch X 22 Spline
Share this page

Clutch Set; Heavy Duty/ Race; 8.43 Inch Clutch Diameter; 1 Inch x 22 Spline Input Shaft; Diaphragm; 320 Foot Pound Torque Capacity; Steel Pressure Plate; Single Disc/ Ceramic Friction Material; 4 Paddle Design/ Sprung Hub; With Throwout Bearing And Alignment Tool

MPN: ST1-HDG4

ACT Heavy Duty pressure plates use exclusive diaphragm design to increase clamp load, reduce deflection and maximize clutch life. All diaphragms endure a four-stage, heat-treating process for unparalleled performance. ACT pressure plates have precision cover stampings to provide rigidity and consistency. ACT's 4-pad spring-centered race disc features a spring-center to properly damp torsional vibrations for quieter operation and resist failure even under harsh conditions. ACT spring retainers utilize wraparound spring windows and thicker retainer stampings to provide spring support, reduce stress concentrations, and increase strength and reliability. With the 4-pad spring-centered race disc, engagement is harsher, but shifting is faster. ACT's 4-pad spring-centered race disc is well-suited for smaller disc sizes in smaller engines.

Pressure Plate Design: Heavy Duty
Input Shaft Size: 1 Inch X 22 Spline
Number Of Friction Discs: 1 Disc
Disc Friction Material: Ceramic
Disc Diameter: 8.43 Inch
Disc Hub Design: Small Sprung
Pressure Plate Material: Steel
Flywheel Weight: No Flywheel
Flywheel Tooth Count: No Flywheel
Flywheel Material: No Flywheel
Includes Throwout Bearing: Yes
Includes Pilot Bearing: No
Disc Friction Face Design: 4 Paddle
Torque Holding Capacity: 320 Feet/Pound
Includes Alignment Tool: Yes

Features

  • Light To Moderate Pedal Effort, Aggressive Engagement, OE To Mild Gear Rattle
  • Moderate Friction Life, Extended By ACT's Exclusive Diaphragm Design
  • Carefully Engineered, Precisely Assembled, Accurately Balanced, Uses Select Ceramic Friction Materials For High Heat Tolerance And Maximum Performance
  • 100 Percent Clamp Load Tested And Dynamically Computer Balanced For Smooth High RPM Reliability
  • Recommended For High Horsepower Street Or Race Use
  • Limited 1 Year Warranty
Specifications of Advanced Clutch Set Heavy Duty Small Sprung 4 Paddle - ST1-HDG4
Disc Diameter  8.43 Inch
Disc Friction Face Design  4 Paddle
Disc Friction Material  Ceramic
Disc Hub Design  Small Sprung
Flywheel Material  No Flywheel
Flywheel Tooth Count  No Flywheel
Flywheel Weight  No Flywheel
Includes Alignment Tool  Yes
Includes Pilot Bearing  No
Includes Throwout Bearing  Yes
Input Shaft Size  1 Inch X 22 Spline
Number Of Friction Discs  1 Disc
Pressure Plate Design  Heavy Duty
Pressure Plate Material  Steel
Torque Holding Capacity  320 Feet/Pound

1991 Saturn SC
1992 Saturn SC

1993 Saturn SC1
1994 Saturn SC1
1995 Saturn SC1
1996 Saturn SC1
1997 Saturn SC1
1998 Saturn SC1
1999 Saturn SC1

1993 Saturn SC2
1994 Saturn SC2
1995 Saturn SC2
1996 Saturn SC2
1997 Saturn SC2
1998 Saturn SC2
1999 Saturn SC2

1991 Saturn SL
1992 Saturn SL
1993 Saturn SL
1994 Saturn SL
1995 Saturn SL
1996 Saturn SL
1997 Saturn SL
1998 Saturn SL
1999 Saturn SL

1991 Saturn SL1
1992 Saturn SL1
1993 Saturn SL1
1994 Saturn SL1
1995 Saturn SL1
1996 Saturn SL1
1997 Saturn SL1
1998 Saturn SL1
1999 Saturn SL1

1991 Saturn SL2
1992 Saturn SL2
1993 Saturn SL2
1994 Saturn SL2
1995 Saturn SL2
1996 Saturn SL2
1997 Saturn SL2
1998 Saturn SL2
1999 Saturn SL2

1993 Saturn SW1
1994 Saturn SW1
1995 Saturn SW1
1996 Saturn SW1
1997 Saturn SW1
1998 Saturn SW1
1999 Saturn SW1

1993 Saturn SW2
1994 Saturn SW2
1995 Saturn SW2
1996 Saturn SW2
1997 Saturn SW2
1998 Saturn SW2
1999 Saturn SW2
