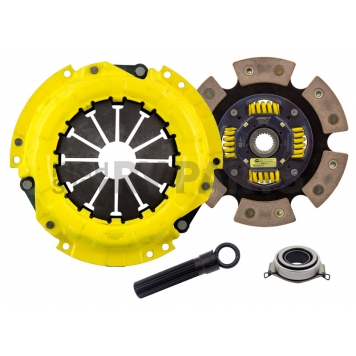

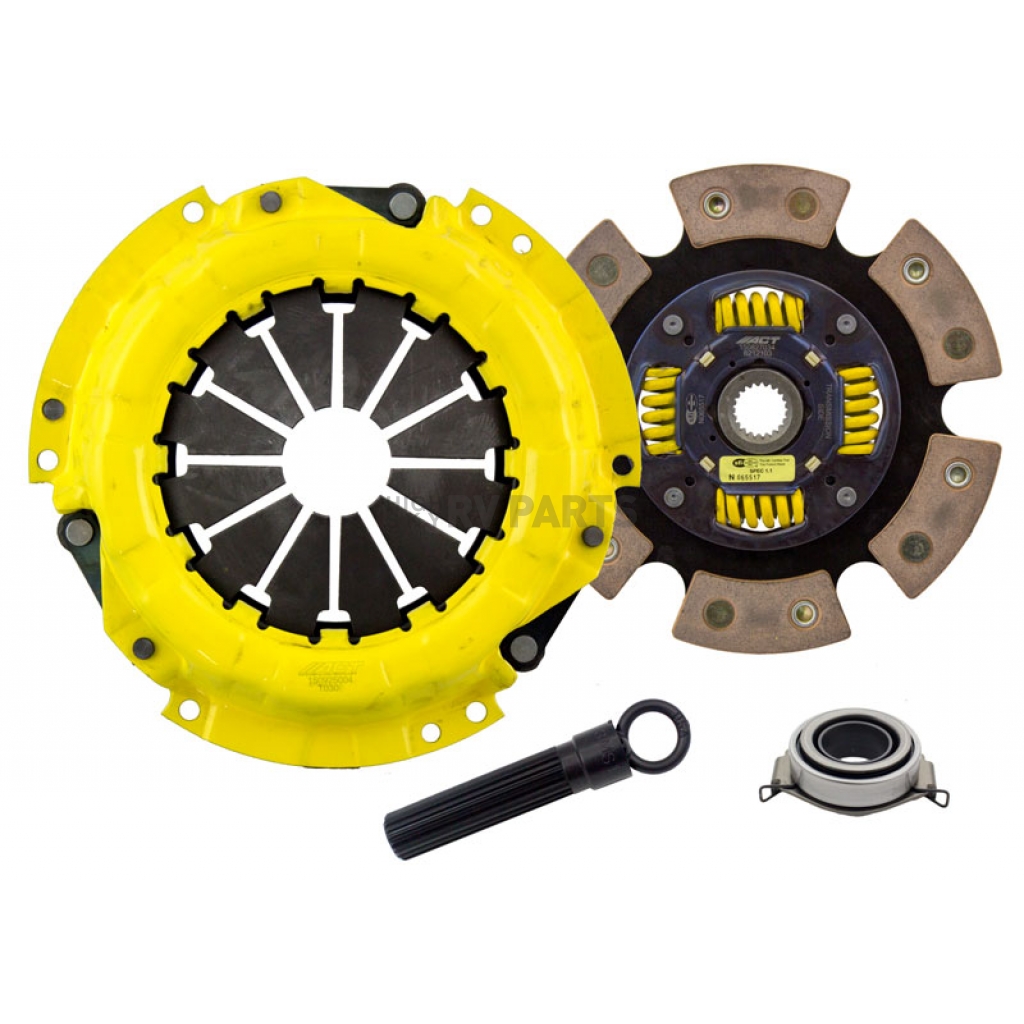

Advanced Clutch Set Heavy Duty Small Sprung 6 Paddle - SC1-HDG6

Authorized Dealer
Brand: Advanced Clutch Advanced Clutch
0 reviews
  • Have a product question? Ask us
  • Part Number: SC1-HDG6
  • Part Location: U.S.
  • Availability: *Special Order
  • Delivery: Up to 2 Weeks
  • If purchased before 12:00 EDT - estimated delivery by July 18
Retail: $652.04
Price: $620.99
You Save: $31.05
Disc Diameter
 8.35 Inch
Disc Friction Face Design
 6 Paddle
Disc Friction Material
 Ceramic
Disc Hub Design
 Small Sprung
Includes Alignment Tool
 No
Includes Pilot Bearing
 No
Includes Throwout Bearing
 Yes
Input Shaft Size
 15/16 Inch X 21 Spline
Number Of Friction Discs
 1 Disc
Pressure Plate Design
 Heavy Duty
Pressure Plate Material
 Steel
Share this page

Clutch Set; Heavy Duty/ Race; 8.35 Inch Clutch Diameter; 15/16 Inch x 21 Spline Input Shaft; Diaphragm; 305 Foot Pound Torque Capacity; Steel Pressure Plate; Single Disc/ Ceramic Friction Material; 6 Paddle Design/ Sprung Hub; With Throwout Bearing

MPN: SC1-HDG6

ACT Heavy Duty pressure plates use exclusive diaphragm design to increase clamp load, reduce deflection and maximize clutch life. All diaphragms endure a four-stage, heat-treating process for unparalleled performance. ACT pressure plates have precision cover stampings to provide rigidity and consistency. ACT's 6-pad, spring-centered race disc features a spring-center to properly damp torsional vibrations and resist failure under harsh conditions. ACT spring retainers utilize wraparound spring windows and thicker retainer stampings to provide spring support, reduce stress concentrations, and increase strength and reliability. With the 6-pad, spring-centered race disc, engagement is harsher, but shifting is faster. The 6-pad, spring-centered disc is recommended for larger clutch sizes to absorb more heat.

Pressure Plate Design: Heavy Duty
Input Shaft Size: 15/16 Inch X 21 Spline
Number Of Friction Discs: 1 Disc
Disc Friction Material: Ceramic
Disc Diameter: 8.35 Inch
Disc Hub Design: Small Sprung
Pressure Plate Material: Steel
Includes Throwout Bearing: Yes
Includes Pilot Bearing: No
Disc Friction Face Design: 6 Paddle
Torque Holding Capacity: 305 Feet/Pound
Includes Alignment Tool: No

Features

  • Moderate To Heavy Pedal Effort, Aggressive Engagement, OE To Mild Gear Rattle
  • Moderate Friction Life, Extended By Exclusive Diaphragm Design
  • Carefully Engineered, Precisely Assembled, Accurately Balanced, Uses Select Ceramic Friction Materials For High Heat Tolerance And Maximum Performance
  • 100 Percent Clamp Load Tested And Dynamically Computer Balanced For Smooth High RPM Reliability
  • Recommended For Street And Race Use
  • Limited 1 Year Warranty
Specifications of Advanced Clutch Set Heavy Duty Small Sprung 6 Paddle - SC1-HDG6
Disc Diameter  8.35 Inch
Disc Friction Face Design  6 Paddle
Disc Friction Material  Ceramic
Disc Hub Design  Small Sprung
Includes Alignment Tool  No
Includes Pilot Bearing  No
Includes Throwout Bearing  Yes
Input Shaft Size  15/16 Inch X 21 Spline
Number Of Friction Discs  1 Disc
Pressure Plate Design  Heavy Duty
Pressure Plate Material  Steel
Torque Holding Capacity  305 Feet/Pound

2008 Scion xD
2009 Scion xD
2010 Scion xD
