Advanced Clutch Set Diaphragm Sprung 6 Paddle - SB8-XTG6
Disc Diameter
8.8 Inch
Disc Friction Face Design
6 Paddle
Disc Friction Material
Organic
Disc Hub Design
Sprung
Flywheel Material
Chromoly Steel
Flywheel Weight
10.5 Pound
Includes Alignment Tool
Yes
Includes Pilot Bearing
Yes
Includes Throwout Bearing
Yes
Input Shaft Size
1 Inch X 24 Spline
Number Of Friction Discs
1 Disc
Share this page

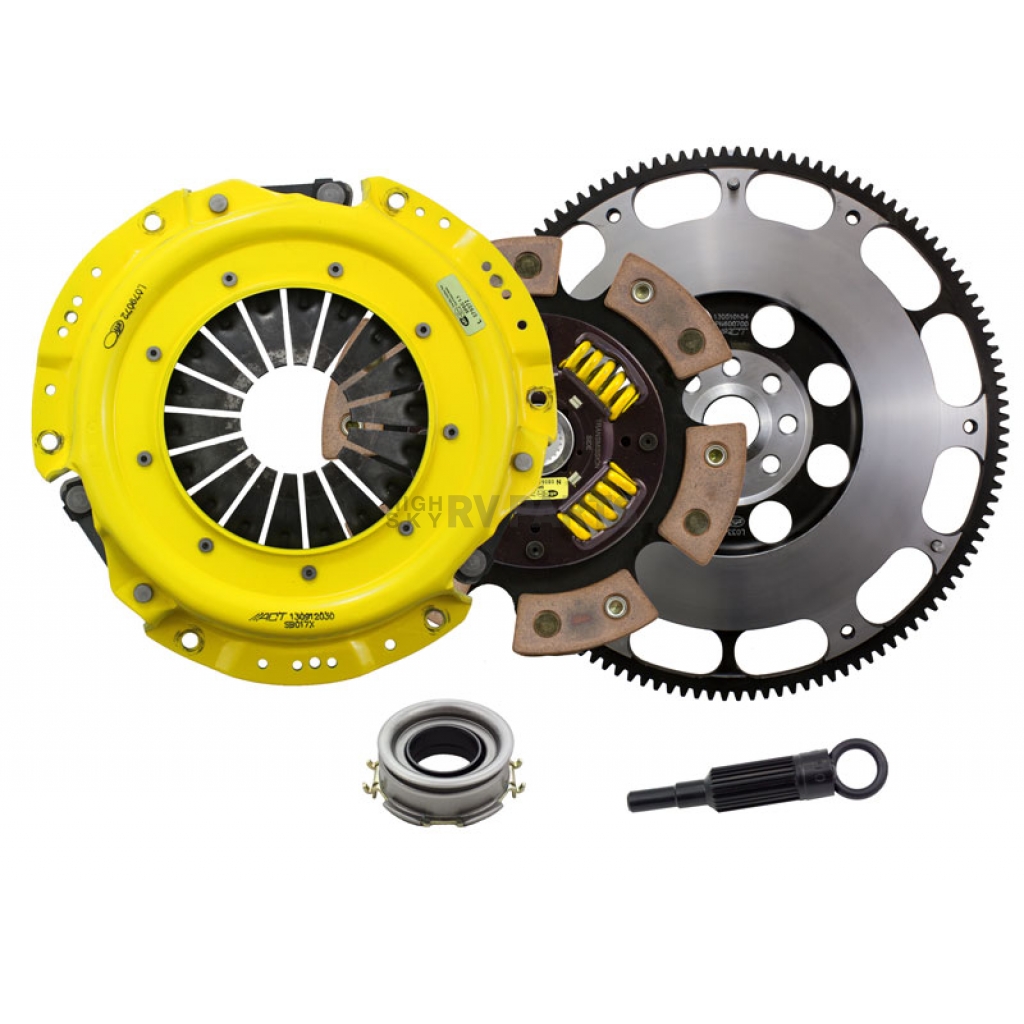

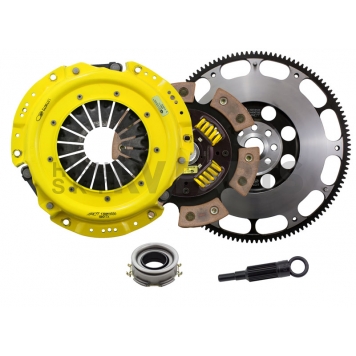

Clutch Set; Xtreme; 8.8 Inch Clutch Diameter; 1 Inch x 24 Spline Input Shaft; Diaphragm; Steel Pressure Plate; Single Disc/ Organic Friction Material; 6 Paddle Design/ Sprung Hub; 10.5 Pound Steel Flywheel; With Flywheel/ Throwout Bearing/ Pilot Bearing/ Alignment Tool
MPN: SB8-XTG6
ACT Xtreme pressure plates use exclusive diaphragm design to increase clamp load, reduce deflection and maximize clutch life. All diaphragms endure a four-stage, heat-treating process for unparalleled performance. ACT pressure plates have precision cover stampings to provide rigidity and consistency. ACT's 6-pad spring-centered race disc features a spring-center construction to properly damp torsional vibrations and resist failure under harsh conditions. ACT spring retainers utilize wraparound spring windows and thicker retainer stampings to provide spring support, reduce stress concentrations, and increase strength and reliability. With the 6-pad spring-centered race disc, engagement is harsher, but shifting is faster. The 6-pad spring-centered disc is recommended for larger clutch sizes to absorb more heatPressure Plate Design: Diaphragm
Input Shaft Size: 1 Inch X 24 Spline
Number Of Friction Discs: 1 Disc
Disc Friction Material: Organic
Disc Diameter: 8.8 Inch
Disc Hub Design: Sprung
Pressure Plate Material: Steel
Flywheel Weight: 10.5 Pound
Flywheel Material: Chromoly Steel
Includes Throwout Bearing: Yes
Includes Pilot Bearing: Yes
Disc Friction Face Design: 6 Paddle
Torque Holding Capacity: 444 Feet/Pound
Includes Alignment Tool: Yes
Features
- Pressure Plates Use Exclusive Diaphragm Design To Increase Clamp Load, Reduce Deflection And Maximize Clutch Life
- Pressure Plates Have Precision Cover Stampings To Provide Rigidity And Consistency
- 6-Pad Spring-Centered Race Disc Features A Spring-Center Construction To Properly Damp Torsional Vibrations And Resist Failure Under Harsh Conditions
- ACT Spring Retainers Utilize Wraparound Spring Windows And Thicker Retainer Stampings To Provide Spring Support, Reduce Stress Concentrations, And Increase Strength And Reliability
- Limited 1 Year Warranty
| Specifications of Advanced Clutch Set Diaphragm Sprung 6 Paddle - SB8-XTG6 | |
| Disc Diameter | 8.8 Inch |
| Disc Friction Face Design | 6 Paddle |
| Disc Friction Material | Organic |
| Disc Hub Design | Sprung |
| Flywheel Material | Chromoly Steel |
| Flywheel Weight | 10.5 Pound |
| Includes Alignment Tool | Yes |
| Includes Pilot Bearing | Yes |
| Includes Throwout Bearing | Yes |
| Input Shaft Size | 1 Inch X 24 Spline |
| Number Of Friction Discs | 1 Disc |
| Pressure Plate Design | Diaphragm |
| Pressure Plate Material | Steel |
| Torque Holding Capacity | 444 Feet/Pound |
2013 Scion FR-S
2014 Scion FR-S
2014 Scion FR-S
2013 Subaru BRZ
2014 Subaru BRZ
2015 Subaru BRZ
2016 Subaru BRZ
2014 Subaru BRZ
2015 Subaru BRZ
2016 Subaru BRZ
