Advanced Clutch Set Heavy Duty Unsprung 6 Paddle - SB8-HDR6

Authorized Dealer
Brand: Advanced Clutch Advanced Clutch
0 reviews
  • Have a product question? Ask us
  • Part Number: SB8-HDR6
  • Part Location: U.S.
  • Availability: *Special Order
  • Delivery: Up to 2 Weeks
  • If purchased before 12:00 EDT - estimated delivery by July 17
Retail: $1,054.19
Price: $1,003.99
You Save: $50.20
Disc Diameter
 8.8 Inch
Disc Friction Face Design
 6 Paddle
Disc Friction Material
 Organic
Disc Hub Design
 Unsprung
Flywheel Weight
 10.5 Pound
Includes Alignment Tool
 Yes
Includes Pilot Bearing
 Yes
Includes Throwout Bearing
 Yes
Input Shaft Size
 1 Inch X 24 Spline
Number Of Friction Discs
 1 Disc
Pressure Plate Design
 Heavy Duty
Share this page

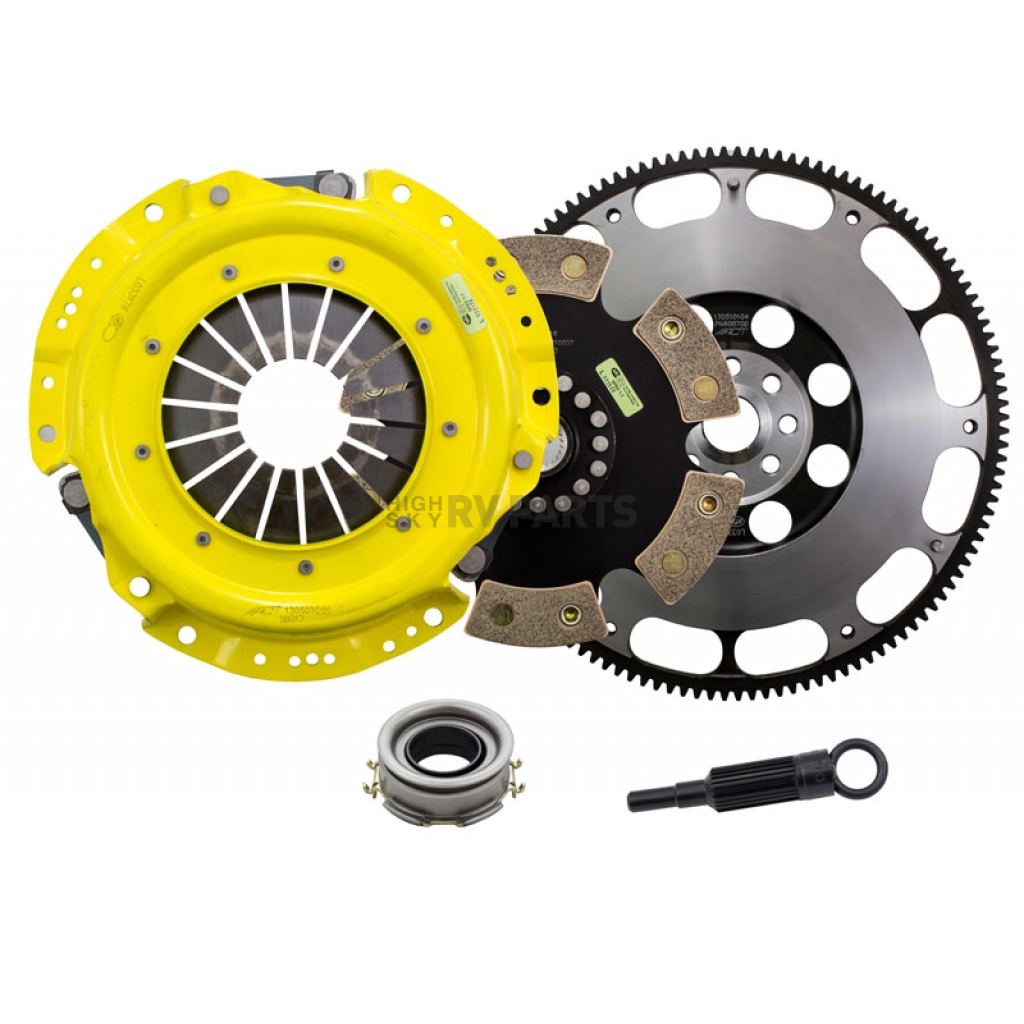

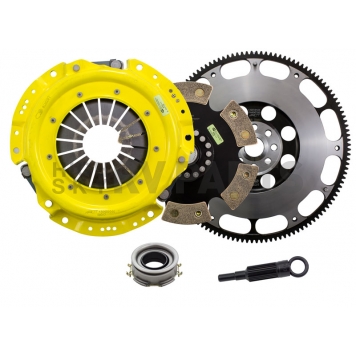

Clutch Set; Heavy Duty; 8.8 Inch Clutch Diameter; 1 Inch x 24 Spline Input Shaft; Diaphragm; Steel Pressure Plate; Single Disc/ Organic Friction Material; 6 Paddle Design/ Solid Hub; 10.5 Pound Flywheel; With Flywheel/ Throwout Bearing/ Pilot Bearing/ Alignment Tool

MPN: SB8-HDR6

ACT Heavy Duty pressure plates use exclusive diaphragm design to increase clamp load, reduce deflection and maximize clutch life. All diaphragms endure a four-stage, heat-treating process for unparalleled performance. ACT pressure plates have precision cover stampings to provide rigidity and consistency. ACT's 6-pad rigid race discs are made with high quality, ceramic friction materials. The chrome-moly hub is heat-treated for strength and durability. The lightweight, rigid design allows for quicker shifts and smooth, trouble-free service. With the 6-pad rigid race disc, engagement is harsher, but shifting is faster. The 6-pad rigid race disc is recommended for larger clutch sizes to absorb more heat.

Pressure Plate Design: Heavy Duty
Input Shaft Size: 1 Inch X 24 Spline
Number Of Friction Discs: 1 Disc
Disc Friction Material: Organic
Disc Diameter: 8.8 Inch
Disc Hub Design: Unsprung
Pressure Plate Material: Steel
Flywheel Weight: 10.5 Pound
Includes Throwout Bearing: Yes
Includes Pilot Bearing: Yes
Disc Friction Face Design: 6 Paddle
Torque Holding Capacity: 345 Feet/Pound
Includes Alignment Tool: Yes

Features

  • Pressure Plates Use Exclusive Diaphragm Design To Increase Clamp Load, Reduce Deflection And Maximize Clutch Life
  • Pressure Plates Have Precision Cover Stampings To Provide Rigidity And Consistency
  • Lightweight, Rigid Design Allows For Quicker Shifts And Smooth, Trouble-Free Service
  • Limited 1 Year Warranty
Specifications of Advanced Clutch Set Heavy Duty Unsprung 6 Paddle - SB8-HDR6
Disc Diameter  8.8 Inch
Disc Friction Face Design  6 Paddle
Disc Friction Material  Organic
Disc Hub Design  Unsprung
Flywheel Weight  10.5 Pound
Includes Alignment Tool  Yes
Includes Pilot Bearing  Yes
Includes Throwout Bearing  Yes
Input Shaft Size  1 Inch X 24 Spline
Number Of Friction Discs  1 Disc
Pressure Plate Design  Heavy Duty
Pressure Plate Material  Steel
Torque Holding Capacity  345 Feet/Pound

2013 Scion FR-S
2014 Scion FR-S

2013 Subaru BRZ
2014 Subaru BRZ
2015 Subaru BRZ
2016 Subaru BRZ
