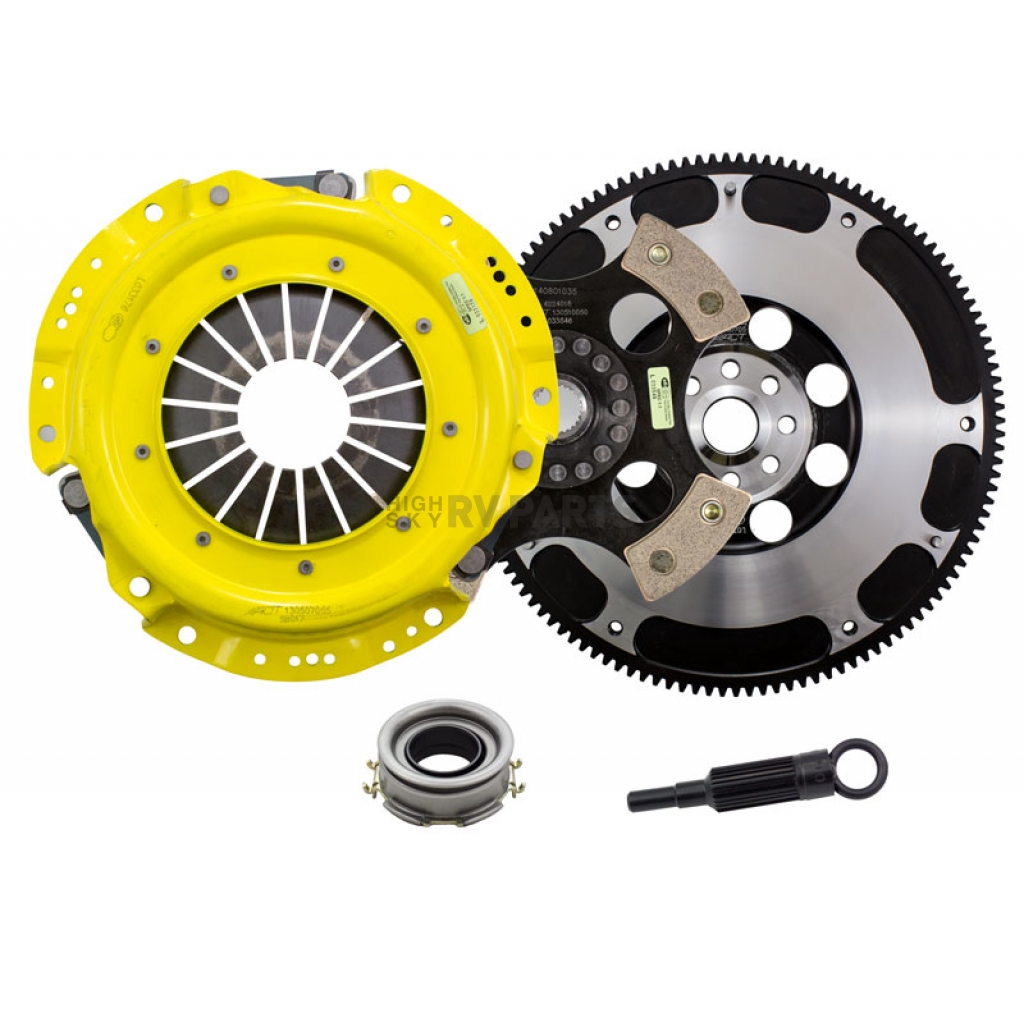

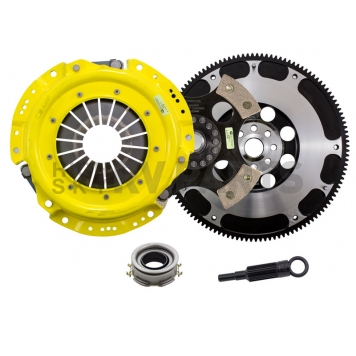

Advanced Clutch Set Heavy Duty Unsprung 4 Paddle - SB7-HDR4
Disc Diameter
8.8 Inch
Disc Friction Face Design
4 Paddle
Disc Friction Material
Organic
Disc Hub Design
Unsprung
Flywheel Material
Chromoly Steel
Flywheel Tooth Count
124
Flywheel Weight
11.8 Pound
Includes Alignment Tool
Yes
Includes Pilot Bearing
Yes
Includes Throwout Bearing
Yes
Input Shaft Size
1 Inch X 24 Spline
Share this page
Clutch Set; Heavy Duty; 8.8 Inch Clutch Diameter; 1 Inch x 24 Spline Input Shaft; Diaphragm; Steel Pressure Plate; Single Disc/ Organic Friction Material; 4 Paddle Design/ Solid Hub; 11.8 Pound Flywheel; With Flywheel/ Throwout Bearing/ Pilot Bearing/ Alignment Tool
MPN: SB7-HDR4
ACT Heavy Duty pressure plates use exclusive diaphragm design to increase clamp load, reduce deflection and maximize clutch life. All diaphragms endure a four-stage, heat-treating process for unparalleled performance. ACT pressure plates have precision cover stampings to provide rigidity and consistency. ACT's 4-pad rigid race discs are made with high quality, ceramic friction materials. The chrome-moly hub is heat-treated for strength and durability. The lightweight, rigid design allows for quicker shifts and smooth, trouble-free service. With the 4-pad rigid race disc, engagement is harsher, but shifting is faster. The 4-pad rigid race disc is well-suited for the smaller disc sizes in smaller engines.Pressure Plate Design: Heavy Duty
Input Shaft Size: 1 Inch X 24 Spline
Number Of Friction Discs: 1 Disc
Disc Friction Material: Organic
Disc Diameter: 8.8 Inch
Disc Hub Design: Unsprung
Pressure Plate Material: Steel
Flywheel Weight: 11.8 Pound
Flywheel Tooth Count: 124
Flywheel Material: Chromoly Steel
Includes Throwout Bearing: Yes
Includes Pilot Bearing: Yes
Disc Friction Face Design: 4 Paddle
Pressure Plate Clamp Load: 10.6 Pound
Pressure Plate Centrifugal Assist: No Centrifugal Assist
Torque Holding Capacity: 345 Feet/Pound
Includes Alignment Tool: Yes
Features
- Pressure Plates Use Exclusive Diaphragm Design To Increase Clamp Load, Reduce Deflection And Maximize Clutch Life
- Pressure Plates Have Precision Cover Stampings To Provide Rigidity And Consistency
- Lightweight, Rigid Design Allows For Quicker Shifts And Smooth, Trouble-Free Service
- 4-Pad Rigid Race Discs Are Made With High Quality, Ceramic Friction Materials
- Limited 1 Year Warranty
| Specifications of Advanced Clutch Set Heavy Duty Unsprung 4 Paddle - SB7-HDR4 | |
| Disc Diameter | 8.8 Inch |
| Disc Friction Face Design | 4 Paddle |
| Disc Friction Material | Organic |
| Disc Hub Design | Unsprung |
| Flywheel Material | Chromoly Steel |
| Flywheel Tooth Count | 124 |
| Flywheel Weight | 11.8 Pound |
| Includes Alignment Tool | Yes |
| Includes Pilot Bearing | Yes |
| Includes Throwout Bearing | Yes |
| Input Shaft Size | 1 Inch X 24 Spline |
| Number Of Friction Discs | 1 Disc |
| Pressure Plate Centrifugal Assist | No Centrifugal Assist |
| Pressure Plate Clamp Load | 10.6 Pound |
| Pressure Plate Design | Heavy Duty |
| Pressure Plate Material | Steel |
| Torque Holding Capacity | 345 Feet/Pound |
2013 Scion FR-S
2014 Scion FR-S
2014 Scion FR-S
2013 Subaru BRZ
2014 Subaru BRZ
2015 Subaru BRZ
2016 Subaru BRZ
2014 Subaru BRZ
2015 Subaru BRZ
2016 Subaru BRZ
