Advanced Clutch Set Heavy Duty Sprung 4 Paddle - SB7-HDG4
Disc Diameter
8.8 Inch
Disc Friction Face Design
4 Paddle
Disc Friction Material
Organic
Disc Hub Design
Sprung
Flywheel Material
Chromoly Steel
Flywheel Tooth Count
124
Flywheel Weight
11.8 Pound
Includes Alignment Tool
Yes
Includes Pilot Bearing
Yes
Includes Throwout Bearing
Yes
Input Shaft Size
1 Inch X 24 Spline
Share this page

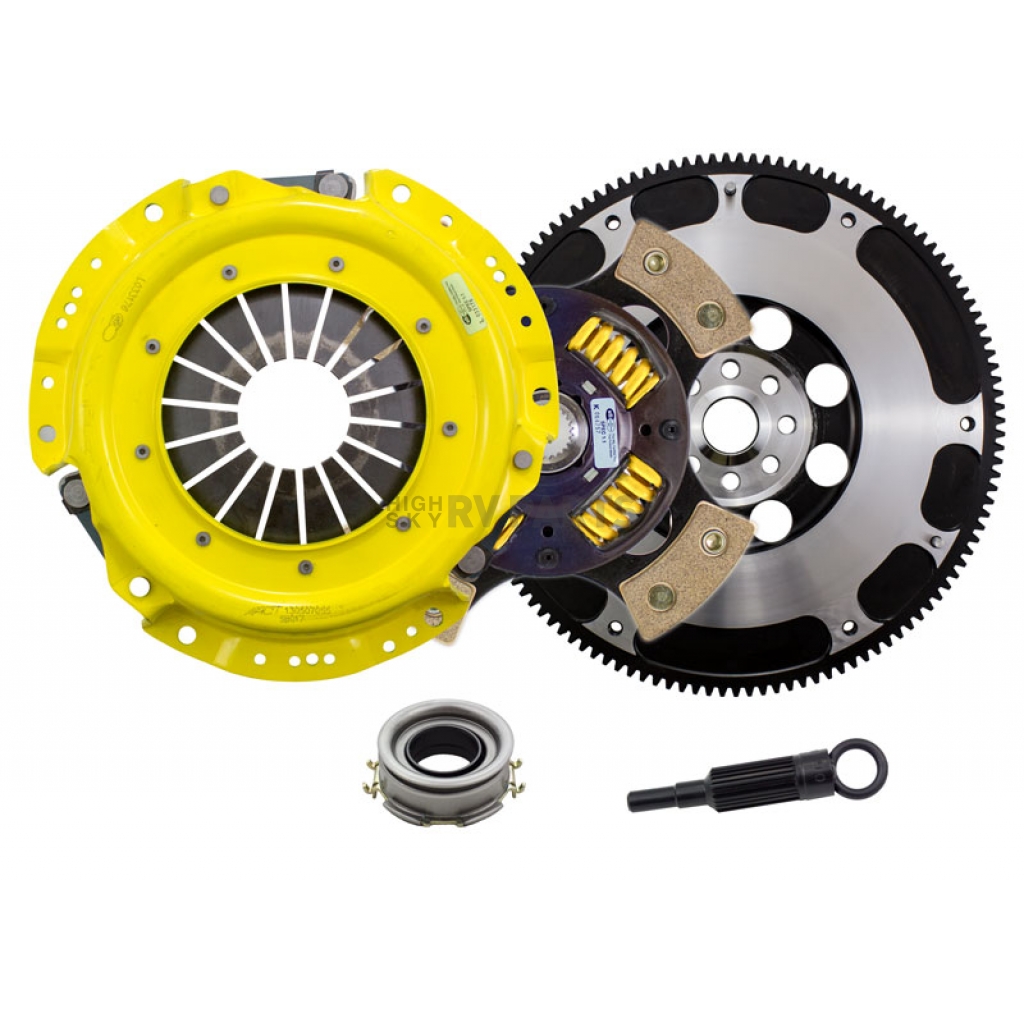

Clutch Set; Heavy Duty; 8.8 Inch Clutch Diameter; 1 Inch x 24 Spline Input Shaft; Diaphragm; Steel Pressure Plate; Single Disc/ Organic Friction Material; 4 Paddle Design/ Sprung Hub; 11.8 Pound Flywheel; With Flywheel/ Throwout Bearing/ Pilot Bearing/ Alignment Tool
MPN: SB7-HDG4
ACT Heavy Duty pressure plates use exclusive diaphragm design to increase clamp load, reduce deflection and maximize clutch life. All diaphragms endure a four-stage, heat-treating process for unparalleled performance. ACT pressure plates have precision cover stampings to provide rigidity and consistency. ACT's 4-pad spring-centered race disc features a spring-center to properly damp torsional vibrations for quieter operation and resist failure even under harsh conditions. ACT spring retainers utilize wraparound spring windows and thicker retainer stampings to provide spring support, reduce stress concentrations, and increase strength and reliability. With the 4-pad spring-centered race disc, engagement is harsher, but shifting is faster. ACT's 4-pad spring-centered race disc is well-suited for smaller disc sizes in smaller engines.Pressure Plate Design: Heavy Duty
Input Shaft Size: 1 Inch X 24 Spline
Number Of Friction Discs: 1 Disc
Disc Friction Material: Organic
Disc Diameter: 8.8 Inch
Disc Hub Design: Sprung
Pressure Plate Material: Steel
Flywheel Weight: 11.8 Pound
Flywheel Tooth Count: 124
Flywheel Material: Chromoly Steel
Includes Throwout Bearing: Yes
Includes Pilot Bearing: Yes
Disc Friction Face Design: 4 Paddle
Pressure Plate Clamp Load: 10.6 Pound
Pressure Plate Centrifugal Assist: No Centrifugal Assist
Torque Holding Capacity: 345 Feet/Pound
Includes Alignment Tool: Yes
Features
- Pressure Plates Use Exclusive Diaphragm Design To Increase Clamp Load, Reduce Deflection And Maximize Clutch Life
- Pressure Plates Have Precision Cover Stampings To Provide Rigidity And Consistency
- 4-Pad Spring-Centered Race Disc Features A Spring-Center Construction To Properly Damp Torsional Vibrations For Quieter Operation And Resist Failure Even Under Harsh Conditions
- ACT Spring Retainers Utilize Wraparound Spring Windows And Thicker Retainer Stampings To Provide Spring Support, Reduce Stress Concentrations, And Increase Strength And Reliability
- Limited 1 Year Warranty
| Specifications of Advanced Clutch Set Heavy Duty Sprung 4 Paddle - SB7-HDG4 | |
| Disc Diameter | 8.8 Inch |
| Disc Friction Face Design | 4 Paddle |
| Disc Friction Material | Organic |
| Disc Hub Design | Sprung |
| Flywheel Material | Chromoly Steel |
| Flywheel Tooth Count | 124 |
| Flywheel Weight | 11.8 Pound |
| Includes Alignment Tool | Yes |
| Includes Pilot Bearing | Yes |
| Includes Throwout Bearing | Yes |
| Input Shaft Size | 1 Inch X 24 Spline |
| Number Of Friction Discs | 1 Disc |
| Pressure Plate Centrifugal Assist | No Centrifugal Assist |
| Pressure Plate Clamp Load | 10.6 Pound |
| Pressure Plate Design | Heavy Duty |
| Pressure Plate Material | Steel |
| Torque Holding Capacity | 345 Feet/Pound |
2013 Scion FR-S
2014 Scion FR-S
2014 Scion FR-S
2013 Subaru BRZ
2014 Subaru BRZ
2015 Subaru BRZ
2016 Subaru BRZ
2014 Subaru BRZ
2015 Subaru BRZ
2016 Subaru BRZ
