Advanced Clutch Set Diaphragm Rigid 6 Paddle - SB11-XTR6

Authorized Dealer
Brand: Advanced Clutch Advanced Clutch
0 reviews
  • Have a product question? Ask us
  • Part Number: SB11-XTR6
  • Part Location: U.S.
  • Availability: *Special Order
  • Delivery: Up to 2 Weeks
  • If purchased before 12:00 EDT - estimated delivery by July 18
Retail: $1,513.04
Price: $1,440.99
You Save: $72.05
Disc Diameter
 9.4 Inch
Disc Friction Face Design
 6 Paddle
Disc Friction Material
 Ceramic
Disc Hub Design
 Rigid
Flywheel Tooth Count
 124
Flywheel Weight
 13 Pound
Includes Alignment Tool
 Yes
Includes Pilot Bearing
 Yes
Includes Throwout Bearing
 Yes
Input Shaft Size
 1 Inch X 24 Spline
Number Of Friction Discs
 1 Disc
Share this page

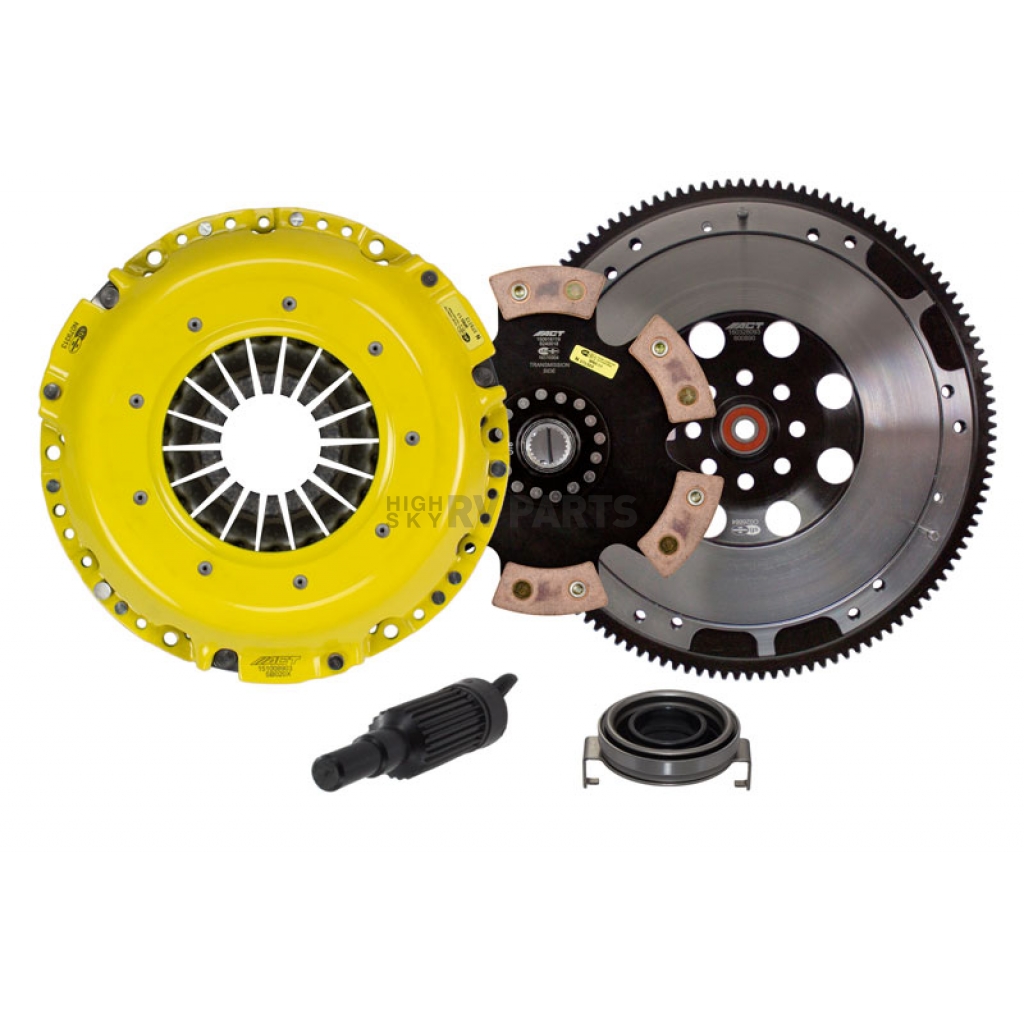

Clutch Set; Xtreme/ Race; 9.4 Inch Clutch Diameter; 1 Inch x 24 Spline Input Shaft; Diaphragm; Single Disc/ Ceramic Friction Material; 6 Paddle Design/ Rigid Hub; 13 Pound 124 Tooth Flywheel; With Flywheel/ Clutch Disc/ Pressure Plate/ Alignment Tool/ Release Bearing/ Pilot Bearing

MPN: SB11-XTR6

ACT Xtreme pressure plates use exclusive diaphragm design to increase clamp load, reduce deflection and maximize clutch life. All diaphragms endure a four-stage, heat-treating process for unparalleled performance. ACT pressure plates have precision cover stampings to provide rigidity and consistency. ACT's 6-pad rigid race discs are made with high quality, ceramic friction materials. The chrome-moly hub is heat-treated for strength and durability. The lightweight, rigid design allows for quicker shifts and smooth, trouble-free service. With the 6-pad rigid race disc, engagement is harsher, but shifting is faster. The 6-pad rigid race disc is recommended for larger clutch sizes to absorb more heat.

Pressure Plate Design: Diaphragm
Input Shaft Size: 1 Inch X 24 Spline
Number Of Friction Discs: 1 Disc
Disc Friction Material: Ceramic
Disc Diameter: 9.4 Inch
Disc Hub Design: Rigid
Flywheel Weight: 13 Pound
Flywheel Tooth Count: 124
Includes Throwout Bearing: Yes
Includes Pilot Bearing: Yes
Disc Friction Face Design: 6 Paddle
Pressure Plate Centrifugal Assist: No Centrifugal Assist
Torque Holding Capacity: 650 Feet/Pound
Includes Alignment Tool: Yes

Features

  • Moderate To Heavy Pedal Effort, Aggressive Engagement, Increased Gear Rattle
  • Moderate Friction Life, Extended By Exclusive Diaphragm Design, Rigid Design May Increase Spline Wear
  • Carefully Engineered, Precisely Assembled, Accurately Balanced, Uses Select Ceramic Friction Materials For High Heat Tolerance And Maximum Performance
  • 100 Percent Clamp Load Tested And Dynamically Computer Balanced For Smooth High RPM Reliability
  • Limited 1 Year Warranty
Specifications of Advanced Clutch Set Diaphragm Rigid 6 Paddle - SB11-XTR6
Disc Diameter  9.4 Inch
Disc Friction Face Design  6 Paddle
Disc Friction Material  Ceramic
Disc Hub Design  Rigid
Flywheel Tooth Count  124
Flywheel Weight  13 Pound
Includes Alignment Tool  Yes
Includes Pilot Bearing  Yes
Includes Throwout Bearing  Yes
Input Shaft Size  1 Inch X 24 Spline
Number Of Friction Discs  1 Disc
Pressure Plate Centrifugal Assist  No Centrifugal Assist
Pressure Plate Design  Diaphragm
Torque Holding Capacity  650 Feet/Pound

2006 Subaru Baja

2006 Subaru Forester
2007 Subaru Forester
2008 Subaru Forester

2006 Subaru Impreza
2007 Subaru Impreza
2008 Subaru Impreza
2009 Subaru Impreza
2010 Subaru Impreza
2011 Subaru Impreza
2012 Subaru Impreza
2013 Subaru Impreza
2014 Subaru Impreza

2005 Subaru Legacy
2006 Subaru Legacy
2007 Subaru Legacy
2008 Subaru Legacy
2009 Subaru Legacy
2010 Subaru Legacy
2011 Subaru Legacy
2012 Subaru Legacy

2005 Subaru Outback
2006 Subaru Outback
2007 Subaru Outback
2008 Subaru Outback
2009 Subaru Outback

2015 Subaru WRX
2016 Subaru WRX
2017 Subaru WRX
2018 Subaru WRX
2019 Subaru WRX
2020 Subaru WRX
2021 Subaru WRX
