Advanced Clutch Set Diaphragm Sprung 6 Paddle - SB11-XTG6

Authorized Dealer
Brand: Advanced Clutch Advanced Clutch
0 reviews
  • Have a product question? Ask us
  • Part Number: SB11-XTG6
  • Part Location: U.S.
  • Availability: *Special Order
  • Delivery: Up to 2 Weeks
  • If purchased before 12:00 EDT - estimated delivery by July 18
Retail: $1,553.99
Price: $1,479.99
You Save: $74.00
Disc Diameter
 9.4 Inch
Disc Friction Face Design
 6 Paddle
Disc Friction Material
 Ceramic
Disc Hub Design
 Sprung
Flywheel Tooth Count
 124
Flywheel Weight
 13 Pound
Includes Alignment Tool
 Yes
Includes Pilot Bearing
 Yes
Includes Throwout Bearing
 Yes
Input Shaft Size
 1 Inch X 24 Spline
Number Of Friction Discs
 1 Disc
Share this page

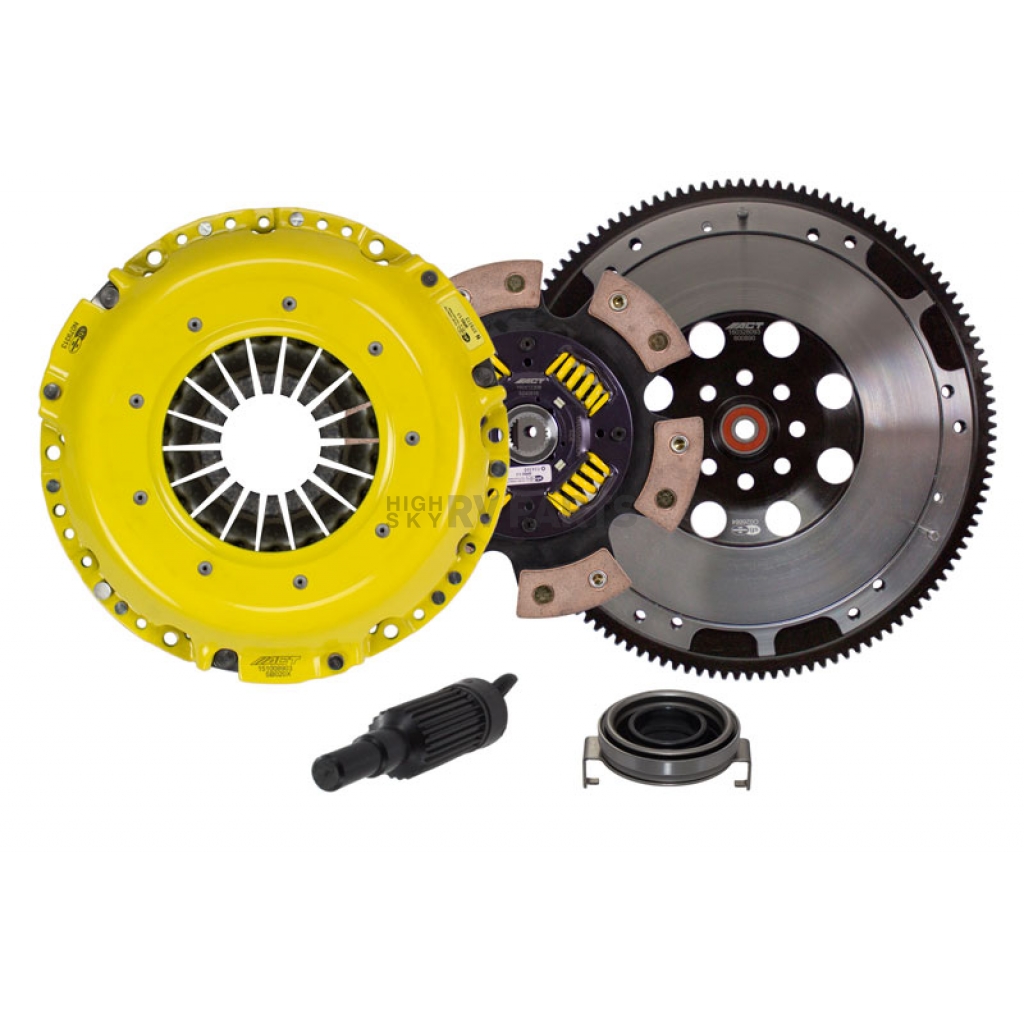

Clutch Set; Xtreme/ Race; 9.4 Inch Clutch Diameter; 1 Inch x 24 Spline Input Shaft; Diaphragm; Single Disc/ Ceramic Friction Material; 6 Paddle Design/ Sprung Hub; 13 Pound 124 Tooth Flywheel; With Flywheel/ Clutch Disc/ Pressure Plate/ Alignment Tool/ Release Bearing/ Pilot Bearing

MPN: SB11-XTG6

ACT Xtreme pressure plates use exclusive diaphragm design to increase clamp load, reduce deflection and maximize clutch life. All diaphragms endure a four-stage, heat-treating process for unparalleled performance. ACT pressure plates have precision cover stampings to provide rigidity and consistency. ACT's 6-pad spring-centered race disc features a spring-center construction to properly damp torsional vibrations and resist failure under harsh conditions. ACT spring retainers utilize wraparound spring windows and thicker retainer stampings to provide spring support, reduce stress concentrations, and increase strength and reliability. With the 6-pad spring-centered race disc, engagement is harsher, but shifting is faster. The 6-pad spring-centered disc is recommended for larger clutch sizes to absorb more heat.

Pressure Plate Design: Diaphragm
Input Shaft Size: 1 Inch X 24 Spline
Number Of Friction Discs: 1 Disc
Disc Friction Material: Ceramic
Disc Diameter: 9.4 Inch
Disc Hub Design: Sprung
Flywheel Weight: 13 Pound
Flywheel Tooth Count: 124
Includes Throwout Bearing: Yes
Includes Pilot Bearing: Yes
Disc Friction Face Design: 6 Paddle
Pressure Plate Centrifugal Assist: No Centrifugal Assist
Torque Holding Capacity: 650 Feet/Pound
Includes Alignment Tool: Yes

Features

  • Moderate To Heavy Pedal Effort, Aggressive Engagement, OE To Mild Gear Rattle
  • Moderate Friction Life, Extended By Exclusive Diaphragm Design
  • Carefully Engineered, Precisely Assembled, Accurately Balanced, Uses Select Ceramic Friction Materials For High Heat Tolerance And Maximum Performance
  • 100 Percent Clamp Load Tested And Dynamically Computer Balanced For Smooth High RPM Reliability
  • Limited 1 Year Warranty
Specifications of Advanced Clutch Set Diaphragm Sprung 6 Paddle - SB11-XTG6
Disc Diameter  9.4 Inch
Disc Friction Face Design  6 Paddle
Disc Friction Material  Ceramic
Disc Hub Design  Sprung
Flywheel Tooth Count  124
Flywheel Weight  13 Pound
Includes Alignment Tool  Yes
Includes Pilot Bearing  Yes
Includes Throwout Bearing  Yes
Input Shaft Size  1 Inch X 24 Spline
Number Of Friction Discs  1 Disc
Pressure Plate Centrifugal Assist  No Centrifugal Assist
Pressure Plate Design  Diaphragm
Torque Holding Capacity  650 Feet/Pound

2006 Subaru Baja

2006 Subaru Forester
2007 Subaru Forester
2008 Subaru Forester

2006 Subaru Impreza
2007 Subaru Impreza
2008 Subaru Impreza
2009 Subaru Impreza
2010 Subaru Impreza
2011 Subaru Impreza
2012 Subaru Impreza
2013 Subaru Impreza
2014 Subaru Impreza

2005 Subaru Legacy
2006 Subaru Legacy
2007 Subaru Legacy
2008 Subaru Legacy
2009 Subaru Legacy
2010 Subaru Legacy
2011 Subaru Legacy
2012 Subaru Legacy

2005 Subaru Outback
2006 Subaru Outback
2007 Subaru Outback
2008 Subaru Outback
2009 Subaru Outback

2015 Subaru WRX
2016 Subaru WRX
2017 Subaru WRX
2018 Subaru WRX
2019 Subaru WRX
2020 Subaru WRX
2021 Subaru WRX
