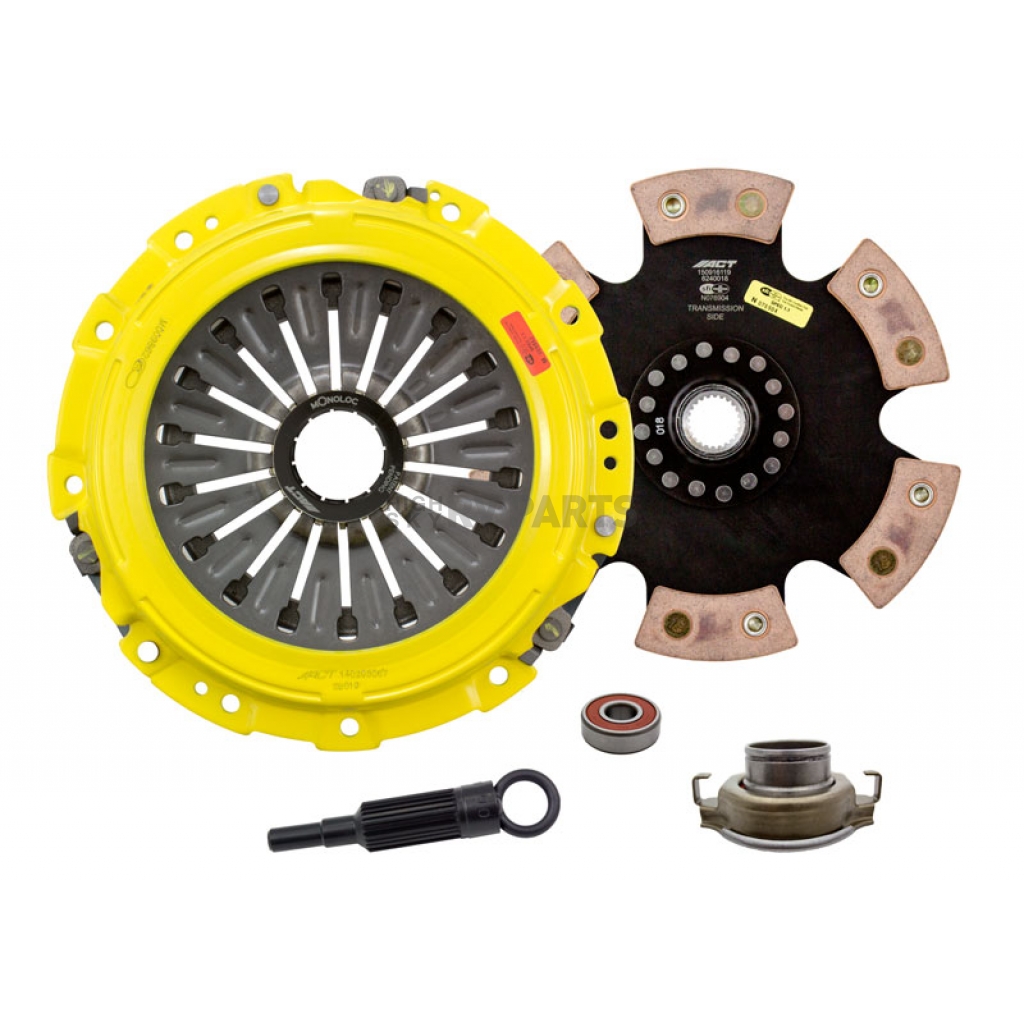

Advanced Clutch Set Heavy Duty Unsprung 6 Paddle - SB10-HDR6

Authorized Dealer
Brand: Advanced Clutch Advanced Clutch
0 reviews
  • Have a product question? Ask us
  • Part Number: SB10-HDR6
  • Part Location: U.S.
  • Availability: *Special Order
  • Delivery: Up to 2 Weeks
  • If purchased before 12:00 EDT - estimated delivery by July 17
Retail: $964.94
Price: $918.99
You Save: $45.95
Disc Diameter
 9.4 Inch
Disc Friction Face Design
 6 Paddle
Disc Friction Material
 Organic
Disc Hub Design
 Unsprung
Includes Alignment Tool
 Yes
Includes Pilot Bearing
 Yes
Includes Throwout Bearing
 Yes
Input Shaft Size
 1 Inch X 24 Spline
Number Of Friction Discs
 1 Disc
Pressure Plate Design
 Heavy Duty
Pressure Plate Material
 Steel
Share this page

Clutch Set; Heavy Duty; 9.4 Inch Clutch Diameter; 1 Inch x 24 Spline Input Shaft; Diaphragm; Steel Pressure Plate; Single Disc/ Organic Friction Material; 6 Paddle Design/ Solid Hub; With Flywheel/ Throwout Bearing/ Pilot Bearing/ Alignment Tool

MPN: SB10-HDR6

ACT Heavy Duty pressure plates use exclusive diaphragm design to increase clamp load, reduce deflection and maximize clutch life. All diaphragms endure a four-stage, heat-treating process for unparalleled performance. ACT pressure plates have precision cover stampings to provide rigidity and consistency. The chrome-moly hub is heat-treated for strength and durability. The lightweight, rigid design allows for quicker shifts and smooth, trouble-free service. With the 4-pad rigid race disc engagement is harsher, but shifting is faster. Monoloc is a one-piece, direct replacement or upgrade to the standard, two-piece wedge collar and wire ring featured in pull-type clutches. The spring tension of the segmented retaining ring is carefully calculated and tested for optimal performance. It provides uniform loading on the bearing and pressure plate to assure proper alignment, regardless of driver influence or vehicle modifications. Monoloc's hardened chrome-moly steel construction will provide years of service.

Pressure Plate Design: Heavy Duty
Input Shaft Size: 1 Inch X 24 Spline
Number Of Friction Discs: 1 Disc
Disc Friction Material: Organic
Disc Diameter: 9.4 Inch
Disc Hub Design: Unsprung
Pressure Plate Material: Steel
Includes Throwout Bearing: Yes
Includes Pilot Bearing: Yes
Disc Friction Face Design: 6 Paddle
Torque Holding Capacity: 660 Feet/Pound
Includes Alignment Tool: Yes

Features

  • Pressure Plates Use Exclusive Diaphragm Design To Increase Clamp Load, Reduce Deflection And Maximize Clutch Life
  • Pressure Plates Have Precision Cover Stampings To Provide Rigidity And Consistency
  • Lightweight, Rigid Design Allows For Quicker Shifts And Smooth, Trouble-Free Service
  • Provides Uniform Loading On The Bearing And Pressure Plate To Assure Proper Alignment, Regardless Of Driver Influence Or Vehicle Modifications
  • Monoloc's Hardened Chrome-Moly Steel Construction Will Provide Years Of Service
  • Limited 1 Year Warranty
Specifications of Advanced Clutch Set Heavy Duty Unsprung 6 Paddle - SB10-HDR6
Disc Diameter  9.4 Inch
Disc Friction Face Design  6 Paddle
Disc Friction Material  Organic
Disc Hub Design  Unsprung
Includes Alignment Tool  Yes
Includes Pilot Bearing  Yes
Includes Throwout Bearing  Yes
Input Shaft Size  1 Inch X 24 Spline
Number Of Friction Discs  1 Disc
Pressure Plate Design  Heavy Duty
Pressure Plate Material  Steel
Torque Holding Capacity  660 Feet/Pound

2004 Subaru Impreza
2005 Subaru Impreza
2006 Subaru Impreza
2007 Subaru Impreza
2008 Subaru Impreza
2009 Subaru Impreza
2010 Subaru Impreza
2011 Subaru Impreza
2012 Subaru Impreza
2013 Subaru Impreza
2014 Subaru Impreza

2006 Subaru Legacy
2007 Subaru Legacy
2008 Subaru Legacy
2009 Subaru Legacy

2015 Subaru WRX STI
2016 Subaru WRX STI
2017 Subaru WRX STI
2018 Subaru WRX STI
2019 Subaru WRX STI
