Advanced Clutch Set Heavy Duty Rigid 4 Paddle - PO2-HDR4

Authorized Dealer
Brand: Advanced Clutch Advanced Clutch
0 reviews
  • Have a product question? Ask us
  • Part Number: PO2-HDR4
  • Part Location: U.S.
  • Availability: *Special Order
  • Delivery: Up to 2 Weeks
  • If purchased before 12:00 EDT - estimated delivery by July 18
Retail: $1,128.74
Price: $1,074.99
You Save: $53.75
Disc Diameter
 9.4 Inch
Disc Friction Face Design
 4 Paddle
Disc Friction Material
 Ceramic
Disc Hub Design
 Rigid
Includes Alignment Tool
 Yes
Includes Pilot Bearing
 Yes
Includes Throwout Bearing
 Yes
Input Shaft Size
 1 Inch X 24 Spline
Number Of Friction Discs
 1 Disc
Pressure Plate Design
 Heavy Duty
Torque Holding Capacity
 670 Feet/Pound
Share this page

Clutch Set; Heavy Duty/ Race; 9.4 Inch Clutch Diameter; 1 Inch x 24 Spline Input Shaft; Diaphragm; Single Disc; Ceramic Friction Material; 4 Paddle Design/ Rigid Hub; With Clutch Disc/ Pressure Plate/ Pilot Bearing/ Throw-Out Bearing/ Alignment Bearing

MPN: PO2-HDR4

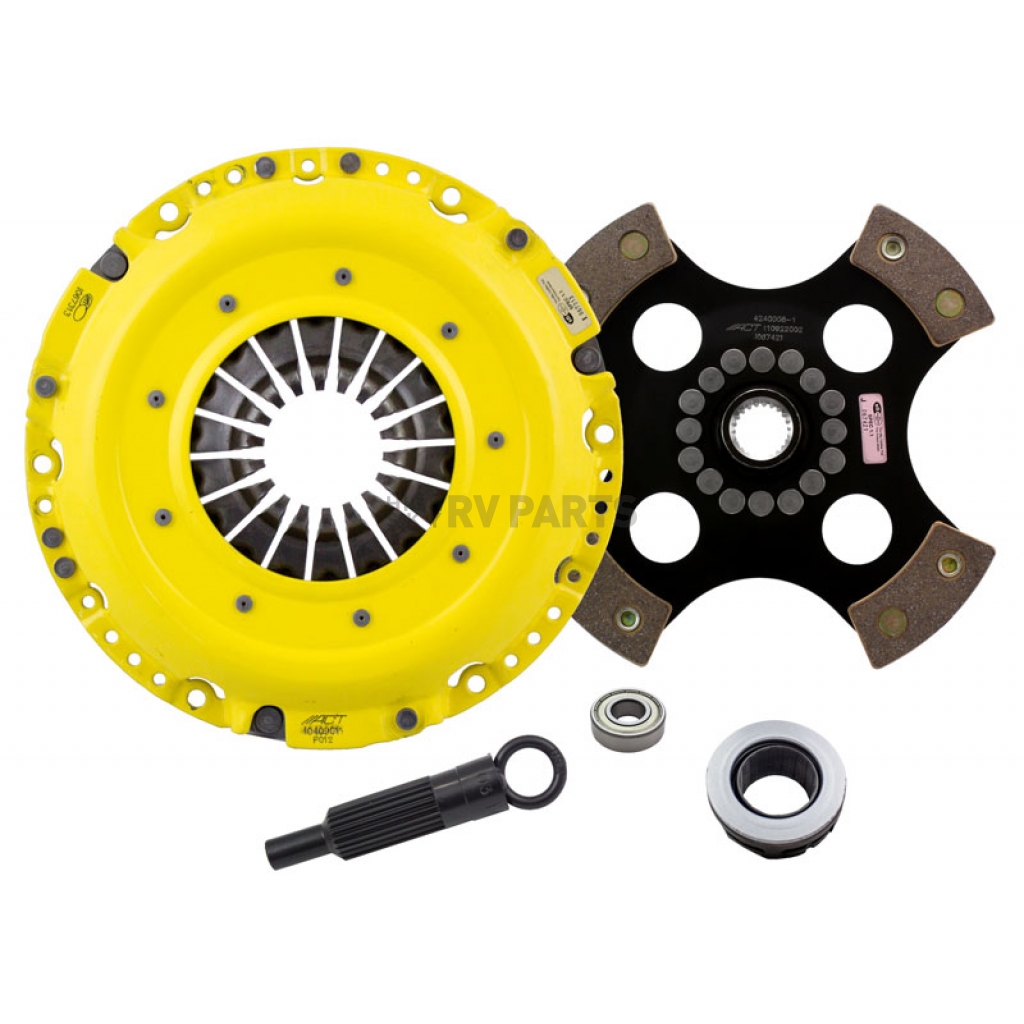

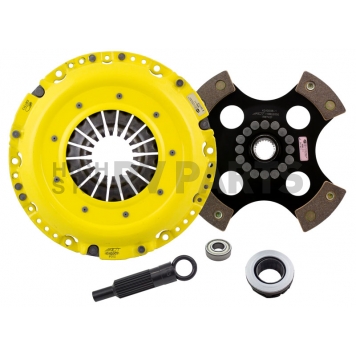

This kit features ACT's most popular Heavy Duty pressure plate. ACT Heavy Duty pressure plates use exclusive diaphragm design to increase clamp load, reduce deflection and maximize clutch life. All diaphragms endure a four-stage, heat-treating process for unparalleled performance. ACT pressure plates have precision cover stampings to provide rigidity and consistency. ACT's 4-pad rigid race discs are made with high quality, ceramic friction materials. The chrome-moly hub is heat-treated for strength and durability. The lightweight, rigid design allows for quicker shifts and smooth, trouble-free service. With the 4-pad rigid race disc, engagement is harsher, but shifting is faster. The 4-pad rigid race disc is well-suited for the smaller disc sizes in smaller engines.

Pressure Plate Design: Heavy Duty
Input Shaft Size: 1 Inch X 24 Spline
Number Of Friction Discs: 1 Disc
Disc Friction Material: Ceramic
Disc Diameter: 9.4 Inch
Disc Hub Design: Rigid
Includes Throwout Bearing: Yes
Includes Pilot Bearing: Yes
Disc Friction Face Design: 4 Paddle
Torque Holding Capacity: 670 Feet/Pound
Includes Alignment Tool: Yes

Features

  • Feel: Light To Moderate Pedal Effort, Smooth Positive Engagement, Increased Gear Rattle
  • Life: Longer Friction Life, Extended By ACT's Exclusive Diaphragm Design, Rigid Design May Increase Spline Wear
  • Quality: Carefully Engineered, Precisely Assembled, Accurately Balanced, Uses Select Ceramic Friction Materials For High Heat Tolerance And Maximum Performance
  • Recommended For Street And Race Use
  • 100 Percent Clamp Load Tested And Dynamically Computer Balanced For Smooth High RPM Reliability
  • Limited 1 Year Warranty From The Date Of Purchase
Specifications of Advanced Clutch Set Heavy Duty Rigid 4 Paddle - PO2-HDR4
Disc Diameter  9.4 Inch
Disc Friction Face Design  4 Paddle
Disc Friction Material  Ceramic
Disc Hub Design  Rigid
Includes Alignment Tool  Yes
Includes Pilot Bearing  Yes
Includes Throwout Bearing  Yes
Input Shaft Size  1 Inch X 24 Spline
Number Of Friction Discs  1 Disc
Pressure Plate Design  Heavy Duty
Torque Holding Capacity  670 Feet/Pound

2002 Porsche 911
2003 Porsche 911
2004 Porsche 911
