Advanced Clutch Set Diaphragm Sprung Single 6 Paddle - NZ2-XTG6
Disc Diameter
9.8 Inch
Disc Friction Face Design
Single 6 Paddle
Disc Friction Material
Ceramic
Disc Hub Design
Sprung
Flywheel Material
No Flywheel
Flywheel Tooth Count
No Flywheel
Flywheel Weight
No Flywheel
Includes Alignment Tool
Yes
Includes Pilot Bearing
Yes
Includes Throwout Bearing
No
Input Shaft Size
1 Inch X 24 Spline
Share this page

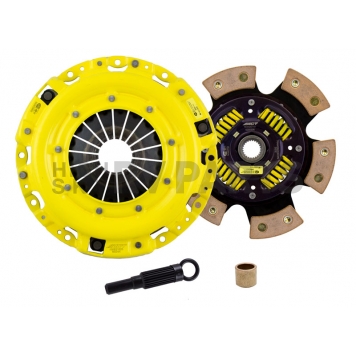

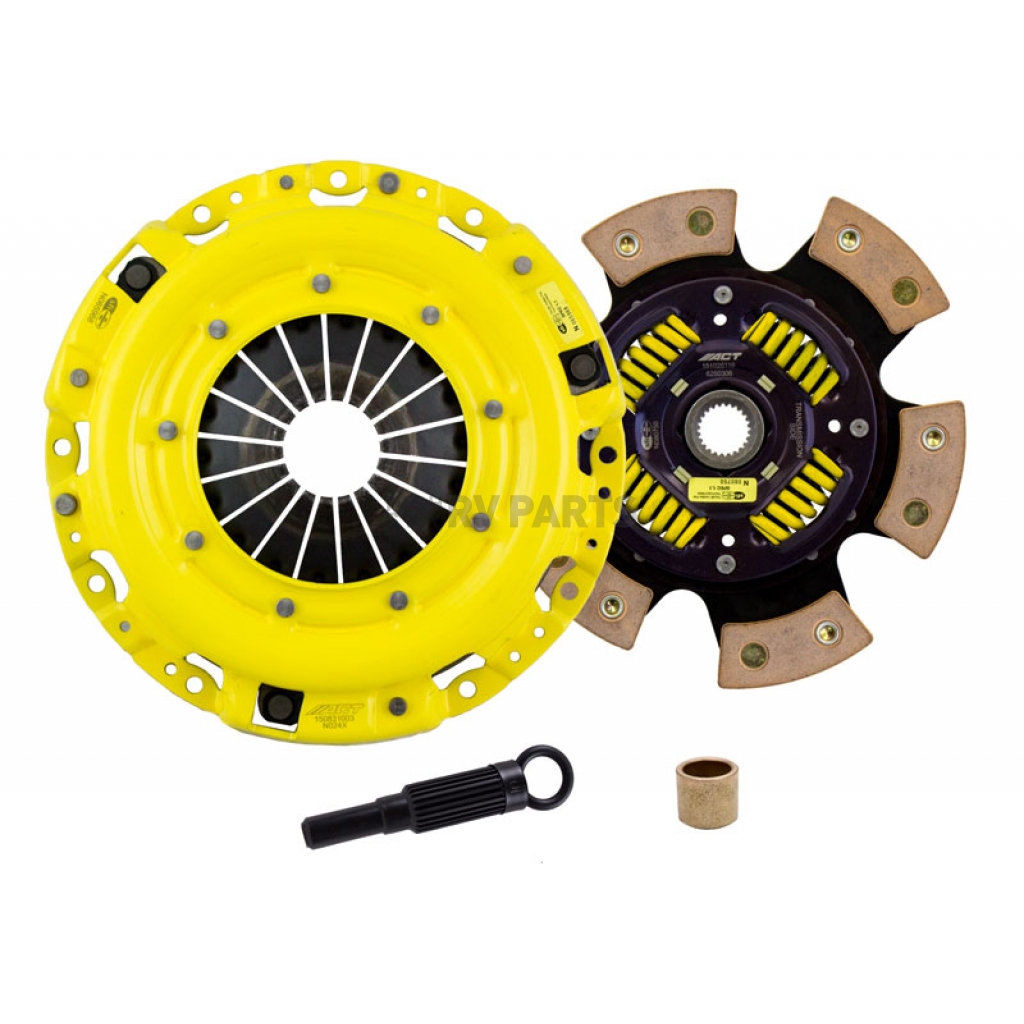

Clutch Set; Xtreme/ Race; 9.8 Inch Clutch Diameter; 1 Inch x 24 Spline Input Shaft; Diaphragm; 695 Foot Pound Torque Capacity; Single Disc/ Ceramic Friction Material; 6 Paddle Design/ Sprung Hub; With Clutch Disc/ Pressure Plate/ Alignment Tool/ Pilot Bearing
MPN: NZ2-XTG6
Features an Xtreme pressure plate for the most demanding driver. ACT Xtreme pressure plates use exclusive diaphragm design to increase clamp load, reduce deflection and maximize clutch life. All diaphragms endure a four-stage, heat-treating process for unparalleled performance. ACT pressure plates have precision cover stampings to provide rigidity and consistency. ACT's 6-pad spring-centered race disc features a spring-center construction to properly damp torsional vibrations and resist failure under harsh conditions. ACT spring retainers utilize wraparound spring windows and thicker retainer stampings to provide spring support, reduce stress concentrations, and increase strength and reliability. With the 6-pad spring-centered race disc, engagement is harsher, but shifting is faster. The 6-pad spring-centered disc is recommended for larger clutch sizes to absorb more heat.Pressure Plate Design: Diaphragm
Input Shaft Size: 1 Inch X 24 Spline
Number Of Friction Discs: 1 Disc
Disc Friction Material: Ceramic
Disc Diameter: 9.8 Inch
Disc Hub Design: Sprung
Flywheel Weight: No Flywheel
Flywheel Tooth Count: No Flywheel
Flywheel Material: No Flywheel
Includes Throwout Bearing: No
Includes Pilot Bearing: Yes
Disc Friction Face Design: Single 6 Paddle
Torque Holding Capacity: 695 Feet/Pound
Includes Alignment Tool: Yes
Features
- Moderate To Heavy Pedal Effort, Aggressive Engagement, OE To Mild Gear Rattle
- Moderate Friction Life, Extended By Exclusive Diaphragm Design
- Carefully Engineered, Precisely Assembled, Accurately Balanced, Uses Select Ceramic Friction Materials For High Heat Tolerance And Maximum Performance
- 100 Percent Clamp Load Tested And Dynamically Computer Balanced For Smooth High RPM Reliability
- Limited 1 Year Warranty
| Specifications of Advanced Clutch Set Diaphragm Sprung Single 6 Paddle - NZ2-XTG6 | |
| Disc Diameter | 9.8 Inch |
| Disc Friction Face Design | Single 6 Paddle |
| Disc Friction Material | Ceramic |
| Disc Hub Design | Sprung |
| Flywheel Material | No Flywheel |
| Flywheel Tooth Count | No Flywheel |
| Flywheel Weight | No Flywheel |
| Includes Alignment Tool | Yes |
| Includes Pilot Bearing | Yes |
| Includes Throwout Bearing | No |
| Input Shaft Size | 1 Inch X 24 Spline |
| Number Of Friction Discs | 1 Disc |
| Pressure Plate Design | Diaphragm |
| Torque Holding Capacity | 695 Feet/Pound |
2007 Infiniti G35
2008 Infiniti G35
2008 Infiniti G35
2008 Infiniti G37
2009 Infiniti G37
2010 Infiniti G37
2011 Infiniti G37
2012 Infiniti G37
2013 Infiniti G37
2009 Infiniti G37
2010 Infiniti G37
2011 Infiniti G37
2012 Infiniti G37
2013 Infiniti G37
2007 Nissan 350Z
2008 Nissan 350Z
2009 Nissan 350Z
2008 Nissan 350Z
2009 Nissan 350Z
2009 Nissan 370Z
2010 Nissan 370Z
2011 Nissan 370Z
2012 Nissan 370Z
2013 Nissan 370Z
2014 Nissan 370Z
2015 Nissan 370Z
2016 Nissan 370Z
2017 Nissan 370Z
2018 Nissan 370Z
2019 Nissan 370Z
2020 Nissan 370Z
2010 Nissan 370Z
2011 Nissan 370Z
2012 Nissan 370Z
2013 Nissan 370Z
2014 Nissan 370Z
2015 Nissan 370Z
2016 Nissan 370Z
2017 Nissan 370Z
2018 Nissan 370Z
2019 Nissan 370Z
2020 Nissan 370Z
