Advanced Clutch Set Diaphragm Rigid Single 6 Paddle - NZ1-XTR6

Authorized Dealer
Brand: Advanced Clutch Advanced Clutch
0 reviews
  • Have a product question? Ask us
  • Part Number: NZ1-XTR6
  • Part Location: U.S.
  • Availability: *Special Order
  • Delivery: Up to 2 Weeks
  • If purchased before 12:00 EDT - estimated delivery by July 21
Retail: $977.54
Price: $930.99
You Save: $46.55
Disc Diameter
 9.8 Inch
Disc Friction Face Design
 Single 6 Paddle
Disc Friction Material
 Ceramic
Disc Hub Design
 Rigid
Flywheel Material
 No Flywheel
Flywheel Tooth Count
 No Flywheel
Flywheel Weight
 No Flywheel
Includes Alignment Tool
 Yes
Includes Pilot Bearing
 Yes
Includes Throwout Bearing
 Yes
Input Shaft Size
 1 Inch X 24 Spline
Share this page

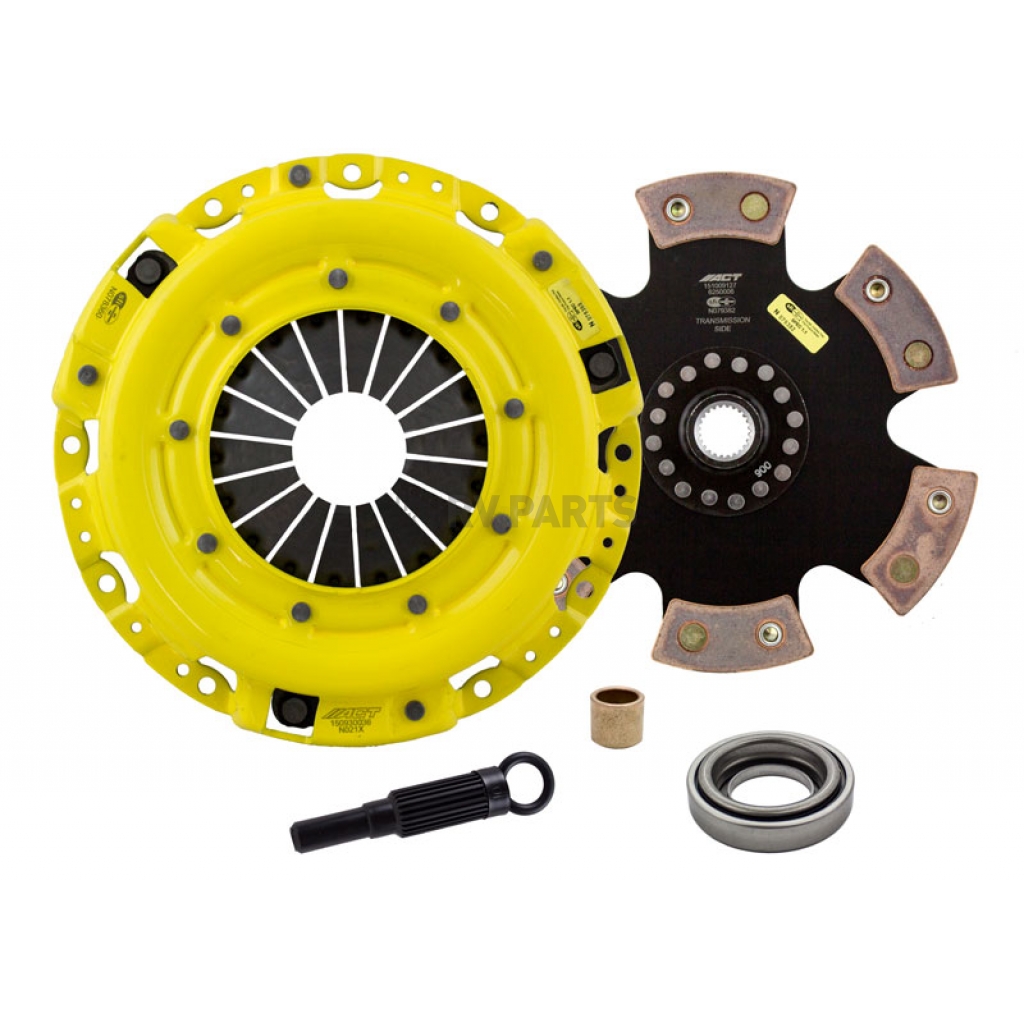

Clutch Set; Xtreme/ Race; 9.8 Inch Clutch Diameter; 1 Inch x 24 Spline Input Shaft; Diaphragm; 745 Foot Pound Torque Capacity; Single Disc/ Ceramic Friction Material; 6 Paddle Design/ Rigid Hub; With Clutch Disc/ Pressure Plate/ Alignment Tool/ Release Bearing/ Pilot Bearing

MPN: NZ1-XTR6

Features an Xtreme pressure plate for the most demanding driver. ACT Xtreme pressure plates use exclusive diaphragm design to increase clamp load, reduce deflection and maximize clutch life. All diaphragms endure a four-stage, heat-treating process for unparalleled performance. ACT pressure plates have precision cover stampings to provide rigidity and consistency. ACT's 6-pad rigid race discs are made with high quality, ceramic friction materials. The chrome-moly hub is heat-treated for strength and durability. The lightweight, rigid design allows for quicker shifts and smooth, trouble-free service. With the 6-pad rigid race disc, engagement is harsher, but shifting is faster. The 6-pad rigid race disc is recommended for larger clutch sizes to absorb more heat.

Pressure Plate Design: Diaphragm
Input Shaft Size: 1 Inch X 24 Spline
Number Of Friction Discs: 1 Disc
Disc Friction Material: Ceramic
Disc Diameter: 9.8 Inch
Disc Hub Design: Rigid
Flywheel Weight: No Flywheel
Flywheel Tooth Count: No Flywheel
Flywheel Material: No Flywheel
Includes Throwout Bearing: Yes
Includes Pilot Bearing: Yes
Disc Friction Face Design: Single 6 Paddle
Torque Holding Capacity: 745 Feet/Pound
Includes Alignment Tool: Yes

Features

  • Moderate To Heavy Pedal Effort, Aggressive Engagement, Increased Gear Rattle
  • Moderate Friction Life, Extended By Exclusive Diaphragm Design
  • Carefully Engineered, Precisely Assembled, Accurately Balanced, Uses Select Ceramic Friction Materials For High Heat Tolerance And Maximum Performance
  • 100 Percent Clamp Load Tested And Dynamically Computer Balanced For Smooth High RPM Reliability
  • Limited 1 Year Warranty
Specifications of Advanced Clutch Set Diaphragm Rigid Single 6 Paddle - NZ1-XTR6
Disc Diameter  9.8 Inch
Disc Friction Face Design  Single 6 Paddle
Disc Friction Material  Ceramic
Disc Hub Design  Rigid
Flywheel Material  No Flywheel
Flywheel Tooth Count  No Flywheel
Flywheel Weight  No Flywheel
Includes Alignment Tool  Yes
Includes Pilot Bearing  Yes
Includes Throwout Bearing  Yes
Input Shaft Size  1 Inch X 24 Spline
Number Of Friction Discs  1 Disc
Pressure Plate Design  Diaphragm
Torque Holding Capacity  745 Feet/Pound

2003 Nissan 350Z
2004 Nissan 350Z
2005 Nissan 350Z
2006 Nissan 350Z
