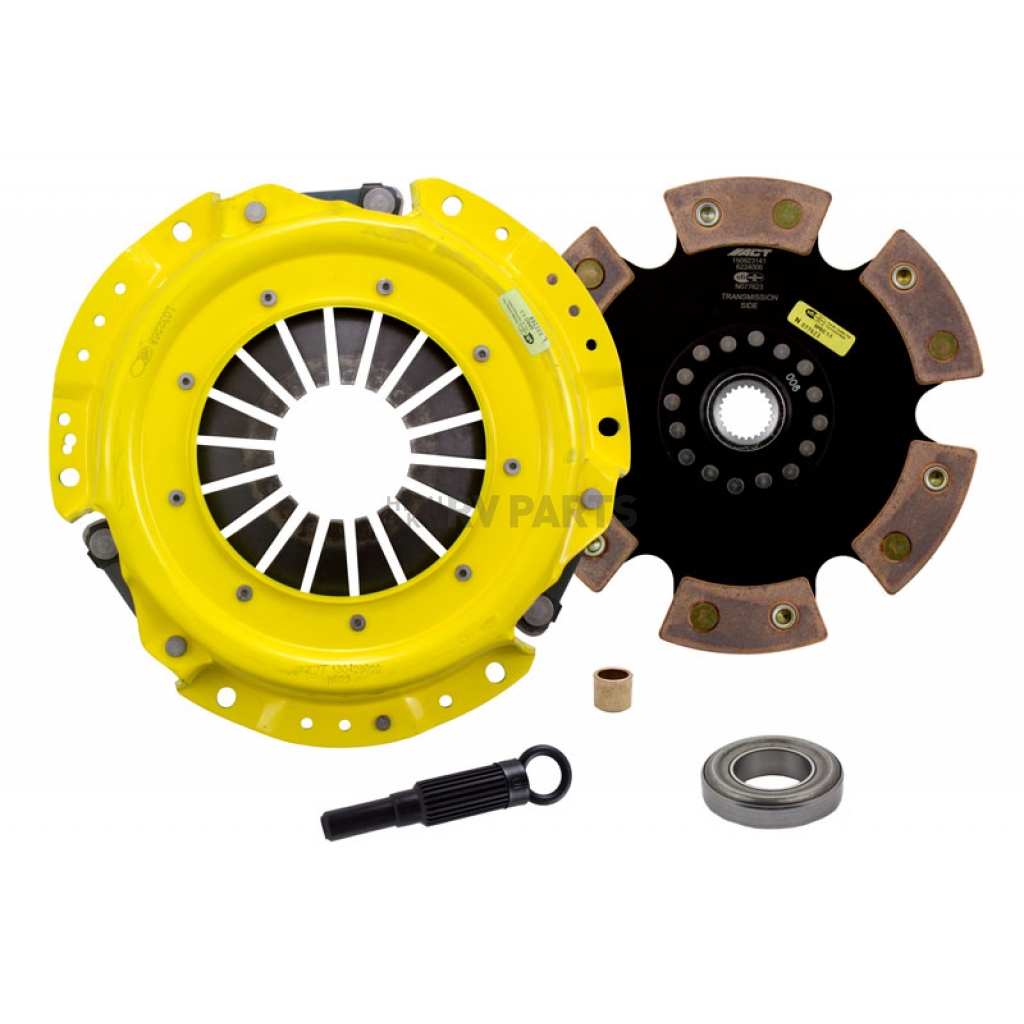

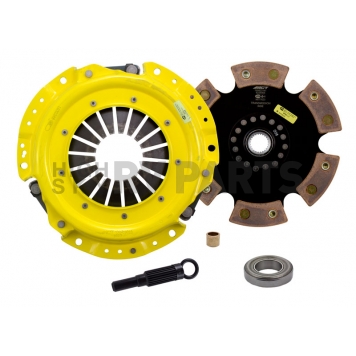

Advanced Clutch Set Heavy Duty Rigid Single 6 Paddle - NS4-HDR6
Disc Diameter
8.8 Inch
Disc Friction Face Design
Single 6 Paddle
Disc Friction Material
Ceramic
Disc Hub Design
Rigid
Includes Alignment Tool
Yes
Includes Pilot Bearing
Yes
Includes Throwout Bearing
Yes
Input Shaft Size
1 Inch X 24 Spline
Number Of Friction Discs
1 Disc
Pressure Plate Design
Heavy Duty
Torque Holding Capacity
390 Feet/Pound
Share this page
Clutch Set; Heavy Duty/ Race; For Use With 1989 To 1990 Nissan 180SX 1.8L Engine; 8.8 Inch Clutch Diameter; 1 Inch x 24 Spline Input Shaft; Diaphragm; 390 Foot Pound Torque Capacity; Single Disc/ Ceramic Friction Material; 6 Paddle Design/ Rigid Hub; With Clutch Disc/ Pressure Plate/ Alignment Tool/ Release Bearing/ Pilot Bearing
MPN: NS4-HDR6
Kit features ACT's most popular Heavy Duty pressure plate. ACT Heavy Duty pressure plates use exclusive diaphragm design to increase clamp load, reduce deflection and maximize clutch life. All diaphragms endure a four-stage, heat-treating process for unparalleled performance. ACT pressure plates have precision cover stampings to provide rigidity and consistency. ACT's 6-pad rigid race discs are made with high quality, ceramic friction materials. The chrome-moly hub is heat-treated for strength and durability. The lightweight, rigid design allows for quicker shifts and smooth, trouble-free service. With the 6-pad rigid race disc, engagement is harsher, but shifting is faster. The 6-pad rigid race disc is recommended for larger clutch sizes to absorb more heat.Pressure Plate Design: Heavy Duty
Input Shaft Size: 1 Inch X 24 Spline
Number Of Friction Discs: 1 Disc
Disc Friction Material: Ceramic
Disc Diameter: 8.8 Inch
Disc Hub Design: Rigid
Includes Throwout Bearing: Yes
Includes Pilot Bearing: Yes
Disc Friction Face Design: Single 6 Paddle
Torque Holding Capacity: 390 Feet/Pound
Includes Alignment Tool: Yes
Features
- Light To Moderate Pedal Effort, Aggressive Engagement, Increased Gear Rattle
- Moderate Friction Life, Extended By ACT's Exclusive Diaphragm Design, Rigid Design May Increase Spline Wear
- Quality: Carefully Engineered, Precisely Assembled, Accurately Balanced, Uses Select Ceramic Friction Materials For High Heat Tolerance And Maximum Performance
- 100 Percent Clamp Load Tested And Dynamically Computer Balanced For Smooth High RPM Reliability
- Heavy Duty Pressure Plates Use Exclusive Diaphragm Design To Increase Clamp Load, Reduce Deflection And Maximize Clutch Life
- Recommended For Race Use Only
- Limited 1 Year Warranty
| Specifications of Advanced Clutch Set Heavy Duty Rigid Single 6 Paddle - NS4-HDR6 | |
| Disc Diameter | 8.8 Inch |
| Disc Friction Face Design | Single 6 Paddle |
| Disc Friction Material | Ceramic |
| Disc Hub Design | Rigid |
| Includes Alignment Tool | Yes |
| Includes Pilot Bearing | Yes |
| Includes Throwout Bearing | Yes |
| Input Shaft Size | 1 Inch X 24 Spline |
| Number Of Friction Discs | 1 Disc |
| Pressure Plate Design | Heavy Duty |
| Torque Holding Capacity | 390 Feet/Pound |
