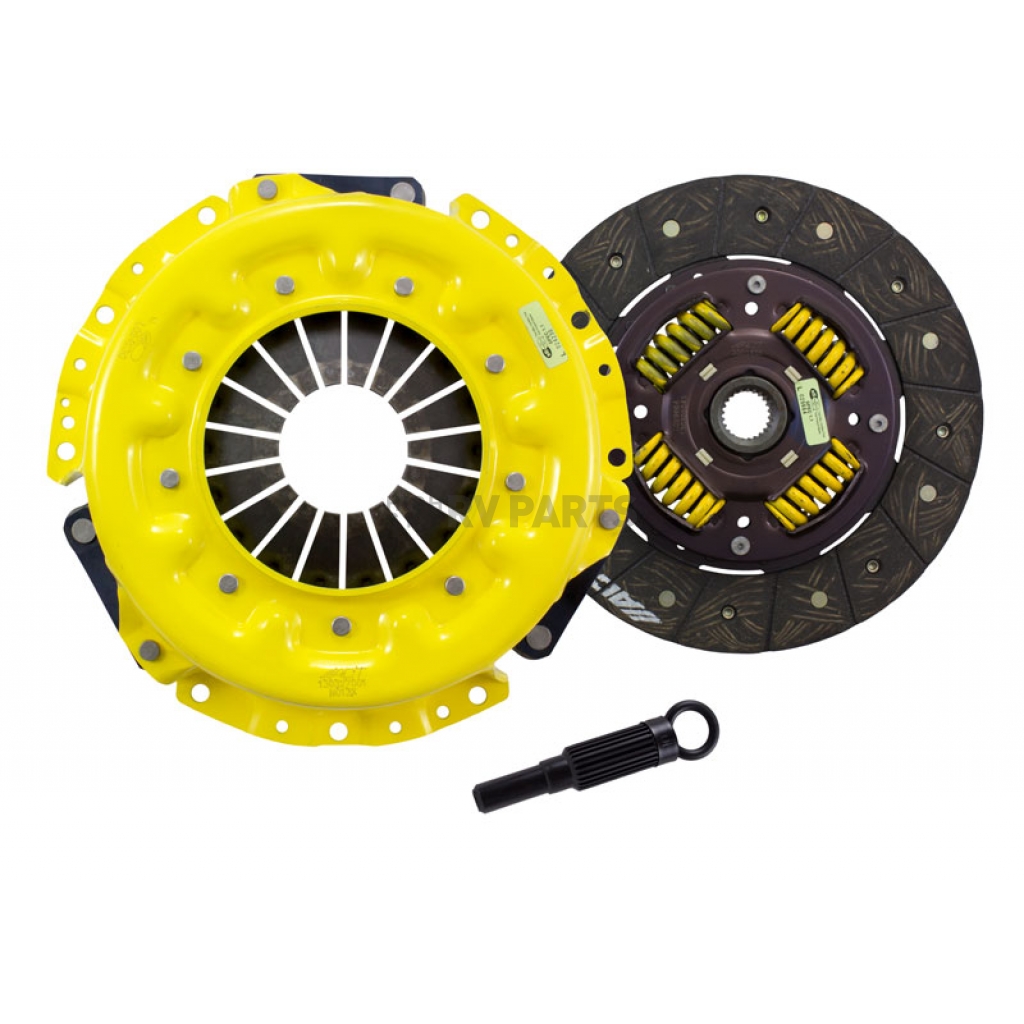

Advanced Clutch Set Diaphragm Sprung Full Face - NS3-XTSS
Disc Diameter
9.4 Inch
Disc Friction Face Design
Full Face
Disc Friction Material
Organic
Disc Hub Design
Sprung
Flywheel Material
No Flywheel
Flywheel Tooth Count
No Flywheel
Flywheel Weight
No Flywheel
Includes Alignment Tool
Yes
Includes Pilot Bearing
No
Includes Throwout Bearing
No
Input Shaft Size
1 Inch X 24 Spline
Share this page
Clutch Set; Xtreme/ Performance Street; 9.4 Inch Clutch Diameter; 1 Inch x 24 Spline Input Shaft; Diaphragm; 490 Foot Pound Torque Capacity; Single Disc/ Organic Friction Material; Full Face Design/ Sprung Hub; With Clutch Disc/ Pressure Plate/ Alignment Tool
MPN: NS3-XTSS
Kit features an Xtreme pressure plate for the most demanding driver. ACT Xtreme pressure plates use exclusive diaphragm design to increase clamp load, reduce deflection and maximize clutch life. All diaphragms endure a four-stage, heat-treating process for unparalleled performance. ACT pressure plates have precision cover stampings to provide rigidity and consistency. ACT's Performance street discs are the most popular disc purchased. They feature premium organic materials with high copper content for better heat transfer and steel-backed lining for greater burst strength and durability. These discs have reduced marcel for faster shift action to complement ACT pressure plates. Quiet operation with increased strength and reliability.Pressure Plate Design: Diaphragm
Input Shaft Size: 1 Inch X 24 Spline
Number Of Friction Discs: 1 Disc
Disc Friction Material: Organic
Disc Diameter: 9.4 Inch
Disc Hub Design: Sprung
Pressure Plate Material: Iron
Flywheel Weight: No Flywheel
Flywheel Tooth Count: No Flywheel
Flywheel Material: No Flywheel
Includes Throwout Bearing: No
Includes Pilot Bearing: No
Disc Friction Face Design: Full Face
Pressure Plate Clamp Load: 3000 Pound
Pressure Plate Centrifugal Assist: No Centrifugal Assist
Torque Holding Capacity: 490 Feet/Pound
Includes Alignment Tool: Yes
Features
- Moderate To Heavy Pedal Effort, Smooth Engagement, OE To Mild Gear Rattle
- Longer Friction Life, Extended By ACT's Exclusive Diaphragm Design
- Quality: Carefully Engineered, Precisely Assembled, Accurately Balanced, With Premium Organic Friction Materials For Heat Tolerance And Reduced Fade
- 100 Percent Clamp Load Tested And Dynamically Computer Balanced For Smooth High RPM Reliability
- Pressure Plates Use Exclusive Diaphragm Design To Increase Clamp Load, Reduce Deflection And Maximize Clutch Life
- Recommended For Street And Race Use
- Quiet Operation With Increased Strength And Reliability
- Limited 1 Year Warranty
| Specifications of Advanced Clutch Set Diaphragm Sprung Full Face - NS3-XTSS | |
| Disc Diameter | 9.4 Inch |
| Disc Friction Face Design | Full Face |
| Disc Friction Material | Organic |
| Disc Hub Design | Sprung |
| Flywheel Material | No Flywheel |
| Flywheel Tooth Count | No Flywheel |
| Flywheel Weight | No Flywheel |
| Includes Alignment Tool | Yes |
| Includes Pilot Bearing | No |
| Includes Throwout Bearing | No |
| Input Shaft Size | 1 Inch X 24 Spline |
| Number Of Friction Discs | 1 Disc |
| Pressure Plate Centrifugal Assist | No Centrifugal Assist |
| Pressure Plate Clamp Load | 3000 Pound |
| Pressure Plate Design | Diaphragm |
| Pressure Plate Material | Iron |
| Torque Holding Capacity | 490 Feet/Pound |
1990 Nissan Skyline
1991 Nissan Skyline
1992 Nissan Skyline
1993 Nissan Skyline
1994 Nissan Skyline
1995 Nissan Skyline
1996 Nissan Skyline
1997 Nissan Skyline
1998 Nissan Skyline
1991 Nissan Skyline
1992 Nissan Skyline
1993 Nissan Skyline
1994 Nissan Skyline
1995 Nissan Skyline
1996 Nissan Skyline
1997 Nissan Skyline
1998 Nissan Skyline
