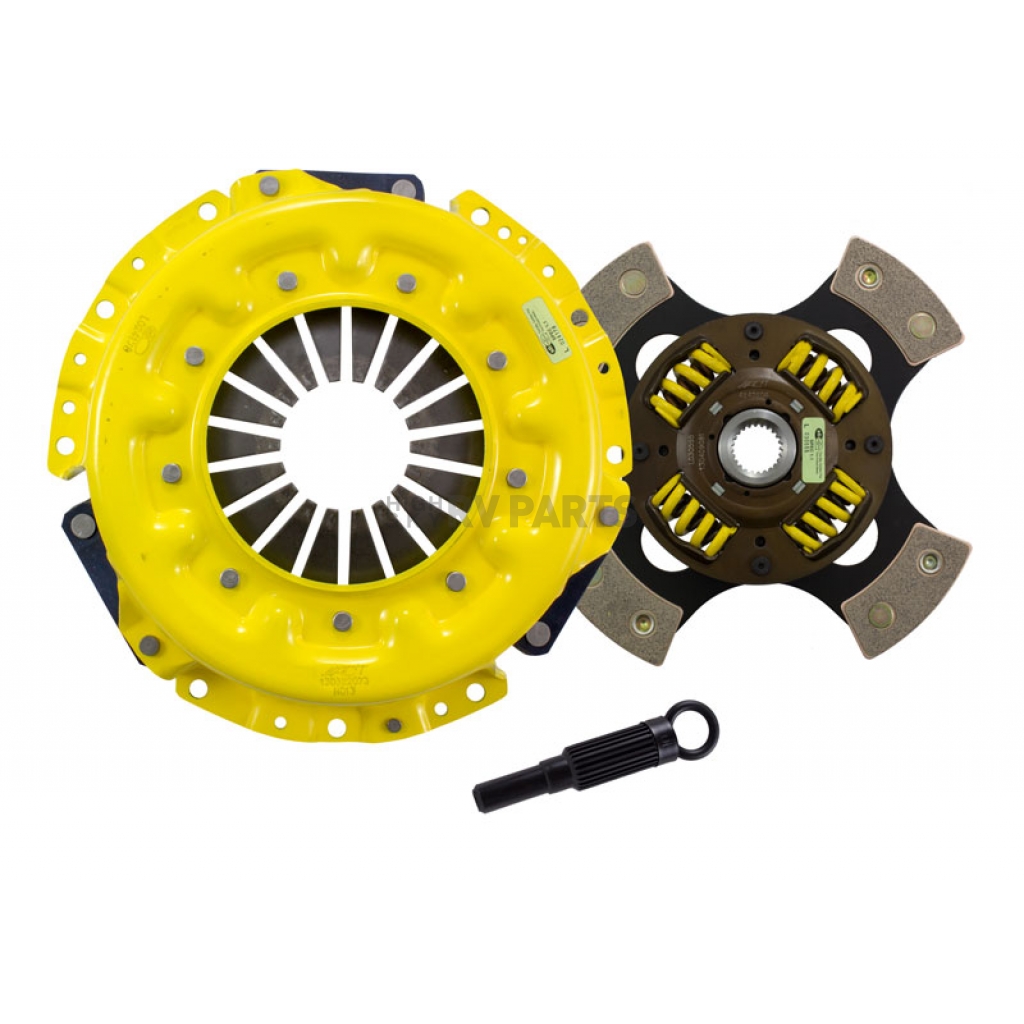

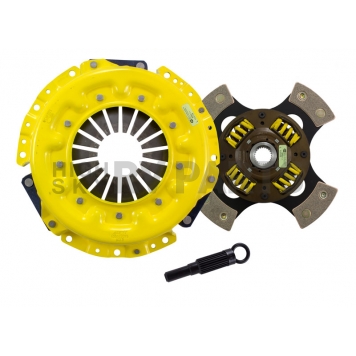

Advanced Clutch Set Heavy Duty Sprung Single 4 Paddle - NS3-HDG4

Authorized Dealer
Brand: Advanced Clutch Advanced Clutch
0 reviews
  • Have a product question? Ask us
  • Part Number: NS3-HDG4
  • Part Location: U.S.
  • Availability: *Special Order
  • Delivery: Up to 2 Weeks
  • If purchased before 12:00 EDT - estimated delivery by July 17
Retail: $626.84
Price: $596.99
You Save: $29.85
Disc Diameter
 9.4 Inch
Disc Friction Face Design
 Single 4 Paddle
Disc Friction Material
 Ceramic
Disc Hub Design
 Sprung
Flywheel Material
 No Flywheel
Flywheel Tooth Count
 No Flywheel
Flywheel Weight
 No Flywheel
Includes Alignment Tool
 Yes
Includes Pilot Bearing
 No
Includes Throwout Bearing
 No
Input Shaft Size
 1 Inch X 24 Spline
Share this page

Clutch Set; Heavy Duty/ Race; 9.4 Inch Clutch Diameter; 1 Inch x 24 Spline Input Shaft; Diaphragm; 525 Foot Pound Torque Capacity; Single Disc/ Ceramic Friction Material; 4 Paddle Design/ Sprung Hub; With Clutch Disc/ Pressure Plate/ Alignment Tool

MPN: NS3-HDG4

Kit features ACT's most popular Heavy Duty pressure plate. ACT Heavy Duty pressure plates use exclusive diaphragm design to increase clamp load, reduce deflection and maximize clutch life. All diaphragms endure a four-stage, heat-treating process for unparalleled performance. ACT pressure plates have precision cover stampings to provide rigidity and consistency. ACT's 4-pad spring-centered race disc features a spring-center to properly damp torsional vibrations for quieter operation and resist failure even under harsh conditions. ACT spring retainers utilize wraparound spring windows and thicker retainer stampings to provide spring support, reduce stress concentrations, and increase strength and reliability. With the 4-pad spring-centered race disc, engagement is harsher, but shifting is faster. ACT's 4-pad spring-centered race disc is well-suited for smaller disc sizes in smaller engines.

Pressure Plate Design: Heavy Duty
Input Shaft Size: 1 Inch X 24 Spline
Number Of Friction Discs: 1 Disc
Disc Friction Material: Ceramic
Disc Diameter: 9.4 Inch
Disc Hub Design: Sprung
Pressure Plate Material: Steel
Flywheel Weight: No Flywheel
Flywheel Tooth Count: No Flywheel
Flywheel Material: No Flywheel
Includes Throwout Bearing: No
Includes Pilot Bearing: No
Disc Friction Face Design: Single 4 Paddle
Pressure Plate Clamp Load: 16.4 Pound
Pressure Plate Centrifugal Assist: No Centrifugal Assist
Torque Holding Capacity: 525 Feet/Pound
Includes Alignment Tool: Yes

Features

  • Light To Moderate Pedal Effort, Smooth Positive Engagement, OE To Mild Gear Rattle
  • Moderate Friction Life, Extended By ACT's Exclusive Diaphragm Design
  • Quality: Carefully Engineered, Precisely Assembled, Accurately Balanced, Uses Select Ceramic Friction Materials For High Heat Tolerance And Maximum Performance
  • 100 Percent Clamp Load Tested And Dynamically Computer Balanced For Smooth High RPM Reliability
  • Heavy Duty Pressure Plates Use Exclusive Diaphragm Design To Increase Clamp Load, Reduce Deflection And Maximize Clutch Life
  • Recommended For High Horsepower Street Or Race Use
  • Limited 1 Year Warranty
Specifications of Advanced Clutch Set Heavy Duty Sprung Single 4 Paddle - NS3-HDG4
Disc Diameter  9.4 Inch
Disc Friction Face Design  Single 4 Paddle
Disc Friction Material  Ceramic
Disc Hub Design  Sprung
Flywheel Material  No Flywheel
Flywheel Tooth Count  No Flywheel
Flywheel Weight  No Flywheel
Includes Alignment Tool  Yes
Includes Pilot Bearing  No
Includes Throwout Bearing  No
Input Shaft Size  1 Inch X 24 Spline
Number Of Friction Discs  1 Disc
Pressure Plate Centrifugal Assist  No Centrifugal Assist
Pressure Plate Clamp Load  16.4 Pound
Pressure Plate Design  Heavy Duty
Pressure Plate Material  Steel
Torque Holding Capacity  525 Feet/Pound

1990 Nissan Skyline
1991 Nissan Skyline
1992 Nissan Skyline
1993 Nissan Skyline
1994 Nissan Skyline
1995 Nissan Skyline
1996 Nissan Skyline
1997 Nissan Skyline
1998 Nissan Skyline
