Advanced Clutch Set Heavy Duty Sprung Full Face - NS1-HDSS
Disc Diameter
9.4 Inch
Disc Friction Face Design
Full Face
Disc Friction Material
Organic
Disc Hub Design
Sprung
Flywheel Material
No Flywheel
Flywheel Tooth Count
No Flywheel
Flywheel Weight
No Flywheel
Includes Alignment Tool
Yes
Includes Pilot Bearing
Yes
Includes Throwout Bearing
Yes
Input Shaft Size
1 Inch X 24 Spline
Share this page

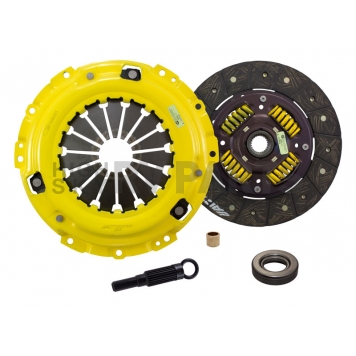

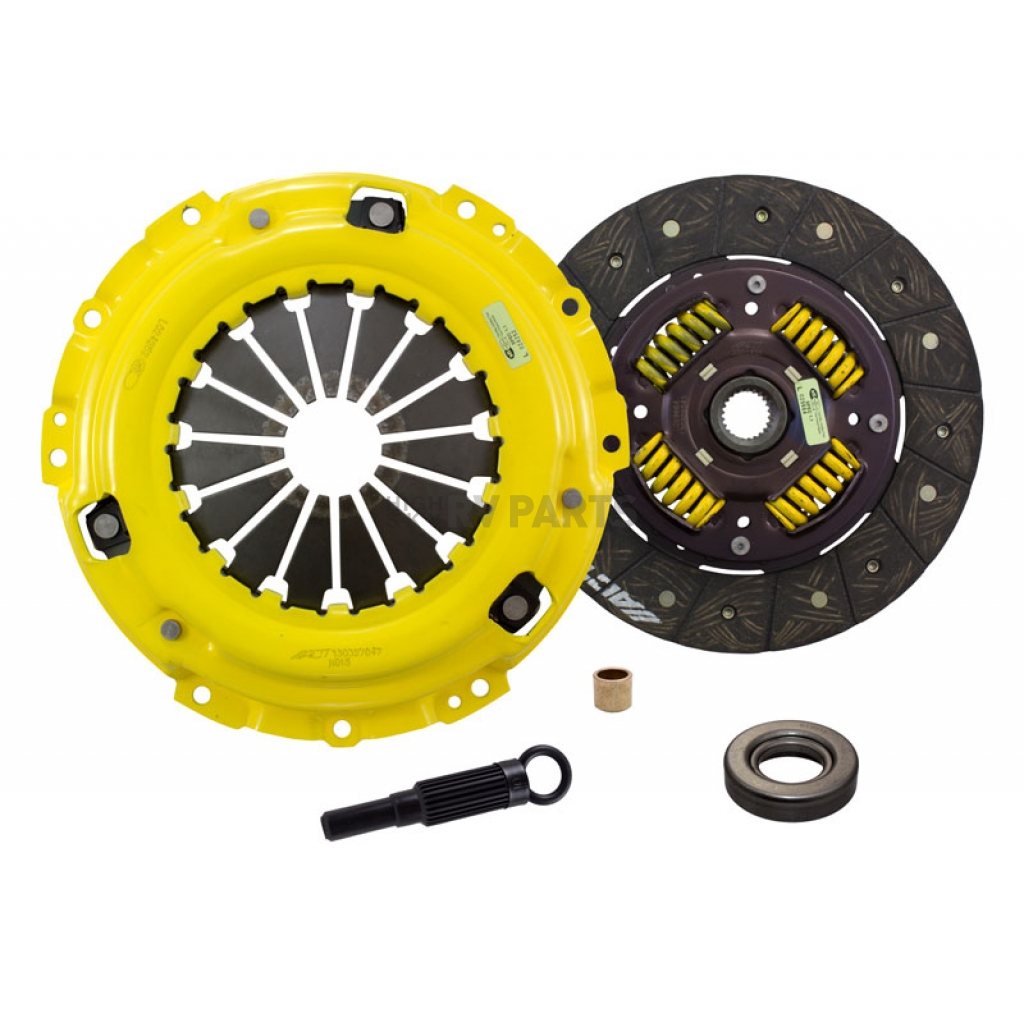

Clutch Set; Heavy Duty/ Performance Street; For Use With 1991 To 1998 Nissan Bluebird/ Silvia 2.0L Engines; 9.4 Inch Clutch Diameter; 1 Inch x 24 Spline Input Shaft; Diaphragm; Single Disc; Organic Friction Material; Full Face Design/ Sprung Hub; With Clutch Disc/ Pressure Plate/ Pilot Bearing/ Throw-Out Bearing/ Alignment Bearing
MPN: NS1-HDSS
This kit features ACT's most popular Heavy Duty pressure plate and most popular street disc. ACT Heavy Duty pressure plates use exclusive diaphragm design to increase clamp load, reduce deflection and maximize clutch life. All diaphragms endure a four-stage, heat-treating process for unparalleled performance. ACT pressure plates have precision cover stampings to provide rigidity and consistency. ACT's Performance Street discs feature premium organic materials with high copper content for better heat transfer and steel-backed lining for greater burst strength and durability. These discs have reduced marcel for faster shift action to complement ACT pressure plates, with increased strength and reliability.Pressure Plate Design: Heavy Duty
Input Shaft Size: 1 Inch X 24 Spline
Number Of Friction Discs: 1 Disc
Disc Friction Material: Organic
Disc Diameter: 9.4 Inch
Disc Hub Design: Sprung
Pressure Plate Material: Steel
Flywheel Weight: No Flywheel
Flywheel Tooth Count: No Flywheel
Flywheel Material: No Flywheel
Includes Throwout Bearing: Yes
Includes Pilot Bearing: Yes
Disc Friction Face Design: Full Face
Pressure Plate Clamp Load: 13.3 Pound
Pressure Plate Centrifugal Assist: No Centrifugal Assist
Torque Holding Capacity: 370 Feet/Pound
Includes Alignment Tool: Yes
Features
- Feel: Light To Moderate Pedal Effort, Smooth Positive Engagement, OE To Mild Gear Rattle
- Life: Longer Friction Life, Extended By ACT's Exclusive Diaphragm Design
- Quality: Carefully Engineered, Precisely Assembled, Accurately Balanced, With Premium Organic Friction Materials For Heat Tolerance And Reduced Fade
- Recommended For Street And Race Use
- 100 Percent Clamp Load Tested And Dynamically Computer Balanced For Smooth High RPM Reliability
- Limited 1 Year Warranty From The Date Of Purchase
| Specifications of Advanced Clutch Set Heavy Duty Sprung Full Face - NS1-HDSS | |
| Disc Diameter | 9.4 Inch |
| Disc Friction Face Design | Full Face |
| Disc Friction Material | Organic |
| Disc Hub Design | Sprung |
| Flywheel Material | No Flywheel |
| Flywheel Tooth Count | No Flywheel |
| Flywheel Weight | No Flywheel |
| Includes Alignment Tool | Yes |
| Includes Pilot Bearing | Yes |
| Includes Throwout Bearing | Yes |
| Input Shaft Size | 1 Inch X 24 Spline |
| Number Of Friction Discs | 1 Disc |
| Pressure Plate Centrifugal Assist | No Centrifugal Assist |
| Pressure Plate Clamp Load | 13.3 Pound |
| Pressure Plate Design | Heavy Duty |
| Pressure Plate Material | Steel |
| Torque Holding Capacity | 370 Feet/Pound |
