Advanced Clutch Set Heavy Duty Rigid 6 Paddle - NS1-HDR6
Disc Diameter
9.4 Inch
Disc Friction Face Design
6 Paddle
Disc Friction Material
Ceramic
Disc Hub Design
Rigid
Flywheel Material
No Flywheel
Flywheel Tooth Count
No Flywheel
Flywheel Weight
No Flywheel
Includes Alignment Tool
Yes
Includes Pilot Bearing
Yes
Includes Throwout Bearing
Yes
Input Shaft Size
1 Inch X 24 Spline
Share this page

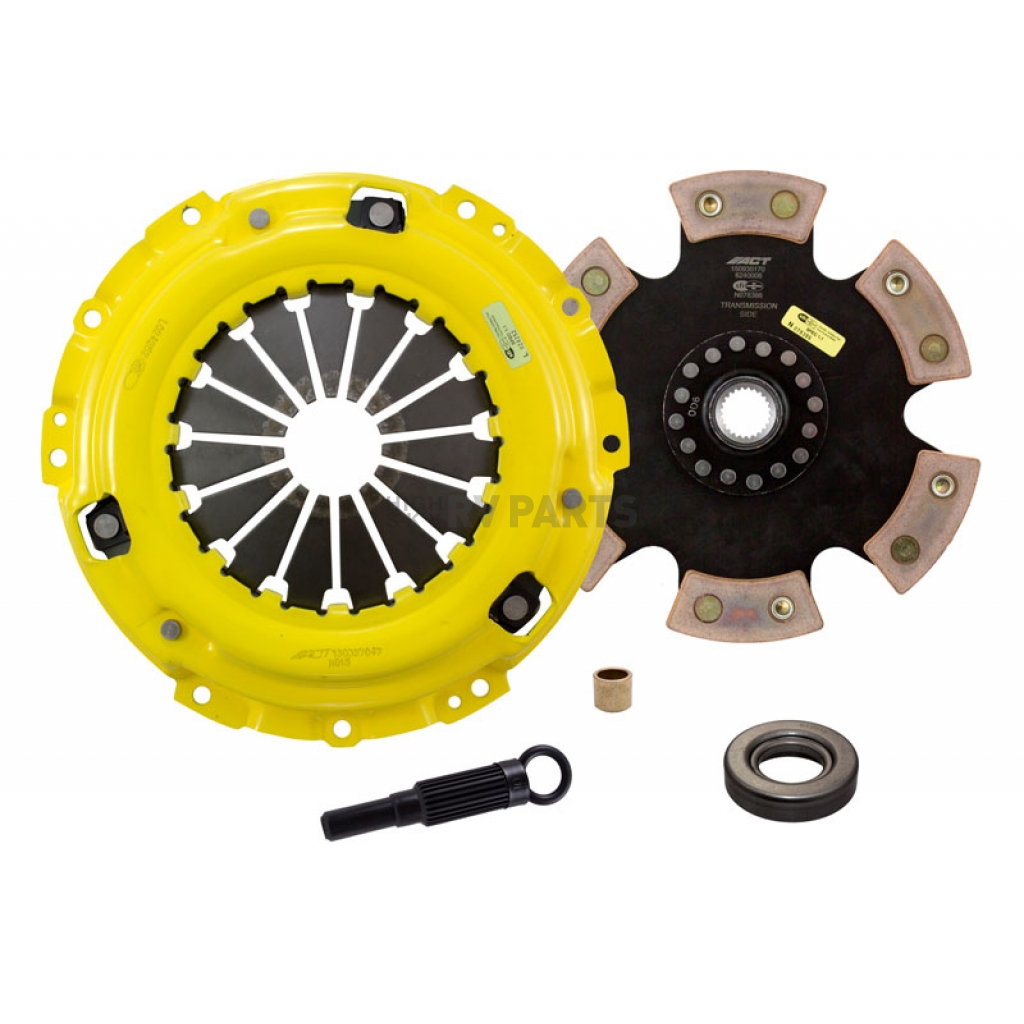

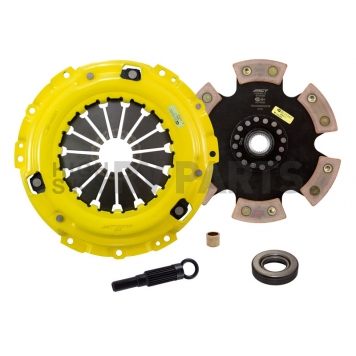

Clutch Set; Heavy Duty/ Race; For Use With 1991 To 1998 Nissan Bluebird/ Silvia 2.0L Engines; 9.4 Inch Clutch Diameter; 1 Inch x 24 Spline Input Shaft; Diaphragm; Single Disc; Ceramic Friction Material; 6 Paddle Design/ Rigid Hub; With Clutch Disc/ Pressure Plate/ Pilot Bearing/ Throw-Out Bearing/ Alignment Bearing
MPN: NS1-HDR6
This features ACT's most popular Heavy Duty pressure plate. ACT Heavy Duty pressure plates use exclusive diaphragm design to increase clamp load, reduce deflection and maximize clutch life. All diaphragms endure a four-stage, heat-treating process for unparalleled performance. ACT pressure plates have precision cover stampings to provide rigidity and consistency. ACT's 6-pad rigid race discs are made with high quality, ceramic friction materials. The chrome-moly hub is heat-treated for strength and durability. The lightweight, rigid design allows for quicker shifts and smooth, trouble-free service. With the 6-pad rigid race disc, engagement is harsher, but shifting is faster. The 6-pad rigid race disc is recommended for larger clutch sizes to absorb more heat.Pressure Plate Design: Heavy Duty
Input Shaft Size: 1 Inch X 24 Spline
Number Of Friction Discs: 1 Disc
Disc Friction Material: Ceramic
Disc Diameter: 9.4 Inch
Disc Hub Design: Rigid
Pressure Plate Material: Steel
Flywheel Weight: No Flywheel
Flywheel Tooth Count: No Flywheel
Flywheel Material: No Flywheel
Includes Throwout Bearing: Yes
Includes Pilot Bearing: Yes
Disc Friction Face Design: 6 Paddle
Pressure Plate Clamp Load: 13.3 Pound
Pressure Plate Centrifugal Assist: No Centrifugal Assist
Torque Holding Capacity: 475 Feet/Pound
Includes Alignment Tool: Yes
Features
- Feel: Light To Moderate Pedal Effort, Smooth Positive Engagement, Increased Gear Rattle
- Life: Longer Friction Life, Extended By ACT's Exclusive Diaphragm Design, Rigid Design May Increase Spline Wear
- Quality: Carefully Engineered, Precisely Assembled, Accurately Balanced, Uses Select Ceramic Friction Materials For High Heat Tolerance And Maximum Performance
- Recommended For Street And Race Use
- 100 Percent Clamp Load Tested And Dynamically Computer Balanced For Smooth High RPM Reliability
- Limited 1 Year Warranty From The Date Of Purchase
| Specifications of Advanced Clutch Set Heavy Duty Rigid 6 Paddle - NS1-HDR6 | |
| Disc Diameter | 9.4 Inch |
| Disc Friction Face Design | 6 Paddle |
| Disc Friction Material | Ceramic |
| Disc Hub Design | Rigid |
| Flywheel Material | No Flywheel |
| Flywheel Tooth Count | No Flywheel |
| Flywheel Weight | No Flywheel |
| Includes Alignment Tool | Yes |
| Includes Pilot Bearing | Yes |
| Includes Throwout Bearing | Yes |
| Input Shaft Size | 1 Inch X 24 Spline |
| Number Of Friction Discs | 1 Disc |
| Pressure Plate Centrifugal Assist | No Centrifugal Assist |
| Pressure Plate Clamp Load | 13.3 Pound |
| Pressure Plate Design | Heavy Duty |
| Pressure Plate Material | Steel |
| Torque Holding Capacity | 475 Feet/Pound |
