Advanced Clutch Set Diaphragm Large Sprung Full Face - MB3-HDSS
Clutch Set; Street; 8.46 Inch Clutch Diameter; 7/8 Inch x 20 Spline Input Shaft; Diaphragm; Single Disc/ Organic Friction Material; Full Face Design/ Sprung Hub; With Throwout Bearing And Alignment Tool
MPN: MB3-HDSS

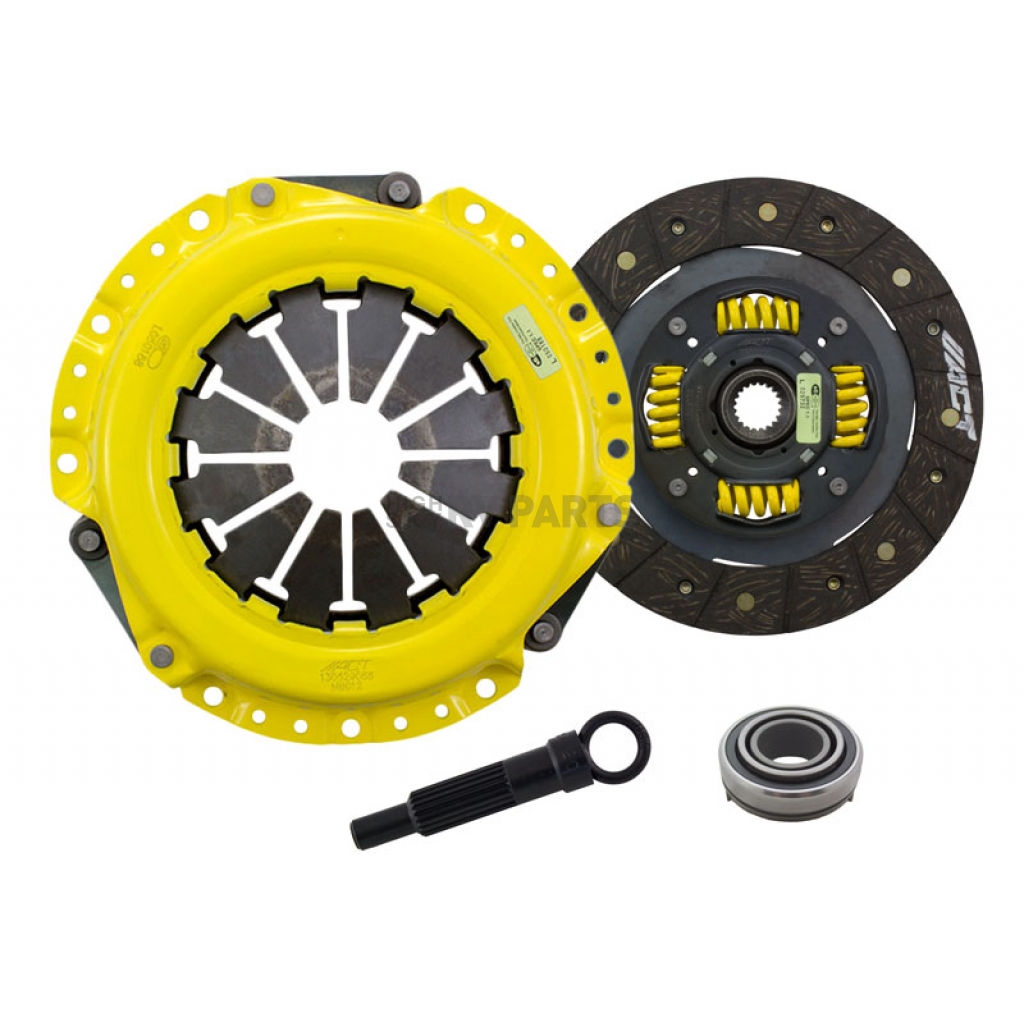

This ACT clutch kit includes a Heavy-Duty pressure plate, Performance Street disc, release bearing, pilot bearing and alignment tool. The Heavy-Duty pressure plate allows for a 20 to 50 Percent increase in clamp load over the stock unit. ACT’s Heavy-Duty pressure plate features precision CNC machined parts, drive straps and rivets to securely locate contact face to the cover for quiet, trouble-free operation. The Heavy-Duty pressure plate will have a stock to moderate pedal feel. ACT pressure plates feature creative diaphragm designs to increase clamp load, reduce deflection and maximize clutch life. All diaphragms endure an exclusive four-stage, heat-treating process for unparalleled performance. The Heavy-Duty pressure plate meets SFI Specification 1.1. ACT Performance Street discs are modified with reduced marcel for faster shift action to complement ACT pressure plates. Performance Street discs have higher copper content friction lining for heat tolerance and steel-backed lining for greater burst strength and durability. Also, they feature top grade rivets to securely fasten the part together. The rivet design and rivet materials are carefully selected for maximum strength. ACT spring-centered assemblies use bushings and cone springs similar to factory clutch discs. This creates frictional dampening, which improves clutch life and reduces noise. All Performance Street discs are certified as meeting SFI Specification 1.1 and are legal in all racing organizations that require SFI certification. The kit is completed with a quality, stock replacement release bearing, pilot bearing and alignment tool.Features
- Center Hub Springs Help Lessen The Shock Of Engagement
- Premium Organic Friction Material For High Heat Tolerance, Quick Recovery, Good Friction And Long Life
- Strict SFI Certification Ensures Driver And Spectator Safety
- Steel Backed Linings For Higher Burst Strength
- Spring Center Construction Properly Dampens Torsional Vibrations For Quieter Operation
- Clamp Load Increase Of 20 To 50 Percent Over Stock With A Stock To Moderate Pedal Feel
- All ACT Pressure Plates Are Dynamically Computer Balanced For Smooth Operation At High RPM
- Limited 1 Year Warranty
Specifications of Advanced Clutch Set Diaphragm Large Sprung Full Face - MB3-HDSS | |
Disc Diameter | 8.46 Inch |
Disc Friction Face Design | Full Face |
Disc Friction Material | Organic |
Disc Hub Design | Large Sprung |
Flywheel Material | No Flywheel |
Flywheel Tooth Count | No Flywheel |
Flywheel Weight | No Flywheel |
Includes Alignment Tool | Yes |
Includes Pilot Bearing | No |
Includes Throwout Bearing | Yes |
Input Shaft Size | 7/8 Inch X 20 Spline |
Number Of Friction Discs | 1 Disc |
Pressure Plate Centrifugal Assist | No Centrifugal Assist |
Pressure Plate Clamp Load | 9.6 Pound |
Pressure Plate Design | Diaphragm |
Pressure Plate Material | Steel |
Torque Holding Capacity | 225 Feet/Pound |
1990 Dodge Colt
1994 Dodge Colt
1993 Eagle Summit
1994 Eagle Summit
1991 Eagle Talon
1992 Eagle Talon
1993 Eagle Talon
1994 Eagle Talon
1994 Hyundai Elantra
1995 Hyundai Elantra
1994 Hyundai Scoupe
1995 Hyundai Scoupe
1993 Hyundai Sonata
1994 Hyundai Sonata
1991 Mitsubishi Eclipse
1992 Mitsubishi Eclipse
1993 Mitsubishi Eclipse
1994 Mitsubishi Eclipse
1993 Mitsubishi Expo LRV
1994 Mitsubishi Expo LRV
1990 Mitsubishi Galant
1991 Mitsubishi Galant
1992 Mitsubishi Galant
1993 Mitsubishi Galant
1989 Mitsubishi Mirage
1992 Mitsubishi Mirage
1993 Mitsubishi Mirage
1994 Mitsubishi Mirage
1995 Mitsubishi Mirage
1996 Mitsubishi Mirage
1997 Mitsubishi Mirage
1998 Mitsubishi Mirage
1999 Mitsubishi Mirage
2000 Mitsubishi Mirage
2001 Mitsubishi Mirage
2002 Mitsubishi Mirage
1991 Plymouth Laser
1992 Plymouth Laser
1993 Plymouth Laser
1994 Plymouth Laser
