Advanced Clutch Set Diaphragm Sprung Hub 6 Paddle - JP4-HDG6
Disc Diameter
11 Inch
Disc Friction Face Design
6 Paddle
Disc Friction Material
Ceramic
Disc Hub Design
Sprung Hub
Includes Alignment Tool
Yes
Includes Pilot Bearing
Yes
Includes Throwout Bearing
No
Input Shaft Size
1-1/8 Inch X 10 Spline
Number Of Friction Discs
1 Disc
Pressure Plate Design
Diaphragm
Torque Holding Capacity
613 Feet/Pound
Share this page

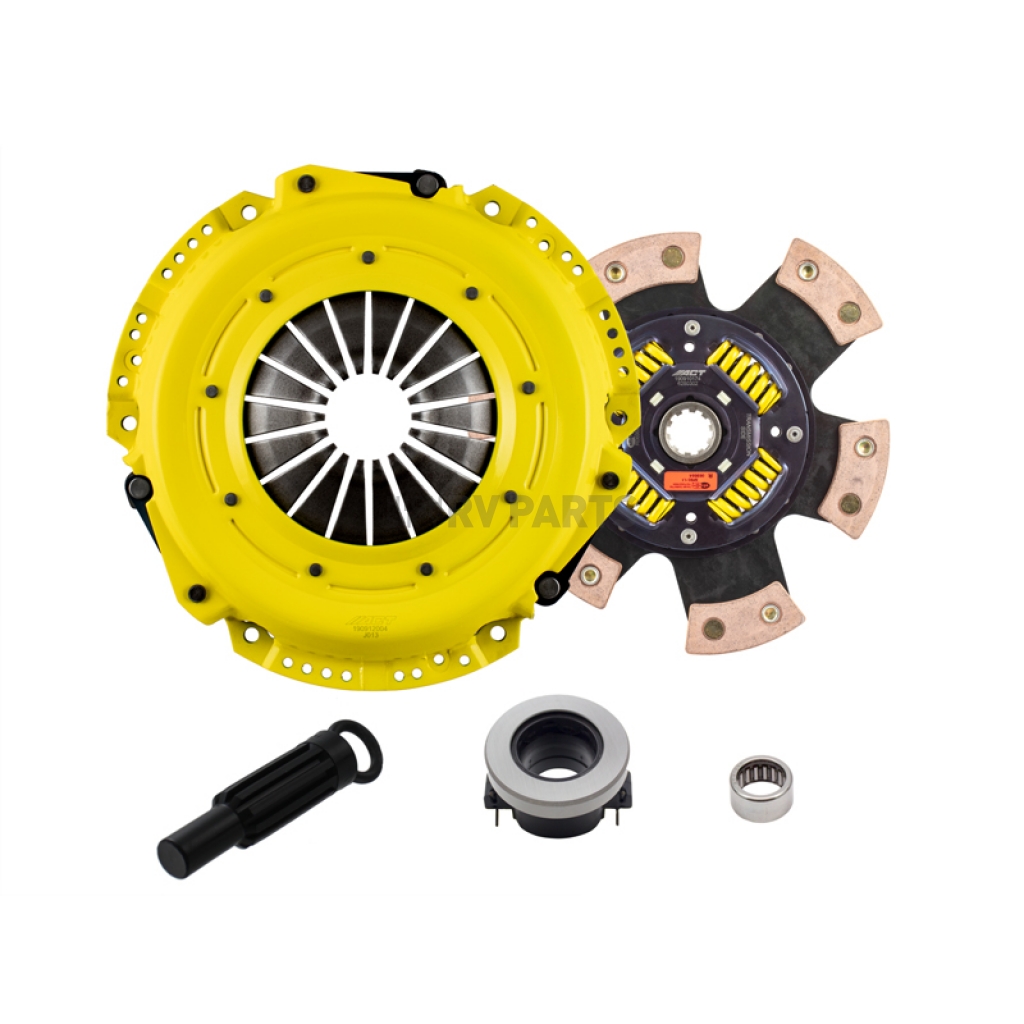

Clutch Set; Heavy Duty/ Race; 11 Inch Clutch Diameter; 1-1/8 Inch x 10 Spline Input Shaft; Diaphragm; Single Disc/ Ceramic Friction Material; 6 Paddle Design/ Sprung Hub; With Clutch Disc/ Pressure Plate/ Alignment Tool/ Release Bearing/ Pilot Bearing
MPN: JP4-HDG6
JP4-HDG6 kit features ACT's highly regarded Heavy Duty pressure plate and spring-center 6 pad race disc delivering high torque capacity, aggressive engagement, quiet operation and increased toughness to withstand the demands of off-road racing. ACT's exclusive diaphragm design increases clamp load, reduces deflection and maximizes clutch life. All diaphragms endure a four-stage heat-treating process for unparalleled performance. ACT precision pressure plate cover stampings provide rigidity and consistency while precision machined pressure plate castings absorb heat. ACT's spring center 6 pad race discs boast quality parts throughout, with robust spring center sections to absorb driveline shock and premium ceramic friction materials to hold power even under the most abusive conditions.Pressure Plate Design: Diaphragm
Input Shaft Size: 1-1/8 Inch X 10 Spline
Number Of Friction Discs: 1 Disc
Disc Friction Material: Ceramic
Disc Diameter: 11 Inch
Disc Hub Design: Sprung Hub
Includes Throwout Bearing: No
Includes Pilot Bearing: Yes
Disc Friction Face Design: 6 Paddle
Torque Holding Capacity: 613 Feet/Pound
Includes Alignment Tool: Yes
Features
- Light To Moderate Pedal Effort, Aggressive Engagement, OE To Mild Gear Rattle, Confidence During Hard Shifts
- Moderate Friction Life, Extended By ACT's Exclusive Diaphragm Design, Increased Durability And Heat Capacity
- Carefully Engineered, Precisely Assembled, Accurately Balanced, Uses Premium Ceramic Friction Materials For High Heat Tolerance And Maximum Performance, Premium Bearings And Hardware
- 100 Percent Clamp Load Tested And Dynamically Computer Balanced For Smooth High RPM Reliability
- Limited 12 Month Warranty
| Specifications of Advanced Clutch Set Diaphragm Sprung Hub 6 Paddle - JP4-HDG6 | |
| Disc Diameter | 11 Inch |
| Disc Friction Face Design | 6 Paddle |
| Disc Friction Material | Ceramic |
| Disc Hub Design | Sprung Hub |
| Includes Alignment Tool | Yes |
| Includes Pilot Bearing | Yes |
| Includes Throwout Bearing | No |
| Input Shaft Size | 1-1/8 Inch X 10 Spline |
| Number Of Friction Discs | 1 Disc |
| Pressure Plate Design | Diaphragm |
| Torque Holding Capacity | 613 Feet/Pound |
2012 Jeep Wrangler JK
2013 Jeep Wrangler JK
2014 Jeep Wrangler JK
2015 Jeep Wrangler JK
2016 Jeep Wrangler JK
2017 Jeep Wrangler JK
2018 Jeep Wrangler JK
2013 Jeep Wrangler JK
2014 Jeep Wrangler JK
2015 Jeep Wrangler JK
2016 Jeep Wrangler JK
2017 Jeep Wrangler JK
2018 Jeep Wrangler JK
