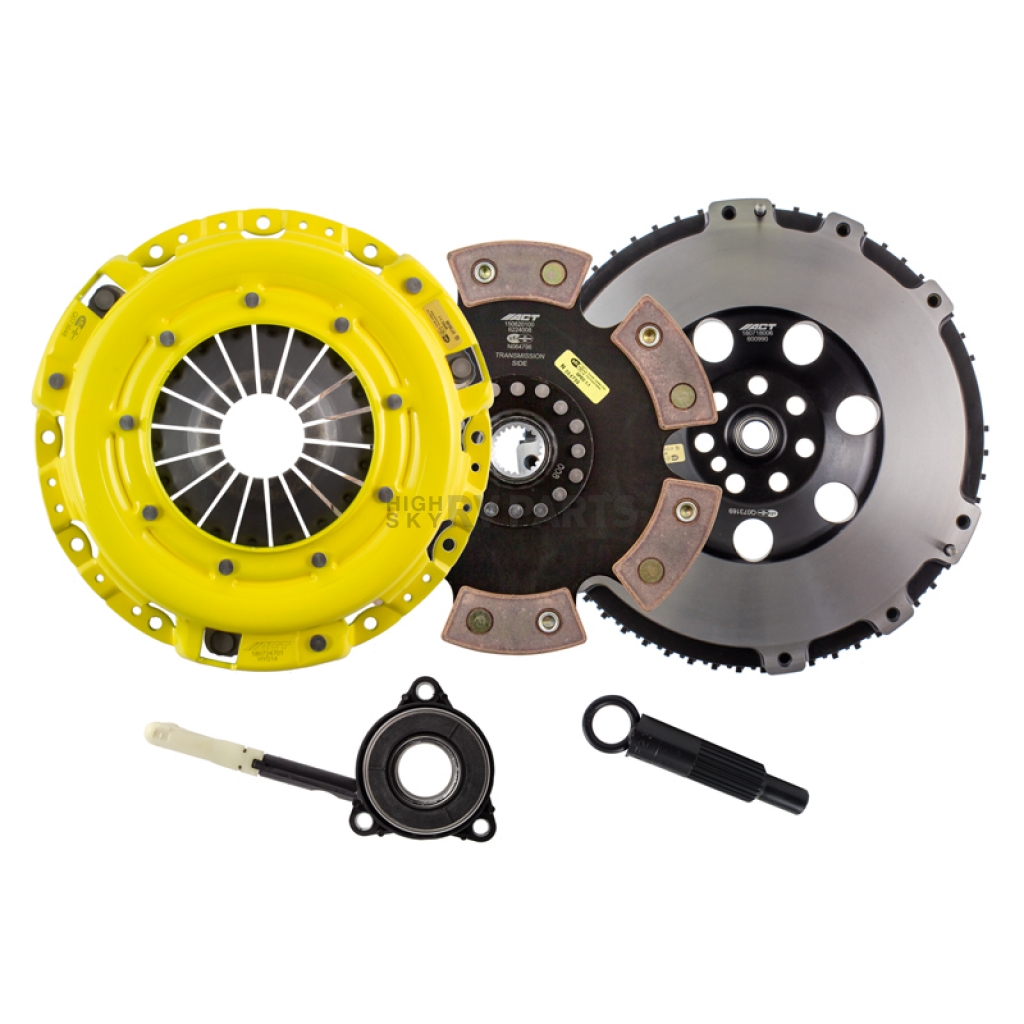

Advanced Clutch Set Heavy Duty Rigid 6 Paddle - HY5-HDR6

Authorized Dealer
Brand: Advanced Clutch Advanced Clutch
0 reviews
  • Have a product question? Ask us
  • Part Number: HY5-HDR6
  • Part Location: U.S.
  • Availability: *Special Order
  • Delivery: Up to 2 Weeks
  • If purchased before 12:00 EDT - estimated delivery by July 18
Retail: $1,948.79
Price: $1,855.99
You Save: $92.80
Disc Diameter
 9.8 Inch
Disc Friction Face Design
 6 Paddle
Disc Friction Material
 Ceramic
Disc Hub Design
 Rigid
Flywheel Material
 Chromoly Steel
Flywheel Tooth Count
 117
Flywheel Weight
 18.8 Pound
Includes Alignment Tool
 Yes
Includes Pilot Bearing
 No
Includes Throwout Bearing
 No
Input Shaft Size
 1 Inch X 23 Spline
Share this page

Clutch Set; Heavy Duty/ Race; 9.8 Inch Clutch Diameter; 1 Inch x 23 Spline Input Shaft; Diaphragm; Single Disc/ Ceramic Friction Material; 6 Paddle Design/ Rigid Hub; With Clutch Disc/ Pressure Plate/ Alignment Tool

MPN: HY5-HDR6

Cutch kit features ACT's most popular Heavy Duty pressure plate. ACT Heavy Duty pressure plates use exclusive diaphragm design to increase clamp load, reduce deflection and maximize clutch life. All diaphragms endure a four-stage, heat-treating process for unparalleled performance. ACT pressure plates have precision cover stampings to provide rigidity and consistency. ACT spring retainers utilize wraparound spring windows and thicker retainer stampings to provide spring support, reduce stress concentrations, and increase strength and reliability. With the 4-pad spring-centered race disc, engagement is harsher, but shifting is faster. ACT's 4-pad spring-centered race disc is well-suited for smaller disc sizes in smaller engines.

Pressure Plate Design: Heavy Duty
Input Shaft Size: 1 Inch X 23 Spline
Number Of Friction Discs: 1 Disc
Disc Friction Material: Ceramic
Disc Diameter: 9.8 Inch
Disc Hub Design: Rigid
Pressure Plate Material: Steel
Flywheel Weight: 18.8 Pound
Flywheel Tooth Count: 117
Flywheel Material: Chromoly Steel
Includes Throwout Bearing: No
Includes Pilot Bearing: No
Disc Friction Face Design: 6 Paddle
Pressure Plate Centrifugal Assist: No Centrifugal Assist
Torque Holding Capacity: 612 Feet/Pound
Includes Alignment Tool: Yes

Features

  • Feel: Light To Moderate Pedal Effort, Aggressive Engagement, Increased Gear Rattle
  • Life: Moderate Friction Life, Extended By Exclusive Diaphragm Design, Rigid Design May Increase Spline Wear
  • Quality: Carefully Engineered, Precisely Assembled, Accurately Balanced, Uses Select Ceramic Friction Materials For High Heat Tolerance And Maximum Performance
  • Recommended For Race Use
  • 100 Percent Clamp Load Tested And Dynamically Computer Balanced For Smooth High RPM Reliability
  • Limited 12 Month Warranty
Specifications of Advanced Clutch Set Heavy Duty Rigid 6 Paddle - HY5-HDR6
Disc Diameter  9.8 Inch
Disc Friction Face Design  6 Paddle
Disc Friction Material  Ceramic
Disc Hub Design  Rigid
Flywheel Material  Chromoly Steel
Flywheel Tooth Count  117
Flywheel Weight  18.8 Pound
Includes Alignment Tool  Yes
Includes Pilot Bearing  No
Includes Throwout Bearing  No
Input Shaft Size  1 Inch X 23 Spline
Number Of Friction Discs  1 Disc
Pressure Plate Centrifugal Assist  No Centrifugal Assist
Pressure Plate Design  Heavy Duty
Pressure Plate Material  Steel
Torque Holding Capacity  612 Feet/Pound

2013 Hyundai Genesis Coupe
2014 Hyundai Genesis Coupe
