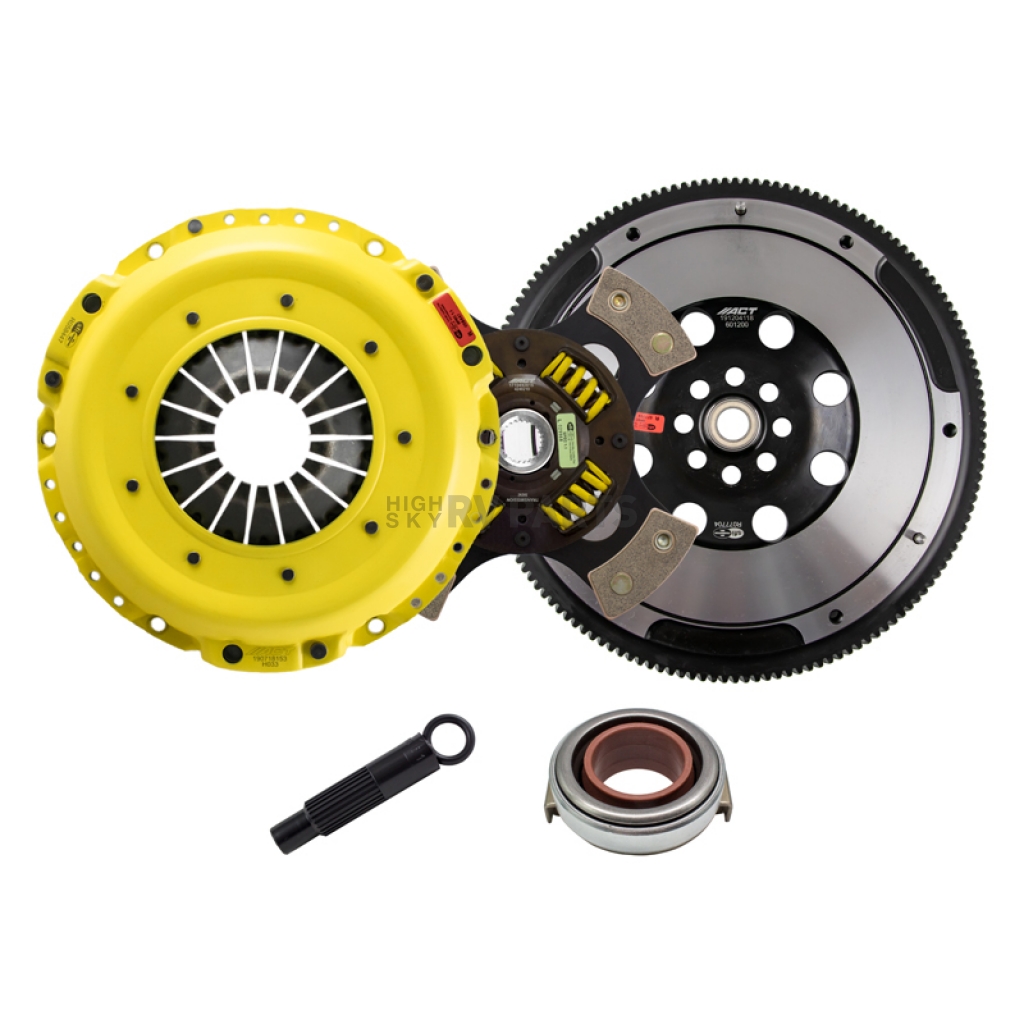

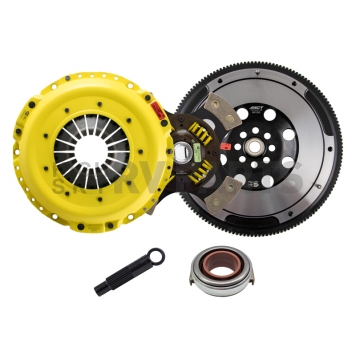

Advanced Clutch Set 4 Paddle Sprung Hub - HC12-HDG4

Clutch Set; Heavy Duty/ Race; 9.4 Inch Clutch Diameter; 1-1/3 Inch x 24 Spline; Ceramic Friction Material; Sprung Hub; 4 Paddle Design; With Clutch Disc/ Pressure Plate/ Release Bearing/ Alignment Tool

MPN: HC12-HDG4

ACT's most popular Heavy Duty pressure plate. ACT Heavy Duty pressure plates use exclusive diaphragm design to increase clamp load, reduce deflection and maximize clutch life. All diaphragms endure a four-stage, heat-treating process for unparalleled performance. ACT pressure plates have precision cover stampings to provide rigidity and consistency. ACT's 4-pad spring-centered race disc features a spring-center to properly damp torsional vibrations for quieter operation and resist failure even under harsh conditions. ACT spring retainers utilize wraparound spring windows and thicker retainer stampings to provide spring support, reduce stress concentrations, and increase strength and reliability. With the 4-pad spring-centered race disc, engagement is harsher, but shifting is faster. ACT's 4-pad spring-centered race disc is well-suited for smaller disc sizes in smaller engines.

Features

• Feel: Light To Moderate Pedal Effort, Aggressive Engagement, OE To Mild Gear Rattle
• Life: Moderate Friction Life, Extended By ACT's Exclusive Diaphragm Design
• Quality: Carefully Engineered, Precisely Assembled, Accurately Balanced, Uses Select Ceramic Friction Materials For High Heat Tolerance And Maximum Performance
• ACT Difference: 100 Percent Clamp Load Tested And Dynamically Computer Balanced For Smooth High RPM Reliability
• Limited 1 Year Warranty
