Advanced Clutch Set Diaphragm Solid Full Face - FF2-HDSD
Disc Diameter
9.4 Inch
Disc Friction Face Design
Full Face
Disc Friction Material
Organic
Disc Hub Design
Solid
Flywheel Material
No Flywheel
Flywheel Tooth Count
No Flywheel
Flywheel Weight
No Flywheel
Includes Alignment Tool
Yes
Includes Pilot Bearing
No
Includes Throwout Bearing
Yes
Input Shaft Size
1 Inch X 23 Spline
Share this page

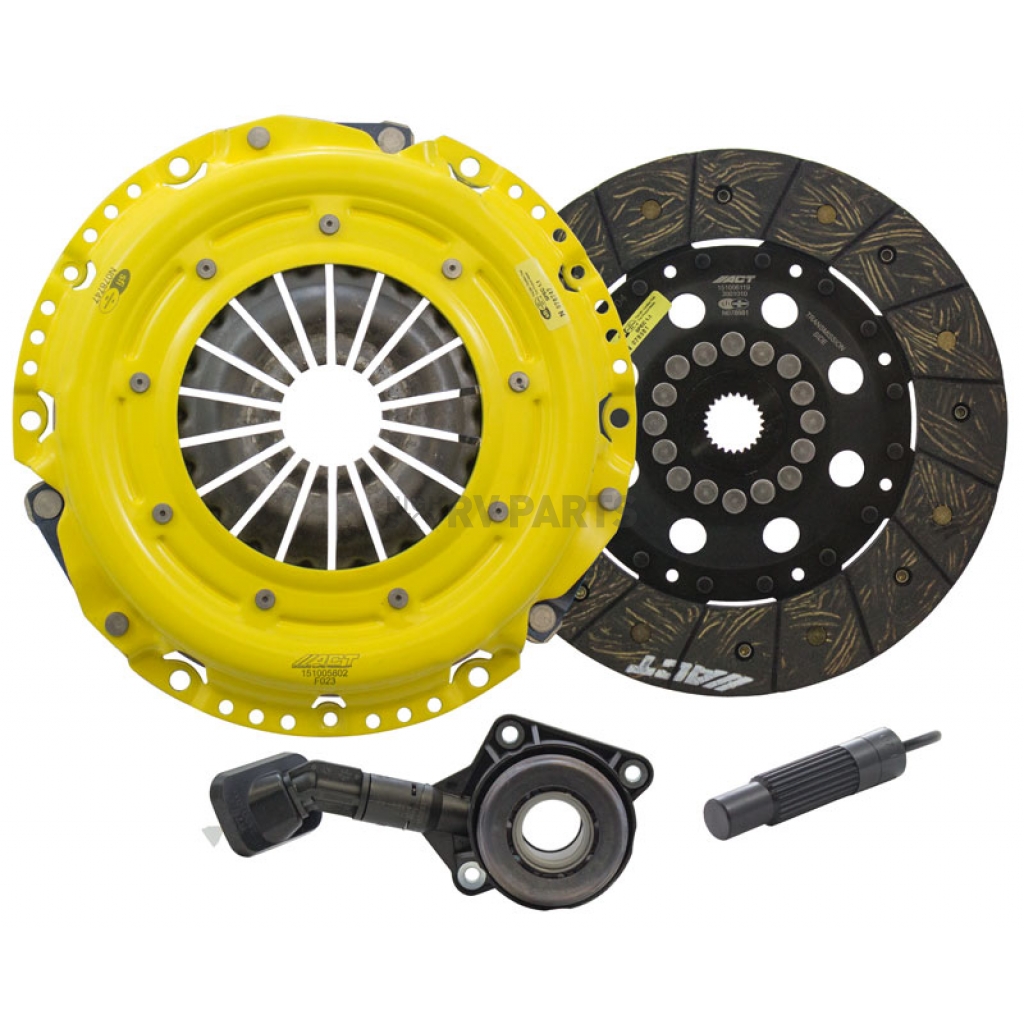

Clutch Set; Street; 9.4 Inch Clutch Diameter; 1 Inch x 23 Spline Input Shaft; Diaphragm; Steel Pressure Plate; Single Disc/ Organic Friction Material; Full Face Design/ Solid Hub; With Clutch Disc/ Pressure Plate/ Alignment Tool
MPN: FF2-HDSD
Kit features ACT's most popular Heavy Duty pressure plate. ACT Heavy Duty pressure plates use exclusive diaphragm design to increase clamp load, reduce deflection and maximize clutch life. All diaphragms endure a four-stage, heat-treating process for unparalleled performance. ACT pressure plates have precision cover stampings to provide rigidity and consistency. The ACT performance street rigid-hub discs feature premium organic materials with high copper content for better heat transfer and steel-backed lining for greater burst strength and durability. The chrome-moly hub is heat-treated for strength and durability. Rivet design and materials are carefully selected for maximum strength. These discs are the minimum weight street disc for faster shifts. ACT's street rigid-hub discs provide race-proven performance with street manageability.Pressure Plate Design: Diaphragm
Input Shaft Size: 1 Inch X 23 Spline
Number Of Friction Discs: 1 Disc
Disc Friction Material: Organic
Disc Diameter: 9.4 Inch
Disc Hub Design: Solid
Pressure Plate Material: Steel
Flywheel Weight: No Flywheel
Flywheel Tooth Count: No Flywheel
Flywheel Material: No Flywheel
Includes Throwout Bearing: Yes
Includes Pilot Bearing: No
Disc Friction Face Design: Full Face
Torque Holding Capacity: 445 Feet/Pound
Includes Alignment Tool: Yes
Features
- Heavy Duty Pressure Plates Use Exclusive Diaphragm Design To Increase Clamp Load, Reduce Deflection And Maximize Clutch Life
- All Diaphragms Endure A Four-Stage, Heat-Treating Process For Unparalleled Performance
- Carefully Engineered, Precisely Assembled, Accurately Balanced, With Premium Organic Friction Materials For Heat Tolerance And Reduced Fade
- 100 Percent Clamp Load Tested And Dynamically Computer Balanced For Smooth High RPM Reliability
- Rigid-Hub Discs Feature Premium Organic Materials With High Copper Content For Better Heat Transfer And Steel-Backed Lining For Greater Burst Strength And Durability
- Light To Moderate Pedal Effort, Aggressive Engagement, Increased Gear Rattle
- Rigid-Hub Discs Provide Race-Proven Performance With Street Manageability
- Pressure Plates Have Precision Cover Stampings To Provide Rigidity And Consistency
- Limited 1 Year Warranty
| Specifications of Advanced Clutch Set Diaphragm Solid Full Face - FF2-HDSD | |
| Disc Diameter | 9.4 Inch |
| Disc Friction Face Design | Full Face |
| Disc Friction Material | Organic |
| Disc Hub Design | Solid |
| Flywheel Material | No Flywheel |
| Flywheel Tooth Count | No Flywheel |
| Flywheel Weight | No Flywheel |
| Includes Alignment Tool | Yes |
| Includes Pilot Bearing | No |
| Includes Throwout Bearing | Yes |
| Input Shaft Size | 1 Inch X 23 Spline |
| Number Of Friction Discs | 1 Disc |
| Pressure Plate Design | Diaphragm |
| Pressure Plate Material | Steel |
| Torque Holding Capacity | 445 Feet/Pound |
2013 Ford Focus
2014 Ford Focus
2015 Ford Focus
2016 Ford Focus
2017 Ford Focus
2018 Ford Focus
2014 Ford Focus
2015 Ford Focus
2016 Ford Focus
2017 Ford Focus
2018 Ford Focus
