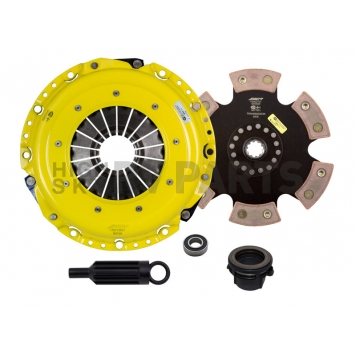

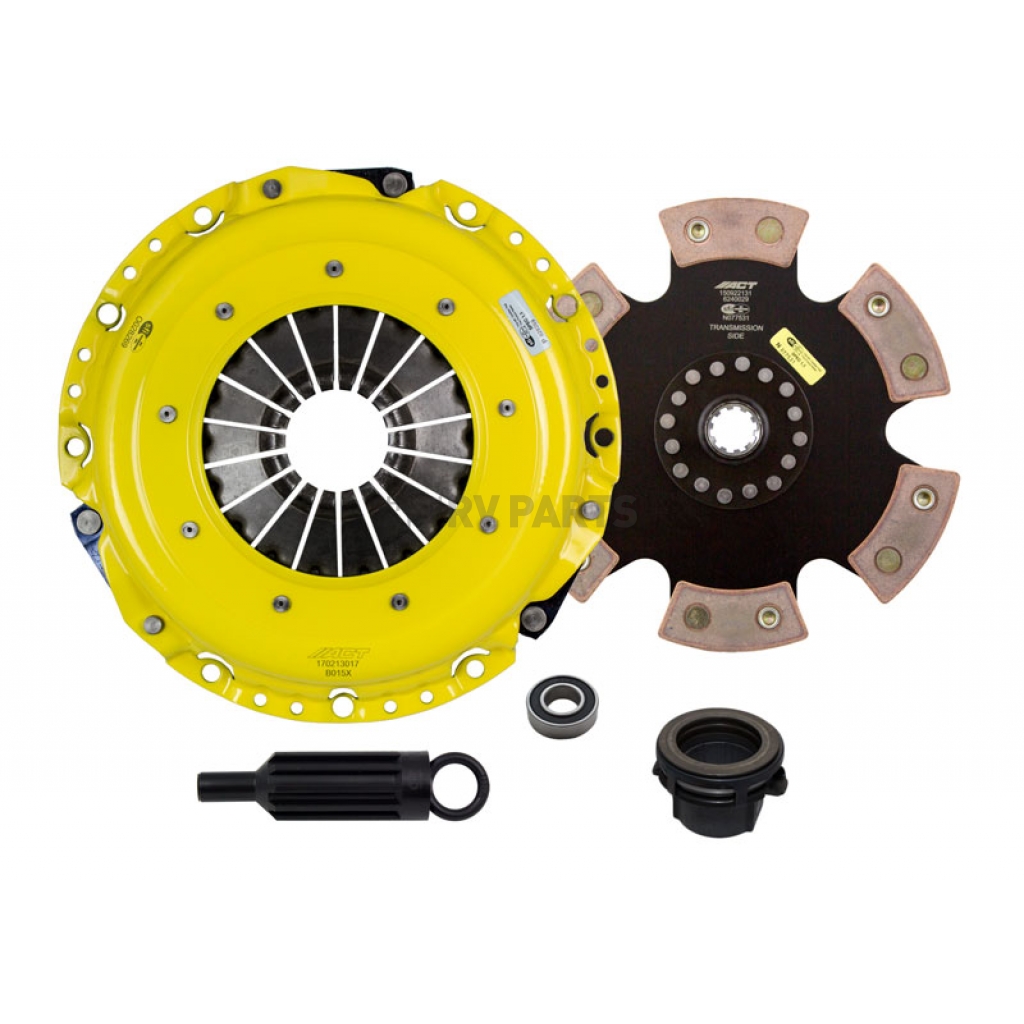

Advanced Clutch Set Diaphragm Rigid 6 Paddle - BM9-XTR6
Disc Diameter
9.4 Inch
Disc Friction Face Design
6 Paddle
Disc Friction Material
Ceramic
Disc Hub Design
Rigid
Flywheel Material
No Flywheel
Flywheel Tooth Count
No Flywheel
Flywheel Weight
No Flywheel
Includes Alignment Tool
Yes
Includes Pilot Bearing
Yes
Includes Throwout Bearing
Yes
Input Shaft Size
1-3/8 Inch X 10 Spline
Share this page
Clutch Set; Xtreme/ Race; 9.4 Inch Clutch Diameter; 1-3/8 Inch x 10 Spline Input Shaft; Diaphragm; Single Disc/ Ceramic Friction Material; 6 Paddle Design/ Rigid Hub; With Clutch Disc/ Pressure Plate/ Throwout Bearing/ Pilot Bearing/ Alignment Tool
MPN: BM9-XTR6
Kit features an Xtreme pressure plate for the most demanding driver. ACT Xtreme pressure plates use exclusive diaphragm design to increase clamp load, reduce deflection and maximize clutch life. All diaphragms endure a four-stage, heat-treating process for unparalleled performance. ACT pressure plates have precision cover stampings to provide rigidity and consistency. ACT spring retainers utilize wraparound spring windows and thicker retainer stampings to provide spring support, reduce stress concentrations, and increase strength and reliability. With the 4-pad spring-centered race disc, engagement is harsher, but shifting is faster.Pressure Plate Design: Diaphragm
Input Shaft Size: 1-3/8 Inch X 10 Spline
Number Of Friction Discs: 1 Disc
Disc Friction Material: Ceramic
Disc Diameter: 9.4 Inch
Disc Hub Design: Rigid
Pressure Plate Material: Steel
Flywheel Weight: No Flywheel
Flywheel Tooth Count: No Flywheel
Flywheel Material: No Flywheel
Includes Throwout Bearing: Yes
Includes Pilot Bearing: Yes
Disc Friction Face Design: 6 Paddle
Pressure Plate Clamp Load: 10.7 Pound
Pressure Plate Centrifugal Assist: No Centrifugal Assist
Torque Holding Capacity: 702 Feet/Pound
Includes Alignment Tool: Yes
Features
- Moderate To Heavy Pedal Effort, Aggressive Engagement, Increased Gear Rattle
- Moderate Friction Life, Extended By ACT's Exclusive Diaphragm Design, Rigid Design May Increase Spline Wear
- Quality: Carefully Engineered, Precisely Assembled, Accurately Balanced, Uses Select Ceramic Friction Materials For High Heat Tolerance And Maximum Performance
- 100 Percent Clamp Load Tested And Dynamically Computer Balanced For Smooth High RPM Reliability
- Pressure Plates Use Exclusive Diaphragm Design To Increase Clamp Load, Reduce Deflection And Maximize Clutch Life
- Recommended For Race Use Only
- Limited 12 Month Warranty
| Specifications of Advanced Clutch Set Diaphragm Rigid 6 Paddle - BM9-XTR6 | |
| Disc Diameter | 9.4 Inch |
| Disc Friction Face Design | 6 Paddle |
| Disc Friction Material | Ceramic |
| Disc Hub Design | Rigid |
| Flywheel Material | No Flywheel |
| Flywheel Tooth Count | No Flywheel |
| Flywheel Weight | No Flywheel |
| Includes Alignment Tool | Yes |
| Includes Pilot Bearing | Yes |
| Includes Throwout Bearing | Yes |
| Input Shaft Size | 1-3/8 Inch X 10 Spline |
| Number Of Friction Discs | 1 Disc |
| Pressure Plate Centrifugal Assist | No Centrifugal Assist |
| Pressure Plate Clamp Load | 10.7 Pound |
| Pressure Plate Design | Diaphragm |
| Pressure Plate Material | Steel |
| Torque Holding Capacity | 702 Feet/Pound |
2001 BMW M3
2002 BMW M3
2003 BMW M3
2004 BMW M3
2005 BMW M3
2006 BMW M3
2002 BMW M3
2003 BMW M3
2004 BMW M3
2005 BMW M3
2006 BMW M3
