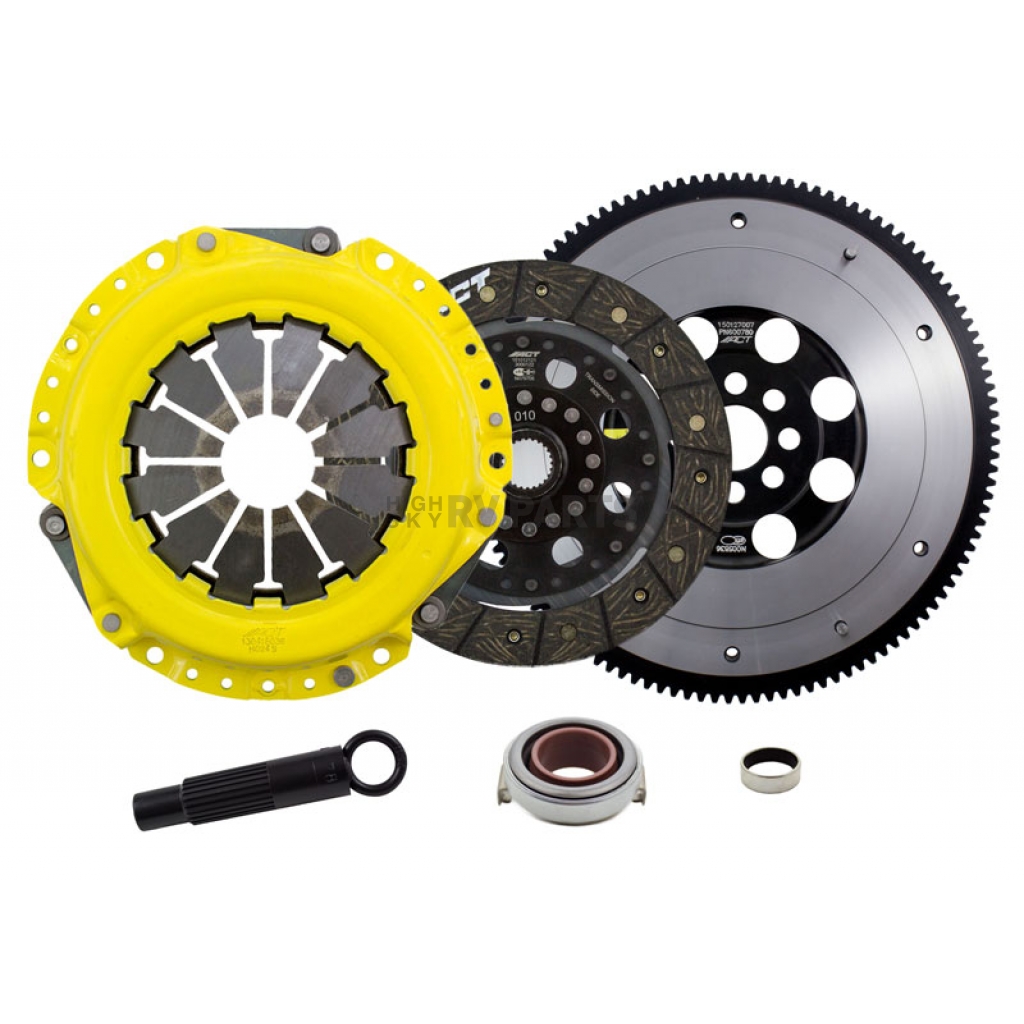

Advanced Clutch Set Sport Solid Full Face - AR2-SPSD
Disc Diameter
8.43 Inch
Disc Friction Face Design
Full Face
Disc Friction Material
Ceramic
Disc Hub Design
Solid
Flywheel Material
Chromoly Steel
Flywheel Tooth Count
119
Flywheel Weight
13.8 Pound
Includes Alignment Tool
Yes
Includes Pilot Bearing
Yes
Includes Throwout Bearing
Yes
Input Shaft Size
1-1/32 Inch X 24 Spline
Share this page
Clutch Set; Sport; 8.43 Inch Clutch Diameter; 1-1/32 Inch x 24 Spline Input Shaft; Diaphragm; 225 Foot Pound Torque Capacity; Steel Pressure Plate; Single Disc/ Ceramic Friction Material; Full Face Design/ Solid Hub; With Flywheel/ Throwout Bearing/ Pilot Bearing/ Alignment Tool
MPN: AR2-SPSD
ACT Sport pressure plates use exclusive diaphragm design to increase clamp load, reduce deflection and maximize clutch life. All diaphragms endure a four-stage, heat-treating process for unparalleled performance. ACT pressure plates have precision cover stampings to provide rigidity and consistency. ACT Performance street rigid-hub discs feature premium organic materials with high copper content for better heat transfer and steel-backed lining for greater burst strength and durability. The chrome-moly hub is heat-treated for strength and durability. Rivet design and materials are carefully selected for maximum strength. These discs are the minimum weight street disc for faster shifts. ACT's street rigid-hub discs provide race-proven performance with street manageability.Pressure Plate Design: Sport
Input Shaft Size: 1-1/32 Inch X 24 Spline
Number Of Friction Discs: 1 Disc
Disc Friction Material: Ceramic
Disc Diameter: 8.43 Inch
Disc Hub Design: Solid
Pressure Plate Material: Steel
Flywheel Weight: 13.8 Pound
Flywheel Tooth Count: 119
Flywheel Material: Chromoly Steel
Includes Throwout Bearing: Yes
Includes Pilot Bearing: Yes
Disc Friction Face Design: Full Face
Pressure Plate Clamp Load: 1500 Pound
Pressure Plate Centrifugal Assist: No Centrifugal Assist
Torque Holding Capacity: 225 Feet/Pound
Includes Alignment Tool: Yes
Features
- A Stock To Low Pedal Feel. Smooth Engagement With Stock To Low Gear Rattle
- Longer Clutch Life Achieved Through ACT's Exclusive Diaphragm Design
- Premium Organic Friction Materials For Heat Tolerance, Faster Recovery From Overheating And Prevents Warping Of Mating Surfaces
- Dynamically Computer Balanced For Smooth Operation At High RPM
- Limited 1 Year Warranty
| Specifications of Advanced Clutch Set Sport Solid Full Face - AR2-SPSD | |
| Disc Diameter | 8.43 Inch |
| Disc Friction Face Design | Full Face |
| Disc Friction Material | Ceramic |
| Disc Hub Design | Solid |
| Flywheel Material | Chromoly Steel |
| Flywheel Tooth Count | 119 |
| Flywheel Weight | 13.8 Pound |
| Includes Alignment Tool | Yes |
| Includes Pilot Bearing | Yes |
| Includes Throwout Bearing | Yes |
| Input Shaft Size | 1-1/32 Inch X 24 Spline |
| Number Of Friction Discs | 1 Disc |
| Pressure Plate Centrifugal Assist | No Centrifugal Assist |
| Pressure Plate Clamp Load | 1500 Pound |
| Pressure Plate Design | Sport |
| Pressure Plate Material | Steel |
| Torque Holding Capacity | 225 Feet/Pound |
2012 Honda Civic
2013 Honda Civic
2014 Honda Civic
2015 Honda Civic
2013 Honda Civic
2014 Honda Civic
2015 Honda Civic
