Advanced Clutch Set Sport Sprung 6 Paddle - AR2-SPG6
Disc Diameter
8.43 Inch
Disc Friction Face Design
6 Paddle
Disc Friction Material
Ceramic
Disc Hub Design
Sprung
Flywheel Material
Chromoly Steel
Flywheel Tooth Count
119
Flywheel Weight
13.8 Pound
Includes Alignment Tool
Yes
Includes Pilot Bearing
Yes
Includes Throwout Bearing
Yes
Input Shaft Size
1-1/32 Inch X 24 Spline
Share this page

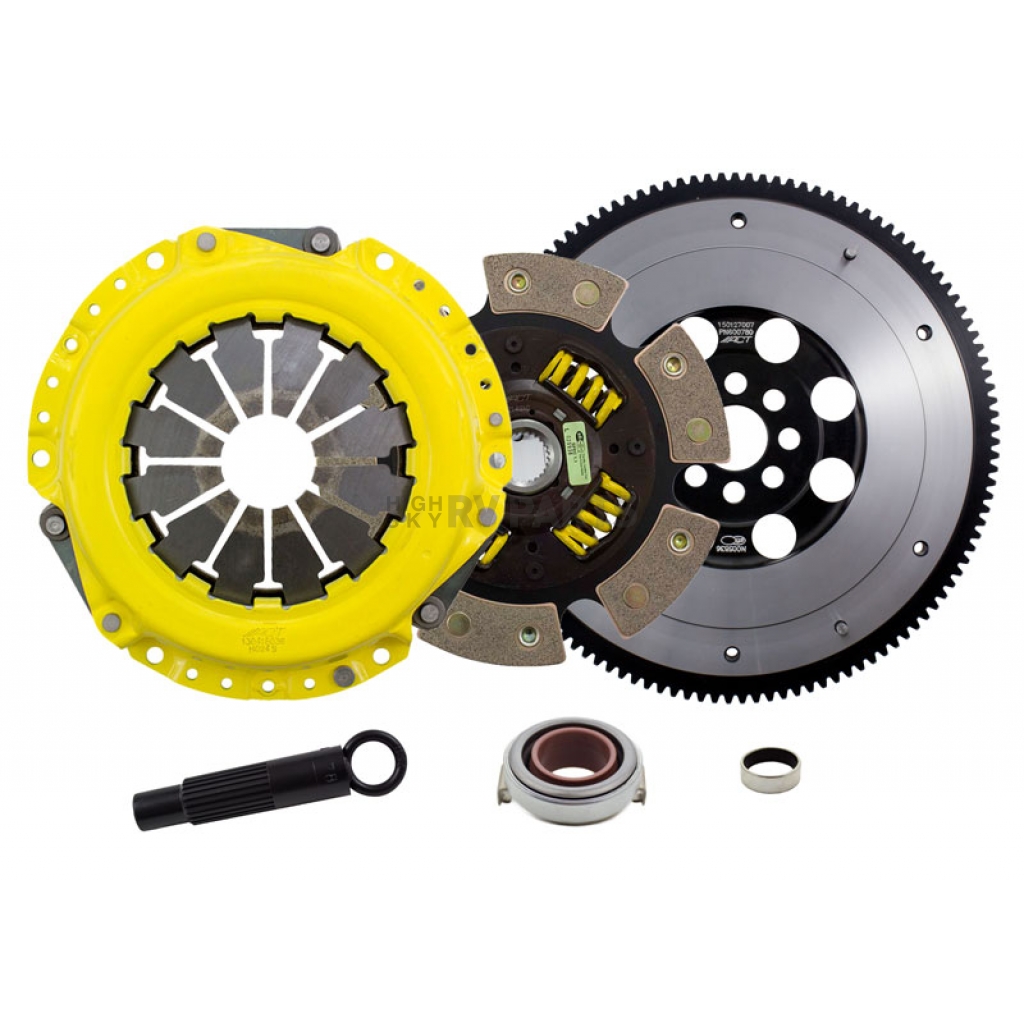

Clutch Set; Sport; 8.43 Inch Clutch Diameter; 1-1/32 Inch x 24 Spline Input Shaft; Diaphragm; 290 Foot Pound Torque Capacity; Steel Pressure Plate; Single Disc/ Ceramic Friction Material; 6 Paddle Design/ Sprung Hub; With Flywheel/ Throwout Bearing/ Pilot Bearing/ Alignment Tool
MPN: AR2-SPG6
ACT Sport pressure plates use exclusive diaphragm design to increase clamp load, reduce deflection and maximize clutch life. All diaphragms endure a four-stage, heat-treating process for unparalleled performance. ACT pressure plates have precision cover stampings to provide rigidity and consistency. ACT's 6-pad, spring-centered race disc features a spring-center construction to properly damp torsional vibrations and resist failure under harsh conditions. ACT spring retainers utilize wraparound spring windows and thicker retainer stampings to provide spring support, reduce stress concentrations, and increase strength and reliability. With the 6-pad, spring-centered race disc, engagement is harsher, but shifting is faster. The 6-pad, spring-centered disc is recommended for larger clutch sizes to absorb more heat.Pressure Plate Design: Sport
Input Shaft Size: 1-1/32 Inch X 24 Spline
Number Of Friction Discs: 1 Disc
Disc Friction Material: Ceramic
Disc Diameter: 8.43 Inch
Disc Hub Design: Sprung
Pressure Plate Material: Steel
Flywheel Weight: 13.8 Pound
Flywheel Tooth Count: 119
Flywheel Material: Chromoly Steel
Includes Throwout Bearing: Yes
Includes Pilot Bearing: Yes
Disc Friction Face Design: 6 Paddle
Pressure Plate Clamp Load: 1500 Pound
Pressure Plate Centrifugal Assist: No Centrifugal Assist
Torque Holding Capacity: 290 Feet/Pound
Includes Alignment Tool: Yes
Features
- A Stock To Low Pedal Feel. Aggressive Engagement With Stock To Low To Moderate Gear Rattle
- Longer Clutch Life Achieved Through ACT's Exclusive Diaphragm Design
- Premium Ceramic Friction Materials Provide Low Wear Rates And High Heat Tolerance
- Dynamically Computer Balanced For Smooth Operation At High RPM
- Limited 1 Year Warranty
| Specifications of Advanced Clutch Set Sport Sprung 6 Paddle - AR2-SPG6 | |
| Disc Diameter | 8.43 Inch |
| Disc Friction Face Design | 6 Paddle |
| Disc Friction Material | Ceramic |
| Disc Hub Design | Sprung |
| Flywheel Material | Chromoly Steel |
| Flywheel Tooth Count | 119 |
| Flywheel Weight | 13.8 Pound |
| Includes Alignment Tool | Yes |
| Includes Pilot Bearing | Yes |
| Includes Throwout Bearing | Yes |
| Input Shaft Size | 1-1/32 Inch X 24 Spline |
| Number Of Friction Discs | 1 Disc |
| Pressure Plate Centrifugal Assist | No Centrifugal Assist |
| Pressure Plate Clamp Load | 1500 Pound |
| Pressure Plate Design | Sport |
| Pressure Plate Material | Steel |
| Torque Holding Capacity | 290 Feet/Pound |
2012 Honda Civic
2013 Honda Civic
2014 Honda Civic
2015 Honda Civic
2013 Honda Civic
2014 Honda Civic
2015 Honda Civic
