Advanced Clutch Set Diaphragm Sprung 6 Paddle - AA6-XTG6

Authorized Dealer
Brand: Advanced Clutch Advanced Clutch
0 reviews
  • Have a product question? Ask us
  • Part Number: AA6-XTG6
  • Part Location: U.S.
  • Availability: *Special Order
  • Delivery: Up to 2 Weeks
  • If purchased before 12:00 EDT - estimated delivery by July 18
Retail: $2,029.64
Price: $1,932.99
You Save: $96.65
Disc Diameter
 9.4 Inch
Disc Friction Face Design
 6 Paddle
Disc Friction Material
 Ceramic
Disc Hub Design
 Sprung
Flywheel Material
 Chromoly Steel
Flywheel Tooth Count
 135
Flywheel Weight
 15.3 Pound
Includes Alignment Tool
 Yes
Includes Pilot Bearing
 Yes
Includes Throwout Bearing
 Yes
Input Shaft Size
 15/16 Inch X 23 Spline
Share this page

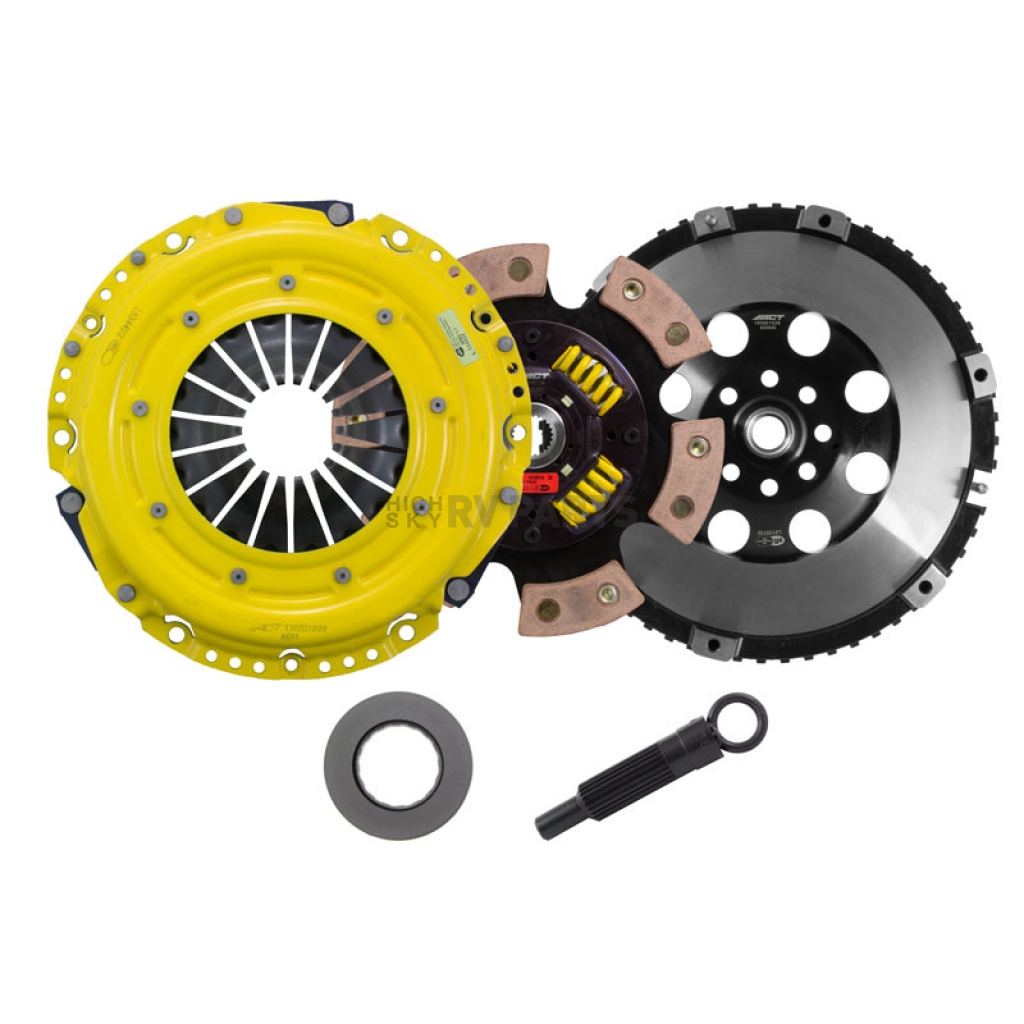

Clutch Set; Xtreme/ Race; 9.4 Inch Clutch Diameter; 15/16 Inch x 23 Spline Input Shaft; Diaphragm; Single Disc/ Ceramic Friction Material; 6 Paddle Design/ Sprung Hub; With Clutch Disc/ Pressure Plate/ Flywheel/ Alignment Tool

MPN: AA6-XTG6

Xtreme pressure plate for the most demanding driver. ACT Xtreme pressure plates use exclusive diaphragm design to increase clamp load, reduce deflection and maximize clutch life. All diaphragms endure a four-stage, heat-treating process for unparalleled performance. ACT pressure plates have precision cover stampings to provide rigidity and consistency. ACT's 6-pad spring-centered race disc features a spring-center construction to properly damp torsional vibrations and resist failure under harsh conditions. ACT spring retainers utilize wraparound spring windows and thicker retainer stampings to provide spring support, reduce stress concentrations, and increase strength and reliability. With the 6-pad spring-centered race disc, engagement is harsher, but shifting is faster. The 6-pad spring-centered disc is recommended for larger clutch sizes to absorb more heat.

Pressure Plate Design: Diaphragm
Input Shaft Size: 15/16 Inch X 23 Spline
Number Of Friction Discs: 1 Disc
Disc Friction Material: Ceramic
Disc Diameter: 9.4 Inch
Disc Hub Design: Sprung
Flywheel Weight: 15.3 Pound
Flywheel Tooth Count: 135
Flywheel Material: Chromoly Steel
Includes Throwout Bearing: Yes
Includes Pilot Bearing: Yes
Disc Friction Face Design: 6 Paddle
Torque Holding Capacity: 660 Feet/Pound
Includes Alignment Tool: Yes

Features

  • Feel: Moderate To Heavy Pedal Effort, Aggressive Engagement, OE To Mild Gear Rattle
  • Life: Moderate Friction Life, Extended By Exclusive Diaphragm Design
  • Quality: Carefully Engineered, Precisely Assembled, Accurately Balanced, Uses Select Ceramic Friction Materials For High Heat Tolerance And Maximum Performance
  • 100 Percent Clamp Load Tested And Dynamically Computer Balanced For Smooth High RPM Reliability
  • Limited 12 Month Warranty
Specifications of Advanced Clutch Set Diaphragm Sprung 6 Paddle - AA6-XTG6
Disc Diameter  9.4 Inch
Disc Friction Face Design  6 Paddle
Disc Friction Material  Ceramic
Disc Hub Design  Sprung
Flywheel Material  Chromoly Steel
Flywheel Tooth Count  135
Flywheel Weight  15.3 Pound
Includes Alignment Tool  Yes
Includes Pilot Bearing  Yes
Includes Throwout Bearing  Yes
Input Shaft Size  15/16 Inch X 23 Spline
Number Of Friction Discs  1 Disc
Pressure Plate Design  Diaphragm
Torque Holding Capacity  660 Feet/Pound

2000 Audi A6 Quattro
2001 Audi A6 Quattro
2002 Audi A6 Quattro
2003 Audi A6 Quattro
2004 Audi A6 Quattro

2001 Audi Allroad Quattro
2002 Audi Allroad Quattro
2003 Audi Allroad Quattro
2004 Audi Allroad Quattro
2005 Audi Allroad Quattro

2000 Audi S4
