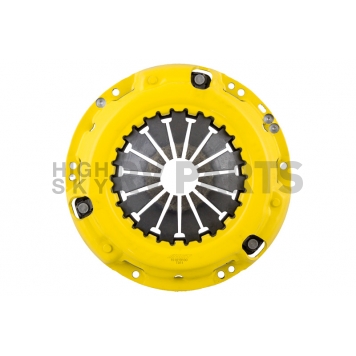

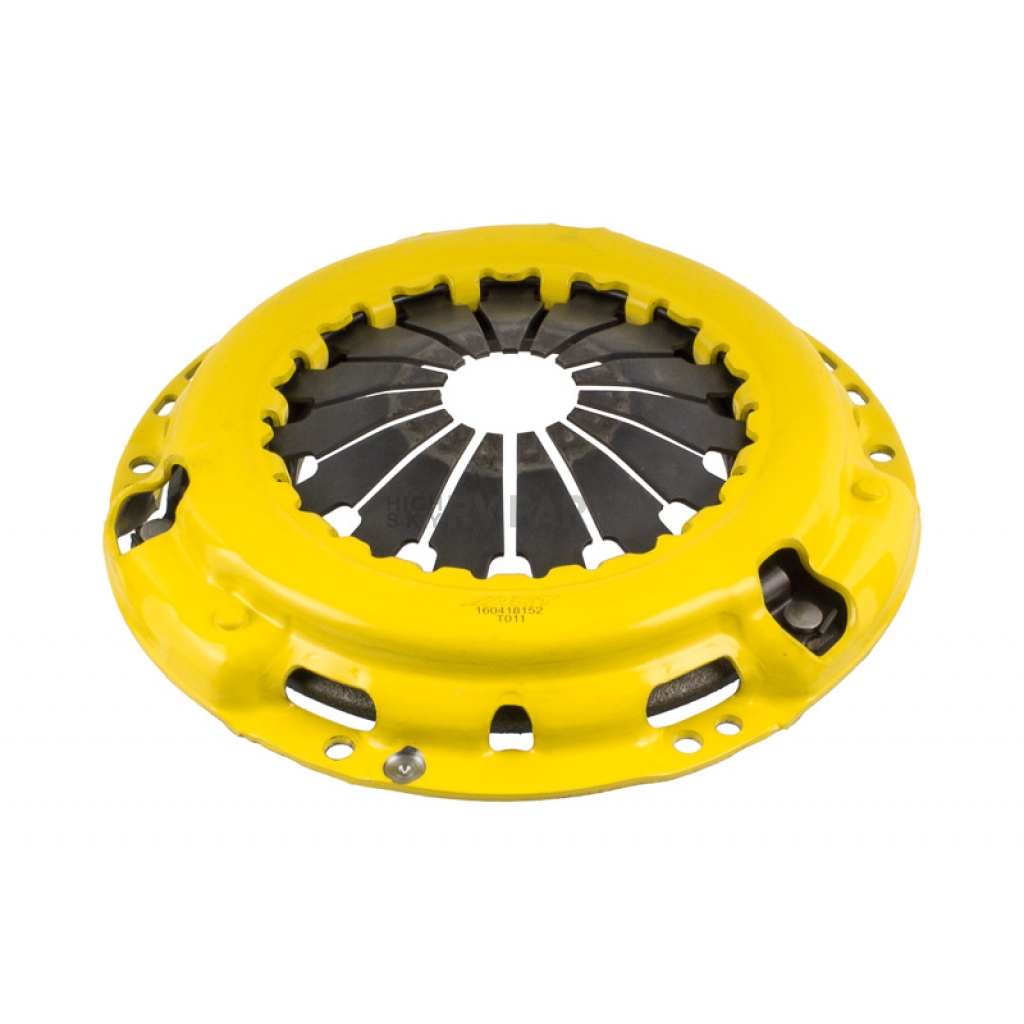

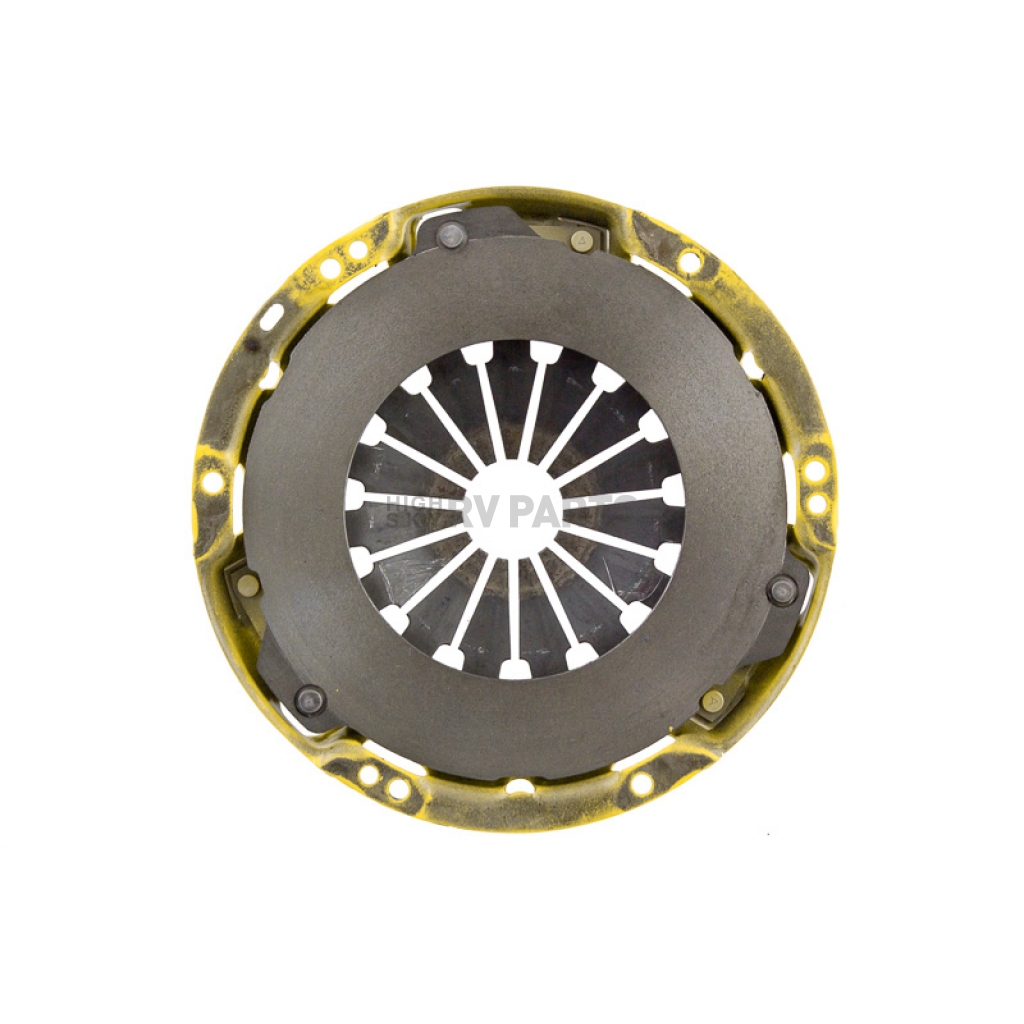

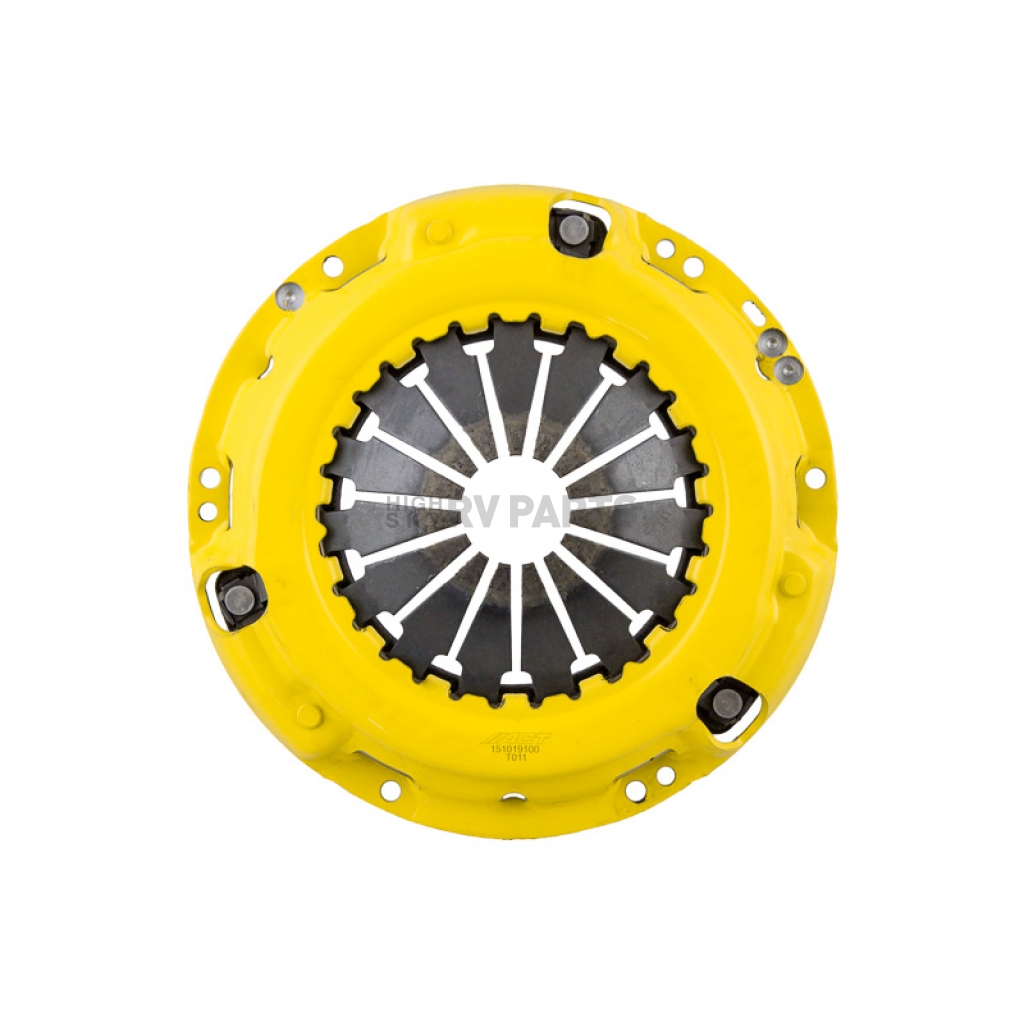

Advanced Clutch Diaphragm Heavy Duty Pressure Plate - T011

Authorized Dealer
Brand: Advanced Clutch Advanced Clutch
0 reviews
  • Have a product question? Ask us
  • Part Number: T011
  • Part Location: U.S.
  • Availability: *Special Order
  • Delivery: Up to 2 Weeks
  • If purchased before 12:00 EDT - estimated delivery by July 17
Retail: $297.14
Price: $282.99
You Save: $14.15
Clutch Diameter (IN)
 8.82 Inch
Color
 Black/ Yellow
Includes Hardware
 No
Type
 Diaphragm
Share this page

Clutch Pressure Plate; Heavy Duty; Diaphragm; 8.82 Inch Disc Diameter

MPN: T011

ACT pressure plates use exclusive diaphragm design to increase clamp load, reduce deflection and maximize clutch life. All diaphragms endure an exclusive four-stage, heat-treating process for unparalleled performance. ACT pressure plates have precision cover stampings to provide rigidity and consistency, and some are reinforced to reduce flex and improve efficiency and the feel of the pressure plate. ACT pressure plates are manufactured from new units not rebuilt from worn out parts and are 100 Percent tested and computer balanced for smooth operation at high RPM. ACT’s Heavy-Duty pressure plates increase clamp load by 20 to 50 Percent and have a pedal feel that is stock to moderate. ACT’s Heavy-Duty pressure plates are recommended for use with a street or race disc.

Type: Diaphragm
Clutch Diameter (IN): 8.82 Inch
Color: Black/ Yellow
Includes Hardware: No

Features

  • ACT Design Each Pressure Plate In The Optimum Working Range For Maximum Clutch Life, Clamp Load And Release Travel
  • Induction Hardened Bearing Contact Area For Extremely Long Wear Life
  • Drive Straps And Rivets Securely Locate Contact Face To The Cover For Quiet, Trouble Free Operation
  • Precision CNC Machined Parts And SFI Certified To Ensure ACT Parts Exceed Strict Racing Requirements
  • Exclusive Four Stage Heat Treating Process Performed On All Diaphragms
  • Clamp Load Increase Of 20 To 50 Percent Over Stock With A Stock To Moderate Pedal Feel
  • Precision Stamped Cover For Maximum Consistence And Rigidity
  • Limited 1 Year Warranty
Specifications of Advanced Clutch Diaphragm Heavy Duty Pressure Plate - T011
Clutch Diameter (IN)  8.82 Inch
Color  Black/ Yellow
Includes Hardware  No
Type  Diaphragm

1984 Toyota 4Runner
1985 Toyota 4Runner
1986 Toyota 4Runner
1987 Toyota 4Runner
1988 Toyota 4Runner
1989 Toyota 4Runner
1990 Toyota 4Runner
1991 Toyota 4Runner
1992 Toyota 4Runner
1993 Toyota 4Runner
1994 Toyota 4Runner
1995 Toyota 4Runner

1972 Toyota Celica
1973 Toyota Celica
1974 Toyota Celica

1977 Toyota Celica
1978 Toyota Celica
1979 Toyota Celica
1980 Toyota Celica
1981 Toyota Celica

1980 Toyota Corolla
1981 Toyota Corolla
1982 Toyota Corolla

1975 Toyota Corona
1976 Toyota Corona
1977 Toyota Corona
1978 Toyota Corona
1979 Toyota Corona
1980 Toyota Corona
1981 Toyota Corona

1967 Toyota Crown
1968 Toyota Crown
1969 Toyota Crown
1970 Toyota Crown
1971 Toyota Crown
1972 Toyota Crown

1970 Toyota Hi-Lux

1972 Toyota Hi-Lux
1973 Toyota Hi-Lux
1974 Toyota Hi-Lux

1972 Toyota Mark II
1973 Toyota Mark II
1974 Toyota Mark II
1975 Toyota Mark II
1976 Toyota Mark II

1970 Toyota Pickup

1972 Toyota Pickup
1973 Toyota Pickup
1974 Toyota Pickup
1975 Toyota Pickup
1976 Toyota Pickup
1977 Toyota Pickup
1978 Toyota Pickup
1979 Toyota Pickup
1980 Toyota Pickup
1981 Toyota Pickup
1982 Toyota Pickup
1983 Toyota Pickup
1984 Toyota Pickup
1985 Toyota Pickup
1986 Toyota Pickup
1987 Toyota Pickup
1988 Toyota Pickup
1989 Toyota Pickup
1990 Toyota Pickup
1991 Toyota Pickup
1992 Toyota Pickup
1993 Toyota Pickup
1994 Toyota Pickup
1995 Toyota Pickup

1995 Toyota Tacoma

1986 Toyota Van
1987 Toyota Van
1988 Toyota Van
1989 Toyota Van
