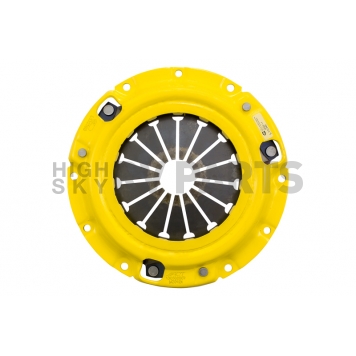

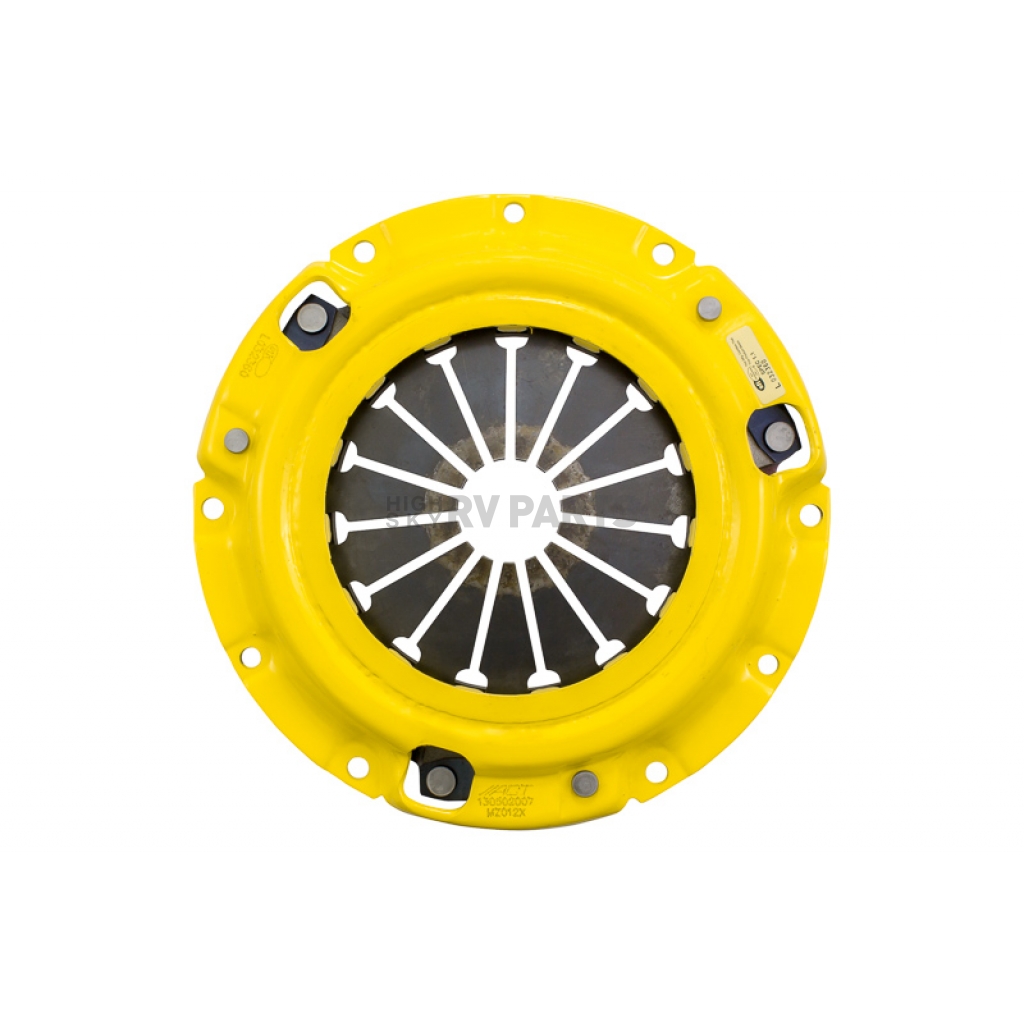

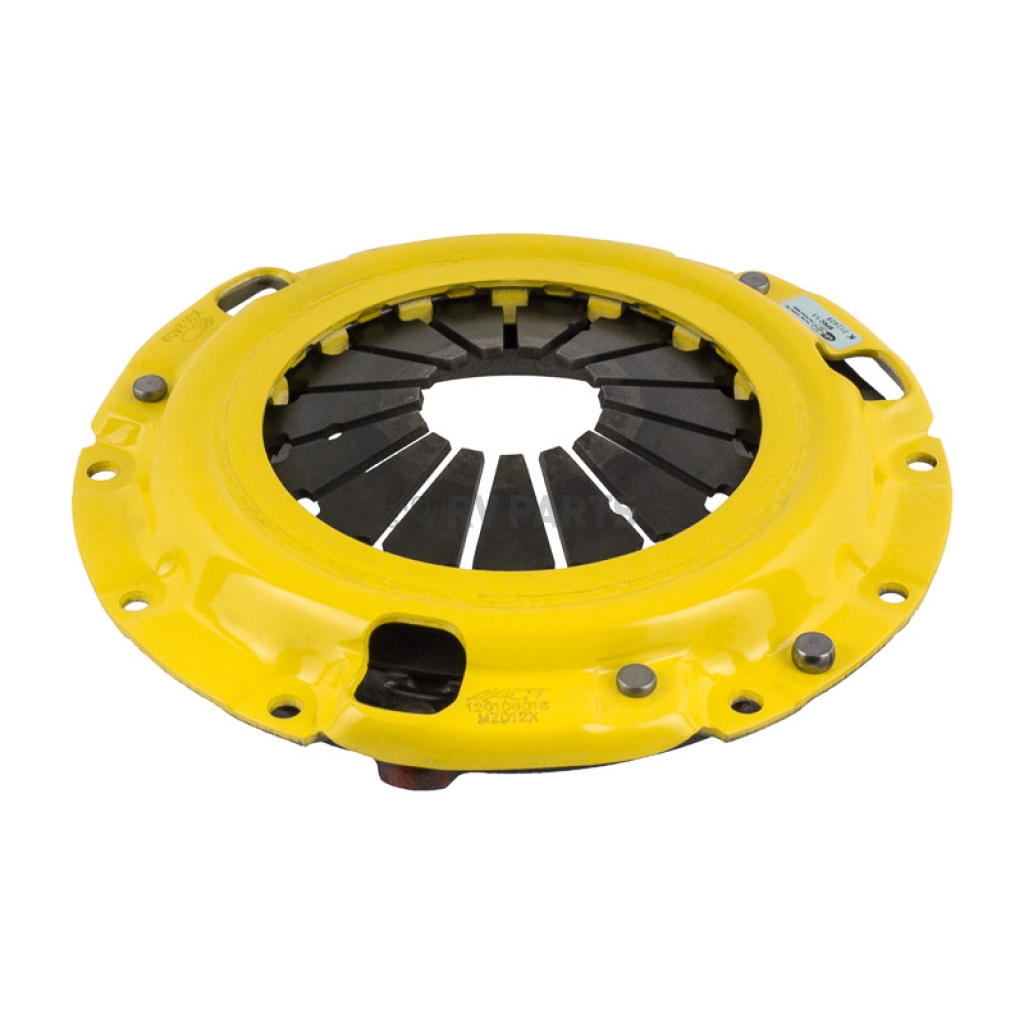

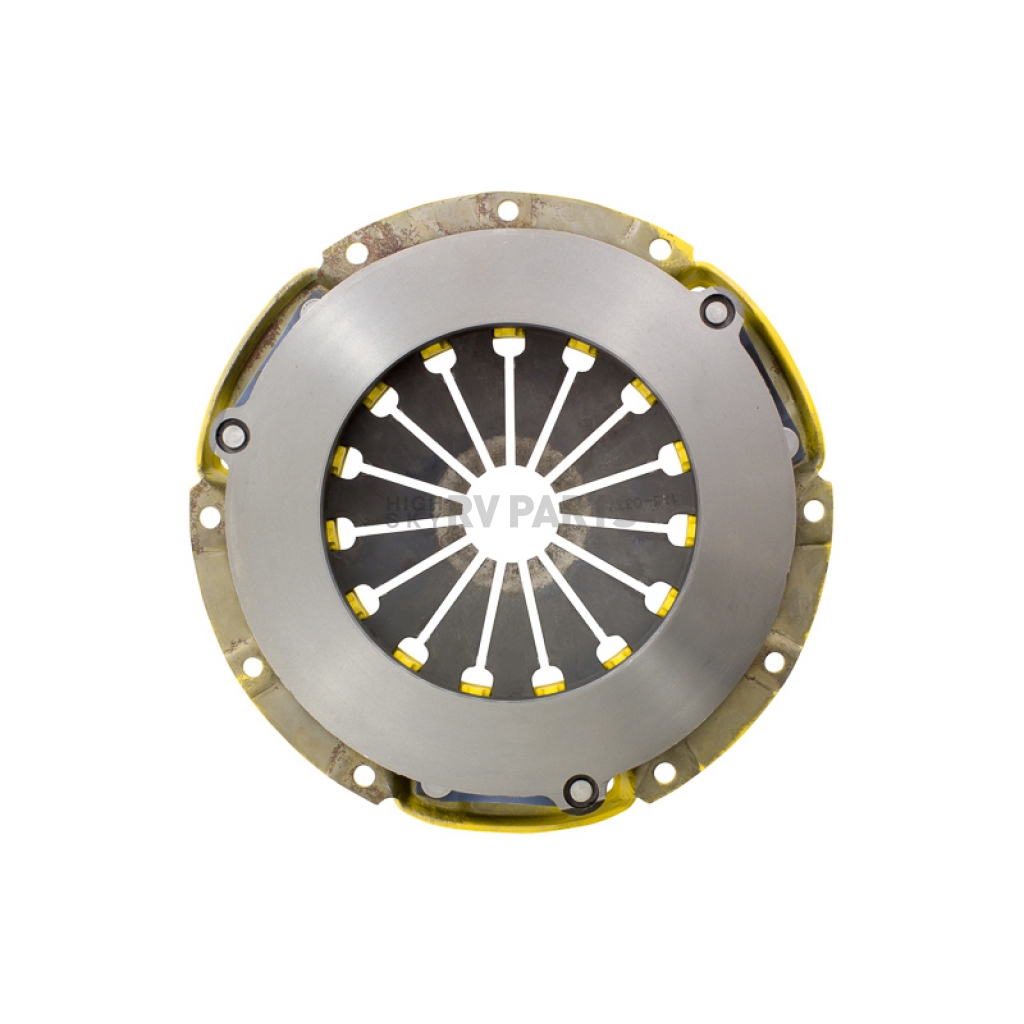

Advanced Clutch Diaphragm Xtreme Pressure Plate - MZ012X
Centrifugal Assist Type
No Counterweight Assist
Clutch Diameter (IN)
8.465 Inch
Color
Yellow
Includes Hardware
No
Material
Ductile Iron
Static Pressure (LB)
2050 Pounds
Type
Diaphragm
Share this page
Clutch Pressure Plate; Xtreme; Diaphragm; 8.465 Inch Disc Diameter; No Counterweight Assist
MPN: MZ012X
ACT pressure plates use exclusive diaphragm design to increase clamp load, reduce deflection and maximize clutch life. All diaphragms endure an exclusive four-stage, heat-treating process for unparalleled performance. ACT pressure plates have precision cover stampings to provide rigidity and consistency, and some are reinforced to reduce flex and improve efficiency and the feel of the pressure plate. ACT pressure plates are manufactured from new units not rebuilt from worn out parts and are 100 Percent tested and computer balanced for smooth operation at high RPM. ACT’s Xtreme pressure plates increase clamp load by 50 to 120 Percent and have a pedal feel that is moderate to stiff. Xtreme pressure plates are recommended for use with a street or race disc.Type: Diaphragm
Clutch Diameter (IN): 8.465 Inch
Static Pressure (LB): 2050 Pounds
Color: Yellow
Material: Ductile Iron
Centrifugal Assist Type: No Counterweight Assist
Includes Hardware: No
Features
- ACT Design Each Pressure Plate In The Optimum Working Range For Maximum Clutch Life, Clamp Load And Release Travel
- Induction Hardened Bearing Contact Area For Extremely Long Wear Life
- Drive Straps And Rivets Securely Locate Contact Face To The Cover For Quiet, Trouble Free Operation
- Precision CNC Machined Parts And SFI Certified To Ensure ACT Parts Exceed Strict Racing Requirements
- Exclusive Four Stage Heat Treating Process Performed On All Diaphragms
- Clamp Load Increase Of 50 To 120 Percent Over Stock With A Moderate To Stiff Pedal Feel
- Precision Stamped Cover For Maximum Consistence And Rigidity
- Limited 1 Year Warranty
Specifications of Advanced Clutch Diaphragm Xtreme Pressure Plate - MZ012X | |
Centrifugal Assist Type | No Counterweight Assist |
Clutch Diameter (IN) | 8.465 Inch |
Color | Yellow |
Includes Hardware | No |
Material | Ductile Iron |
Static Pressure (LB) | 2050 Pounds |
Type | Diaphragm |
1990 Mazda Miata
1991 Mazda Miata
1992 Mazda Miata
1993 Mazda Miata
1994 Mazda Miata
1995 Mazda Miata
1996 Mazda Miata
1997 Mazda Miata
1991 Mazda Miata
1992 Mazda Miata
1993 Mazda Miata
1994 Mazda Miata
1995 Mazda Miata
1996 Mazda Miata
1997 Mazda Miata
1999 Mazda Miata
2000 Mazda Miata
2001 Mazda Miata
2002 Mazda Miata
2003 Mazda Miata
2004 Mazda Miata
2005 Mazda Miata
2000 Mazda Miata
2001 Mazda Miata
2002 Mazda Miata
2003 Mazda Miata
2004 Mazda Miata
2005 Mazda Miata
