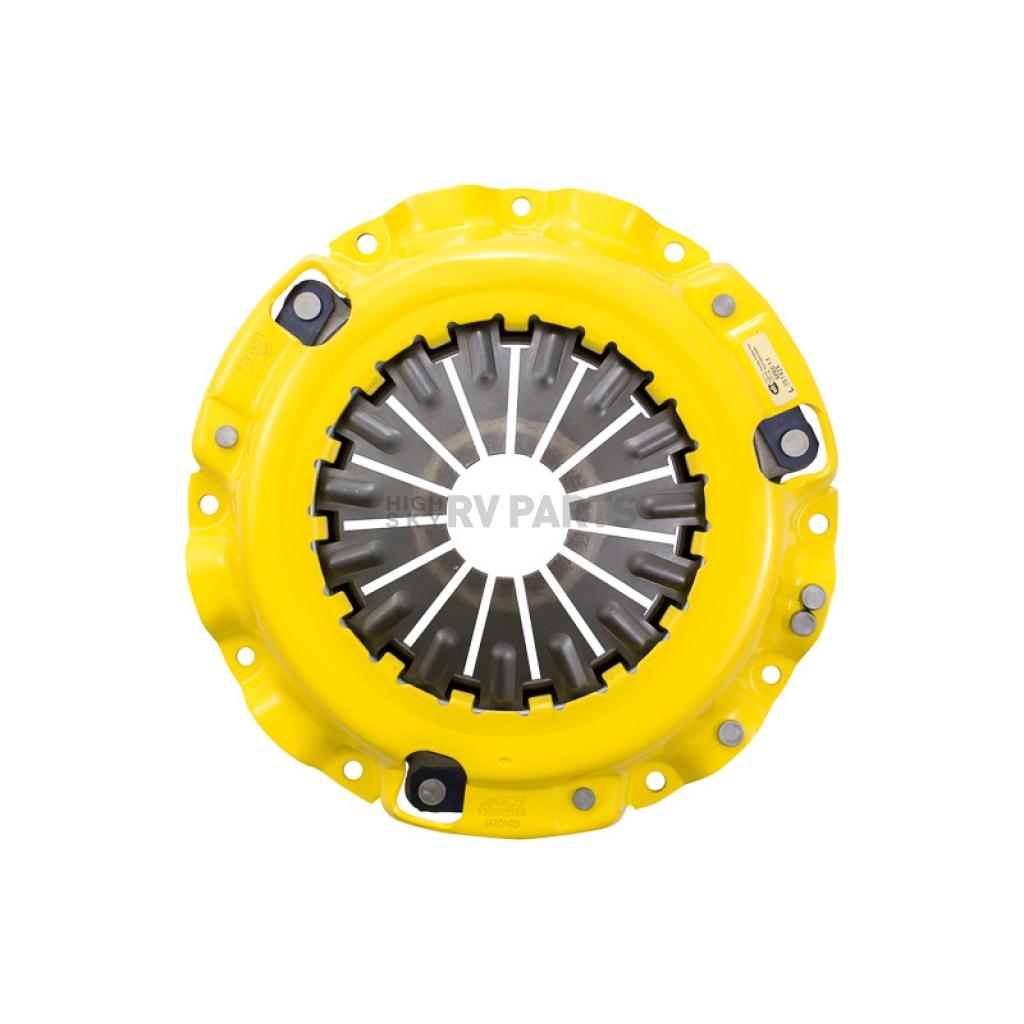

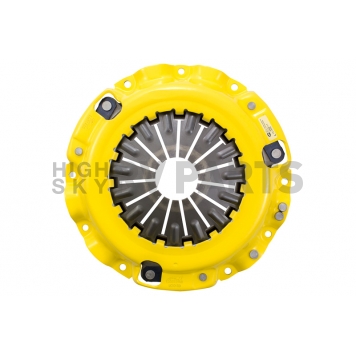

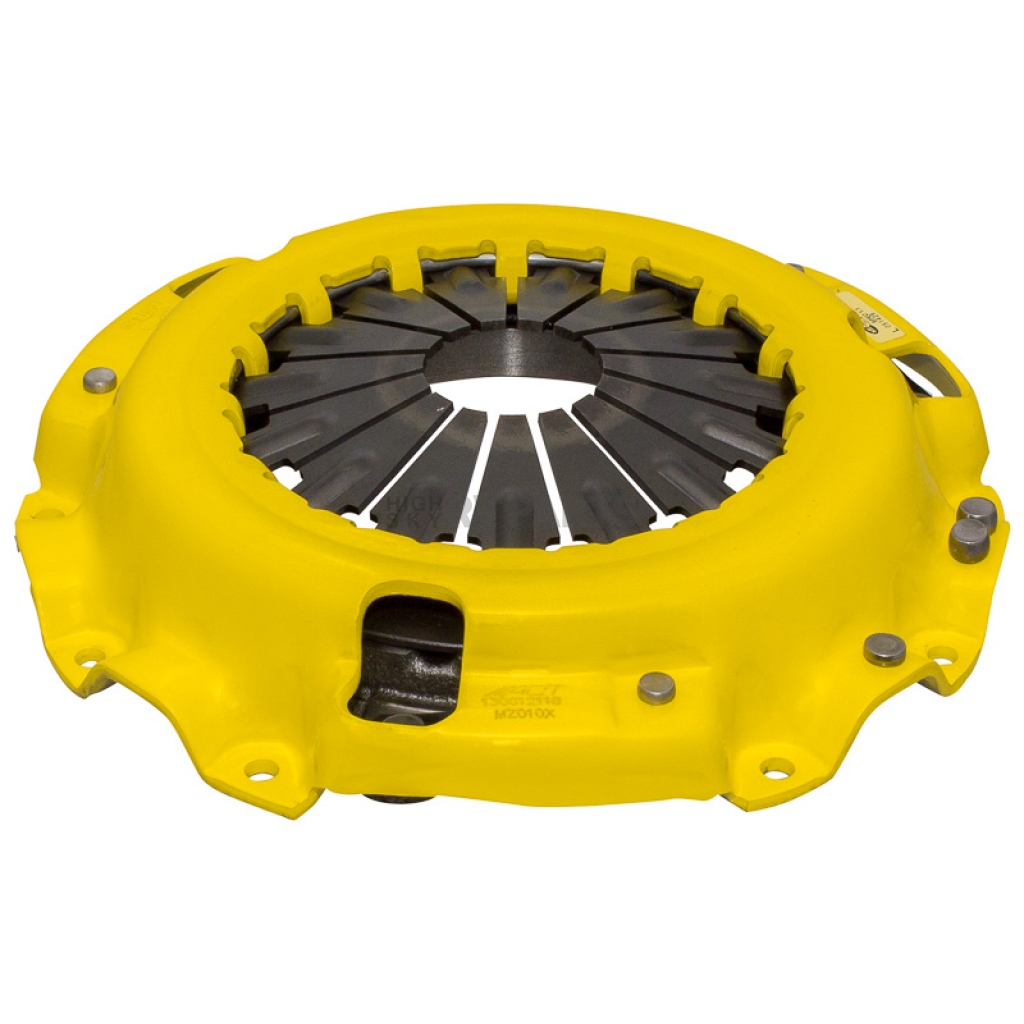

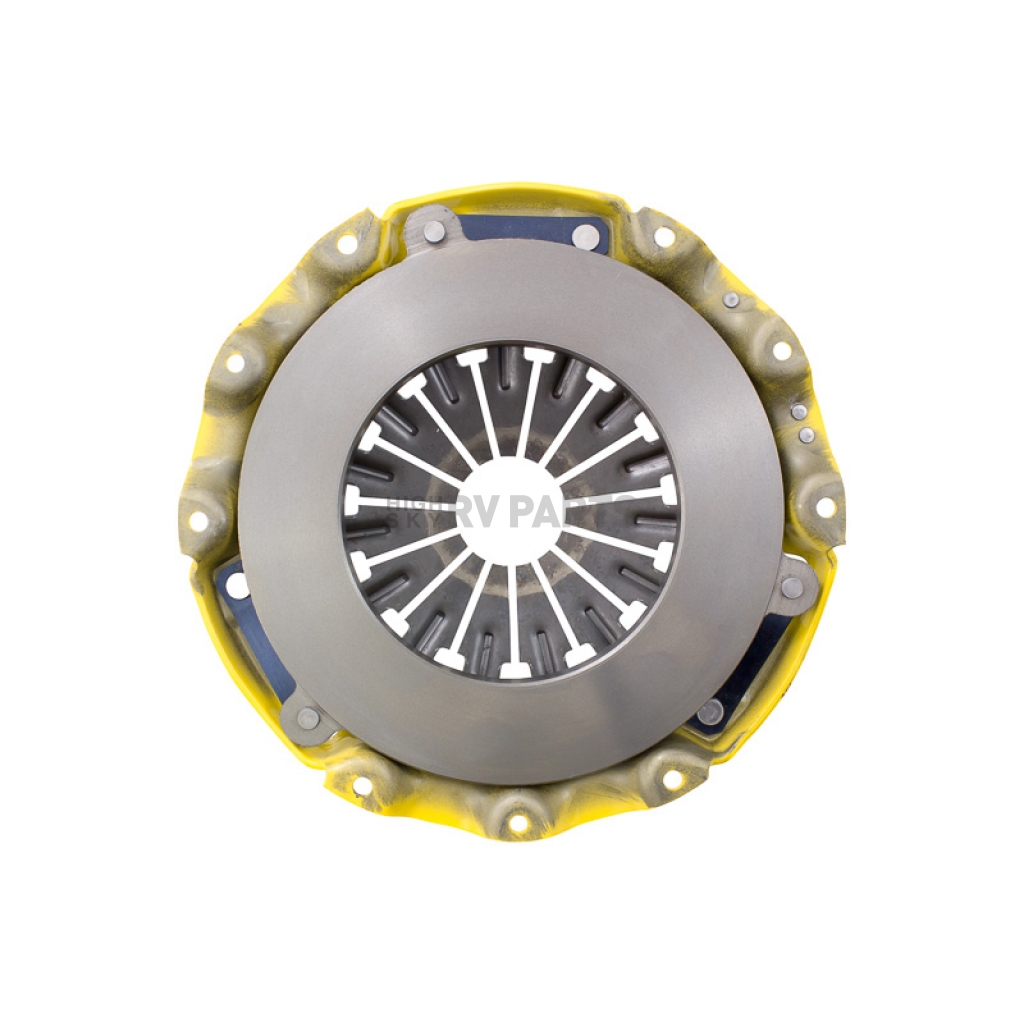

Advanced Clutch Diaphragm Xtreme Pressure Plate - MZ010X
Centrifugal Assist Type
No Counterweight Assist
Clutch Diameter (IN)
9.449 Inch
Color
Yellow
Includes Hardware
No
Material
Ductile Iron
Static Pressure (LB)
2700 Pounds
Type
Diaphragm
Share this page
Clutch Pressure Plate; Xtreme; Diaphragm; 9.449 Inch Disc Diameter; No Counterweight Assist
MPN: MZ010X
ACT pressure plates use exclusive diaphragm design to increase clamp load, reduce deflection and maximize clutch life. All diaphragms endure an exclusive four-stage, heat-treating process for unparalleled performance. ACT pressure plates have precision cover stampings to provide rigidity and consistency, and some are reinforced to reduce flex and improve efficiency and the feel of the pressure plate. ACT pressure plates are manufactured from new units not rebuilt from worn out parts and are 100 Percent tested and computer balanced for smooth operation at high RPM. ACT’s Xtreme pressure plates increase clamp load by 50 to 120 Percent and have a pedal feel that is moderate to stiff. Xtreme pressure plates are recommended for use with a street or race disc.Type: Diaphragm
Clutch Diameter (IN): 9.449 Inch
Static Pressure (LB): 2700 Pounds
Color: Yellow
Material: Ductile Iron
Centrifugal Assist Type: No Counterweight Assist
Includes Hardware: No
Features
- ACT Design Each Pressure Plate In The Optimum Working Range For Maximum Clutch Life, Clamp Load And Release Travel
- Induction Hardened Bearing Contact Area For Extremely Long Wear Life
- Drive Straps And Rivets Securely Locate Contact Face To The Cover For Quiet, Trouble Free Operation
- Precision CNC Machined Parts And SFI Certified To Ensure ACT Parts Exceed Strict Racing Requirements
- Exclusive Four Stage Heat Treating Process Performed On All Diaphragms
- Clamp Load Increase Of 50 To 120 Percent Over Stock With A Moderate To Stiff Pedal Feel
- Precision Stamped Cover For Maximum Consistence And Rigidity
- Limited 1 Year Warranty
Specifications of Advanced Clutch Diaphragm Xtreme Pressure Plate - MZ010X | |
Centrifugal Assist Type | No Counterweight Assist |
Clutch Diameter (IN) | 9.449 Inch |
Color | Yellow |
Includes Hardware | No |
Material | Ductile Iron |
Static Pressure (LB) | 2700 Pounds |
Type | Diaphragm |
1987 Chrysler Conquest
1988 Chrysler Conquest
1989 Chrysler Conquest
1988 Chrysler Conquest
1989 Chrysler Conquest
1989 Ford Probe
1990 Ford Probe
1991 Ford Probe
1992 Ford Probe
1990 Ford Probe
1991 Ford Probe
1992 Ford Probe
1988 Mazda 626
1989 Mazda 626
1990 Mazda 626
1991 Mazda 626
1989 Mazda 626
1990 Mazda 626
1991 Mazda 626
1988 Mazda 929
1989 Mazda 929
1990 Mazda 929
1991 Mazda 929
1989 Mazda 929
1990 Mazda 929
1991 Mazda 929
1987 Mazda B2600
1988 Mazda B2600
1988 Mazda B2600
1988 Mazda MX-6
1989 Mazda MX-6
1990 Mazda MX-6
1991 Mazda MX-6
1992 Mazda MX-6
1989 Mazda MX-6
1990 Mazda MX-6
1991 Mazda MX-6
1992 Mazda MX-6
1986 Mazda RX-7
1987 Mazda RX-7
1988 Mazda RX-7
1989 Mazda RX-7
1990 Mazda RX-7
1991 Mazda RX-7
1987 Mazda RX-7
1988 Mazda RX-7
1989 Mazda RX-7
1990 Mazda RX-7
1991 Mazda RX-7
1987 Mitsubishi Starion
1988 Mitsubishi Starion
1989 Mitsubishi Starion
1988 Mitsubishi Starion
1989 Mitsubishi Starion
