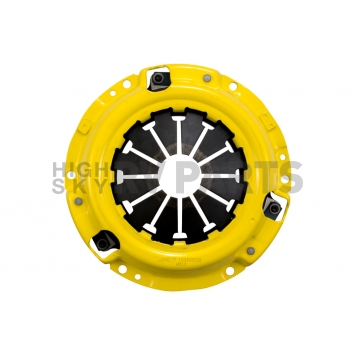

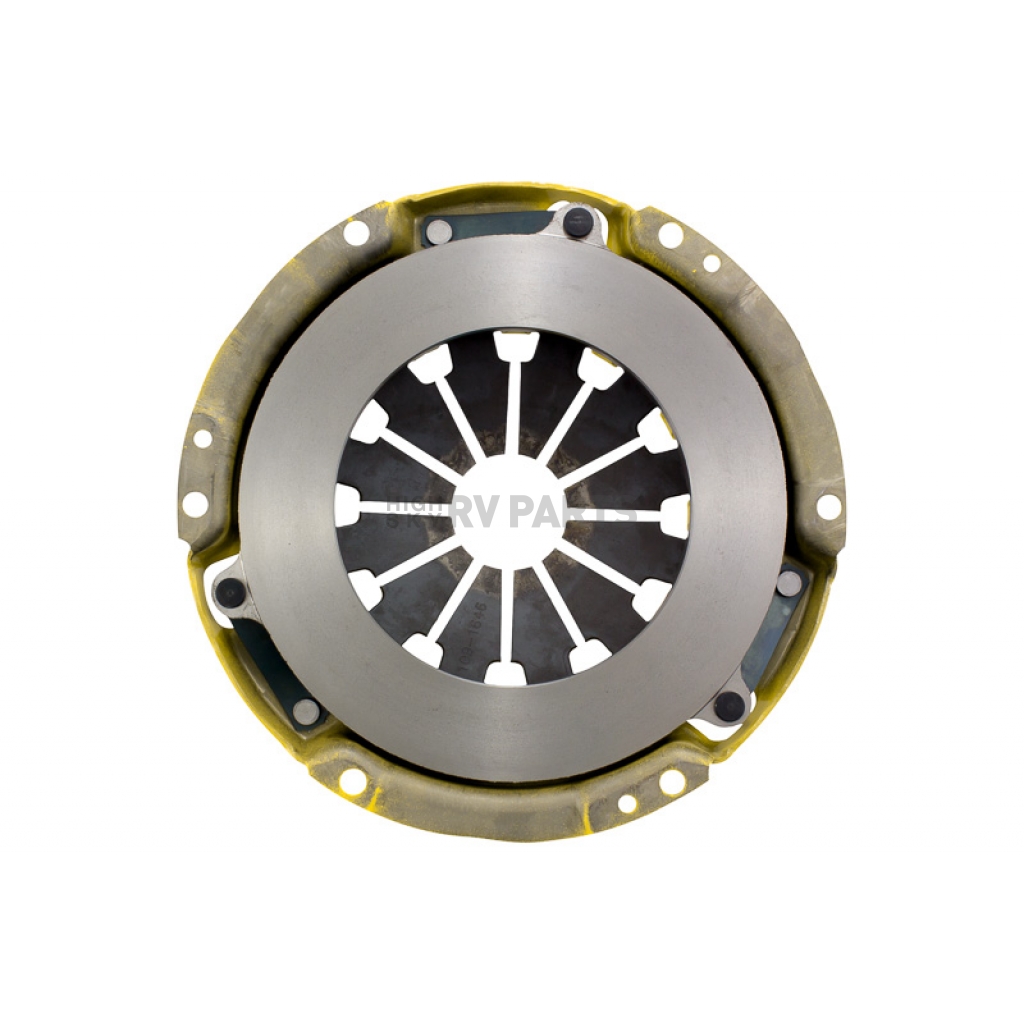

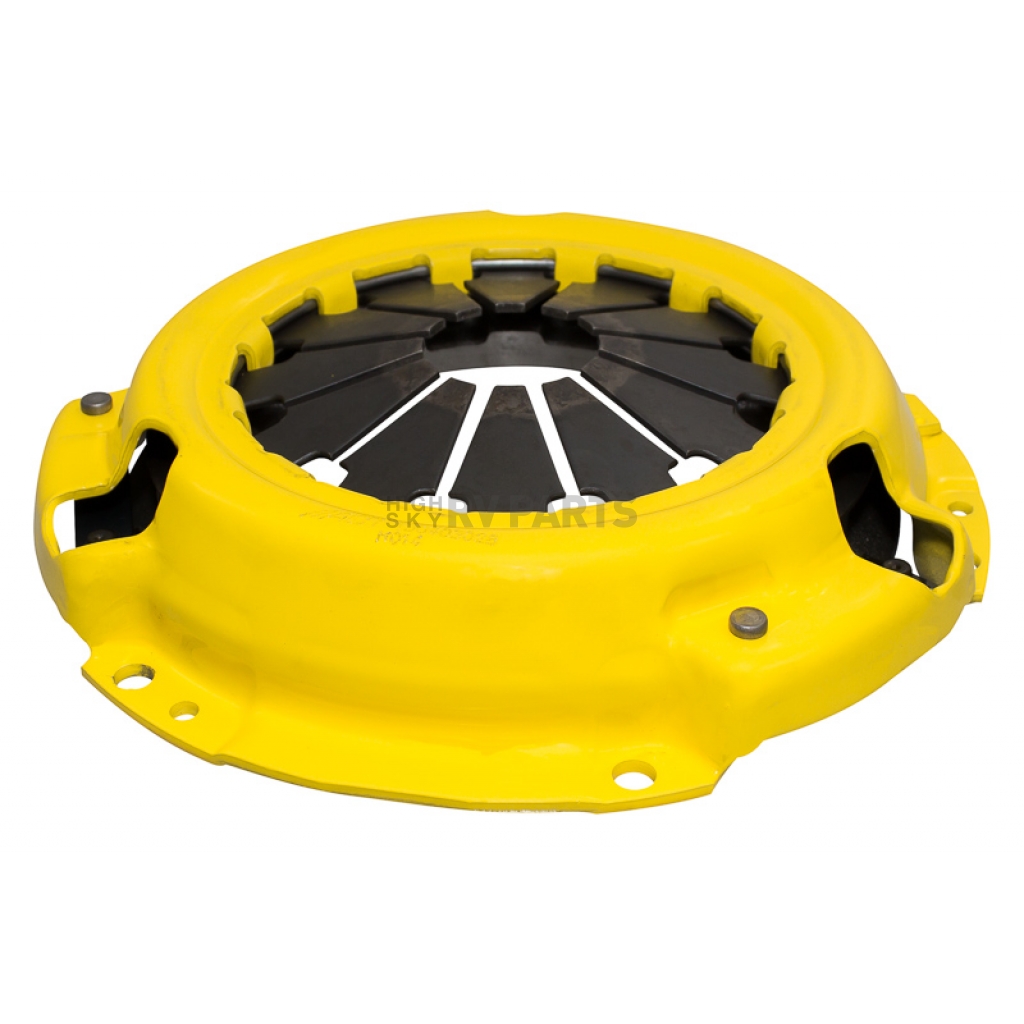

Advanced Clutch Diaphragm Heavy Duty Pressure Plate - H014
Clutch Diameter (IN)
7.87 Inch
Static Pressure (LB)
8.9 Pounds
Type
Diaphragm
Share this page
Clutch Pressure Plate; Heavy Duty; 8.9 Pounds
MPN: H014
ACT pressure plates use exclusive diaphragm design to increase clamp load, reduce deflection and maximize clutch life. All diaphragms endure an exclusive four-stage, heat-treating process for unparalleled performance. ACT pressure plates have precision cover stampings to provide rigidity and consistency, and some are reinforced to reduce flex and improve efficiency and the feel of the pressure plate. ACT pressure plates are manufactured from new units not rebuilt from worn out parts and are 100 Percent tested and computer balanced for smooth operation at high RPM. ACT’s Heavy-Duty pressure plates increase clamp load by 20 to 50 Percent and have a pedal feel that is stock to moderate. ACT’s Heavy-Duty pressure plates are recommended for use with a street or race disc.Type: Diaphragm
Clutch Diameter (IN): 7.87 Inch
Static Pressure (LB): 8.9 Pounds
Features
- ACT Design Each Pressure Plate In The Optimum Working Range For Maximum Clutch Life, Clamp Load And Release Travel
- Induction Hardened Bearing Contact Area For Extremely Long Wear Life
- Drive Straps And Rivets Securely Locate Contact Face To The Cover For Quiet, Trouble Free Operation
- Precision CNC Machined Parts And SFI Certified To Ensure ACT Parts Exceed Strict Racing Requirements
- Exclusive Four Stage Heat Treating Process Performed On All Diaphragms
- Clamp Load Increase Of 20 To 50 Percent Over Stock With A Stock To Moderate Pedal Feel
- Precision Stamped Cover For Maximum Consistence And Rigidity
- Limited 1 Year Warranty
Specifications of Advanced Clutch Diaphragm Heavy Duty Pressure Plate - H014 | |
Clutch Diameter (IN) | 7.87 Inch |
Static Pressure (LB) | 8.9 Pounds |
Type | Diaphragm |
1986 Acura Integra
1987 Acura Integra
1988 Acura Integra
1989 Acura Integra
1987 Acura Integra
1988 Acura Integra
1989 Acura Integra
1983 Honda Accord
1984 Honda Accord
1985 Honda Accord
1984 Honda Accord
1985 Honda Accord
1988 Honda Civic
1989 Honda Civic
1989 Honda Civic
1996 Honda Civic del Sol
1997 Honda Civic del Sol
1997 Honda Civic del Sol
1988 Honda CRX
1989 Honda CRX
1989 Honda CRX
1983 Honda Prelude
1984 Honda Prelude
1985 Honda Prelude
1986 Honda Prelude
1987 Honda Prelude
1984 Honda Prelude
1985 Honda Prelude
1986 Honda Prelude
1987 Honda Prelude
