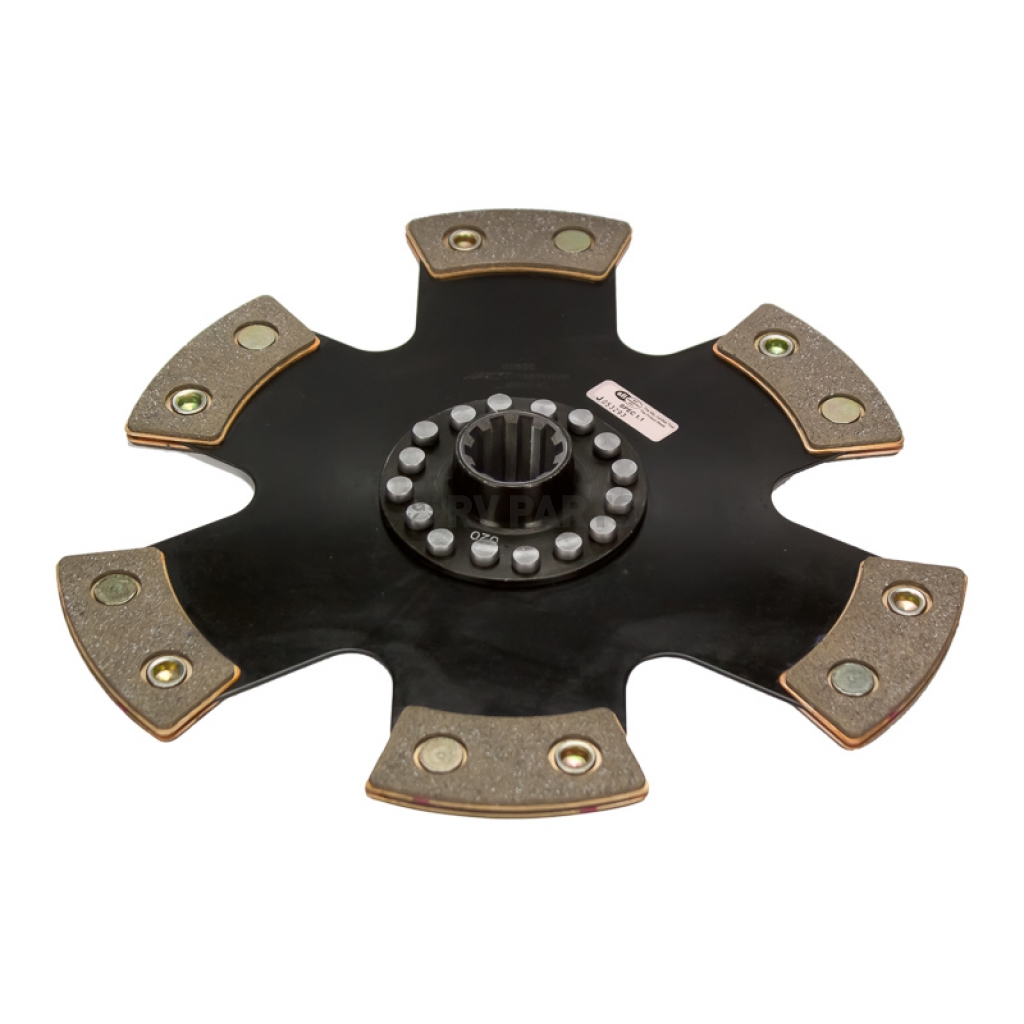

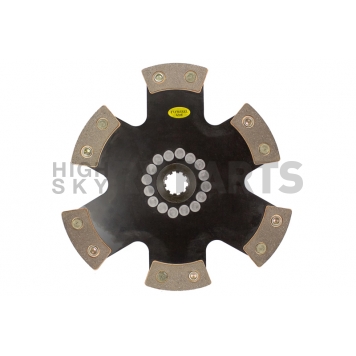

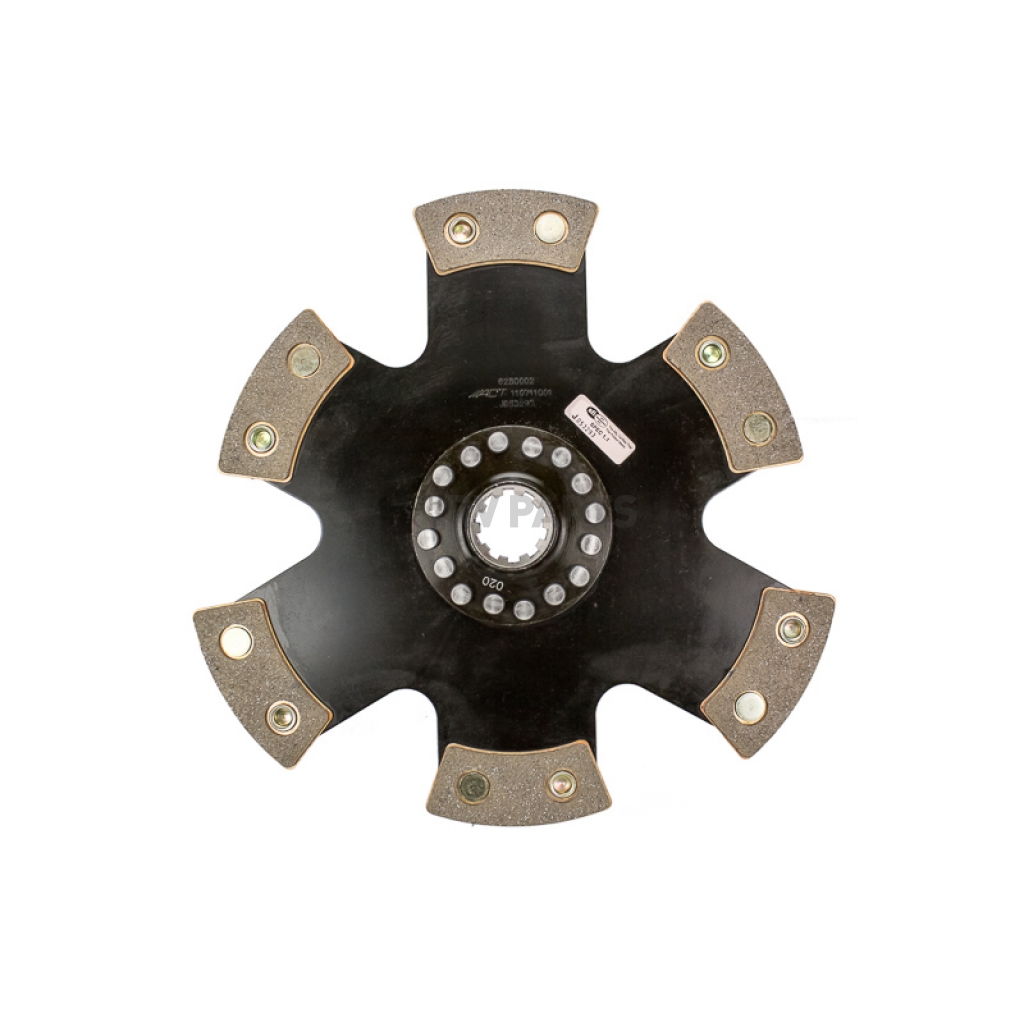

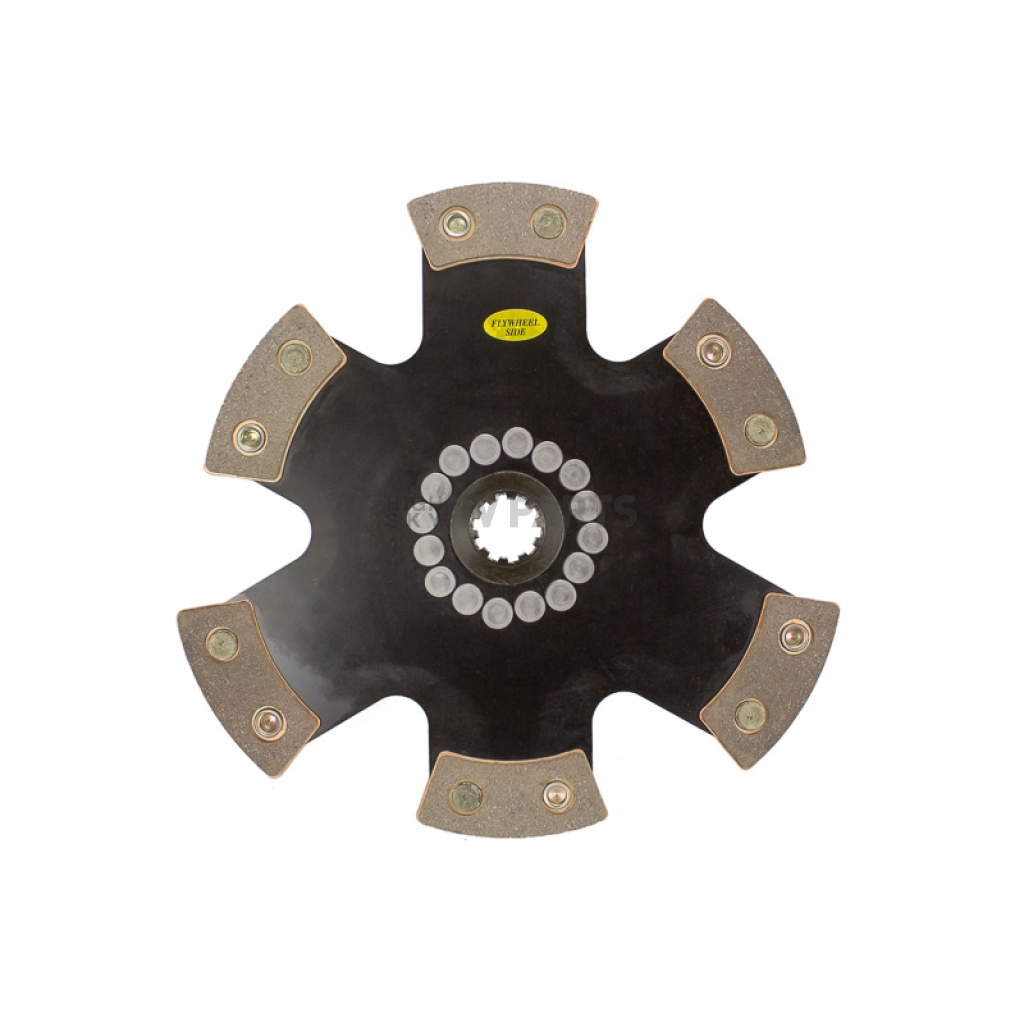

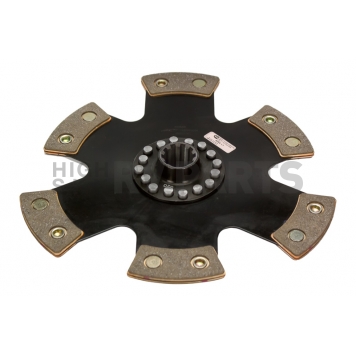

Advanced Clutch Disc Single 6 Paddle - 6280002

Authorized Dealer
Brand: Advanced Clutch Advanced Clutch
0 reviews
  • Have a product question? Ask us
  • Part Number: 6280002
  • Part Location: U.S.
  • Availability: *Special Order
  • Delivery: 2 - 3 Weeks
Retail: $208.94
Price: $198.99
You Save: $9.95
Diameter (IN)
 11 Inch
Friction Face Design
 Single 6 Paddle
Friction Material
 Ceramic
Friction Pad Mounting Type
 Riveted
Hub Design
 Rigid Hub
Input Shaft Diameter (IN)
 1-1/8 Inch
Input Spline Quantity
 10
Plate Material
 Steel
Share this page

Clutch Disc; Race; Single Disc; 6 Paddle Design; 11 Inch Diameter; 1-1/8 Inch x 10 Spline Input Shaft; Rigid Hub; Ceramic Riveted Friction Material; Steel Plate Material

MPN: 6280002

ACT Xtreme race discs are available in 4 or 6 pad solid hub designs that are highly durable and resistant to heat. ACT recommends 6 pad ACT Xtreme race discs for longer clutch size to absorb more heat and for smoother engagement. The 4 pad ACT Xtreme race discs engage harsher, shift faster, and are well suited for the smaller disc sizes in smaller engines

Friction Face Design: Single 6 Paddle
Diameter (IN): 11 Inch
Hub Design: Rigid Hub
Input Shaft Diameter (IN): 1-1/8 Inch
Input Spline Quantity: 10
Friction Material: Ceramic
Plate Material: Steel
Friction Pad Mounting Type: Riveted

Features

  • Lightweight Rigid Design For Quicker Shifts And Smooth, Trouble Free Service
  • Spring Center Construction Properly Dampens Torsional Vibrations For Quieter Operation
  • Center Section Resists Failure Even Under Harsh Conditions
  • Chrome Moly Hub Is Heat Treated For Strength And Durability
  • Heat Treated Steel Drive Plate
  • High Quality Ceramic Friction Material Which Produces 28 Percent More Friction And Torque Capacity Over Organic Materials
  • Limited 1 Year Warranty
Specifications of Advanced Clutch Disc Single 6 Paddle - 6280002
Diameter (IN)  11 Inch
Friction Face Design  Single 6 Paddle
Friction Material  Ceramic
Friction Pad Mounting Type  Riveted
Hub Design  Rigid Hub
Input Shaft Diameter (IN)  1-1/8 Inch
Input Spline Quantity  10
Plate Material  Steel

1975 GMC C15
1976 GMC C15
1977 GMC C15
1978 GMC C15

1975 GMC C15 Suburban
1976 GMC C15 Suburban
1977 GMC C15 Suburban
1978 GMC C15 Suburban

1969 GMC C15/C1500 Pickup
1970 GMC C15/C1500 Pickup
1971 GMC C15/C1500 Pickup
1972 GMC C15/C1500 Pickup
1973 GMC C15/C1500 Pickup
1974 GMC C15/C1500 Pickup

1969 GMC C15/C1500 Suburban
1970 GMC C15/C1500 Suburban
1971 GMC C15/C1500 Suburban
1972 GMC C15/C1500 Suburban
1973 GMC C15/C1500 Suburban
1974 GMC C15/C1500 Suburban

1979 GMC C1500
1980 GMC C1500
1981 GMC C1500
1982 GMC C1500
1983 GMC C1500
1984 GMC C1500
1985 GMC C1500
1986 GMC C1500

1988 GMC C1500
1989 GMC C1500
1990 GMC C1500
1991 GMC C1500
1992 GMC C1500
1993 GMC C1500
1994 GMC C1500
1995 GMC C1500

1979 GMC C1500 Suburban

1981 GMC C1500 Suburban
1982 GMC C1500 Suburban
1983 GMC C1500 Suburban
1984 GMC C1500 Suburban
1985 GMC C1500 Suburban
1986 GMC C1500 Suburban

1975 GMC C25
1976 GMC C25
1977 GMC C25
1978 GMC C25

1975 GMC C25 Suburban
1976 GMC C25 Suburban
1977 GMC C25 Suburban
1978 GMC C25 Suburban

1969 GMC C25/C2500 Pickup
1970 GMC C25/C2500 Pickup
1971 GMC C25/C2500 Pickup
1972 GMC C25/C2500 Pickup
1973 GMC C25/C2500 Pickup
1974 GMC C25/C2500 Pickup

1969 GMC C25/C2500 Suburban
1970 GMC C25/C2500 Suburban
1971 GMC C25/C2500 Suburban
1972 GMC C25/C2500 Suburban
1973 GMC C25/C2500 Suburban
1974 GMC C25/C2500 Suburban

1980 GMC C2500
1981 GMC C2500
1982 GMC C2500
1983 GMC C2500
1984 GMC C2500
1985 GMC C2500
1986 GMC C2500

1988 GMC C2500
1989 GMC C2500
1990 GMC C2500
1991 GMC C2500
1992 GMC C2500
1993 GMC C2500
1994 GMC C2500
1995 GMC C2500

1982 GMC C2500 Suburban
1983 GMC C2500 Suburban
1984 GMC C2500 Suburban
1985 GMC C2500 Suburban
1986 GMC C2500 Suburban

1975 GMC C35
1976 GMC C35
1977 GMC C35
1978 GMC C35

1969 GMC C35/C3500 Pickup
1970 GMC C35/C3500 Pickup
1971 GMC C35/C3500 Pickup
1972 GMC C35/C3500 Pickup
1973 GMC C35/C3500 Pickup
1974 GMC C35/C3500 Pickup

1986 GMC C3500

1975 GMC K15
1976 GMC K15
1977 GMC K15
1978 GMC K15

1975 GMC K15 Suburban
1976 GMC K15 Suburban
1977 GMC K15 Suburban
1978 GMC K15 Suburban

1969 GMC K15/K1500 Pickup
1970 GMC K15/K1500 Pickup
1971 GMC K15/K1500 Pickup
1972 GMC K15/K1500 Pickup
1973 GMC K15/K1500 Pickup
1974 GMC K15/K1500 Pickup

1969 GMC K15/K1500 Suburban
1970 GMC K15/K1500 Suburban
1971 GMC K15/K1500 Suburban
1972 GMC K15/K1500 Suburban
1973 GMC K15/K1500 Suburban
1974 GMC K15/K1500 Suburban

1981 GMC K1500
1982 GMC K1500
1983 GMC K1500
1984 GMC K1500
1985 GMC K1500
1986 GMC K1500

1988 GMC K1500
1989 GMC K1500
1990 GMC K1500
1991 GMC K1500
1992 GMC K1500
1993 GMC K1500
1994 GMC K1500
1995 GMC K1500

1979 GMC K1500 Suburban

1982 GMC K1500 Suburban

1975 GMC K25
1976 GMC K25
1977 GMC K25
1978 GMC K25

1975 GMC K25 Suburban
1976 GMC K25 Suburban
1977 GMC K25 Suburban
1978 GMC K25 Suburban

1969 GMC K25/K2500 Pickup
1970 GMC K25/K2500 Pickup
1971 GMC K25/K2500 Pickup
1972 GMC K25/K2500 Pickup
1973 GMC K25/K2500 Pickup
1974 GMC K25/K2500 Pickup

1969 GMC K25/K2500 Suburban
1970 GMC K25/K2500 Suburban
1971 GMC K25/K2500 Suburban
1972 GMC K25/K2500 Suburban
1973 GMC K25/K2500 Suburban
1974 GMC K25/K2500 Suburban

1988 GMC K2500
1989 GMC K2500
1990 GMC K2500
1991 GMC K2500
1992 GMC K2500
1993 GMC K2500
1994 GMC K2500
1995 GMC K2500

1977 GMC K35
1978 GMC K35

1969 GMC K35/K3500 Pickup
1970 GMC K35/K3500 Pickup
1971 GMC K35/K3500 Pickup
1972 GMC K35/K3500 Pickup
1973 GMC K35/K3500 Pickup
1974 GMC K35/K3500 Pickup
