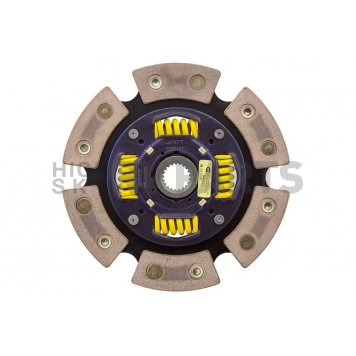

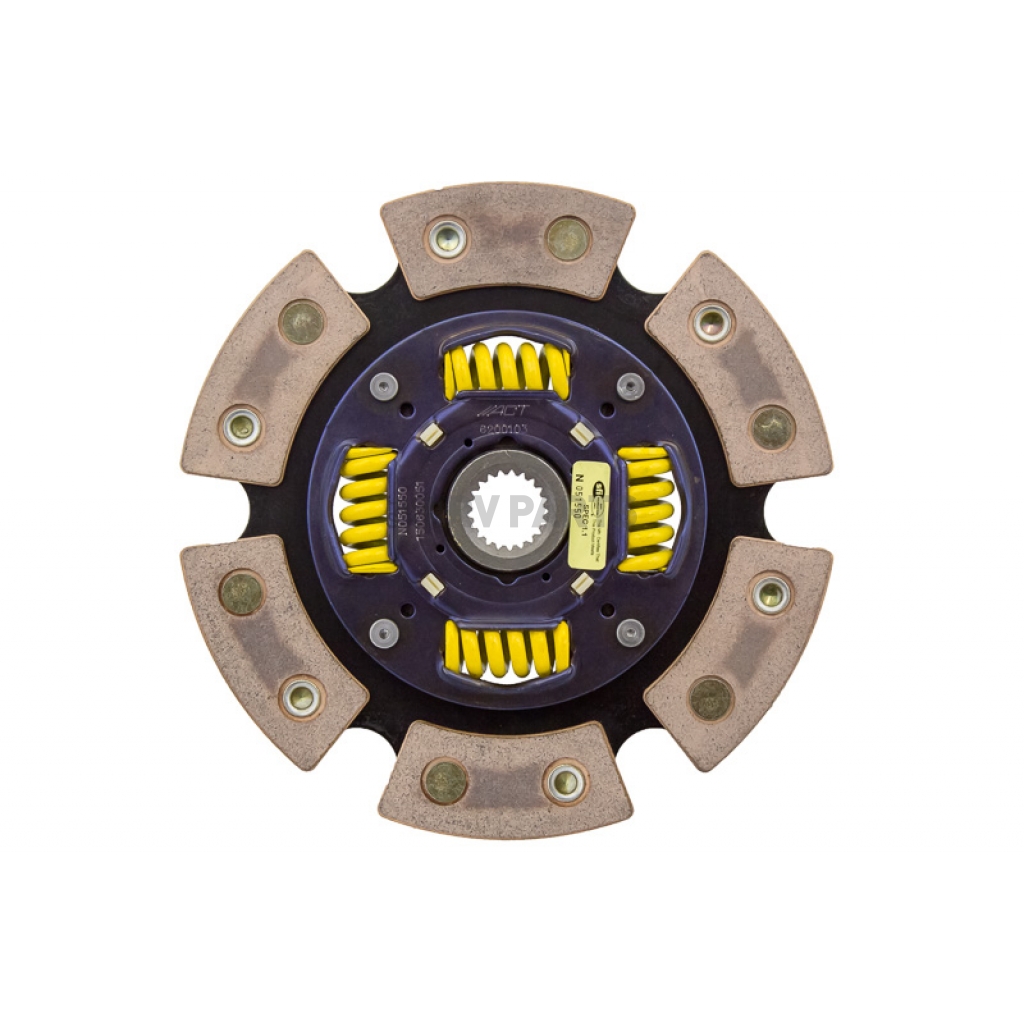

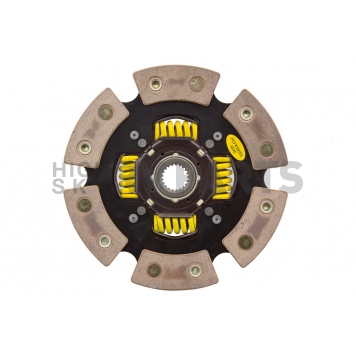

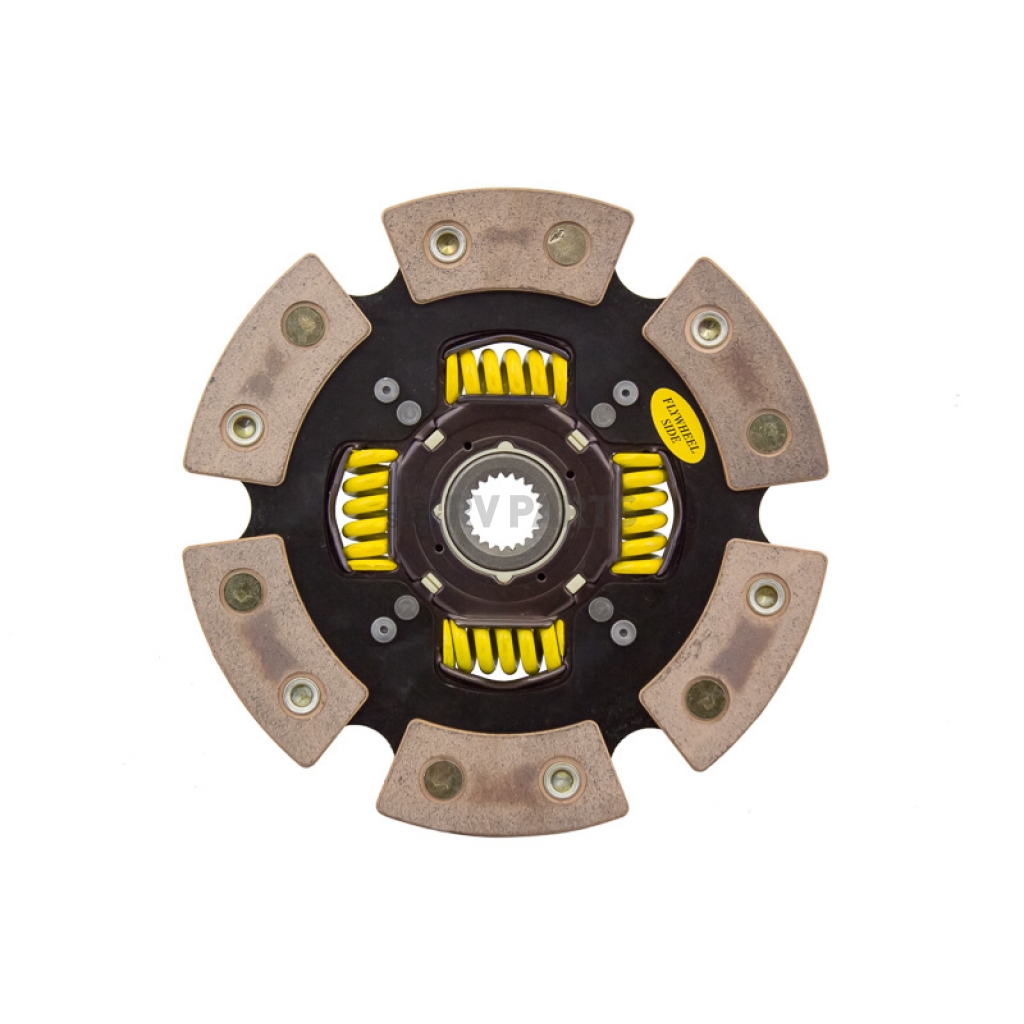

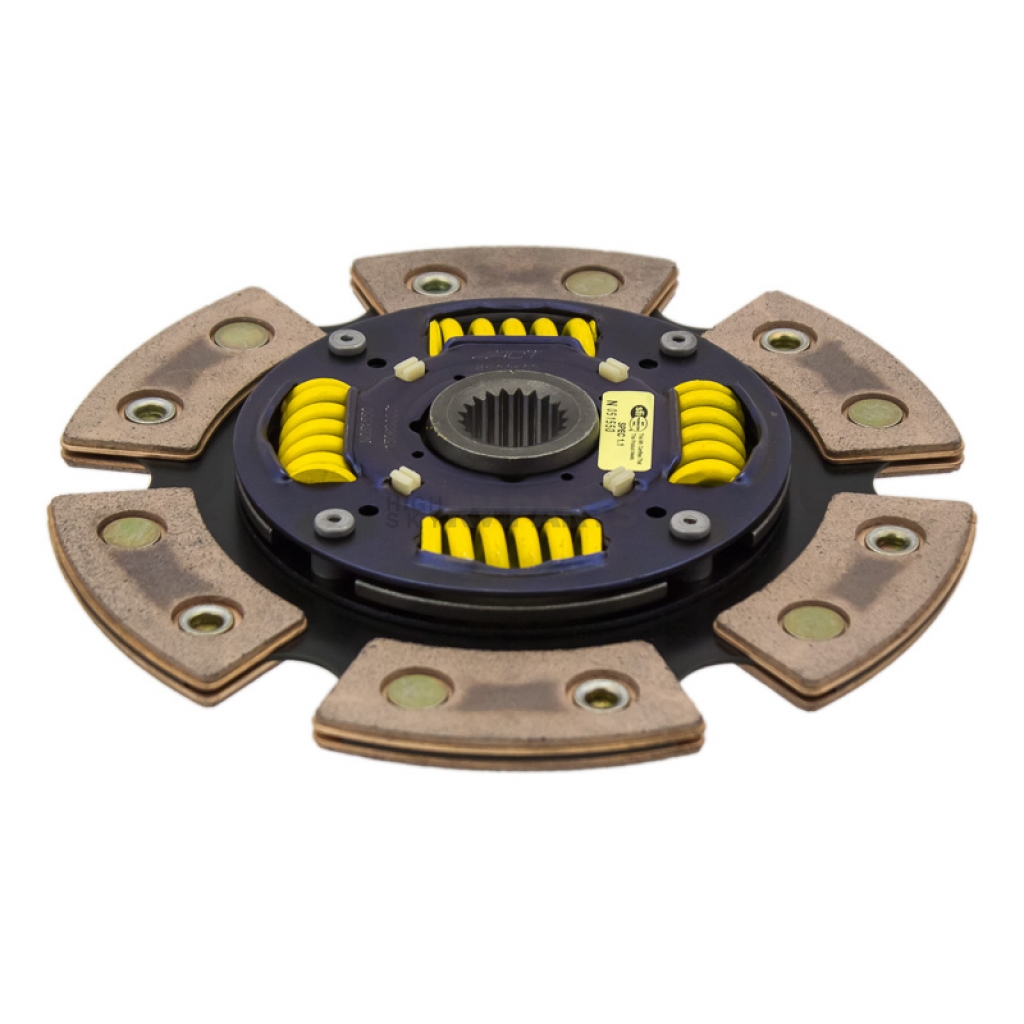

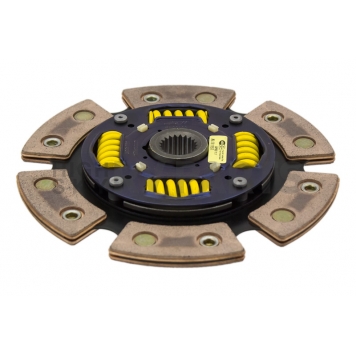

Advanced Clutch Disc Single 6 Paddle - 6200103
Clutch Disc; Race; Single Disc; 6 Paddle Design; 7.87 Inch Diameter; 15/16 Inch x 21 Spline Input Shaft; Sprung Hub; Ceramic Friction Material; Steel Plate Material
MPN: 6200103
ACT Xtreme race discs are available in 4 or 6 pad solid hub designs that are highly durable and resistant to heat. ACT recommends 6 pad ACT Xtreme race discs for longer clutch size to absorb more heat and for smoother engagement. The 4 pad ACT Xtreme race discs engage harsher, shift faster, and are well suited for the smaller disc sizes in smaller enginesFeatures
- Lightweight Rigid Design For Quicker Shifts And Smooth, Trouble Free Service
- Spring Center Construction Properly Dampens Torsional Vibrations For Quieter Operation
- Center Section Resists Failure Even Under Harsh Conditions
- Chrome Moly Hub Is Heat Treated For Strength And Durability
- Heat Treated Steel Drive Plate
- High Quality Ceramic Friction Material Which Produces 28 Percent More Friction And Torque Capacity Over Organic Materials
- Limited 1 Year Warranty
Specifications of Advanced Clutch Disc Single 6 Paddle - 6200103 | |
Diameter (IN) | 7.87 Inch |
Friction Face Design | Single 6 Paddle |
Friction Material | Ceramic |
Friction Pad Mounting Type | Riveted |
Hub Design | Sprung Hub |
Input Shaft Diameter (IN) | 15/16 Inch |
Input Spline Quantity | 21 |
Plate Material | Steel |
1992 Toyota Tercel
1993 Toyota Tercel
1994 Toyota Tercel
1995 Toyota Tercel
1996 Toyota Tercel
1997 Toyota Tercel
1998 Toyota Tercel
