Advanced Clutch Disc 4 Paddle - 4240508-1
Clutch Disc; Race; 4 Paddle Design; 9.4 Inch Diameter; 1 Inch x 23 Spline Input Shaft; Sprung Hub; Ceramic Friction Material; SFI 1.1 Rating
MPN: 4240508-1

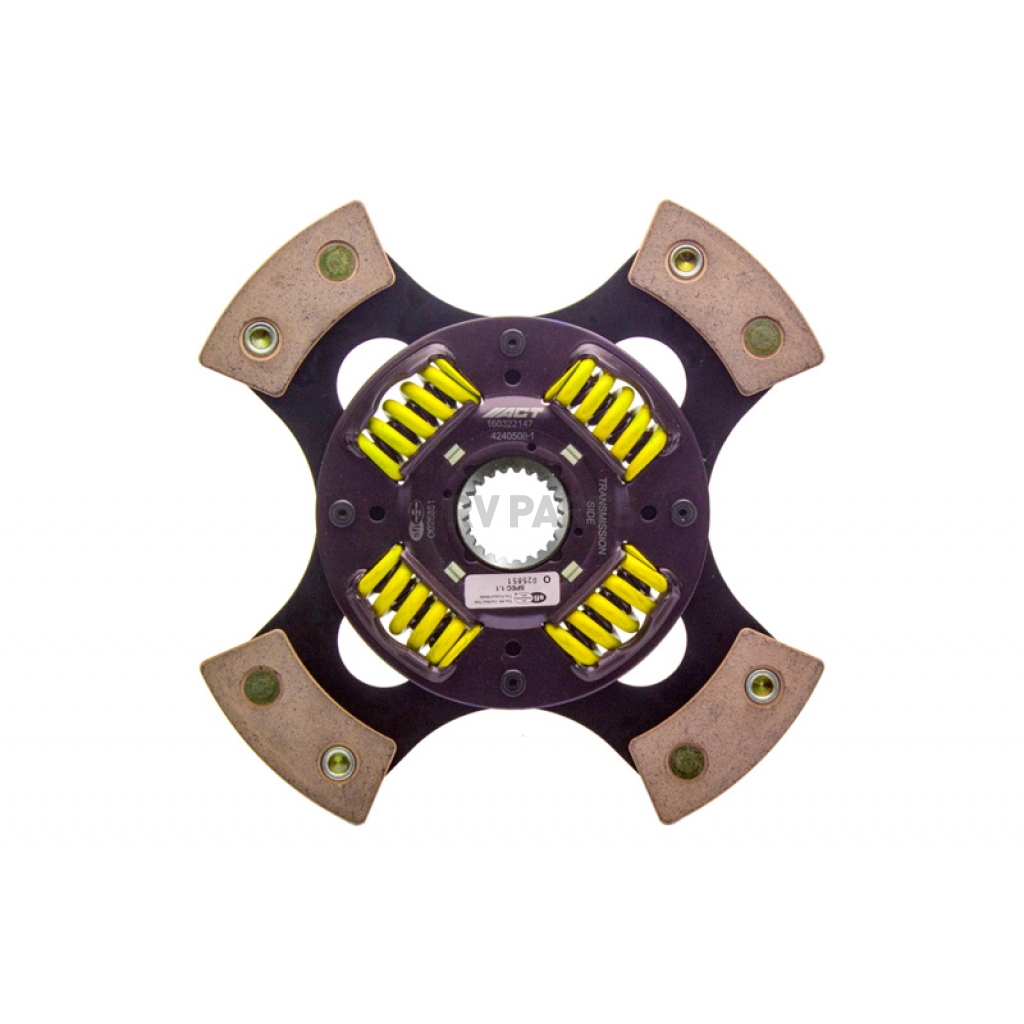

A 4-pad spring-centered race disc made with high quality, ceramic friction materials. The engagement is harsher, but shifting is faster. The heavy duty torsional dampening springs are stronger, in most cases, than standard springs and are provided in the best sizes and spring rates to suit the application. The race disc features a heat-treated spring steel drive plate and is well-suited for the smaller disc sizes in smaller engines.Features
- Life: Premium Ceramic Friction Materials Provide Moderate Wear Rates And High Heat Tolerance, Rigid Design May Increase Spline Wear
- Feel: Aggressive Engagement, Quick Shifts, OE To Mild Gear Rattle
- Utilizes Wraparound Spring Windows, Thicker Retainer Stampings And A Heat-Treated, Spring Steel Drive Plate To Provide Support, Reduce Stress Concentrations And Increase Strength And Reliability
- High Burst Strength And Holds 28 Percent More Torque Than Typical Organic Materials
- Recommended Use: Recommended For Race Use Only
- Limited 1 Year Warranty
Specifications of Advanced Clutch Disc 4 Paddle - 4240508-1 | |
Diameter (IN) | 9.4 Inch |
Friction Face Design | 4 Paddle |
Friction Material | Ceramic |
Friction Pad Mounting Type | Riveted |
Hub Design | Sprung Hub |
Input Shaft Diameter (IN) | 1 Inch |
Input Spline Quantity | 23 |
Plate Material | Steel |
2009 Dodge Caliber
