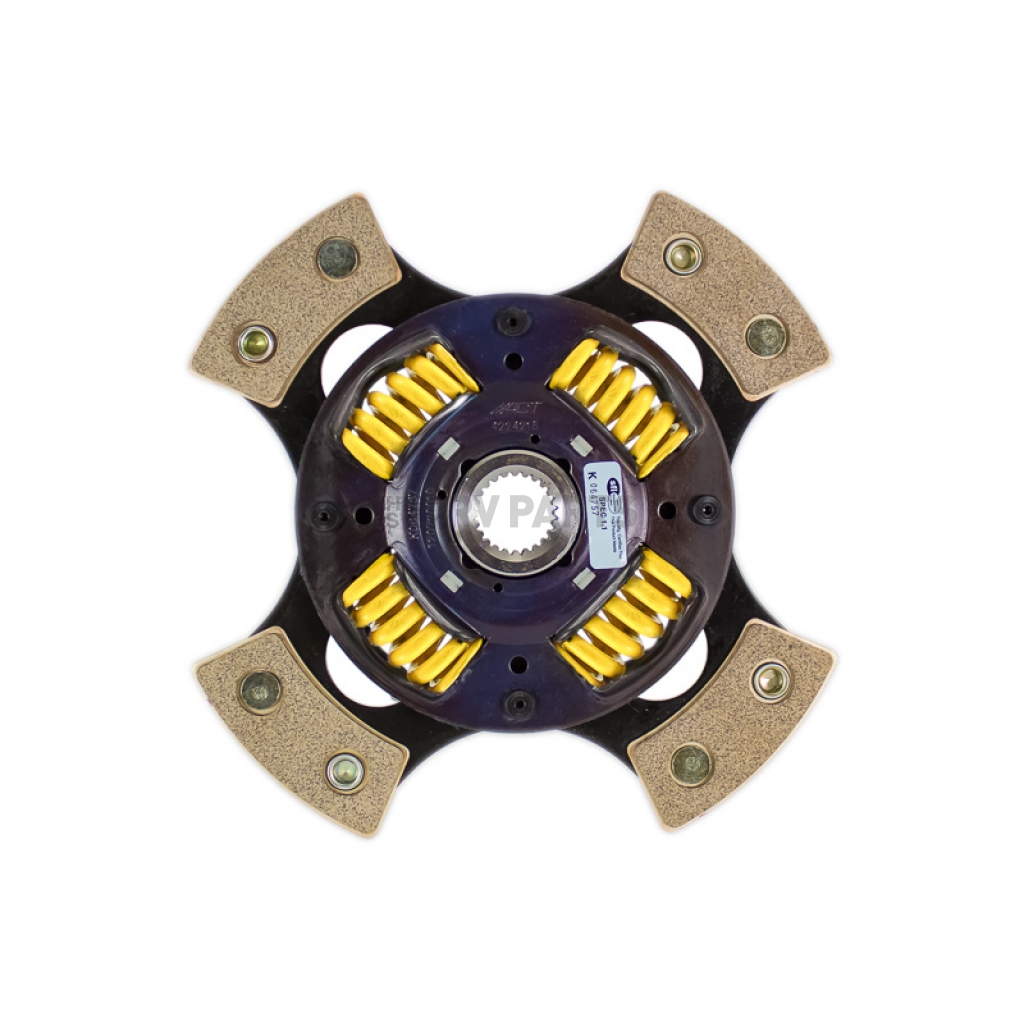

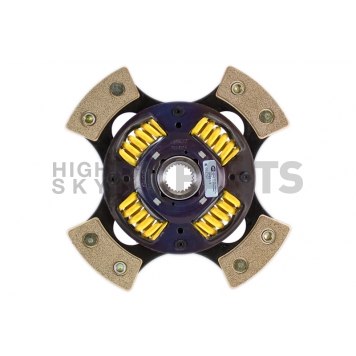

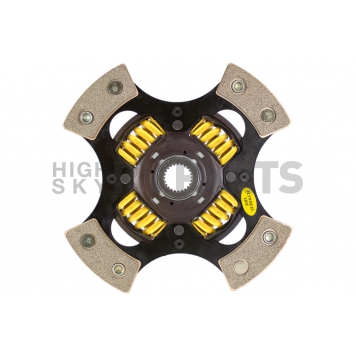

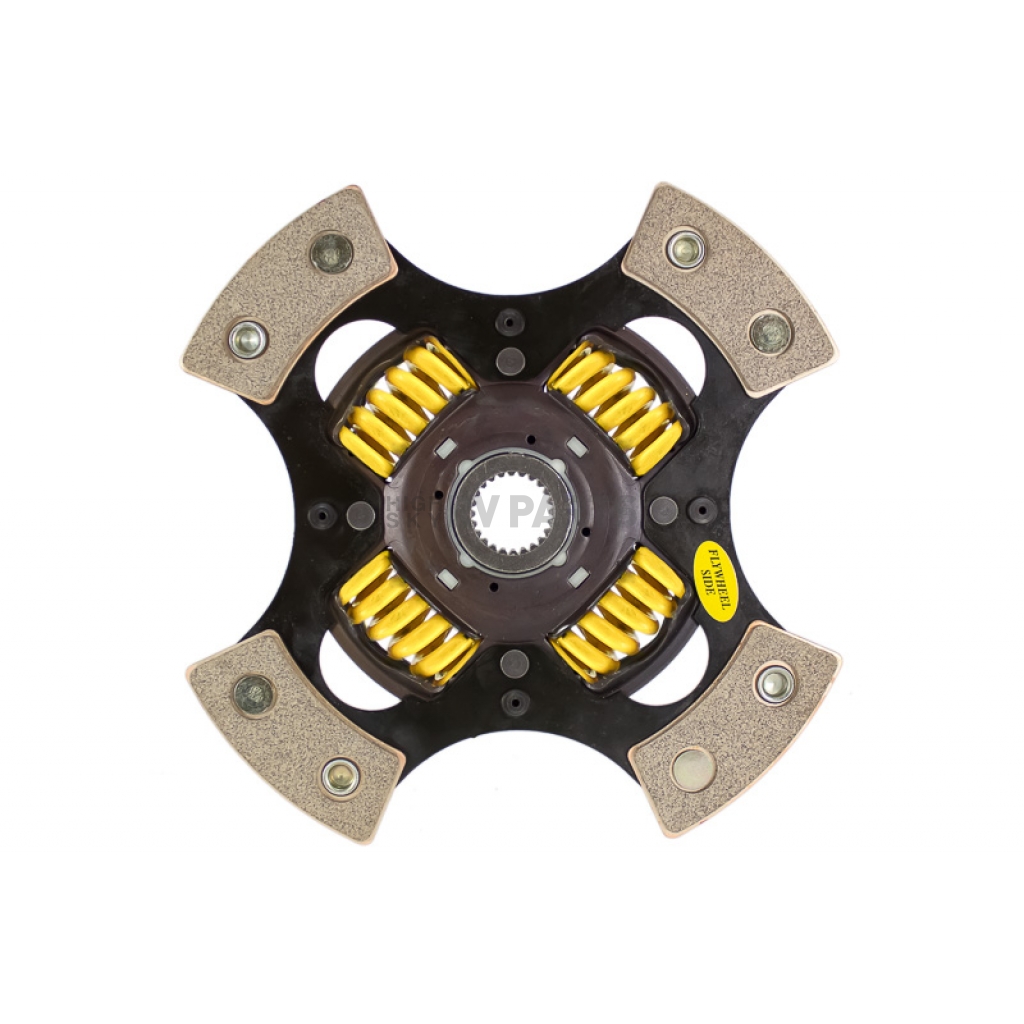

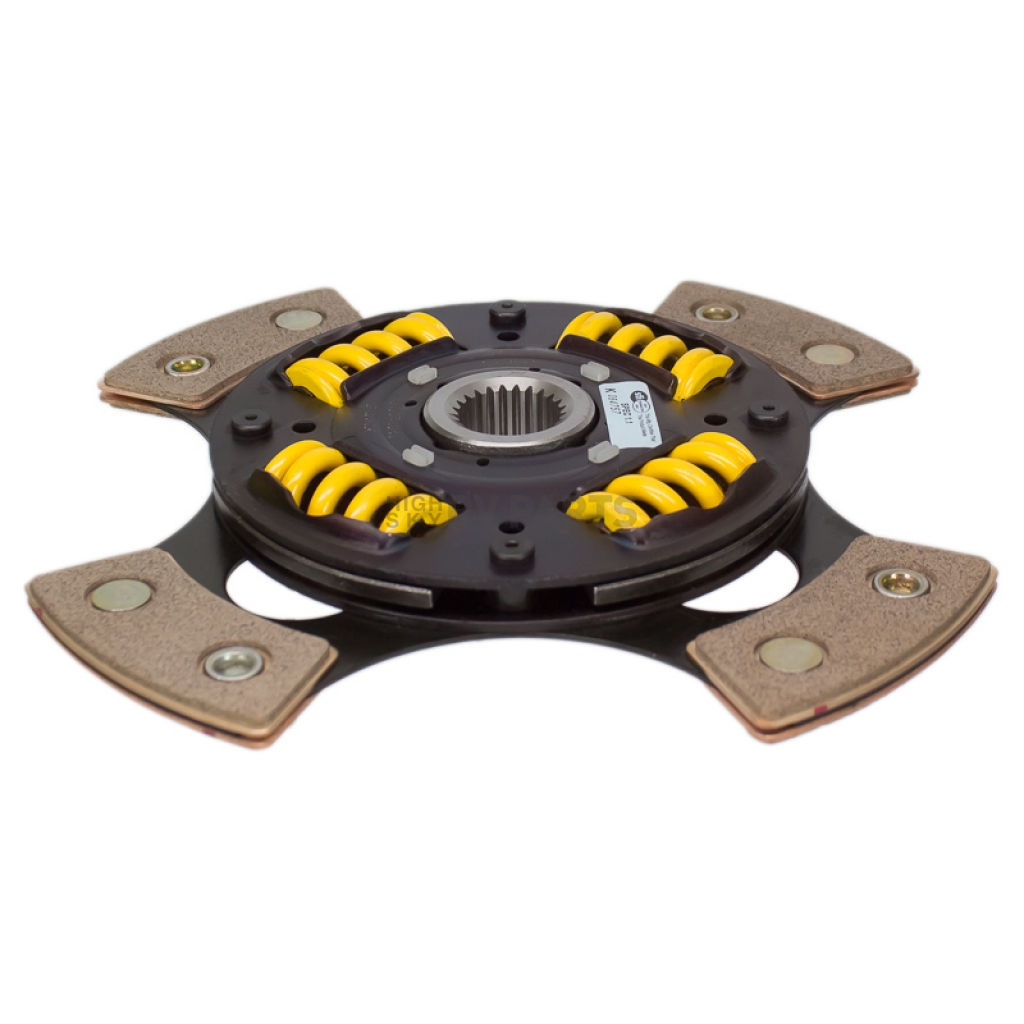

Advanced Clutch Disc Single 4 Paddle - 4224218-1
Clutch Disc; Race; Single Disc; 4 Paddle Design; 8.8 Inch Diameter; 1 Inch x 24 Spline Input Shaft; Sprung Hub; Ceramic Friction Material; Steel Plate Material
MPN: 4224218-1
4-pad spring-centered race disc made with high quality, ceramic friction materials. The engagement is harsher, but shifting is faster. The heavy duty torsional dampening springs are stronger, in most cases, than standard springs and are provided in the best sizes and spring rates to suit the application. The race disc features a heat-treated spring steel drive plate and is well-suited for the smaller disc sizes in smaller engines.Features
- Spring-Centered Construction Dampens Torsional Vibrations For Quieter Operation And Resists Failure Under Harsh Conditions
- Aggressive Engagement With Fast Shift Action
- Premium Ceramic Friction Materials Provide Low Wear Rates And High Heat Tolerance
- Heat-Treated Spring Steel Drive Plate And Is Well-Suited For The Smaller Disc Sizes In Smaller Engines
- Utilizes Wraparound Spring Windows, Thicker Retainer Stampings And A Heat-Treated, Spring Steel Drive Plate To Provide Support
- Reduce Stress Concentrations And Increase Strength And Reliability
- Limited 1 Year Warranty
Specifications of Advanced Clutch Disc Single 4 Paddle - 4224218-1 | |
Diameter (IN) | 8.8 Inch |
Friction Face Design | Single 4 Paddle |
Friction Material | Ceramic |
Friction Pad Mounting Type | Riveted |
Hub Design | Sprung Hub |
Input Shaft Diameter (IN) | 1 Inch |
Input Spline Quantity | 24 |
Plate Material | Steel |
2014 Scion FR-S
2014 Subaru BRZ
2015 Subaru BRZ
2016 Subaru BRZ
