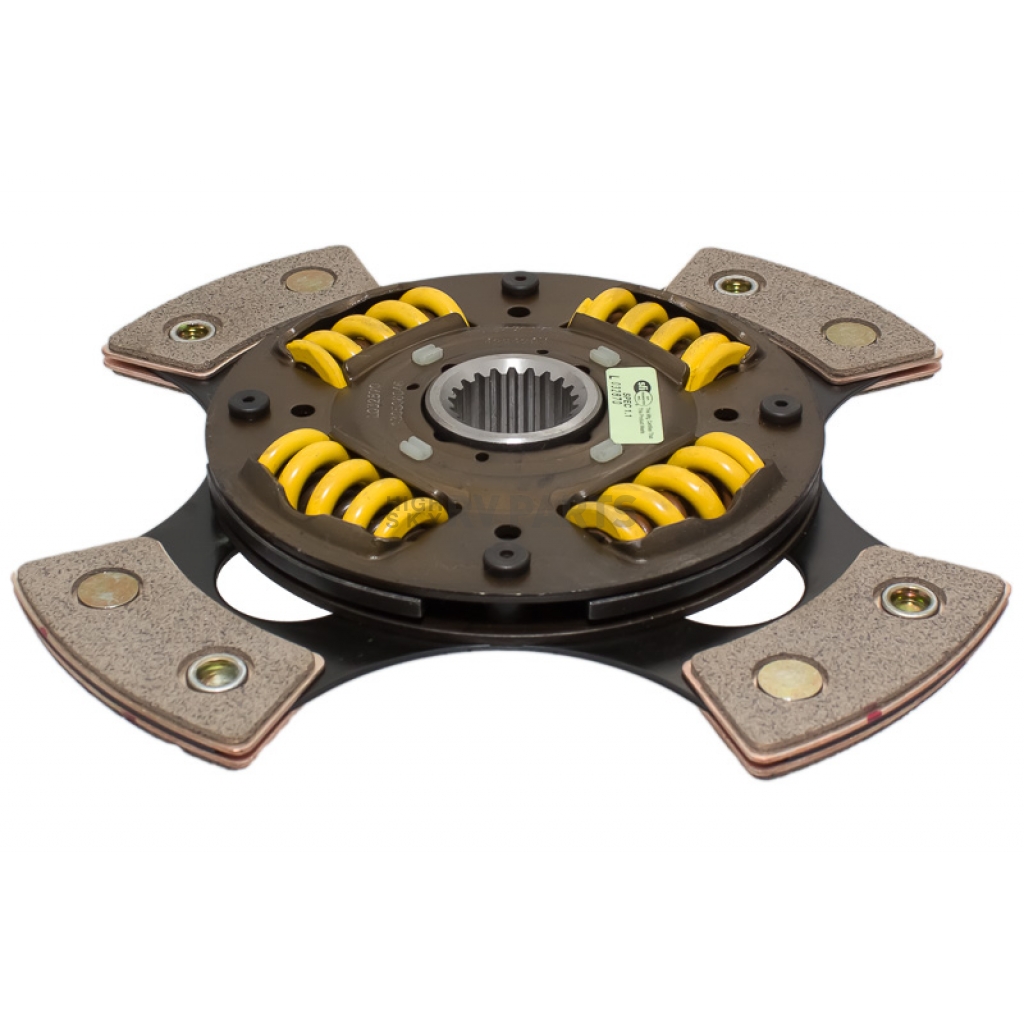

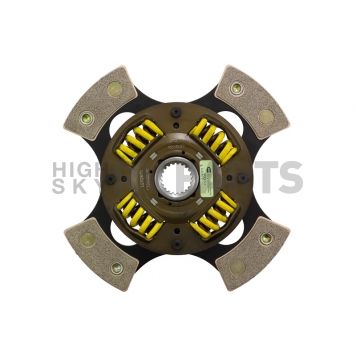

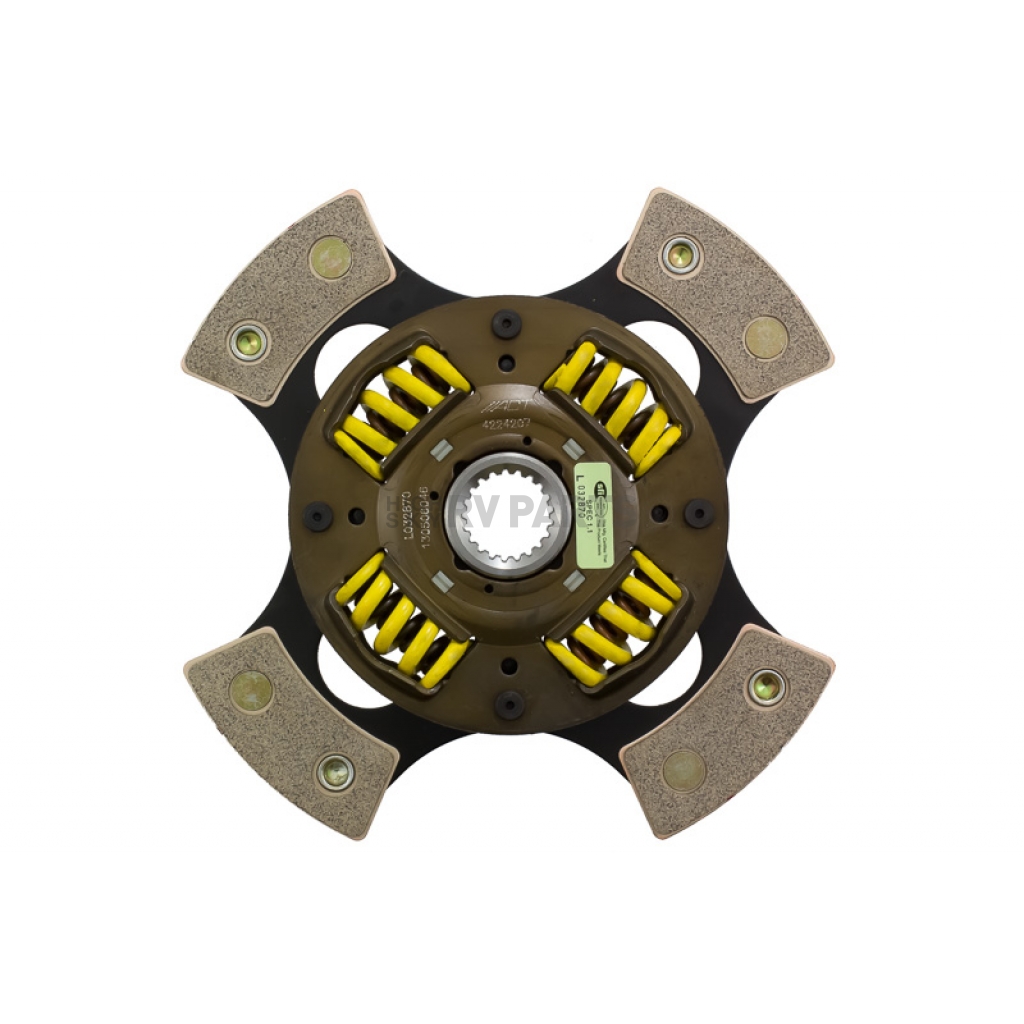

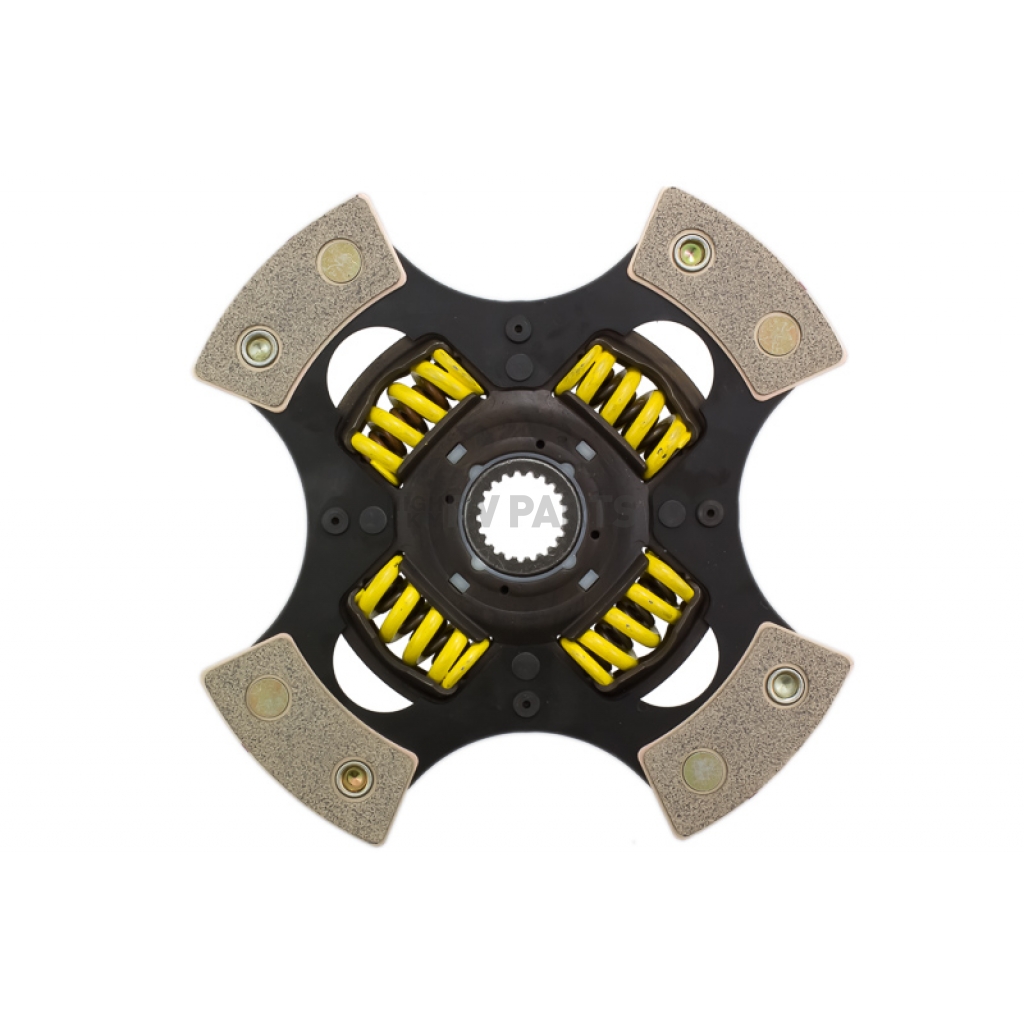

Advanced Clutch Disc Single 4 Paddle - 4224207

Authorized Dealer
Brand: Advanced Clutch Advanced Clutch
0 reviews
  • Have a product question? Ask us
  • Part Number: 4224207
  • Part Location: U.S.
  • Availability: *Special Order
  • Delivery: 2 - 3 Weeks
Retail: $227.84
Price: $216.99
You Save: $10.85
Diameter (IN)
 8.82 Inch
Friction Face Design
 Single 4 Paddle
Friction Material
 Ceramic
Friction Pad Mounting Type
 Riveted
Hub Design
 Sprung Hub
Input Shaft Diameter (IN)
 1-1/8 Inch
Input Spline Quantity
 21
Plate Material
 Steel
Share this page

Clutch Disc; Race; Single Disc; 4 Paddle Design; 8.82 Inch Diameter; 1-1/8 Inch x 21 Spline Input Shaft; Sprung Hub; Ceramic Friction Material; Steel Plate Material

MPN: 4224207

ACT Xtreme race discs are available in 4 or 6 pad solid hub designs that are highly durable and resistant to heat. ACT recommends 6 pad ACT Xtreme race discs for longer clutch size to absorb more heat and for smoother engagement. The 4 pad ACT Xtreme race discs engage harsher, shift faster, and are well suited for the smaller disc sizes in smaller engines

Friction Face Design: Single 4 Paddle
Diameter (IN): 8.82 Inch
Hub Design: Sprung Hub
Input Shaft Diameter (IN): 1-1/8 Inch
Input Spline Quantity: 21
Friction Material: Ceramic
Plate Material: Steel
Friction Pad Mounting Type: Riveted

Features

  • Lightweight Rigid Design For Quicker Shifts And Smooth, Trouble Free Service
  • Spring Center Construction Properly Dampens Torsional Vibrations For Quieter Operation
  • Center Section Resists Failure Even Under Harsh Conditions
  • Chrome Moly Hub Is Heat Treated For Strength And Durability
  • Heat Treated Steel Drive Plate
  • High Quality Ceramic Friction Material Which Produces 28 Percent More Friction And Torque Capacity Over Organic Materials
  • Limited 1 Year Warranty
Specifications of Advanced Clutch Disc Single 4 Paddle - 4224207
Diameter (IN)  8.82 Inch
Friction Face Design  Single 4 Paddle
Friction Material  Ceramic
Friction Pad Mounting Type  Riveted
Hub Design  Sprung Hub
Input Shaft Diameter (IN)  1-1/8 Inch
Input Spline Quantity  21
Plate Material  Steel

1984 Toyota 4Runner
1985 Toyota 4Runner
1986 Toyota 4Runner
1987 Toyota 4Runner
1988 Toyota 4Runner
1989 Toyota 4Runner
1990 Toyota 4Runner
1991 Toyota 4Runner
1992 Toyota 4Runner
1993 Toyota 4Runner
1994 Toyota 4Runner
1995 Toyota 4Runner

1972 Toyota Celica
1973 Toyota Celica
1974 Toyota Celica

1977 Toyota Celica
1978 Toyota Celica
1979 Toyota Celica
1980 Toyota Celica
1981 Toyota Celica

1975 Toyota Corona
1976 Toyota Corona
1977 Toyota Corona
1978 Toyota Corona
1979 Toyota Corona
1980 Toyota Corona
1981 Toyota Corona

1967 Toyota Crown
1968 Toyota Crown
1969 Toyota Crown
1970 Toyota Crown
1971 Toyota Crown
1972 Toyota Crown

1970 Toyota Hi-Lux

1972 Toyota Hi-Lux
1973 Toyota Hi-Lux
1974 Toyota Hi-Lux

1972 Toyota Mark II
1973 Toyota Mark II
1974 Toyota Mark II
1975 Toyota Mark II
1976 Toyota Mark II

1970 Toyota Pickup

1972 Toyota Pickup
1973 Toyota Pickup
1974 Toyota Pickup
1975 Toyota Pickup
1976 Toyota Pickup
1977 Toyota Pickup
1978 Toyota Pickup
1979 Toyota Pickup
1980 Toyota Pickup
1981 Toyota Pickup
1982 Toyota Pickup
1983 Toyota Pickup
1984 Toyota Pickup
1985 Toyota Pickup
1986 Toyota Pickup
1987 Toyota Pickup
1988 Toyota Pickup
1989 Toyota Pickup
1990 Toyota Pickup
1991 Toyota Pickup
1992 Toyota Pickup
1993 Toyota Pickup
1994 Toyota Pickup
1995 Toyota Pickup

1995 Toyota Tacoma

1986 Toyota Van
1987 Toyota Van
1988 Toyota Van
1989 Toyota Van
