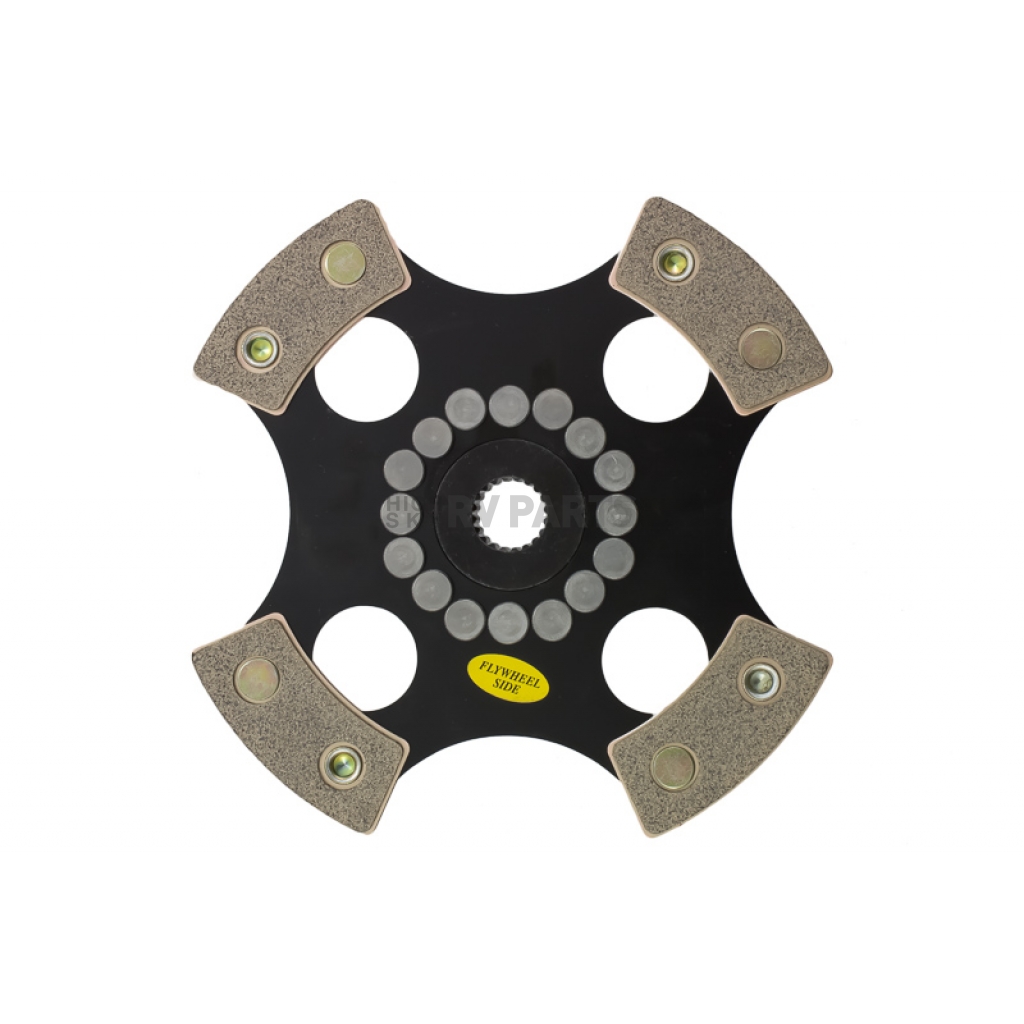

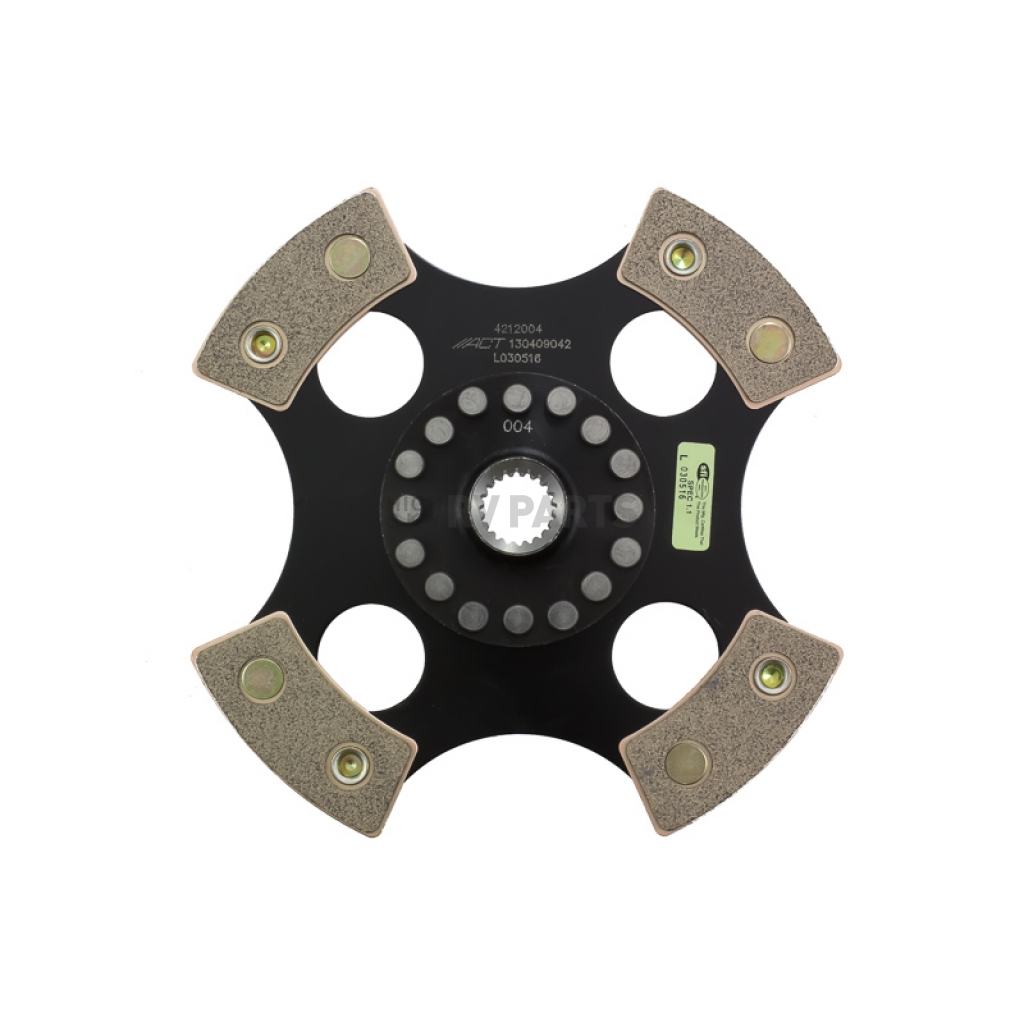

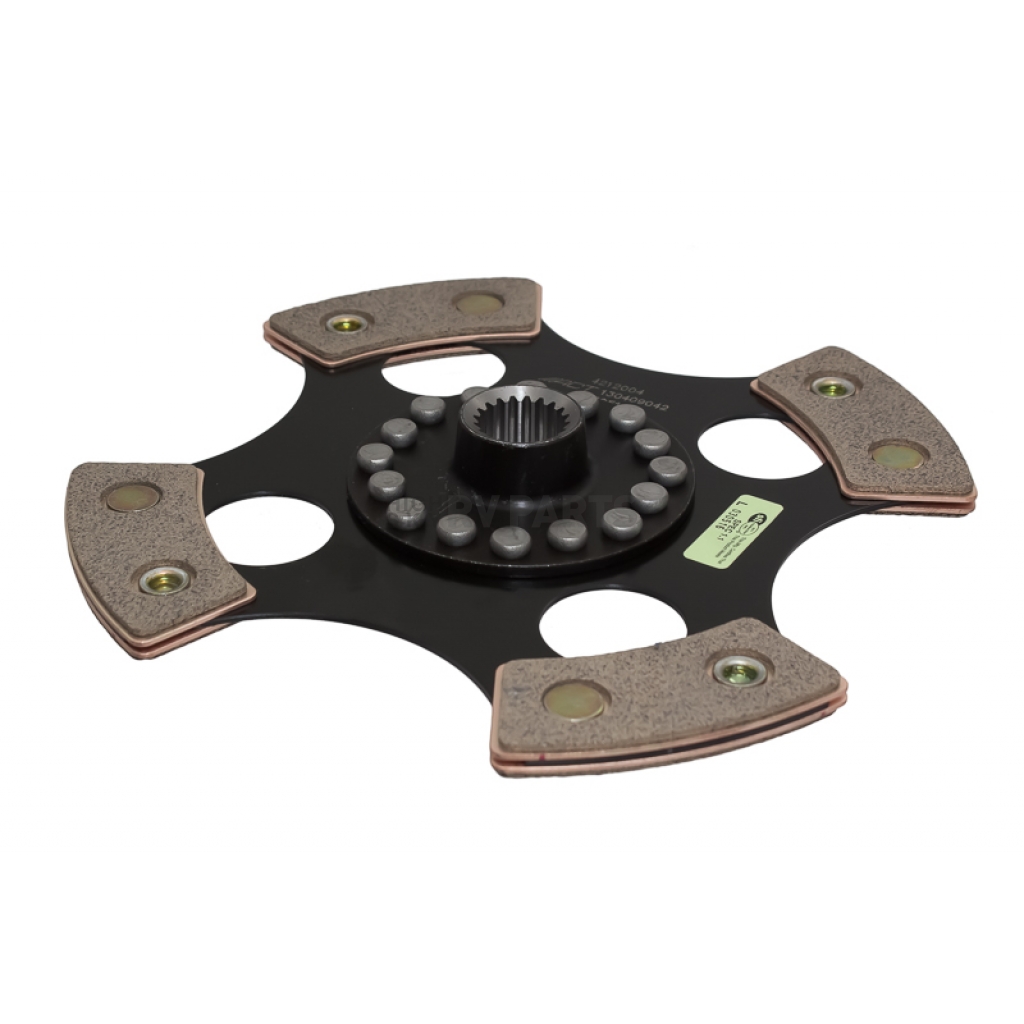

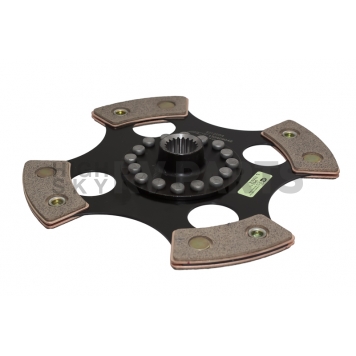

Advanced Clutch Disc Single 4 Paddle - 4212004
Clutch Disc; Race; Single Disc; 4 Paddle Design; 8.35 Inch Diameter; 7/8 Inch x 20 Spline Input Shaft; Solid Hub; Ceramic Riveted Friction Material; Steel Plate Material; Requires Clutch Flywheel Depending On Application Only If Listed
MPN: 4212004
ACT Xtreme race discs are available in 4 or 6 pad solid hub designs that are highly durable and resistant to heat. ACT recommends 6 pad ACT Xtreme race discs for longer clutch size to absorb more heat and for smoother engagement. The 4 pad ACT Xtreme race discs engage harsher, shift faster, and are well suited for the smaller disc sizes in smaller enginesFeatures
- Lightweight Rigid Design For Quicker Shifts And Smooth, Trouble Free Service
- Spring Center Construction Properly Dampens Torsional Vibrations For Quieter Operation
- Center Section Resists Failure Even Under Harsh Conditions
- Chrome Moly Hub Is Heat Treated For Strength And Durability
- Heat Treated Steel Drive Plate
- High Quality Ceramic Friction Material Which Produces 28 Percent More Friction And Torque Capacity Over Organic Materials
- Limited 1 Year Warranty
Specifications of Advanced Clutch Disc Single 4 Paddle - 4212004 | |
Diameter (IN) | 8.35 Inch |
Friction Face Design | Single 4 Paddle |
Friction Material | Ceramic |
Friction Pad Mounting Type | Riveted |
Hub Design | Solid Hub |
Input Shaft Diameter (IN) | 7/8 Inch |
Input Spline Quantity | 20 |
Plate Material | Steel |
1993 Honda Civic
1994 Honda Civic
1995 Honda Civic
1996 Honda Civic
1997 Honda Civic
1998 Honda Civic
1999 Honda Civic
2000 Honda Civic
2001 Honda Civic
2002 Honda Civic
2003 Honda Civic
2004 Honda Civic
2005 Honda Civic
1994 Honda Civic del Sol
1995 Honda Civic del Sol
1996 Honda Civic del Sol
1997 Honda Civic del Sol
