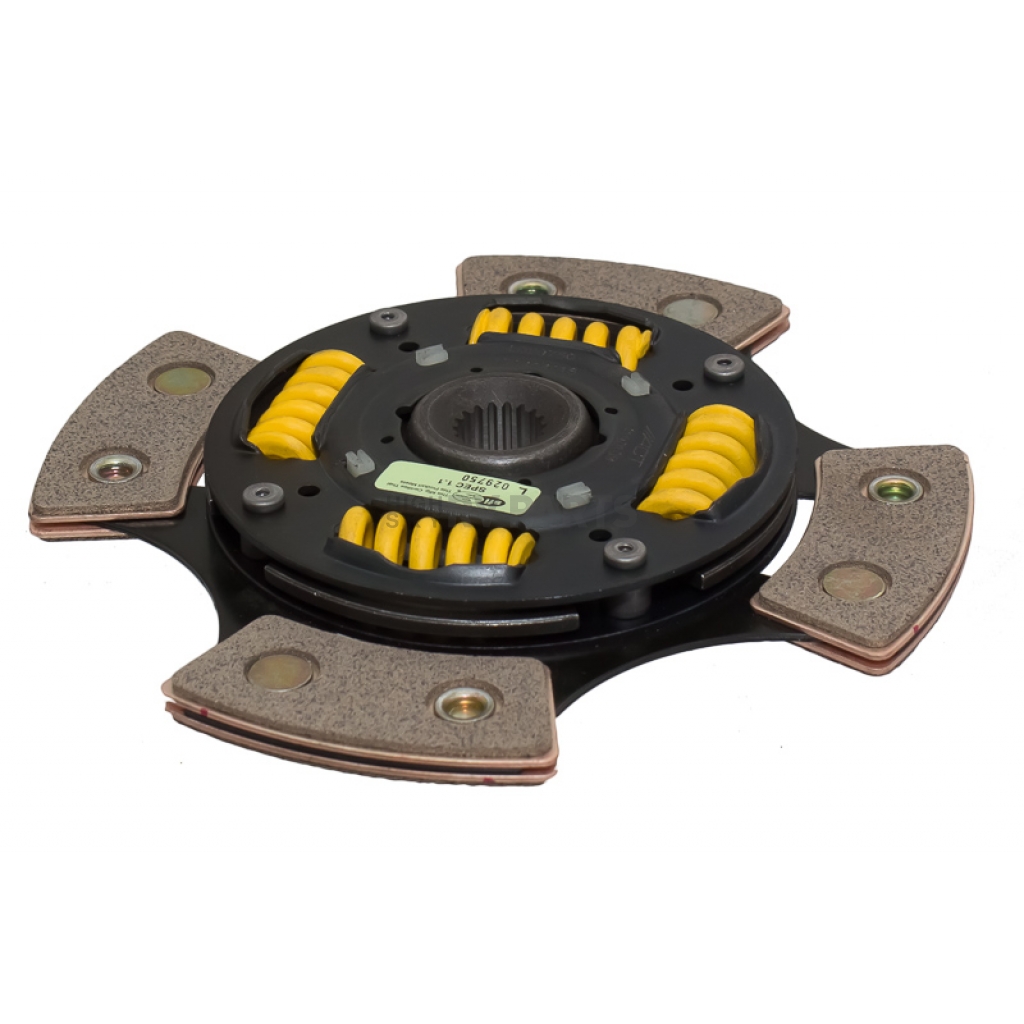

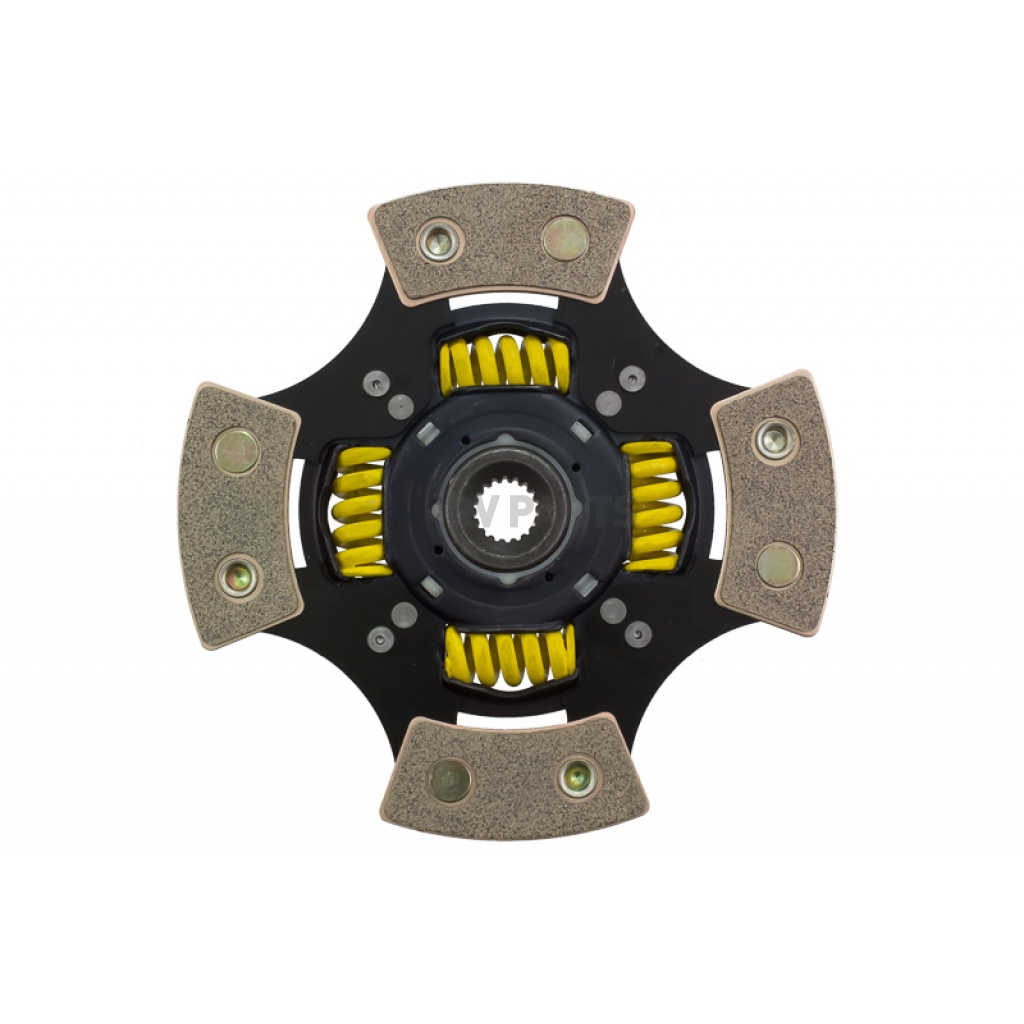

Advanced Clutch Disc Single 4 Paddle - 4190109
Clutch Disc; Race; Single Disc; 4 Paddle Design; 7.48 Inch Diameter; 3/4 Inch x 18 Spline Input Shaft; Sprung Hub; Ceramic Friction Material; Steel Plate Material
MPN: 4190109
ACT Xtreme race discs are available in 4 or 6 pad solid hub designs that are highly durable and resistant to heat. ACT recommends 6 pad ACT Xtreme race discs for longer clutch size to absorb more heat and for smoother engagement. The 4 pad ACT Xtreme race discs engage harsher, shift faster, and are well suited for the smaller disc sizes in smaller enginesFeatures
- Lightweight Rigid Design For Quicker Shifts And Smooth, Trouble Free Service
- Spring Center Construction Properly Dampens Torsional Vibrations For Quieter Operation
- Center Section Resists Failure Even Under Harsh Conditions
- Chrome Moly Hub Is Heat Treated For Strength And Durability
- Heat Treated Steel Drive Plate
- High Quality Ceramic Friction Material Which Produces 28 Percent More Friction And Torque Capacity Over Organic Materials
- Limited 1 Year Warranty
Specifications of Advanced Clutch Disc Single 4 Paddle - 4190109 | |
Diameter (IN) | 7.48 Inch |
Friction Face Design | Single 4 Paddle |
Friction Material | Ceramic |
Friction Pad Mounting Type | Riveted |
Hub Design | Sprung Hub |
Input Shaft Diameter (IN) | 3/4 Inch |
Input Spline Quantity | 18 |
Plate Material | Steel |
1988 Chevrolet Sprint
1996 Geo Metro
1997 Geo Metro
1996 Suzuki Esteem
1997 Suzuki Esteem
1998 Suzuki Esteem
1990 Suzuki Swift
1991 Suzuki Swift
1992 Suzuki Swift
1993 Suzuki Swift
1994 Suzuki Swift
1995 Suzuki Swift
1996 Suzuki Swift
1997 Suzuki Swift
1998 Suzuki Swift
1999 Suzuki Swift
2000 Suzuki Swift
