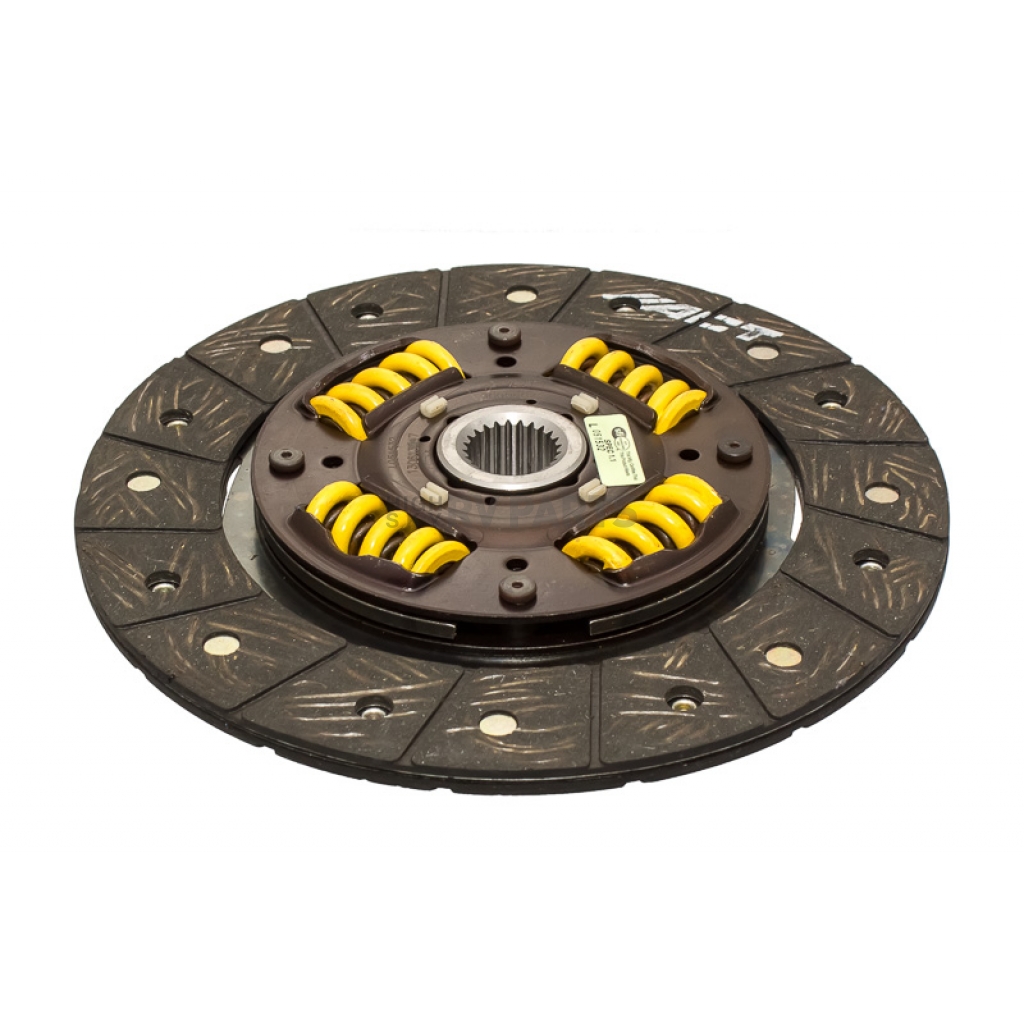

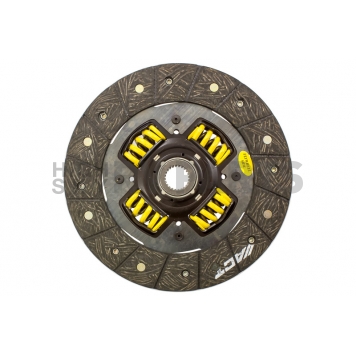

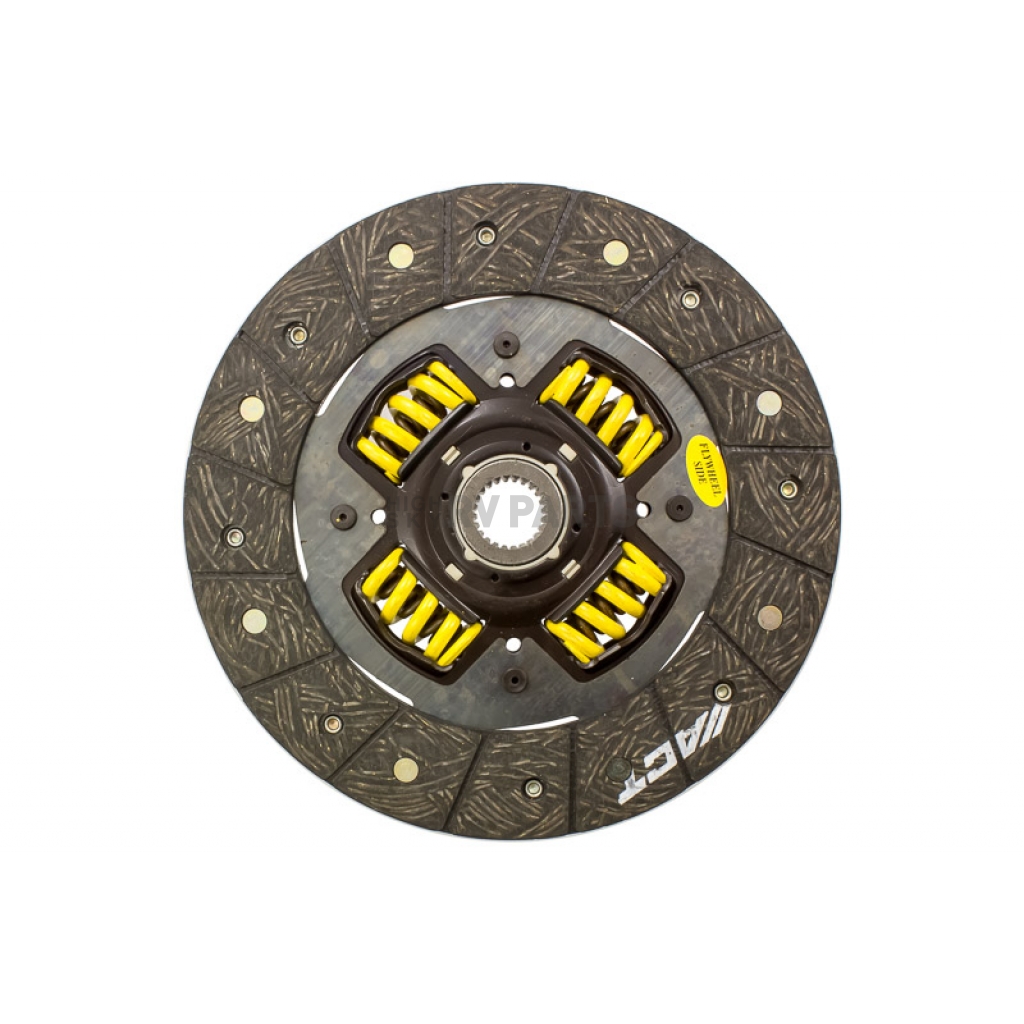

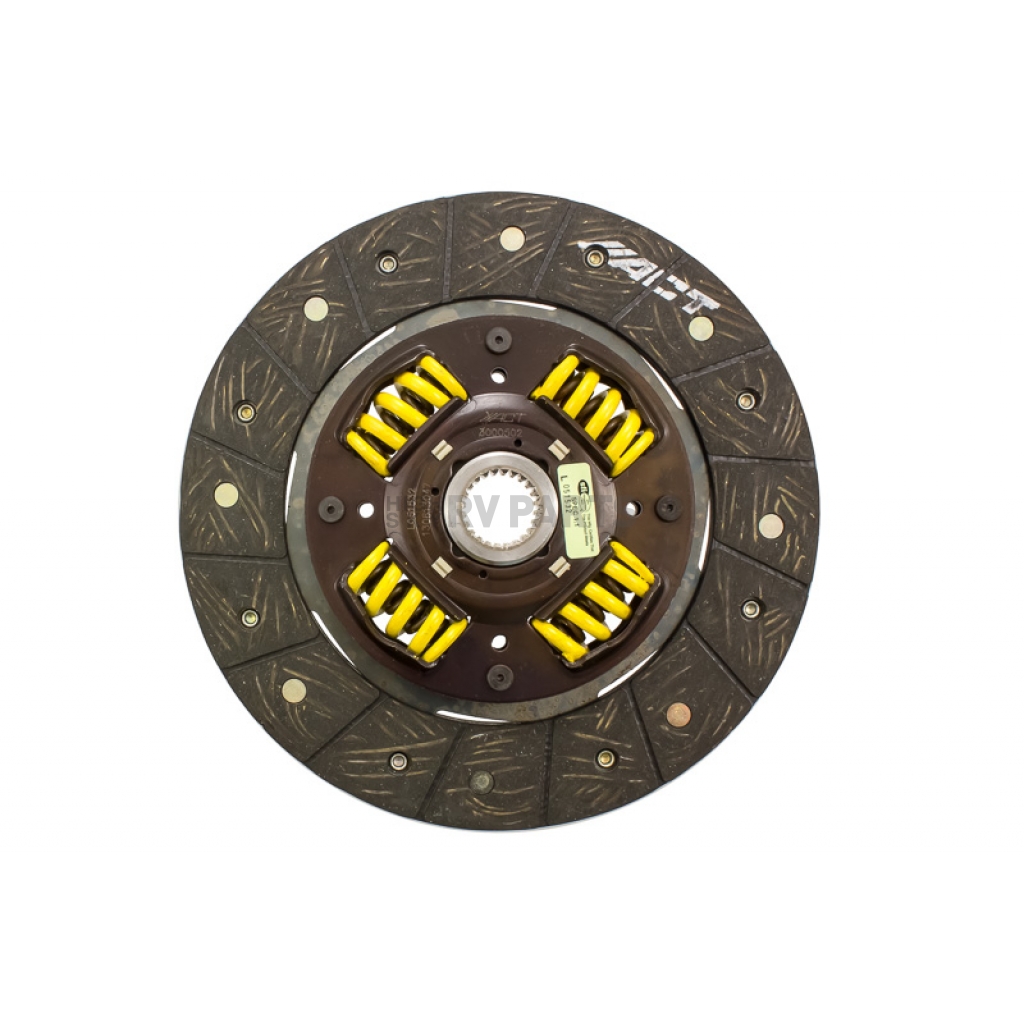

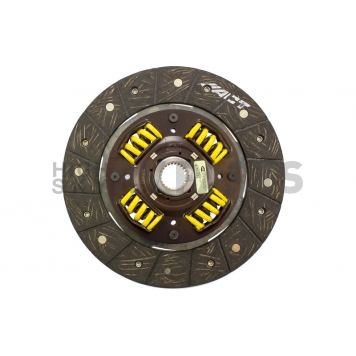

Advanced Clutch Disc Single Full Face - 3000502
Diameter (IN)
9.05 Inch
Friction Face Design
Single Full Face
Friction Material
Organic
Friction Pad Mounting Type
Riveted
Hub Design
Sprung Hub
Input Shaft Diameter (IN)
1-1/8 Inch
Input Spline Quantity
10
Plate Material
Steel
Share this page
Clutch Disc; Street; Single Disc; Full Face Design; 9.05 Inch Diameter; 1-1/8 Inch x 10 Spline Input Shaft; Sprung Hub; Organic Friction Material
MPN: 3000502
ACT’s Performance Street discs are available for most popular applications. These discs are modified with reduced marcel for faster shift action to complement ACT pressure plates. Performance Street discs have higher copper content friction lining for heat tolerance and steel-backed lining for greater burst strength and durability. Also, they feature top grade rivets to securely fasten the part together. The rivet design and rivet materials are carefully selected for maximum strength. ACT spring-centered assemblies use bushings and cone springs similar to factory clutch discs. This creates frictional dampening, which improves clutch life and reduces noise. All Modified, Performance and many standard replacement discs are certified as meeting SFI Specification 1.1 and are legal in all racing organizations that require SFI certification.Friction Face Design: Single Full Face
Diameter (IN): 9.05 Inch
Hub Design: Sprung Hub
Input Shaft Diameter (IN): 1-1/8 Inch
Input Spline Quantity: 10
Friction Material: Organic
Plate Material: Steel
Friction Pad Mounting Type: Riveted
Features
- Center Hub Springs Help Lessen The Shock Of Engagement
- Premium Organic Friction Material For High Heat Tolerance, Quick Recovery, Good Friction And Long Life
- Strict SFI Certification Ensures Driver And Spectator Safety
- Modified With Reduced Marcel For Faster Shift Action And Has Steel-Backed Linings For Higher Burst Strength And Quicker Shifting And Engagement
- Spring Center Construction Properly Dampens Torsional Vibrations For Quieter Operation
- Spring Retainers Feature Heat-Treated Wraparound Spring Windows That Provide Support And Reduce Stress Concentrations That Are Common Causes For Failure
- Limited 1 Year Warranty
| Specifications of Advanced Clutch Disc Single Full Face - 3000502 | |
| Diameter (IN) | 9.05 Inch |
| Friction Face Design | Single Full Face |
| Friction Material | Organic |
| Friction Pad Mounting Type | Riveted |
| Hub Design | Sprung Hub |
| Input Shaft Diameter (IN) | 1-1/8 Inch |
| Input Spline Quantity | 10 |
| Plate Material | Steel |
2005 Saab 9-2X
2006 Saab 9-2X
2006 Saab 9-2X
2004 Subaru Baja
2005 Subaru Baja
2006 Subaru Baja
2005 Subaru Baja
2006 Subaru Baja
2004 Subaru Forester
2005 Subaru Forester
2006 Subaru Forester
2005 Subaru Forester
2006 Subaru Forester
2002 Subaru Impreza
2003 Subaru Impreza
2004 Subaru Impreza
2005 Subaru Impreza
2006 Subaru Impreza
2007 Subaru Impreza
2008 Subaru Impreza
2009 Subaru Impreza
2010 Subaru Impreza
2011 Subaru Impreza
2003 Subaru Impreza
2004 Subaru Impreza
2005 Subaru Impreza
2006 Subaru Impreza
2007 Subaru Impreza
2008 Subaru Impreza
2009 Subaru Impreza
2010 Subaru Impreza
2011 Subaru Impreza
1991 Subaru Legacy
1992 Subaru Legacy
1993 Subaru Legacy
1994 Subaru Legacy
1992 Subaru Legacy
1993 Subaru Legacy
1994 Subaru Legacy
2005 Subaru Legacy
2006 Subaru Legacy
2006 Subaru Legacy
2008 Subaru Legacy
2009 Subaru Legacy
2009 Subaru Legacy
2015 Subaru WRX
2016 Subaru WRX
2017 Subaru WRX
2018 Subaru WRX
2019 Subaru WRX
2020 Subaru WRX
2021 Subaru WRX
2016 Subaru WRX
2017 Subaru WRX
2018 Subaru WRX
2019 Subaru WRX
2020 Subaru WRX
2021 Subaru WRX
