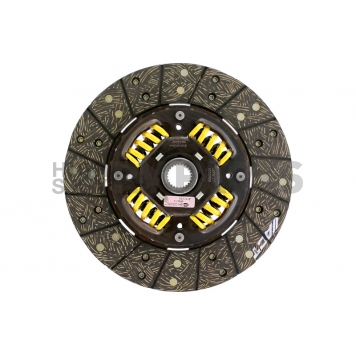

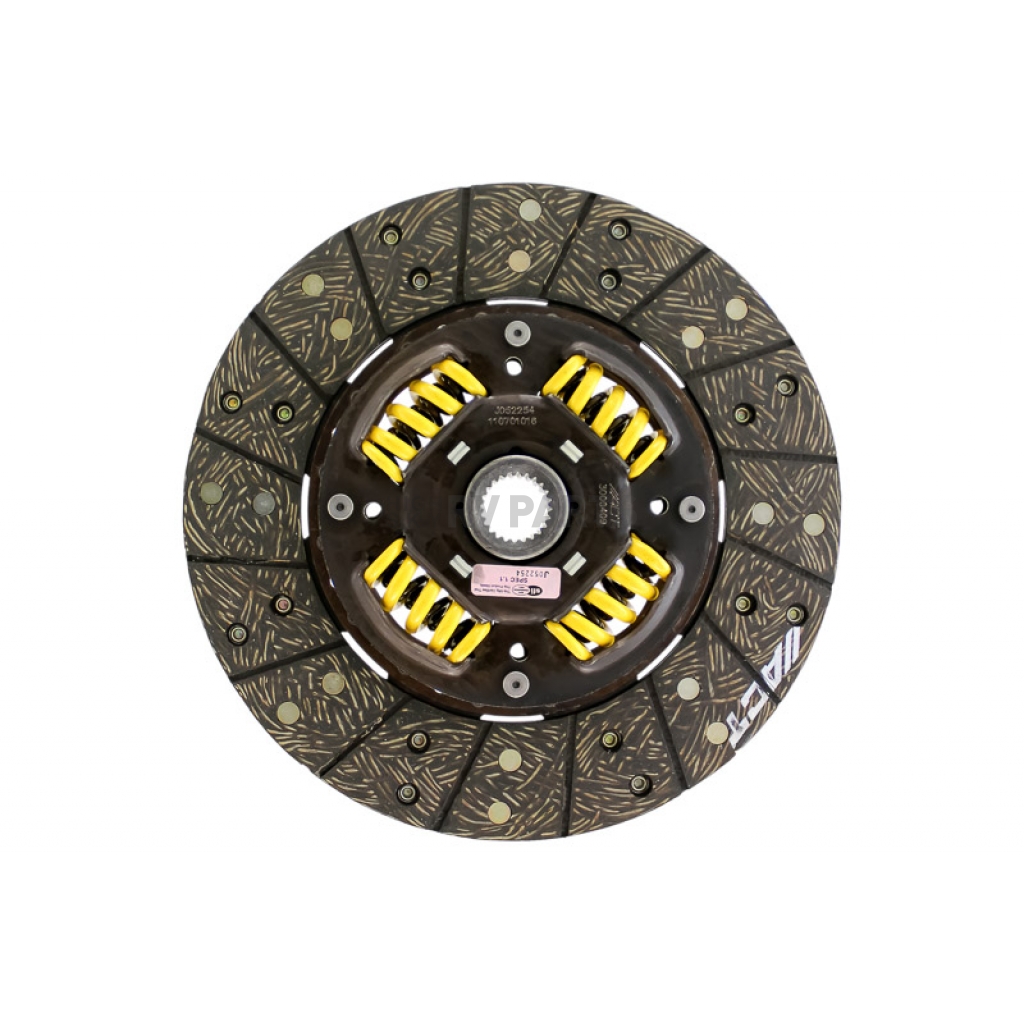

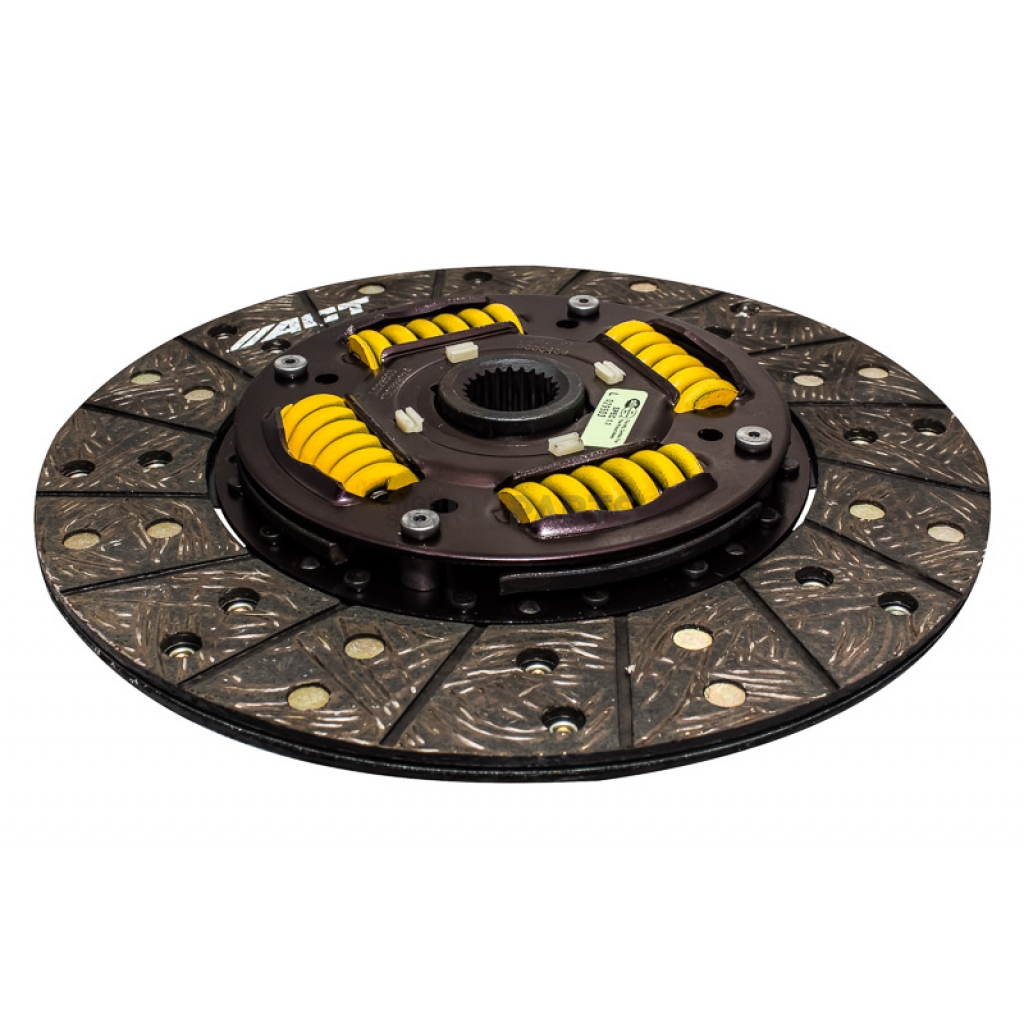

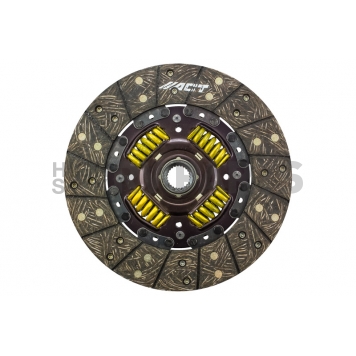

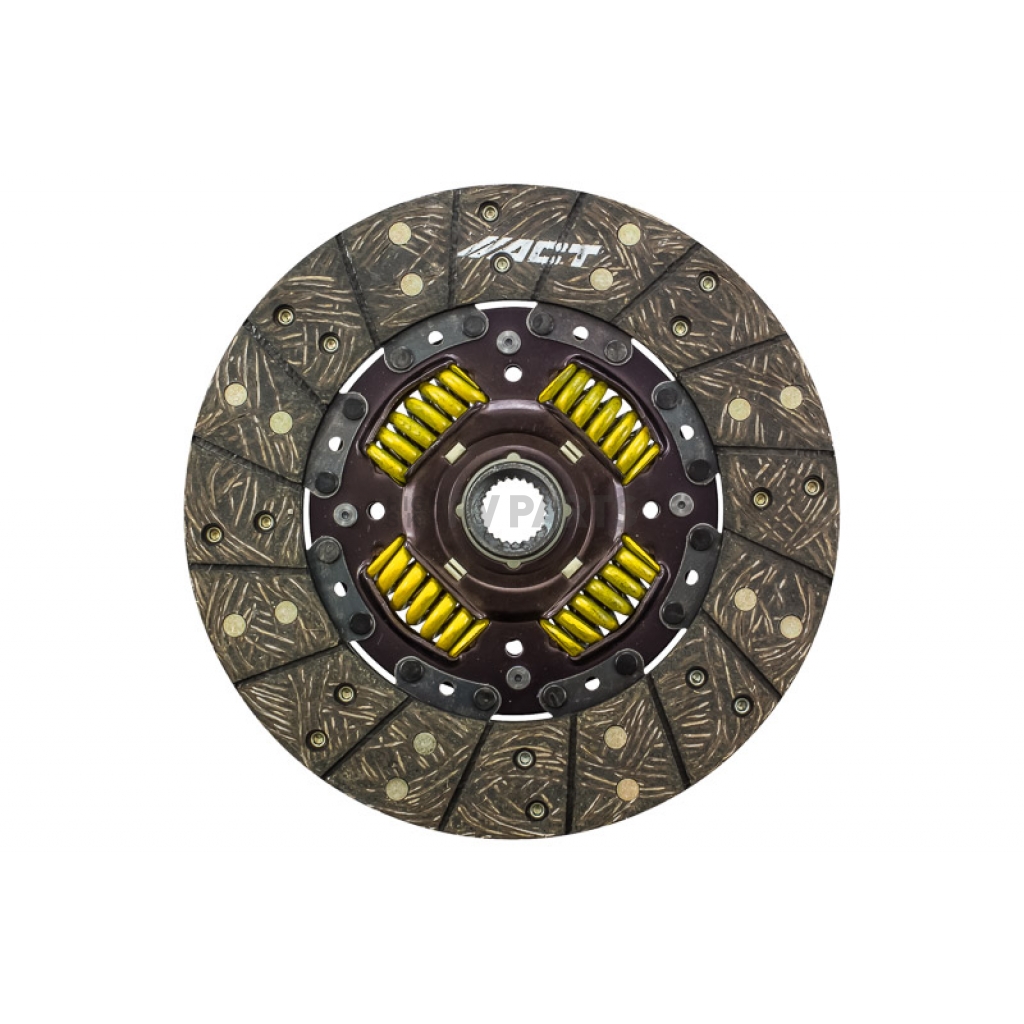

Advanced Clutch Disc Single Full Face - 3000409

Name: Advanced Clutch Disc Single Full Face - 3000409
Brand: Advanced Clutch
SKU: 3000409
Price: 216.99 USD
Availability: InStock

Authorized Dealer

Brand:

Advanced Clutch

0 reviews

Have a product question? Ask us
Part Number: 3000409
Part Location: U.S.
Availability: *Special Order
Delivery: 2 - 3 Weeks

Retail: $227.84

Price: $216.99

You Save: $10.85

Diameter (IN)

9.84 Inch

Friction Face Design

Single Full Face

Friction Material

Organic

Friction Pad Mounting Type

Riveted

Hub Design

Sprung Hub

Input Shaft Diameter (IN)

3/4 Inch

Input Spline Quantity

Plate Material

Steel

Share this page

Clutch Disc; Street; Single Disc; Full Face Design; 9.84 Inch Diameter; 3/4 Inch x 18 Spline Input Shaft; Sprung Hub; Organic Friction Material

MPN: 3000409

ACT’s Performance Street discs are available for most popular applications. These discs are modified with reduced marcel for faster shift action to complement ACT pressure plates. Performance Street discs have higher copper content friction lining for heat tolerance and steel-backed lining for greater burst strength and durability. Also, they feature top grade rivets to securely fasten the part together. The rivet design and rivet materials are carefully selected for maximum strength. ACT spring-centered assemblies use bushings and cone springs similar to factory clutch discs. This creates frictional dampening, which improves clutch life and reduces noise. All Modified, Performance and many standard replacement discs are certified as meeting SFI Specification 1.1 and are legal in all racing organizations that require SFI certification.

Friction Face Design: Single Full Face

Diameter (IN): 9.84 Inch

Hub Design: Sprung Hub

Input Shaft Diameter (IN): 3/4 Inch

Input Spline Quantity: 18

Friction Material: Organic

Plate Material: Steel

Friction Pad Mounting Type: Riveted

Features

Center Hub Springs Help Lessen The Shock Of Engagement
Premium Organic Friction Material For High Heat Tolerance, Quick Recovery, Good Friction And Long Life
Strict SFI Certification Ensures Driver And Spectator Safety
Modified With Reduced Marcel For Faster Shift Action And Has Steel-Backed Linings For Higher Burst Strength And Quicker Shifting And Engagement
Spring Center Construction Properly Dampens Torsional Vibrations For Quieter Operation
Spring Retainers Feature Heat-Treated Wraparound Spring Windows That Provide Support And Reduce Stress Concentrations That Are Common Causes For Failure
Limited 1 Year Warranty

Specifications of Advanced Clutch Disc Single Full Face - 3000409
Diameter (IN)	9.84 Inch
Friction Face Design	Single Full Face
Friction Material	Organic
Friction Pad Mounting Type	Riveted
Hub Design	Sprung Hub
Input Shaft Diameter (IN)	3/4 Inch
Input Spline Quantity	18
Plate Material	Steel
