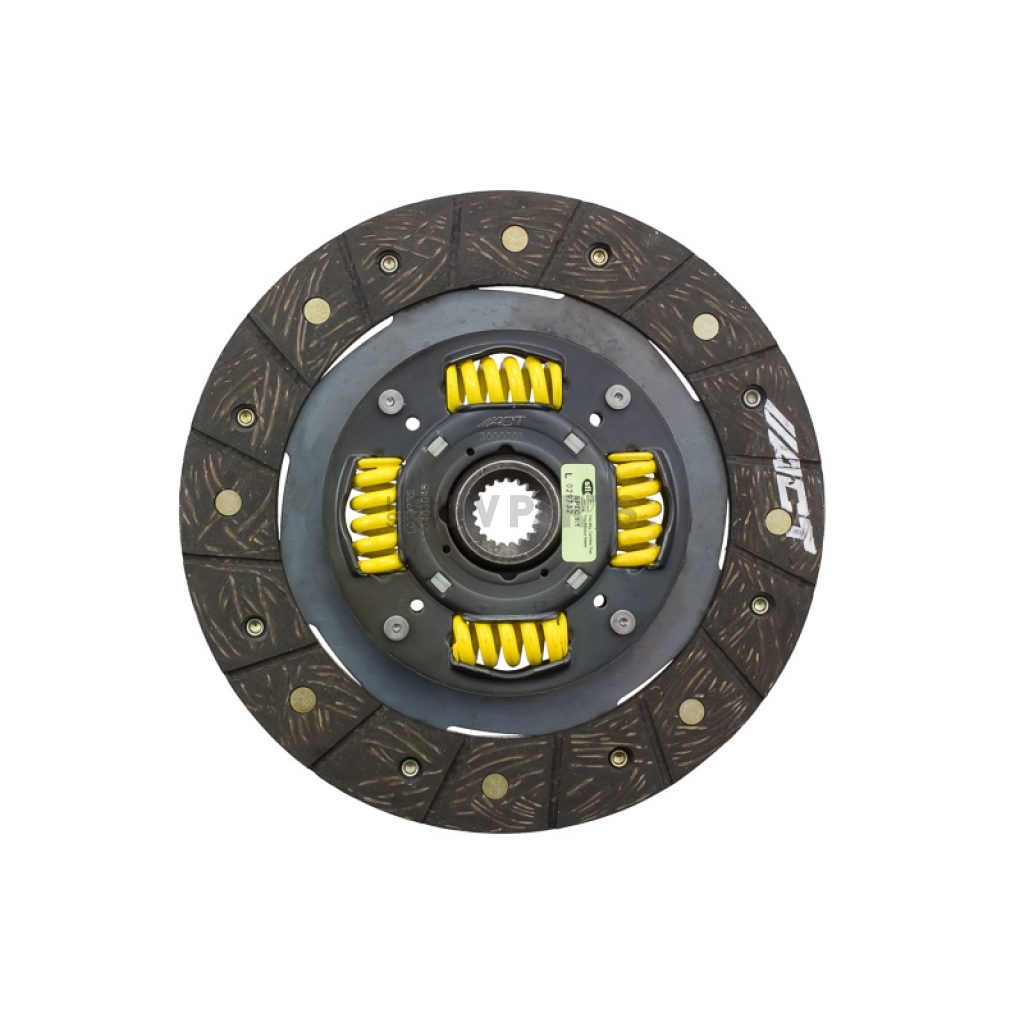

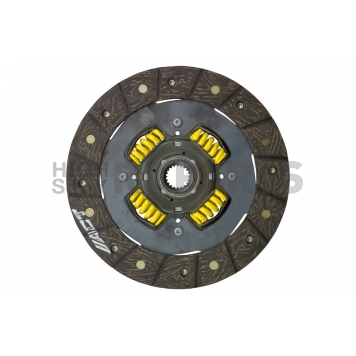

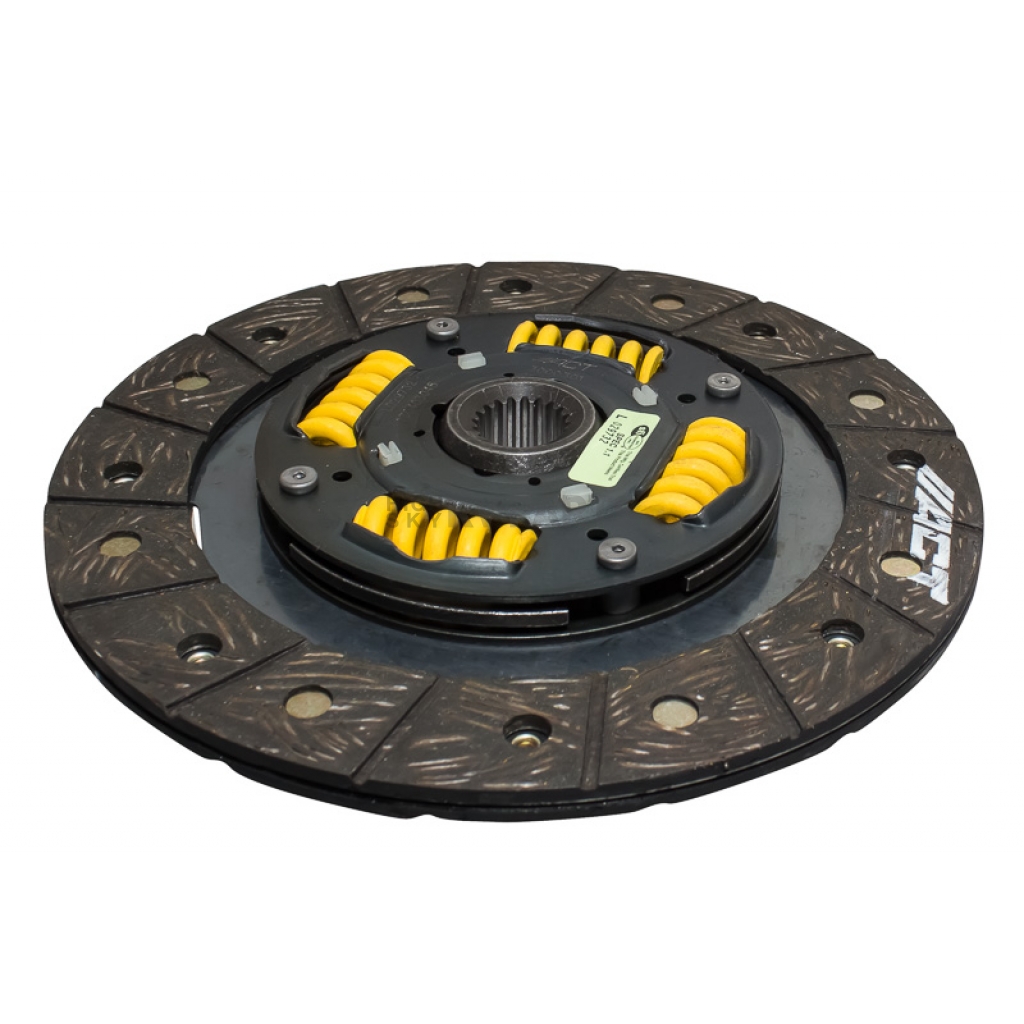

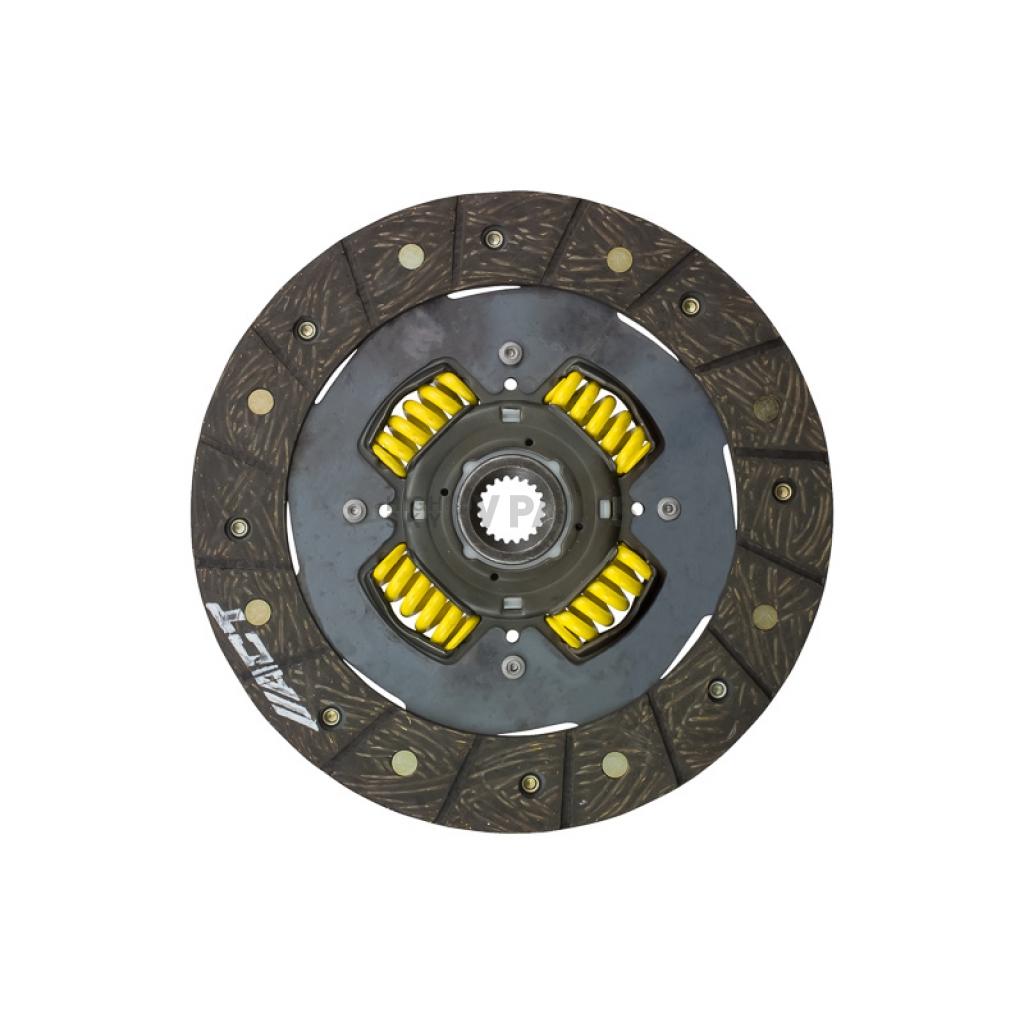

Advanced Clutch Disc Single Full Face - 3000301

Authorized Dealer
Brand: Advanced Clutch Advanced Clutch
0 reviews
  • Have a product question? Ask us
  • Part Number: 3000301
  • Part Location: U.S.
  • Availability: *Special Order
  • Delivery: 2 - 3 Weeks
Retail: $208.94
Price: $198.99
You Save: $9.95
Diameter (IN)
 8.46 Inch
Friction Face Design
 Single Full Face
Friction Material
 Organic
Friction Pad Mounting Type
 Riveted
Hub Design
 Sprung Hub
Input Shaft Diameter (IN)
 13/16 Inch
Input Spline Quantity
 24
Plate Material
 Steel
Share this page

Clutch Disc; Performance Street; Single Disc; Full Face Design; 8.46 Inch Diameter; 13/16 Inch x 24 Spline Input Shaft; Sprung Hub; Organic Friction Material

MPN: 3000301

ACT’s Performance Street discs are available for most popular applications. These discs are modified with reduced marcel for faster shift action to complement ACT pressure plates. Performance Street discs have higher copper content friction lining for heat tolerance and steel-backed lining for greater burst strength and durability. Also, they feature top grade rivets to securely fasten the part together. The rivet design and rivet materials are carefully selected for maximum strength. ACT spring-centered assemblies use bushings and cone springs similar to factory clutch discs. This creates frictional dampening, which improves clutch life and reduces noise. All Modified, Performance and many standard replacement discs are certified as meeting SFI Specification 1.1 and are legal in all racing organizations that require SFI certification.

Friction Face Design: Single Full Face
Diameter (IN): 8.46 Inch
Hub Design: Sprung Hub
Input Shaft Diameter (IN): 13/16 Inch
Input Spline Quantity: 24
Friction Material: Organic
Plate Material: Steel
Friction Pad Mounting Type: Riveted

Features

  • Center Hub Springs Help Lessen The Shock Of Engagement
  • Premium Organic Friction Material For High Heat Tolerance, Quick Recovery, Good Friction And Long Life
  • Strict SFI Certification Ensures Driver And Spectator Safety
  • Modified With Reduced Marcel For Faster Shift Action And Has Steel-Backed Linings For Higher Burst Strength And Quicker Shifting And Engagement
  • Spring Center Construction Properly Dampens Torsional Vibrations For Quieter Operation
  • Spring Retainers Feature Heat-Treated Wraparound Spring Windows That Provide Support And Reduce Stress Concentrations That Are Common Causes For Failure
  • Limited 1 Year Warranty
Specifications of Advanced Clutch Disc Single Full Face - 3000301
Diameter (IN)  8.46 Inch
Friction Face Design  Single Full Face
Friction Material  Organic
Friction Pad Mounting Type  Riveted
Hub Design  Sprung Hub
Input Shaft Diameter (IN)  13/16 Inch
Input Spline Quantity  24
Plate Material  Steel

1989 Dodge Colt
1990 Dodge Colt

1993 Dodge Colt
1994 Dodge Colt

1992 Eagle Summit
1993 Eagle Summit
1994 Eagle Summit

1990 Eagle Talon
1991 Eagle Talon
1992 Eagle Talon
1993 Eagle Talon
1994 Eagle Talon

1993 Hyundai Elantra
1994 Hyundai Elantra
1995 Hyundai Elantra

1993 Hyundai Scoupe
1994 Hyundai Scoupe
1995 Hyundai Scoupe

1992 Hyundai Sonata
1993 Hyundai Sonata
1994 Hyundai Sonata

1990 Mitsubishi Eclipse
1991 Mitsubishi Eclipse
1992 Mitsubishi Eclipse
1993 Mitsubishi Eclipse
1994 Mitsubishi Eclipse

1992 Mitsubishi Expo LRV
1993 Mitsubishi Expo LRV
1994 Mitsubishi Expo LRV

1989 Mitsubishi Galant
1990 Mitsubishi Galant
1991 Mitsubishi Galant
1992 Mitsubishi Galant
1993 Mitsubishi Galant

2002 Mitsubishi Lancer
2003 Mitsubishi Lancer
2004 Mitsubishi Lancer
2005 Mitsubishi Lancer

1988 Mitsubishi Mirage
1989 Mitsubishi Mirage

1991 Mitsubishi Mirage
1992 Mitsubishi Mirage
1993 Mitsubishi Mirage
1994 Mitsubishi Mirage
1995 Mitsubishi Mirage
1996 Mitsubishi Mirage
1997 Mitsubishi Mirage
1998 Mitsubishi Mirage
1999 Mitsubishi Mirage
2000 Mitsubishi Mirage
2001 Mitsubishi Mirage
2002 Mitsubishi Mirage

1990 Plymouth Laser
1991 Plymouth Laser
1992 Plymouth Laser
1993 Plymouth Laser
1994 Plymouth Laser
